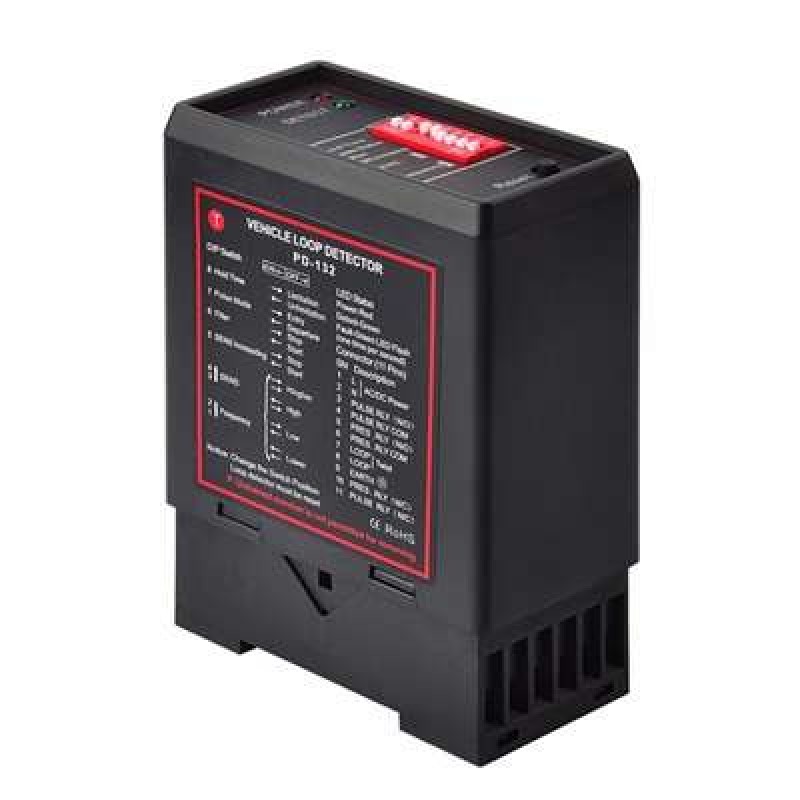

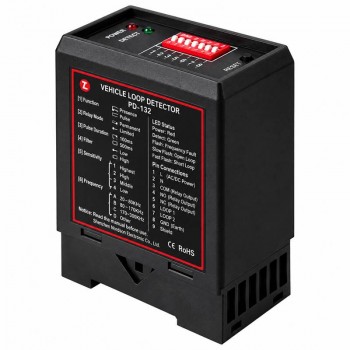

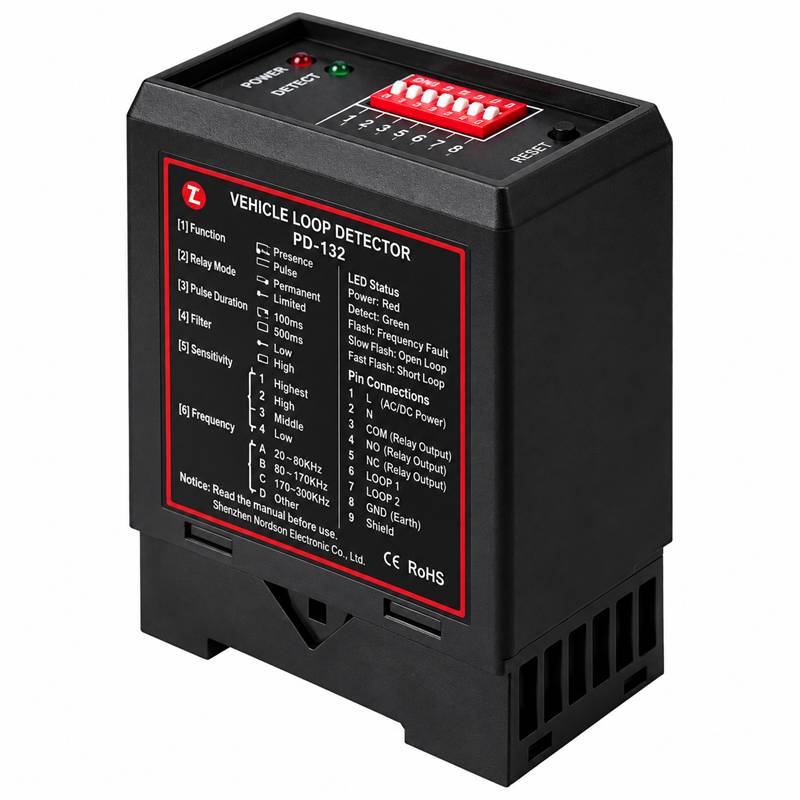

PD-132 Vehicle Loop Detector 12V UAE

The PD-132 Vehicle Loop Detector 12V is a single-channel inductive vehicle detector designed for automatic parking barriers, sliding gates, swing gates and vehicle access control systems.

Operating on a 12V AC power supply, the PD-132 detects vehicles through an inductive loop cable installed underneath the road surface. When a vehicle enters the detection area, the detector activates its relay output to provide a signal to the connected gate, parking barrier or access control system.

With a fast 10 ms reaction time, four adjustable sensitivity levels and reliable vehicle presence detection, the PD-132 12V is suitable for residential, commercial and industrial vehicle access applications.

Key Features

• PD-132 single channel vehicle loop detector
• 12V AC power supply
• Inductive vehicle detection technology
• Single loop / single channel operation
• Fast 10 ms reaction time
• 4 adjustable sensitivity levels
• Ideal loop inductance: 100–300 μH
• Maximum loop connection wiring: 20 metres
• Unlimited / limited signal holding modes
• Compact 78 × 40 × 108 mm housing
• Suitable for parking barriers
• Suitable for automatic sliding gates
• Suitable for automatic swing gates
• Suitable for free-exit vehicle detection
• Suitable for barrier safety detection
• Suitable for access control systems

Technical Specifications

How the PD-132 12V Loop Detector Works

The PD-132 operates together with an inductive loop cable installed underneath the road surface.

When a vehicle passes over or stops above the loop, the metal mass of the vehicle changes the inductance of the loop. The PD-132 detects this change and activates its relay output.

The relay output can then provide a command or vehicle-presence signal to a compatible automatic gate, parking barrier or access control controller.

12V Vehicle Loop Detector

This version of the PD-132 operates from a 12V AC power supply, making it suitable for gate and parking systems where a compatible low-voltage 12V supply is available.

Always verify the voltage printed on the detector label before connecting power.

Single Channel Inductive Loop Detector

The PD-132 is a single-channel detector designed to monitor one inductive vehicle loop.

For applications requiring two independent loops, a dual-channel vehicle loop detector should be used.

PD-132 12V for Parking Barriers

The PD-132 12V can be integrated with compatible automatic parking barriers for vehicle detection.

Depending on the barrier controller and wiring configuration, its relay output can be used for automatic opening, vehicle presence or safety functions.

Automatic Barrier Opening

For a compatible parking barrier with a dedicated OPEN input, the PD-132 relay can be configured to provide an opening command when a vehicle is detected.

This is useful for free-exit lanes where vehicles need to open the barrier automatically without using a remote control, RFID card or push button.

Free Exit Vehicle Detection

The PD-132 is commonly used for free-exit vehicle detection.

An inductive loop is installed inside the property. When an exiting vehicle drives over the loop, the PD-132 detects the vehicle and its relay can provide an OPEN signal to a compatible gate or parking barrier controller.

Barrier Safety Loop

The detector can also be used for vehicle-presence and safety applications.

A loop installed underneath or near the parking barrier boom can detect a vehicle in the barrier area. The corresponding relay signal can be connected to the appropriate safety or presence input of a compatible barrier controller.

PD-132 for Sliding Gates

The 12V PD-132 can be integrated with compatible automatic sliding gate systems for vehicle detection, free-exit operation and supported safety functions.

The detector relay should be connected to the appropriate dedicated input on the gate control board according to the required function.

PD-132 for Swing Gates

Automatic swing gate systems can also use the PD-132 where inductive ground-loop vehicle detection is required.

It can provide vehicle detection for automatic opening, free exit or other functions supported by the gate control board.

Fast 10 ms Vehicle Detection

The PD-132 provides a fast reaction time of approximately 10 milliseconds, allowing quick response when a vehicle enters the inductive loop detection area.

4 Adjustable Sensitivity Levels

Four sensitivity settings allow the detector to be adjusted according to the loop dimensions, installation environment and vehicle detection requirements.

Correct sensitivity adjustment is important for stable vehicle detection and reliable gate or barrier operation.

100–300 μH Recommended Loop Inductance

The recommended total loop inductance for the PD-132 is approximately 100–300 μH.

Correct loop dimensions, number of turns and cable installation are important for achieving reliable vehicle detection.

Maximum 20 Metre Loop Connection

The connection wiring between the inductive loop and PD-132 detector can be up to approximately 20 metres.

The lead-in wires should be twisted at least 20 times per metre to help reduce interference and maintain stable detector operation.

PD-132 12V Applications

• Automatic parking barriers
• Sliding gate motors
• Swing gate motors
• Free-exit gate systems
• Vehicle presence detection
• Barrier safety detection
• Automatic gate opening
• Vehicle access control systems
• RFID parking systems
• ANPR access systems
• Ticket parking systems
• Residential entrances
• Commercial parking facilities
• Factories and warehouses

PD-132 Vehicle Loop Detector 12V Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies PD-132 12V vehicle loop detectors in UAE for automatic gates, parking barriers and vehicle access control systems.

Supply, installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
