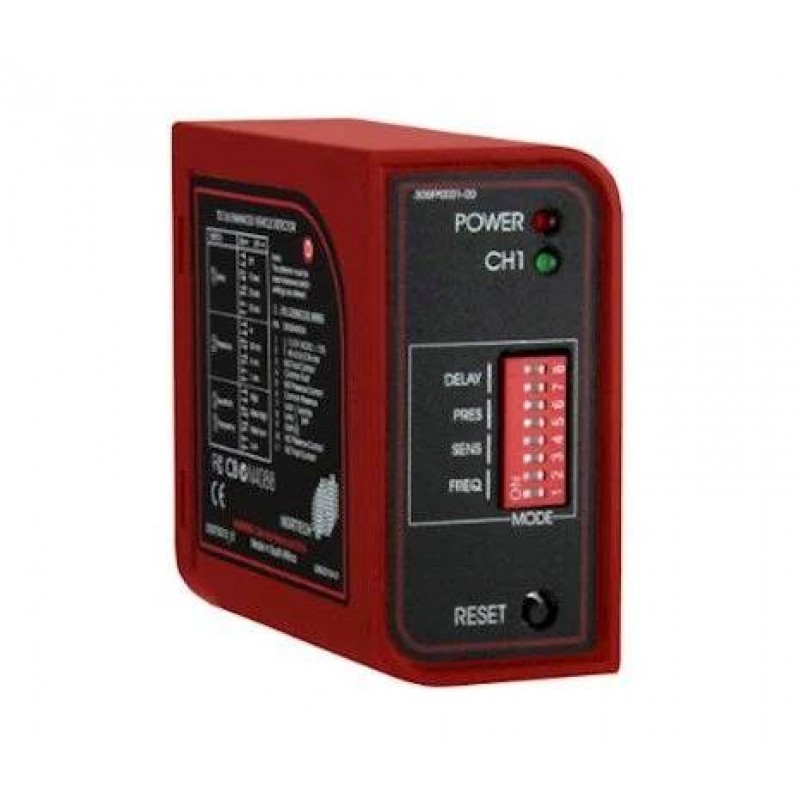

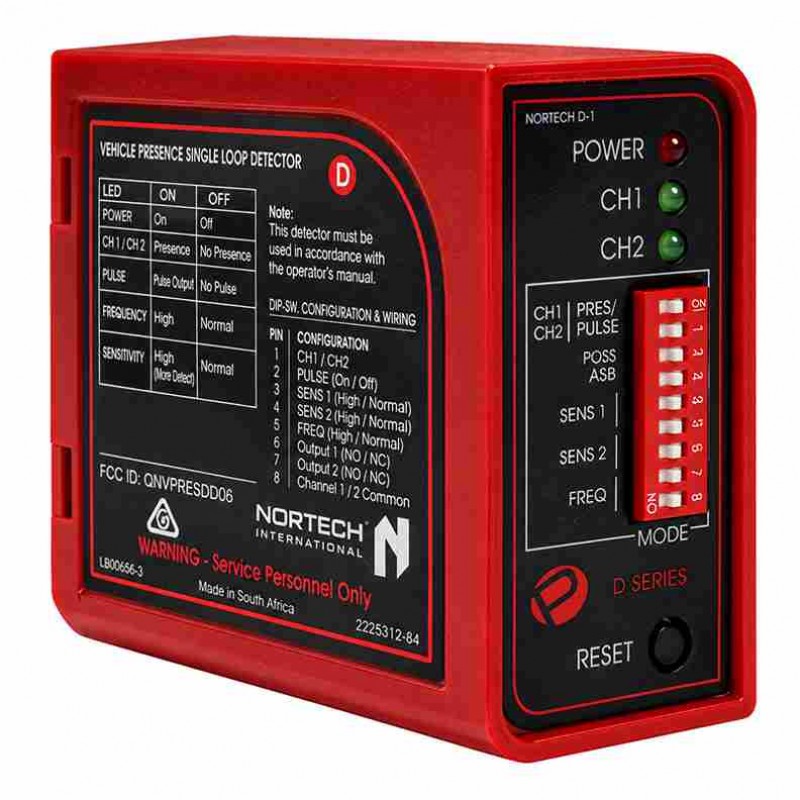

Nortech PD132 / PD134 Vehicle Loop Detector UAE
Price 580 AEDIn Stock
The Nortech PD132 / PD134 Vehicle Loop Detector is a professional single-channel inductive vehicle detector designed for automatic parking barriers, sliding gates, swing gates, industrial doors and vehicle access control systems.
The detector works with an inductive loop installed underneath the road surface. When a vehicle enters the loop detection area, the detector senses the change in loop inductance and activates its relay output for integration with a compatible gate, barrier or access control system.
The Nortech PD132 is designed for 230/240V AC operation, while the Nortech PD134 provides low-voltage 12–24V AC/DC operation.
Key Features
- Genuine Nortech vehicle loop detector
- PD132 and PD134 models
- Enhanced single-channel vehicle detection
- Single inductive loop input
- PD132: 230/240V AC power supply
- PD134: 12–24V AC/DC power supply
- 20–1500 μH self-tuning range
- 4 adjustable sensitivity levels
- 4 selectable frequency settings
- 12–80 kHz operating frequency
- Presence relay output
- Pulse relay output
- Selectable permanent presence
- Automatic Sensitivity Boost (ASB)
- Selectable detect filter
- Loop frequency indication
- Loop isolation protection
- Diagnostic capabilities
- Suitable for high-bed vehicles and trucks
- Suitable for automatic parking barriers
- Suitable for automatic gates
Technical Specifications
| Brand | Nortech |
| Models | PD132 / PD134 |
| Product Type | Enhanced Single Channel Vehicle Loop Detector |
| PD132 Power Supply | 230/240V AC |
| PD134 Power Supply | 12–24V AC/DC |
| Power Consumption | 1.5 VA Maximum @ 230V |
| Channels | 1 Channel / 1 Loop |
| Self-Tuning Range | 20–1500 μH |
| Sensitivity | 4-Step Adjustable |
| High Sensitivity | 0.02% ΔL/L |
| Medium High | 0.05% ΔL/L |
| Medium Low | 0.1% ΔL/L |
| Low Sensitivity | 0.5% ΔL/L |
| Frequency | 12–80 kHz, 4-Step Adjustable |
| Output Relays | 2 – Presence Relay + Pulse Relay |
| Relay Rating | 5A @ 230V AC |
| Pulse Duration | Approx. 150 ms |
| Presence Mode | Limited / Permanent Presence |
| Automatic Sensitivity Boost | Selectable ON / OFF |
| Filter | Selectable – Approx. 2 Second Delay |
| Operating Temperature | -40°C to +70°C |
| Housing Material | High Heat ABS Blend |
| Dimensions | 78 × 41 × 80 mm |
| Mounting | Shelf or DIN-Rail Socket |
| Connector | 11-Pin Connector |
How the Nortech Loop Detector Works
An inductive loop cable is installed underneath the road surface and connected to the Nortech detector.
When a vehicle enters or stops over the loop, the metal mass of the vehicle changes the electrical inductance of the loop. The detector identifies this change and activates the appropriate relay output.
The relay signal can then be used by a compatible automatic gate, parking barrier, industrial door or access control system.
Nortech PD132 230/240V Loop Detector
The Nortech PD132 is the mains-powered version of the detector and operates from a 230/240V AC supply.
It is suitable for gate and parking barrier installations where a compatible mains power supply is available inside the control cabinet.
Nortech PD134 12–24V AC/DC Loop Detector
The Nortech PD134 is the low-voltage version and operates from a 12–24V AC/DC power supply.
This makes the PD134 suitable for installations where a compatible low-voltage supply is available from the gate, barrier or access-control equipment.
Single Channel Vehicle Detection
The Nortech PD132 and PD134 are single-channel detectors designed to monitor one inductive vehicle loop.
The detector can be configured for vehicle presence, pulse-on-detect or pulse-on-undetect applications depending on the required system operation.
Presence & Pulse Relay Outputs
The detector provides two relay outputs: a presence relay and a pulse relay.
The presence output can be used where the connected system needs to know that a vehicle remains over the loop, while the pulse output can provide a short signal when the vehicle arrives or leaves.
Selectable Permanent Presence
Permanent presence mode allows the detector's presence relay to remain active while a vehicle continues to occupy the loop.
This is particularly useful for gate and parking barrier applications where reliable vehicle presence detection can help prevent premature closure.
Automatic Sensitivity Boost – ASB
The Automatic Sensitivity Boost (ASB) function automatically increases sensitivity after a vehicle has been detected.
This feature is particularly useful for reliable detection of high-bed vehicles, SUVs, trucks and truck-trailer combinations.
4-Level Adjustable Sensitivity
Four selectable sensitivity levels allow the detector to be configured according to the loop geometry, vehicle type and installation conditions.
- High: 0.02% ΔL/L
- Medium High: 0.05% ΔL/L
- Medium Low: 0.1% ΔL/L
- Low: 0.5% ΔL/L
20–1500 μH Self-Tuning Range
The detector provides a wide 20–1500 μH self-tuning range, allowing compatibility with a broad range of correctly designed inductive vehicle loops.
Adjustable Loop Frequency
Four frequency settings are available within approximately 12–80 kHz, with the actual operating frequency influenced by the loop geometry.
Adjusting the frequency can help reduce crosstalk when multiple inductive loops are installed close to each other.
Loop Isolation Protection
The detector incorporates loop isolation and surge protection features to help protect the electronics against electrical transients affecting the inductive loop.
Diagnostic Capabilities
The Nortech detector provides diagnostic capabilities and can be used with compatible Nortech diagnostic equipment for installation and troubleshooting.
This can assist technicians with checking detector and loop performance during commissioning or maintenance.
Nortech Loop Detector for Parking Barriers
The PD132 and PD134 can be integrated with compatible automatic parking barrier systems for vehicle detection.
Depending on the barrier controller configuration, the detector can provide presence, safety, automatic opening or vehicle-triggered control signals.
Free Exit Vehicle Detection
A Nortech loop detector can be used in a free-exit system where vehicles leaving a property need to open an automatic gate or parking barrier without using a remote control or access card.
The loop detector relay is connected to the appropriate OPEN input of the compatible gate or barrier controller.
Vehicle Safety Loop
The presence relay can be used with a compatible safety input to indicate that a vehicle remains within the loop area.
This type of configuration is commonly used around parking barriers and automated vehicle entrances where vehicle presence information is required.
Nortech Loop Detector for Automatic Gates
The detector is suitable for compatible sliding gates, swing gates and industrial motorised doors where inductive vehicle detection is required.
Nortech PD132 / PD134 Applications
- Automatic parking barriers
- Sliding gate motors
- Swing gate motors
- Industrial automatic doors
- Free-exit systems
- Vehicle presence detection
- Barrier safety loops
- Automatic gate opening
- Parking management systems
- Vehicle access control
- RFID vehicle access
- ANPR access systems
- Ticket parking systems
- Commercial parking facilities
- Factories and warehouses
Nortech PD132 / PD134 Loop Detector Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies Nortech PD132 and PD134 vehicle loop detectors in UAE for automatic parking barriers, gates and vehicle access control systems.
Supply, installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
