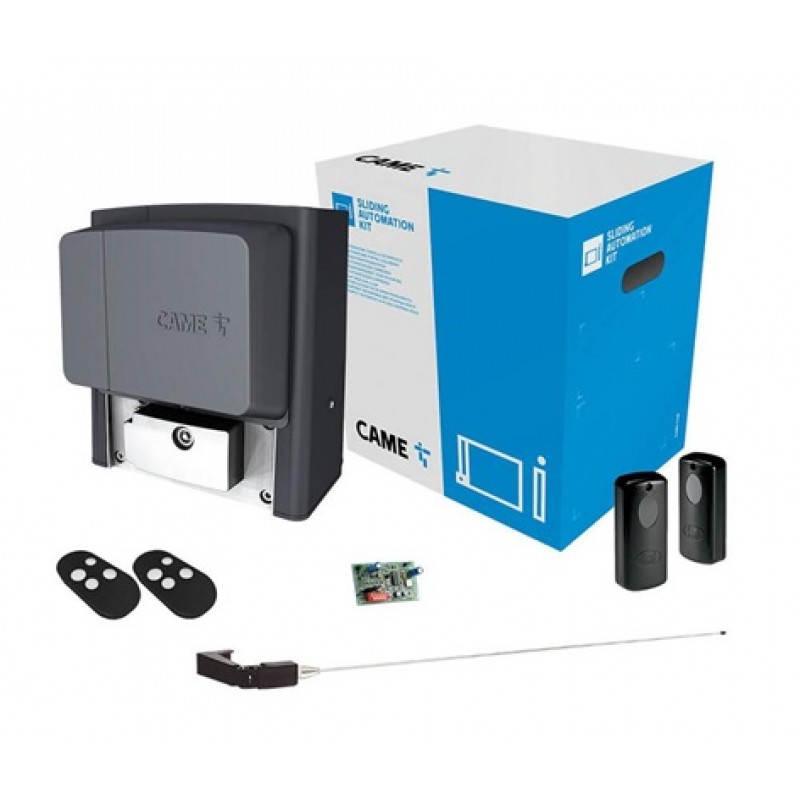

CAME BK 1800 KG Sliding Gate Motor UAE
Price 4,000 AEDIn Stock
The CAME BK 1800 KG Sliding Gate Motor is a heavy-duty 230V automatic gate operator designed for large residential, commercial and industrial sliding gates weighing up to 1800 kg and measuring up to 20 metres in length.
The CAME BKS18AGS 801MS-0090 features a powerful 230V motor delivering 480W power and 1150N thrust, with a gate movement speed of approximately 10.5 metres per minute.
Designed for demanding sliding gate automation, the BK 1800 incorporates an electronic control board with programming display, built-in radio decoding and mechanical opening and closing limit switches.
With its heavy-duty gearbox, Module 4 pinion and professional control system, the CAME BK 1800 is suitable for villas, residential compounds, warehouses, factories, commercial properties and industrial vehicle entrances.
Key Features
- Original CAME automatic sliding gate motor
- CAME BK Series
- Model BKS18AGS
- Product code 801MS-0090
- Maximum sliding gate weight 1800 kg
- Maximum gate leaf length 20 metres
- 230V AC motor
- 480W motor power
- 1150N maximum thrust
- 10.5 m/min gate movement speed
- 14 cycles per hour
- Module 4 pinion
- Mechanical limit switches
- Electronic control board with programming display
- Built-in radio decoding
- Configurable safety inputs
- 8.2kΩ resistive safety edge support
- CAME CONNECT compatible
- IP44 protection rating
- Suitable for heavy-duty sliding gates
Technical Specifications
| Brand | CAME |
| Series | BK |
| Model | BKS18AGS |
| Product Code | 801MS-0090 |
| Product Type | Automatic Sliding Gate Motor |
| Maximum Gate Weight | 1800 kg |
| Maximum Gate Length | 20 m |
| Motor Power Supply | 230V AC |
| Current Draw | 4.2A |
| Motor Power | 480W |
| Thrust | 1150N |
| Movement Speed | 10.5 m/min |
| Cycles Per Hour | 14 |
| Pinion Module | Module 4 |
| Limit Switch | Mechanical |
| Protection Rating | IP44 |
| Operating Temperature | -20°C to +55°C |
CAME BKS18AGS 230V Heavy-Duty Sliding Gate Opener up to 1800 KG
The CAME BK 1800 KG is engineered for large and heavy automatic sliding gates. With a maximum gate capacity of 1800 kg and maximum leaf length of 20 metres, it is suitable for demanding residential, commercial and industrial entrances.
480W Motor with 1150N Thrust
The CAME BKS18AGS uses a 480W 230V motor capable of delivering up to 1150N of thrust. This provides reliable movement for heavy sliding gates when the gate wheels, track and structure are correctly installed and maintained.
10.5 Metres Per Minute Gate Speed
The operator provides a movement speed of approximately 10.5 metres per minute, offering reliable opening and closing performance for large vehicle entrances.
Integrated Electronic Control Board
The CAME BK 1800 includes an electronic control board with an integrated programming display and on-board radio decoding.
The control system can manage compatible CAME remote controls and safety accessories according to the configuration of the automatic gate installation.
Mechanical Opening & Closing Limit Switches
The CAME BKS18AGS uses mechanical limit switches for gate opening and closing positions. Correct limit-switch adjustment ensures that the gate stops at the required fully open and fully closed positions.
Module 4 Rack & Pinion Drive
The CAME BK 1800 uses a Module 4 pinion designed to operate with a compatible Module 4 sliding gate rack.
Correct rack and pinion alignment is essential for smooth gate movement, reduced mechanical wear and reliable long-term operation.
Advanced Gate Safety Support
The BK series provides configurable safety inputs for compatible automatic gate safety accessories. The inputs can be configured to manage compatible 8.2kΩ resistive safety edges.
Photocell sensors, safety edges and other appropriate safety devices can be integrated according to the requirements of the gate installation.
CAME CONNECT Compatible
The CAME BK series supports CAME CONNECT technology, allowing compatible connectivity and digital management solutions to be integrated into the automatic gate system.
Heavy-Duty Sliding Gate Automation
With its 1800 kg capacity, 1150N thrust and robust BK-series construction, the CAME BK 1800 is particularly suitable for entrances requiring a stronger operator than standard residential sliding gate motors.
Applications
- Heavy automatic sliding gates
- Industrial sliding gates
- Factory entrance gates
- Warehouse sliding gates
- Commercial vehicle entrances
- Residential compounds
- Large villa entrance gates
- Apartment and building entrances
- Office and commercial complexes
- Vehicle access control systems
CAME BK 1800 KG Sliding Gate Motor Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies CAME BK 1800 KG sliding gate motors in UAE together with CAME remote controls, photocell sensors, flashing lights, gate racks, control boards and automatic gate accessories.
Supply, installation, programming, repair and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
