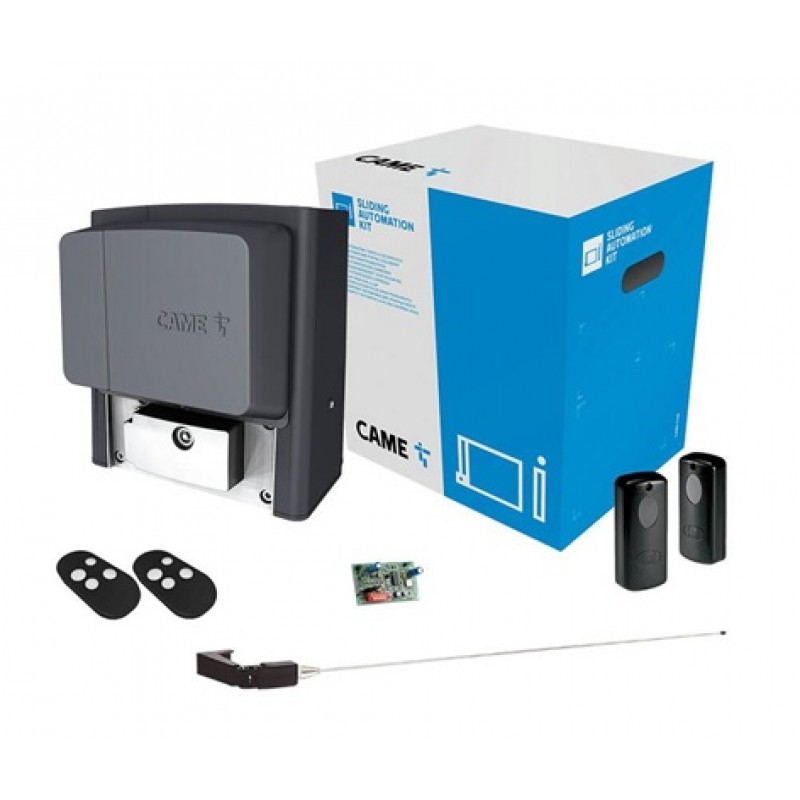

CAME BX 800 KG Sliding Gate Motor UAE
Price 2,500 AEDIn Stock
The CAME BX 800 KG Sliding Gate Motor is a powerful 230V automatic gate opener designed for residential sliding gates weighing up to 800 kg. Engineered by CAME, the BX series combines reliable mechanical performance with advanced electronic control and safety features.
The CAME BX 800 features a 520W 230V motor, encoder-based movement control, 800N thrust and a gate movement speed of approximately 10.5 metres per minute. It is designed for dependable everyday automatic sliding gate operation.
Its integrated electronic control board includes terminal blocks, programming display and memory for up to 250 users. Safety inputs can be configured for compatible 8.2kΩ resistive safety edges, while self-diagnostic functions assist with safety device monitoring.
The BX series also supports CAME CONNECT technology, allowing compatible digital control solutions to be integrated through a gateway or locally using CAME KEY.
Key Features
- CAME BX automatic sliding gate motor
- Suitable for sliding gates up to 800 kg
- 230V AC power supply
- 520W motor power
- Encoder-based movement control
- 800N thrust
- 10.5 m/min gate movement speed
- 30% duty cycle
- Up to 17 cycles per hour
- Module 4 pinion
- IP44 protection rating
- Control board with programming display
- Memory for up to 250 users
- Self-diagnosing safety devices
- Configurable 8.2kΩ safety edge inputs
- Ready for magnetic limit switch installation
- CAME CONNECT compatible
- Manual release for emergency operation
Technical Specifications
| Brand | CAME |
| Series | BX |
| Model | 801MS-0031 |
| Product Type | Automatic Sliding Gate Motor |
| Maximum Gate Weight | 800 kg |
| Power Supply | 230V AC, 50/60Hz |
| Motor Power Supply | 230V |
| Power | 520W |
| Absorption | 2.5A |
| Movement Speed | 10.5 m/min |
| Thrust | 800N |
| Duty Cycle | 30% |
| Cycles Per Hour | 17 |
| Pinion Module | Module 4 |
| Protection Rating | IP44 |
| Operating Temperature | -20°C to +55°C |
CAME 230V Automatic Sliding Gate Opener for Gates up to 800 KG
The CAME BX 800 KG is designed for automatic sliding gates weighing up to 800 kg. It is particularly suitable for residential entrances, villas, apartment buildings and other sliding gate applications requiring dependable 230V automation.
The 230V motor delivers 520W of power and 800N of thrust, providing reliable movement for correctly installed and balanced sliding gates.
Encoder-Based Movement Control
The CAME BX uses encoder-based movement control to monitor the operation of the sliding gate. The encoder provides the electronic control system with information about gate movement for accurate and reliable automation.
Integrated CAME Control Board
The integrated electronic control board features terminal blocks and a programming display for straightforward installation, configuration and maintenance.
The system provides storage for up to 250 users, making it suitable for residential properties and shared access applications requiring multiple authorized users.
Advanced Gate Safety Functions
Safety inputs on the CAME BX can be configured to directly manage compatible 8.2kΩ resistive sensitive safety edges. The system also provides self-diagnostic functionality for compatible safety devices.
Photocell sensors, safety edges and other appropriate safety accessories can be integrated according to the requirements of the automatic gate installation.
CAME CONNECT Technology
The CAME BX series is developed with CAME CONNECT technology for compatible digital control and connectivity solutions.
The automation can be remotely managed through a compatible gateway or locally using CAME KEY, depending on the installed system configuration and accessories.
Ready for Magnetic Limit Switches
The CAME BX is designed to support the installation of compatible magnetic limit switches. These can be useful where reliable gate position detection is required under demanding environmental conditions.
Module 4 Rack & Pinion Drive
The motor uses a Module 4 pinion designed to engage with a compatible Module 4 sliding gate rack. The rotating pinion transfers motor power to the rack installed along the gate, moving the gate horizontally during opening and closing.
Correct rack and pinion alignment is important for smooth movement, reduced mechanical wear and reliable long-term operation.
Manual Release During Power Failure
The sliding gate operator includes a manual release system that allows the gate to be disengaged from the motor when manual operation is required, such as during a power failure or maintenance.
Applications
- Residential sliding gates
- Villa entrance gates
- Apartment building gates
- Residential compounds
- Commercial entrances
- Automatic driveway gates
- Vehicle access control entrances
- Sliding gate automation replacement
CAME BX 800 KG Sliding Gate Motor Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies CAME BX 800 KG sliding gate motors in UAE together with CAME remote controls, photocell sensors, flashing lights, gate racks, control boards and automatic gate accessories.
Supply, installation, programming, repair and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
