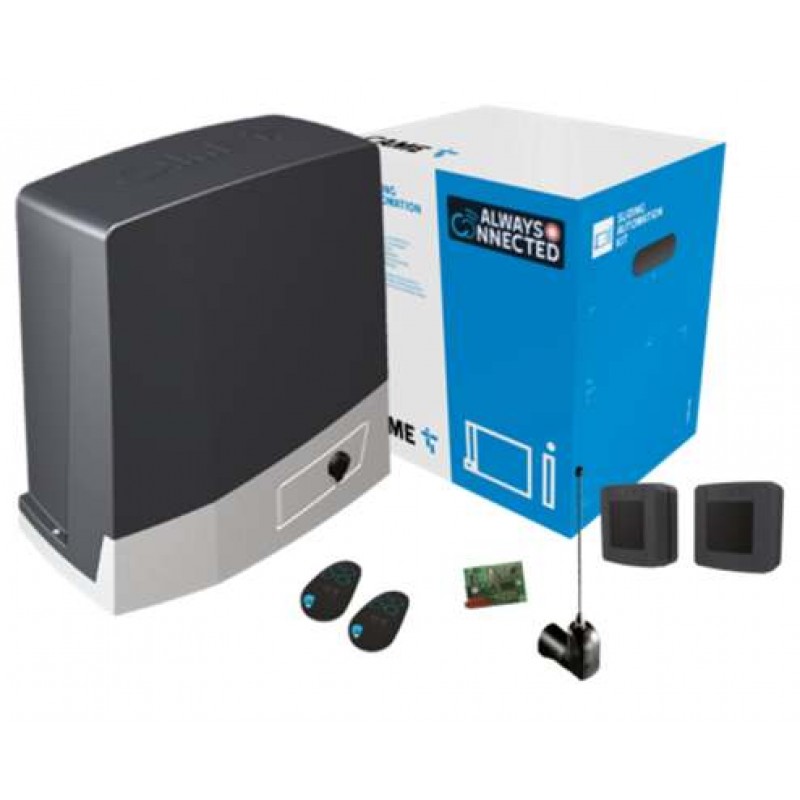

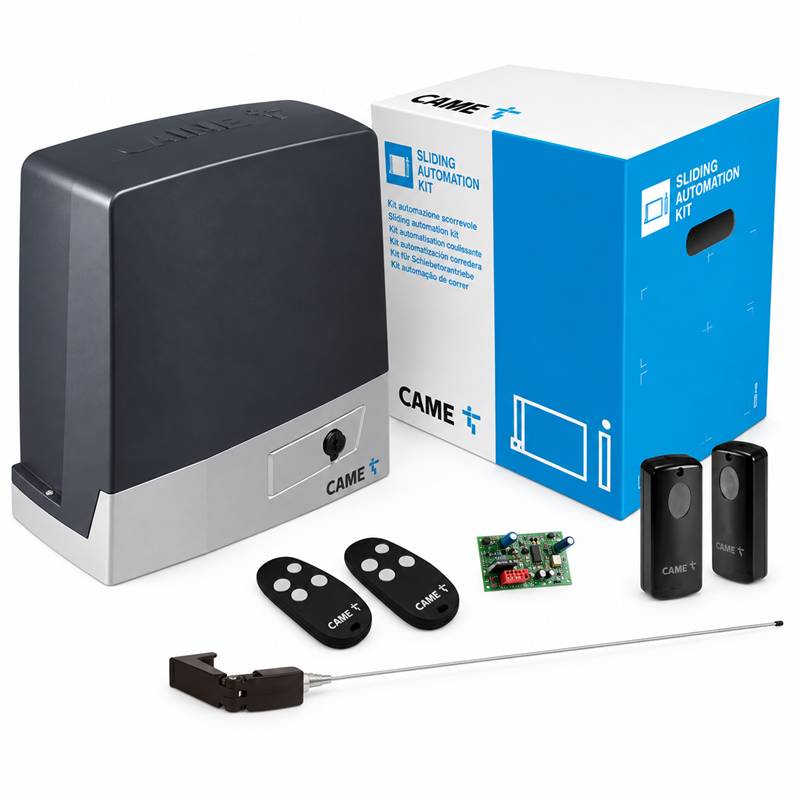

CAME BKV 2500 KG Sliding Gate Motor UAE

The CAME BKV 2500 KG Sliding Gate Motor is a professional heavy-duty automatic gate operator designed for large commercial and industrial sliding gates weighing up to 2500 kg and measuring up to 20 metres in length.

The CAME BKV25AGS 801MS-0320 features an advanced 36V DC motor with encoder-based movement control, Adaptive Speed & Torque Technology and integrated obstacle detection for smooth and reliable automatic gate operation.

The motor delivers 300W power, 1000N thrust and a movement speed of 12 metres per minute. A heavy-duty Module 6 pinion provides reliable power transmission for large sliding gate applications.

Designed for intensive professional use, the CAME BKV 2500 is ideal for factories, warehouses, logistics centres, commercial facilities, residential compounds and other high-traffic vehicle entrances.

Key Features

• Original CAME heavy-duty sliding gate motor
• CAME BKV Series
• Model BKV25AGS
• Product code 801MS-0320
• Maximum gate weight up to 2500 kg
• Maximum gate leaf length up to 20 metres
• 230V AC main power supply
• 36V DC motor
• 300W motor power
• 1000N maximum thrust
• 12 m/min movement speed
• Heavy-duty Module 6 pinion
• Encoder movement control
• Integrated obstacle detection
• Adaptive Speed & Torque Technology
• Electronic control board with graphic display
• 4 configurable safety inputs
• 8.2kΩ resistive safety edge management
• Memory for up to 250 users
• CAME CONNECT compatible
• RIO System 2.0 compatible
• IP54 protection rating
• Designed for intensive gate automation

Technical Specifications

CAME BKV25AGS 36V Heavy-Duty Sliding Gate Opener up to 2500 KG

The CAME BKV25AGS is engineered for large sliding gates weighing up to 2500 kg and measuring up to 20 metres long. Its heavy-duty construction makes it suitable for demanding commercial and industrial vehicle entrances.

36V DC Motor for Intensive Operation

The CAME BKV 2500 uses a 36V DC geared motor designed for intensive automatic gate operation. The system combines powerful gate movement with advanced electronic speed and torque management.

Adaptive Speed & Torque Technology

The BKV series features Adaptive Speed & Torque Technology, which manages motor performance to provide smooth and consistent movement during automatic opening and closing.

This technology is particularly useful on large and heavy sliding gates where controlled movement and reliable torque management are important.

Encoder & Obstacle Detection

The CAME BKV25AGS incorporates encoder-based movement management and obstacle detection. The electronic system continuously monitors gate movement to provide accurate and controlled automatic operation.

300W Motor with 1000N Thrust

The 36V motor provides 300W of power and up to 1000N of thrust, allowing the BKV25AGS to automate heavy sliding gates weighing up to 2500 kg when the gate is correctly installed and moves freely.

12 Metres Per Minute Gate Speed

The CAME BKV 2500 provides a movement speed of approximately 12 metres per minute, delivering efficient opening and closing for large commercial and industrial vehicle entrances.

Heavy-Duty Module 6 Pinion

The BKV25AGS uses a Module 6 pinion for heavy-duty rack and pinion drive. A compatible Module 6 steel gate rack should be selected for the installation.

Correct rack and pinion alignment is essential for smooth movement, reliable power transmission and reduced mechanical wear.

Graphic Display Programming

The integrated electronic control board includes a graphic programming display, providing installers with convenient access to gate operating parameters and system configuration.

Memory for up to 250 Users

The CAME BKV electronic control system provides storage for up to 250 users, making the operator suitable for commercial premises, residential compounds and other shared vehicle access applications.

4 Configurable Safety Inputs

The control board includes four configurable safety inputs that can directly manage compatible 8.2kΩ resistive safety edges.

Photocell sensors, safety edges and other appropriate safety accessories can be integrated according to the requirements of the automatic gate installation.

CAME CONNECT Compatible

The BKV series supports CAME CONNECT technology for compatible remote digital management through a gateway or local system management using CAME KEY.

RIO System 2.0 Compatible

The CAME BKV25AGS is designed to accommodate the compatible RIO System 2.0 plug-in card, providing additional options for professional wireless safety and automation accessories.

IP54 Protection

The CAME BKV25AGS has an IP54 protection rating, providing protection suitable for professional sliding gate automation installations.

Manual Gate Release

A user-friendly manual release system allows the gate motor to be disengaged when manual gate operation is required, such as during maintenance or certain emergency situations.

Applications

• Heavy-duty automatic sliding gates
• Industrial sliding gates
• Factory entrance gates
• Warehouse gates
• Logistics centres
• Commercial vehicle entrances
• Residential compounds
• Large building entrances
• Industrial facilities
• High-traffic vehicle access systems

CAME BKV 2500 KG Sliding Gate Motor Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies CAME BKV 2500 KG sliding gate motors in UAE together with CAME remote controls, photocell sensors, flashing lights, Module 6 steel racks, control accessories and genuine gate automation spare parts.

Supply, installation, programming, repair and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
