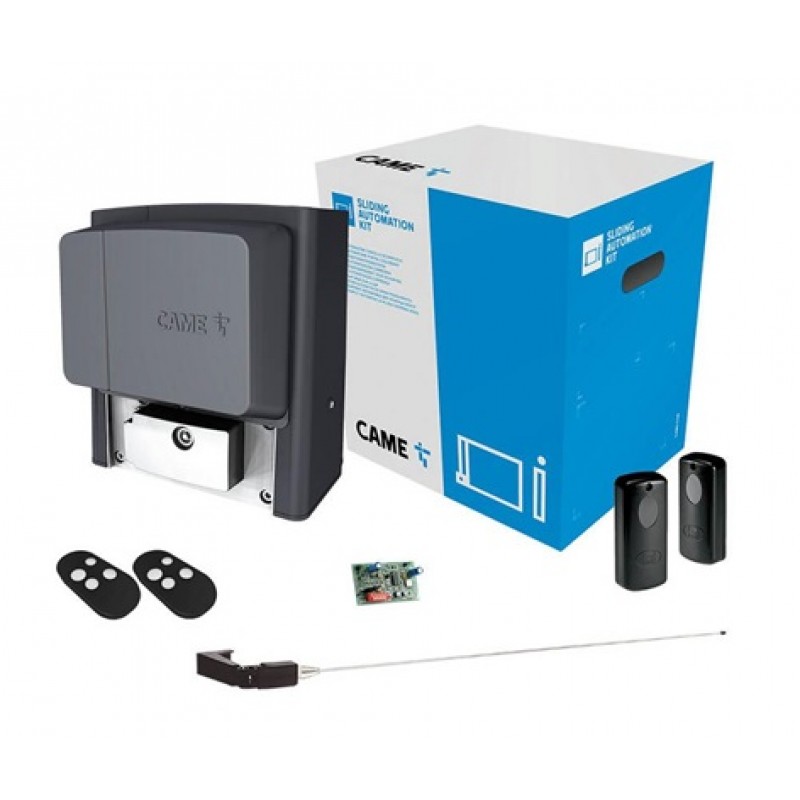

CAME BK 2200 KG Sliding Gate Motor UAE

The CAME BK 2200 KG Sliding Gate Motor is a heavy-duty automatic sliding gate operator designed for large commercial and industrial gates weighing up to 2200 kg and measuring up to 20 metres in length.

The CAME BKS22AGS 801MS-0100 features a powerful 230V motor delivering 580W power and 1500N thrust, with a gate movement speed of approximately 10.5 metres per minute.

Designed for demanding sliding gate automation applications, the BK 2200 incorporates an electronic control board with programming display, built-in radio decoding and mechanical opening and closing limit switches.

With its heavy-duty gearbox, Module 6 pinion and professional electronic control system, the CAME BK 2200 is ideal for factories, warehouses, commercial properties, residential compounds and large industrial vehicle entrances.

Key Features

• Original CAME automatic sliding gate motor
• CAME BK Series
• Model BKS22AGS
• Product code 801MS-0100
• Maximum sliding gate weight 2200 kg
• Maximum gate leaf length 20 metres
• 230V AC power supply
• 580W motor power
• 1500N maximum thrust
• 10.5 m/min movement speed
• Up to 14 cycles per hour
• Heavy-duty Module 6 pinion
• Mechanical opening and closing limit switches
• Integrated electronic control board
• Programming display
• Built-in radio decoding
• Configurable safety inputs
• 8.2kΩ resistive safety edge support
• Self-diagnosing safety devices
• CAME CONNECT compatible
• RIO System 2.0 compatible
• IP44 protection rating

Technical Specifications

CAME BKS22AGS Heavy-Duty Sliding Gate Opener up to 2200 KG

The CAME BK 2200 KG is engineered for large automatic sliding gates requiring high motor power and strong mechanical construction. It supports sliding gate leaves weighing up to 2200 kg and measuring up to 20 metres long.

This makes the CAME BK 2200 suitable for factories, warehouses, industrial facilities, commercial buildings and other large vehicle access entrances.

580W Motor with 1500N Thrust

The CAME BKS22AGS uses a 580W 230V motor delivering up to 1500N of thrust. This provides powerful and reliable movement for heavy sliding gates when the gate structure, wheels and track are correctly installed and maintained.

10.5 Metres Per Minute Gate Speed

The CAME BK 2200 provides a gate movement speed of approximately 10.5 metres per minute, providing dependable opening and closing performance for large vehicle entrances.

Integrated CAME Control Board

The operator features an integrated electronic control board with a programming display and built-in radio decoding.

Compatible CAME remote controls, photocell sensors, flashing lights and other automation accessories can be integrated according to the requirements of the gate installation.

Mechanical Opening & Closing Limit Switches

The BKS22AGS uses mechanical limit switches for the opening and closing positions. Correct adjustment allows the motor to stop the gate accurately at the required fully open and fully closed positions.

Heavy-Duty Module 6 Pinion

The CAME BKS22AGS 801MS-0100 uses a Module 6 pinion. A compatible Module 6 sliding gate rack should therefore be selected for the installation.

Correct rack and pinion alignment is essential for smooth gate movement, reliable power transmission and reduced mechanical wear.

Advanced Safety Device Support

The CAME BK control system provides configurable safety inputs that can directly manage compatible 8.2kΩ resistive safety edges.

The system also supports self-diagnosing safety devices for professional automatic gate installations.

CAME CONNECT Technology

The BK series supports CAME CONNECT technology, allowing compatible remote digital management through a gateway or local management using CAME KEY.

RIO System 2.0 Compatible

The CAME BK 2200 is designed to support compatible RIO System 2.0 accessories, providing additional options for professional gate automation and safety installations.

Heavy-Duty Industrial Sliding Gate Automation

With its 2200 kg gate capacity, 580W motor, 1500N thrust and Module 6 drive system, the CAME BK 2200 is particularly suitable for demanding commercial and industrial entrances.

Applications

• Heavy automatic sliding gates
• Industrial sliding gates
• Factory entrance gates
• Warehouse gates
• Commercial vehicle entrances
• Industrial compounds
• Residential compounds
• Large building entrances
• Logistics facilities
• Vehicle access control systems

CAME BK 2200 KG Sliding Gate Motor Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies CAME BK 2200 KG sliding gate motors in UAE together with CAME remote controls, photocell sensors, flashing lights, heavy-duty gate racks, control boards and automatic gate accessories.

Supply, installation, programming, repair and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
