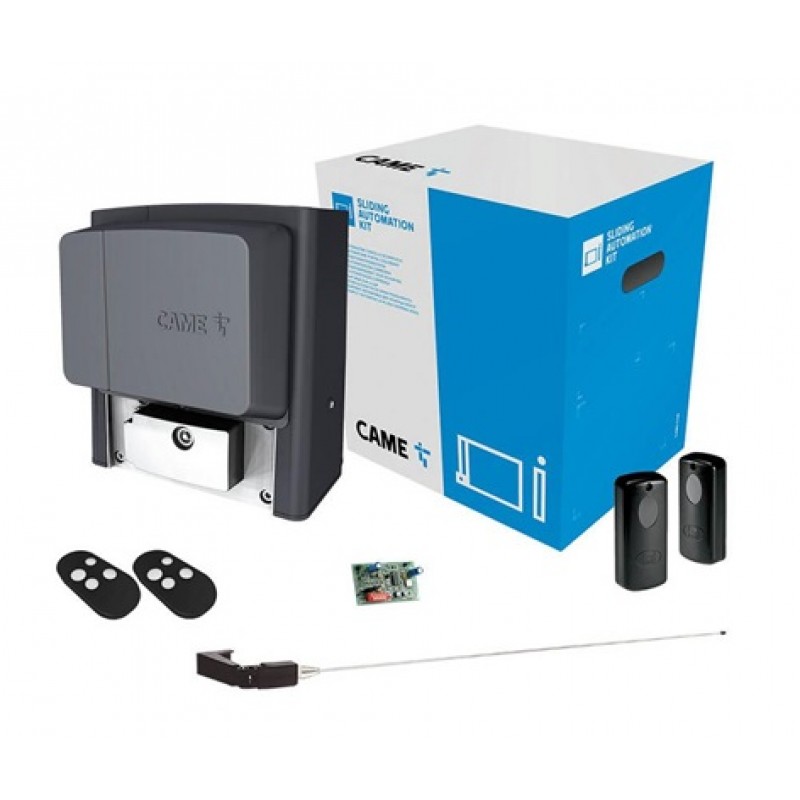

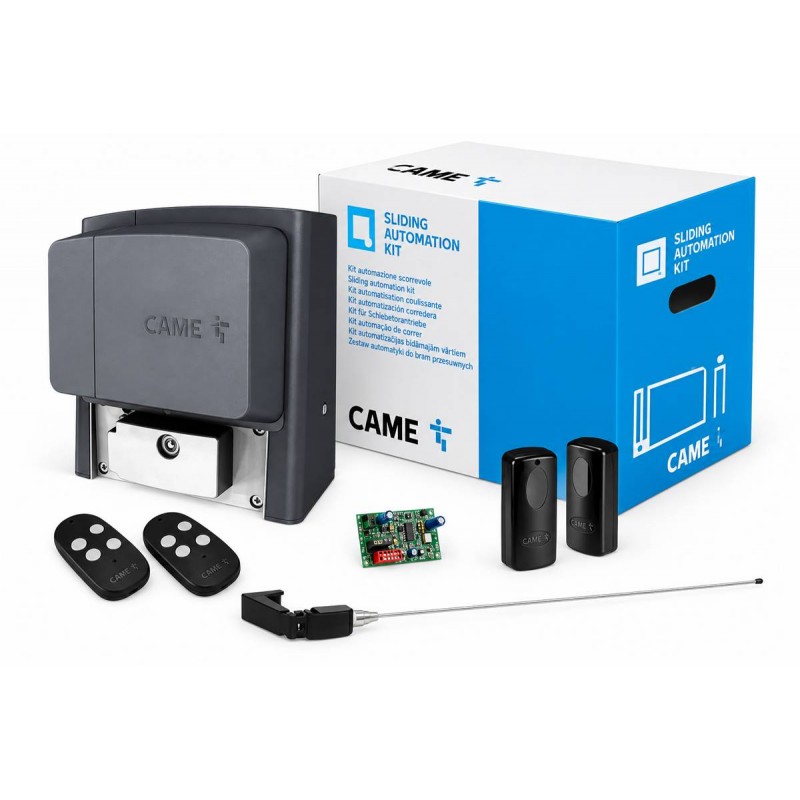

CAME BK 1200 KG Sliding Gate Motor UAE
Price 3,500 AEDIn Stock
The CAME BK 1200 KG Sliding Gate Motor is a powerful 230V automatic gate operator designed for large residential, commercial and industrial sliding gates weighing up to 1200 kg. Part of the heavy-duty CAME BK series, it provides reliable automation for demanding vehicle entrance applications.
The CAME BKS12AGS features a 230V motor with 380W power, 850N thrust and a movement speed of 10.5 metres per minute. It is suitable for sliding gate leaves up to 20 metres long when the gate is correctly installed and moves freely.
The integrated electronic control system provides advanced programming, radio control management and configurable safety functions for professional automatic sliding gate installations.
With a strong mechanical gearbox, Module 4 pinion and IP44 protection, the CAME BK 1200 is an excellent solution for villas, apartment buildings, commercial properties, warehouses and industrial entrances.
Key Features
- Original CAME automatic sliding gate motor
- CAME BK series
- Model BKS12AGS
- Product code 801MS-0080
- Suitable for sliding gates up to 1200 kg
- Maximum gate leaf length up to 20 metres
- 230V AC power supply
- 380W motor power
- 850N thrust
- 10.5 m/min movement speed
- Up to 14 cycles per hour
- Module 4 pinion
- IP44 protection rating
- Integrated electronic control board
- Programming display
- On-board radio decoding
- Mechanical limit switches
- Configurable safety inputs
- CAME CONNECT compatible
- Suitable for heavy-duty sliding gates
Technical Specifications
| Brand | CAME |
| Series | BK |
| Model | BKS12AGS |
| Product Code | 801MS-0080 |
| Product Type | Automatic Sliding Gate Motor |
| Maximum Gate Weight | 1200 kg |
| Maximum Gate Length | 20 m |
| Power Supply | 230V AC, 50/60Hz |
| Motor Power Supply | 230V |
| Power | 380W |
| Current Draw | 3.3A |
| Thrust | 850N |
| Movement Speed | 10.5 m/min |
| Cycles Per Hour | 14 |
| Pinion Module | Module 4 |
| Limit Switch | Mechanical |
| Protection Rating | IP44 |
| Operating Temperature | -20°C to +55°C |
CAME BKS12AGS 230V Heavy-Duty Gate Opener for Gates up to 1200 KG
The CAME BK 1200 KG is designed for large automatic sliding gates requiring a strong and reliable operator. It supports gate leaves weighing up to 1200 kg and measuring up to 20 metres in length.
This makes the BK 1200 suitable for residential compounds, apartment buildings, commercial entrances, factories, warehouses and other high-demand vehicle access applications.
380W Motor with 850N Thrust
The CAME BKS12AGS uses a 380W 230V motor delivering up to 850N of thrust. This provides the power required to automate heavy sliding gates when the gate structure, wheels and track are correctly installed and maintained.
10.5 Metres Per Minute Gate Speed
The operator provides a movement speed of approximately 10.5 metres per minute, providing reliable opening and closing performance for large sliding gate entrances.
Integrated CAME Control Board
The CAME BK series includes an integrated electronic control board with a programming display and on-board radio decoding.
The control system allows compatible CAME remote controls, photocell sensors, safety accessories and other gate automation devices to be integrated according to the installation requirements.
Mechanical Limit Switches
The CAME BK 1200 uses mechanical limit switches to determine the gate opening and closing end positions.
Correct adjustment of the limit switches is important for reliable gate stopping positions and safe automatic operation.
Module 4 Rack & Pinion Drive
The motor uses a Module 4 pinion designed to engage with a compatible Module 4 sliding gate rack installed along the gate.
As the motor pinion rotates, it transfers power through the rack and moves the gate horizontally along its track. Correct rack and pinion alignment is important for smooth movement and reduced mechanical wear.
Advanced Safety Device Support
The CAME BK series provides configurable safety inputs for compatible automatic gate safety equipment, including photocell sensors and resistive sensitive safety edges.
The correct safety accessories should be selected and installed according to the gate layout and operating requirements.
CAME CONNECT Compatible
The CAME BK series supports CAME CONNECT technology, allowing compatible connectivity and digital control solutions to be integrated into the automatic gate system.
Heavy-Duty Sliding Gate Automation
With its strong gearbox, 1200 kg gate capacity and robust construction, the CAME BK 1200 is suitable for demanding automatic gate applications where a standard residential sliding gate operator may not provide sufficient capacity.
Applications
- Heavy automatic sliding gates
- Residential compound gates
- Large villa entrance gates
- Apartment building entrances
- Commercial sliding gates
- Industrial entrance gates
- Factories and warehouses
- Office and commercial complexes
- Vehicle access control entrances
- Sliding gate automation replacement
CAME BK 1200 KG Sliding Gate Motor Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies CAME BK 1200 KG sliding gate motors in UAE together with CAME remote controls, photocell sensors, flashing lights, gate racks, control boards and automatic gate accessories.
Supply, installation, programming, repair and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
