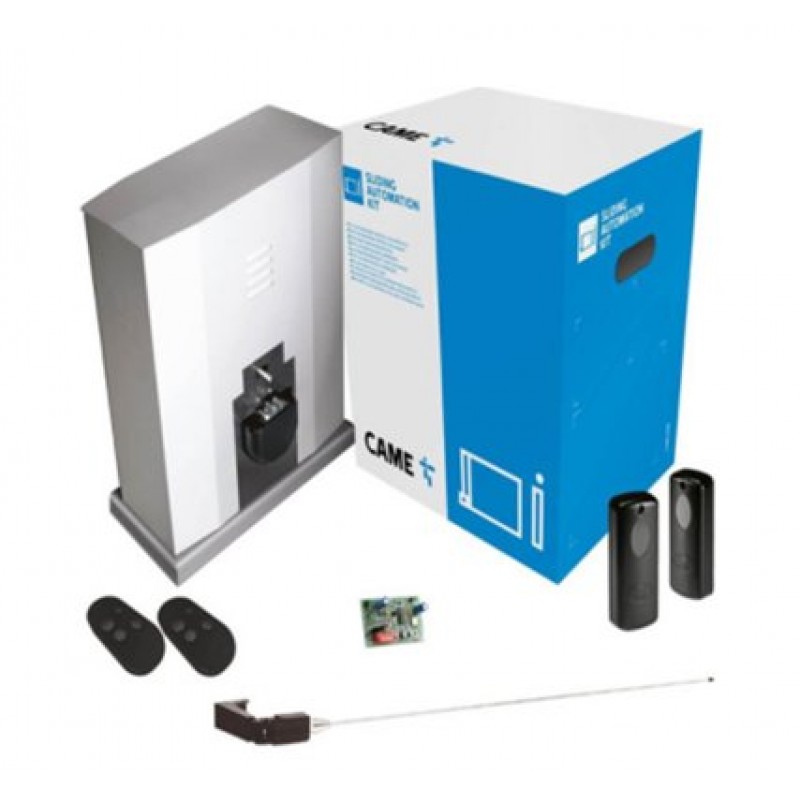

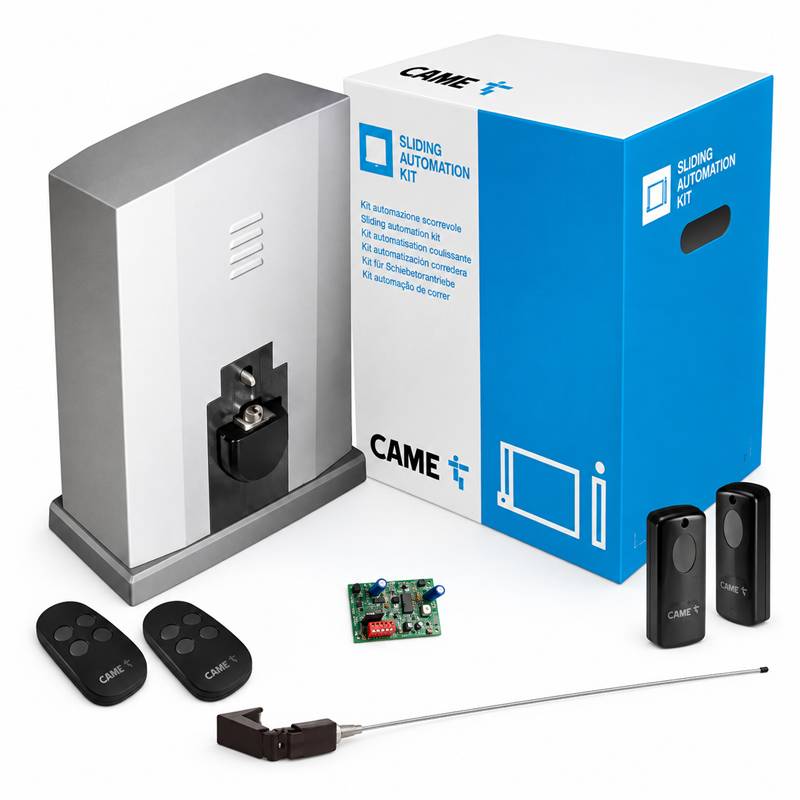

CAME BY-3500T 3500 KG Industrial Sliding Gate Motor
Price 0 AEDIn Stock
The CAME BY-3500T Sliding Gate Motor is a powerful industrial automatic gate operator designed for extremely large and heavy sliding gates weighing up to 3500 kg. It is an ideal solution for factories, warehouses, industrial facilities, logistics centres and large commercial vehicle entrances.
The CAME 001BY-3500T uses a heavy-duty 400V AC three-phase motor delivering 1000W of power and up to 3500N of thrust. Its robust mechanical construction is engineered to provide dependable performance in demanding industrial sliding gate applications.
With a movement speed of approximately 10.5 metres per minute, Module 6 pinion, mechanical limit switches and integrated electronic control board, the BY-3500T provides a complete professional automation solution for large sliding gates.
The operator also supports self-diagnosing safety devices and courtesy light management, providing additional functionality for professional industrial gate automation installations.
Key Features
- Original CAME industrial sliding gate motor
- Model BY-3500T
- Product code 001BY-3500T
- Suitable for sliding gates up to 3500 kg
- Maximum gate leaf length up to 17 metres
- 400V AC three-phase power supply
- 400V three-phase motor
- 1000W motor power
- 3500N maximum thrust
- 10.5 m/min movement speed
- Up to 8 cycles per hour
- Heavy-duty Module 6 pinion
- Mechanical opening and closing limit switches
- Integrated electronic control board
- Self-diagnosing safety device support
- Courtesy light management
- IP54 protection rating
- Designed for heavy industrial sliding gates
Technical Specifications
| Brand | CAME |
| Model | BY-3500T |
| Product Code / SKU | 001BY-3500T |
| Product Type | Industrial Sliding Gate Motor |
| Maximum Gate Weight | 3500 kg |
| Maximum Gate Length | 17 m |
| Power Supply | 400V AC Three-Phase |
| Motor Power Supply | 400V AC Three-Phase |
| Maximum Draw | 8A |
| Motor Power | 1000W |
| Maximum Thrust | 3500N |
| Movement Speed | 10.5 m/min |
| Cycles Per Hour | 8 |
| Pinion Module | Module 6 |
| Limit Switch | Mechanical |
| Protection Rating | IP54 |
| Operating Temperature | -20°C to +55°C |
| Application | Heavy-Duty Industrial Sliding Gates |
CAME 400V Three-Phase Heavy-Duty Gate Opener up to 3500 KG
The CAME BY-3500T is specifically engineered for industrial sliding gates where high starting power, strong mechanical construction and reliable operation are required.
With a maximum gate capacity of 3500 kg, the BY-3500T is one of the heavy-duty sliding gate automation solutions in the CAME range.
400V Three-Phase Industrial Motor
The CAME BY-3500T operates using a 400V AC three-phase power supply. Three-phase power provides the strong motor performance required for large industrial sliding gate applications.
A suitable three-phase electrical supply and protection system should be installed by a qualified electrician according to the site requirements.
1000W Motor with 3500N Thrust
The BY-3500T delivers 1000W of motor power and up to 3500N of thrust, providing strong starting and operating performance for heavy sliding gates.
For reliable operation, the gate should be correctly balanced and the track, wheels, guide rollers and rack should be in good mechanical condition.
10.5 Metres Per Minute Gate Speed
The operator provides a movement speed of approximately 10.5 metres per minute, allowing controlled automatic opening and closing of large industrial sliding gates.
Heavy-Duty Module 6 Pinion
The CAME BY-3500T uses a Module 6 pinion designed for heavy-duty sliding gate applications. A compatible Module 6 steel rack should therefore be used with the operator.
Correct rack and pinion alignment is essential for smooth gate movement, reliable power transmission and reduced mechanical wear.
Integrated Electronic Control Board
The CAME BY-3500T is supplied with an integrated electronic control board for management of the automatic sliding gate system.
Compatible command devices and safety accessories can be connected according to the requirements of the industrial gate installation.
Mechanical Limit Switches
The BY-3500T uses mechanical opening and closing limit switches to establish the gate travel end positions.
Correct limit switch adjustment allows the gate motor to stop accurately at the required fully open and fully closed positions.
Self-Diagnosing Safety Devices
The CAME BY-3500T supports compatible self-diagnosing safety devices, allowing professional safety accessories to be integrated into the automatic gate installation.
Photocell sensors, safety edges and other suitable safety equipment should be selected according to the gate layout and operating environment.
Courtesy Light Management
The control system is prepared for courtesy light management, allowing compatible lighting to be controlled as part of the automatic entrance system.
IP54 Protection
The CAME BY-3500T has an IP54 protection rating and is designed for professional automatic gate installations in demanding environments.
Industrial Sliding Gate Automation
With its 3500 kg gate capacity, 400V three-phase motor, 1000W power and 3500N thrust, the CAME BY-3500T is designed primarily for large commercial and industrial entrances rather than standard residential gates.
Applications
- Heavy-duty industrial sliding gates
- Factory entrance gates
- Warehouse sliding gates
- Logistics centres
- Industrial compounds
- Commercial vehicle entrances
- Large loading facilities
- Manufacturing facilities
- Heavy vehicle access entrances
- Industrial access control systems
CAME BY-3500T Sliding Gate Motor Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies CAME BY-3500T 3500 KG sliding gate motors in UAE together with CAME remote controls, photocell sensors, flashing lights, Module 6 steel racks, control accessories and gate automation spare parts.
Supply, installation, programming, repair and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
