BFT PHOBOS AC A50 Swing Gate Motor 500 KG UAE

The BFT PHOBOS AC A50 Swing Gate Motor is a powerful Italian-made electromechanical gate operator designed for large swing gate leaves measuring up to 5 metres and weighing up to 500 kg. Its long-stroke design and reliable 230V motor make it an excellent solution for villas, residential compounds, commercial properties and large vehicle entrances.

Powered by a 230V motor with approximately 210W power consumption, the BFT PHOBOS AC A50 provides dependable automatic gate operation with a cycle time of approximately 18 seconds. Its extended 460 mm useful rod stroke and maximum opening angle of up to 129° provide excellent flexibility for large swing gate installations.

The PHOBOS AC A50 can operate with the BFT RIGEL 6 control board, providing professional management of one or two 230V swing gate motors. The automation system supports electronic torque management, opening and closing slowdown, remote controls, photocell safety sensors and other compatible gate accessories.

Designed for semi-intensive use, the BFT PHOBOS AC A50 combines an electronic clutch safety system with mechanical locking and a personal-key manual release. Its IPX4 protection rating makes it suitable for professional outdoor automatic swing gate installations.

Key Features

• Genuine BFT swing gate automation
• Model PHOBOS AC A50
• Product code P935097 00002
• Made in Italy
• 230V electromechanical swing gate operator
• Suitable for gate leaves up to 5 metres
• Maximum gate leaf weight up to 500 kg
• 210W power consumption
• 460 mm useful rod stroke
• Maximum opening angle up to 129°
• Approximately 18-second cycle time
• RIGEL 6 / ALENA SW2 control compatibility
• Electronic clutch impact reaction
• Automatic slowdown function
• Mechanical locking system
• Personal-key manual release
• Semi-intensive operation
• IPX4 protection rating
• Operating temperature from -20°C to +55°C
• Suitable for single and double swing gate automation

Technical Specifications

Swing Gates up to 5 Metres & 500 KG

The BFT PHOBOS AC A50 is designed for large swing gate leaves measuring up to 5 metres and weighing up to 500 kg. Its long-stroke construction makes it suitable for large villa entrances, residential compounds, commercial properties and other vehicle access applications.

Actual operator suitability depends on the gate leaf length, weight, hinge geometry, wind exposure and gate construction. Large solid-panel gates should be professionally assessed before motor selection and installation.

230V Electromechanical Swing Gate Motor

The PHOBOS AC A50 uses a reliable 230V electromechanical motor with approximately 210W power consumption. Designed for semi-intensive operation, it provides dependable performance for automatic swing gates with regular daily use.

RIGEL 6 Control Board

The BFT RIGEL 6 universal control board provides professional electronic management for one or two 230V swing gate operators. It features display-based programming and diagnostics for easier installation, configuration and maintenance.

The RIGEL 6 supports an integrated radio receiver, electronic torque limiting, opening and closing deceleration, automatic re-closing, electric lock control and other advanced gate automation functions.

Electronic Clutch Safety System

The BFT PHOBOS AC A50 uses an electronic clutch for motor force and impact reaction management. The operating force can be adjusted according to the characteristics of the automatic swing gate installation.

Compatible photocell sensors and other safety devices can be connected to provide additional protection for pedestrians and vehicles around the automatic gate entrance.

Automatic Slowdown

The PHOBOS AC A50 supports automatic slowdown during opening and closing. This provides smoother gate movement near the end of travel and helps reduce mechanical stress on the gate, hinges, brackets and automation components.

460 mm Rod Stroke & 129° Opening

A major feature of the BFT PHOBOS AC A50 is its extended 460 mm useful rod stroke. With correct installation geometry, the operator supports a maximum opening angle of approximately 129°.

The combination of the long stroke and wide opening angle makes the PHOBOS AC A50 particularly suitable for large swing gate automation applications.

Mechanical Locking & Manual Release

The PHOBOS AC A50 incorporates a mechanical locking system to hold the swing gate when the motor is stopped.

A personal-key manual release allows the motor to be disengaged so the gate can be moved manually when required, such as during maintenance or a mains power failure.

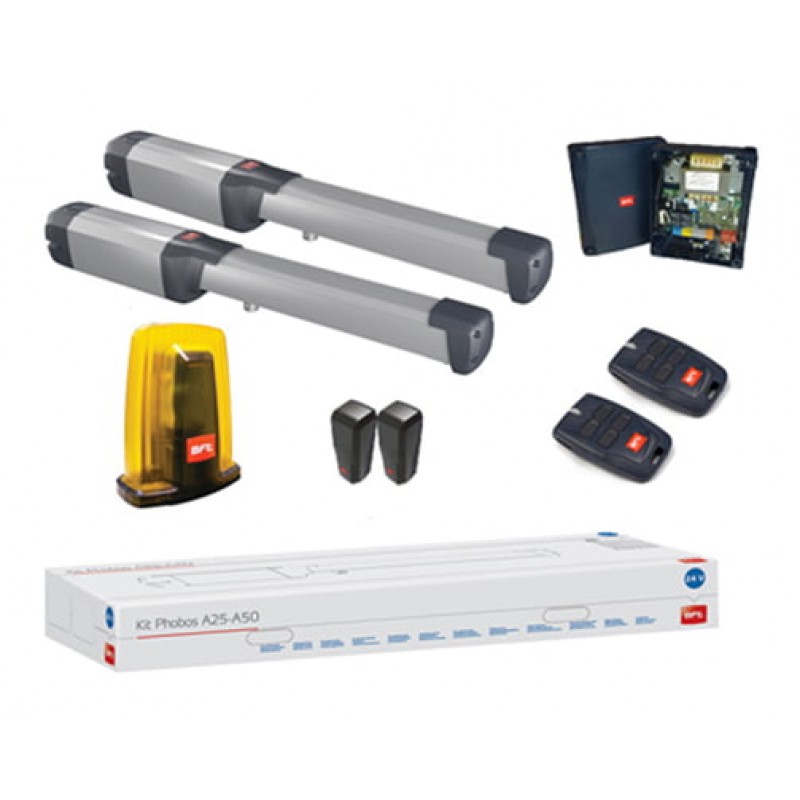

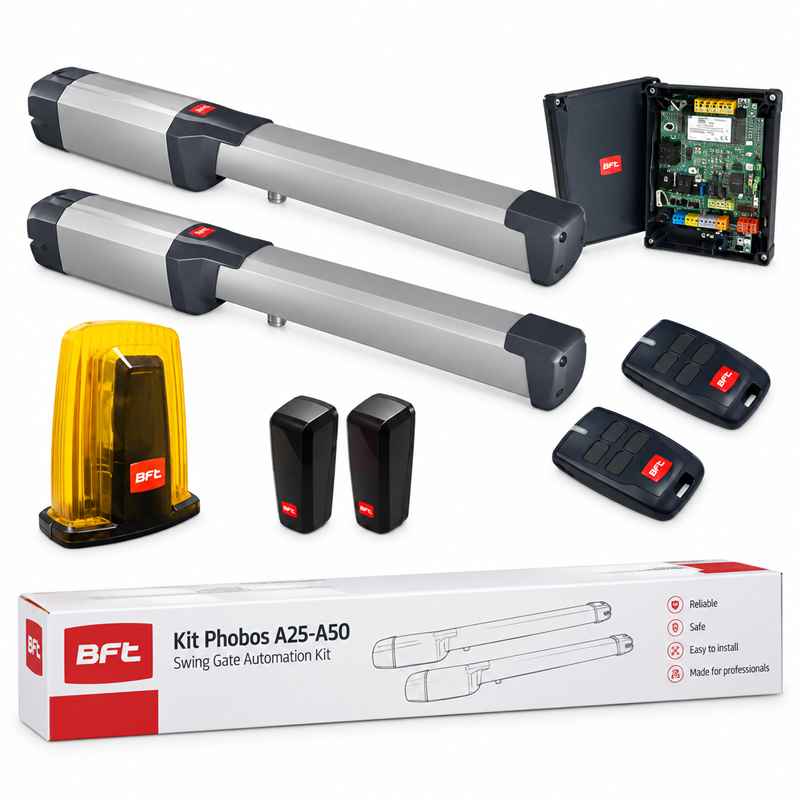

BFT PHOBOS AC A50 Kit Includes

• 2 × BFT PHOBOS AC A50 Swing Gate Motors 230V
• 1 × BFT RIGEL 6 Universal Control Board
• 1 × Pair of Adjustable Photocell Safety Sensors
• 1 × Flashing Light with Incorporated Antenna
• 2 × BFT MITTO2 B RCB Remote Controls
• 1 × Push Button
• 2 × Motor Fixing Brackets

Applications

• Swing gate leaves up to 5 metres
• Gate leaves up to 500 kg
• Large villa entrance gates
• Residential compounds
• Commercial property entrances
• Private compounds and estates
• Industrial facility entrances
• Automatic driveway gates
• Vehicle access control systems

BFT PHOBOS AC A50 Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies BFT PHOBOS AC A50 swing gate motors in UAE together with compatible BFT control boards, remote controls, photocells, flashing lights and automatic gate accessories.

Supply, professional installation, maintenance and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
