BFT PHOBOS BT B40 Swing Gate Motor 700 KG UAE
Price 2,999 AEDIn Stock
The BFT PHOBOS BT B40 Swing Gate Motor is a powerful 24V electromechanical operator designed for large and heavy automatic swing gates. The PHOBOS BT B40 supports gate leaves up to 4 metres in length and has a maximum specified gate-leaf weight capacity of up to 700 kg, depending on the gate dimensions and installation configuration.
Powered by a 24V motor with approximately 40W power consumption, the BFT PHOBOS BT B40 delivers up to 2000N thrust and traction force. Its extended 470 mm useful rod stroke and maximum opening angle of approximately 130° provide excellent flexibility for large residential and commercial swing gate installations.
The PHOBOS BT B40 incorporates BFT D-Track technology for intelligent motor force management and obstacle detection. Magnetic limit switches provide accurate gate positioning, while the slowdown function allows smoother movement near the opening and closing positions.
Designed for frequent automatic gate operation, the BFT PHOBOS BT B40 supports up to 30 opening cycles per hour. Mechanical locking, personal-key manual release and IP44 protection make it a reliable solution for villas, residential compounds, commercial properties and professional vehicle entrances.
Key Features
- Genuine BFT swing gate automation
- Model PHOBOS BT B40
- Product code P935130 00002
- Part number 2614566
- 24V electromechanical swing gate operator
- Maximum gate leaf length up to 4 metres
- Maximum specified gate leaf weight up to 700 kg
- 40W power consumption
- 2000N thrust and traction force
- 470 mm useful rod stroke
- Maximum opening angle up to 130°
- Approximately 16-second movement time at 90°
- Up to 30 opening cycles per hour
- THALIA BT A80 control unit compatibility
- BFT D-Track force management technology
- Magnetic limit switches
- Automatic slowdown function
- Mechanical locking system
- Personal-key manual release
- IP44 protection rating
- Operating temperature from -20°C to +55°C
Technical Specifications
| Brand | BFT |
| Model | PHOBOS BT B40 |
| Product Code | P935130 00002 |
| Part Number | 2614566 |
| Product Type | Electromechanical Swing Gate Motor |
| Board Power Supply | 230V |
| Motor Voltage | 24V |
| Power Consumption | 40W |
| Maximum Gate Leaf Length | 4 m |
| Maximum Gate Leaf Weight | 700 kg |
| Maximum Length Without Electric Lock | 3 m |
| Thrust & Traction Force | 2000 N |
| Useful Rod Stroke | 470 mm |
| Maximum Opening Angle | 130° |
| Movement Time | Approx. 16 Seconds at 90° |
| Maximum Cycles | 30 Cycles per Hour |
| Control Unit | THALIA BT A80 |
| Limit Switch | Magnetic |
| Impact Reaction | D-Track |
| Slowdown | Yes |
| Locking | Mechanical |
| Manual Release | Personal Key |
| Operator Weight | 5.2 kg |
| Protection Rating | IP44 |
| Operating Temperature | -20°C to +55°C |
Swing Gates up to 4 Metres
The BFT PHOBOS BT B40 is designed for large automatic swing gates with gate leaves up to 4 metres. The operator's long 470 mm stroke provides the movement required for large swing gate installations in villas, compounds and commercial properties.
For gate leaves longer than 3 metres, an electric lock should be considered according to the manufacturer's installation requirements and the characteristics of the gate.
Maximum Gate Weight up to 700 KG
The PHOBOS BT B40 has a maximum specified gate-leaf weight capacity of up to 700 kg. The allowable gate weight depends on the gate leaf length and installation configuration, so maximum weight and maximum 4-metre leaf length should not be considered simultaneous ratings.
Gate construction, hinge condition, wind exposure and installation geometry should also be considered when selecting the correct swing gate operator.
24V Swing Gate Automation
The BFT PHOBOS BT B40 uses a 24V electromechanical motor designed for smooth and controlled automatic gate movement. Low-voltage technology allows precise electronic management of motor force, slowdown and safety functions.
The operator supports up to 30 opening cycles per hour, making it suitable for residential communities, commercial properties and entrances requiring frequent daily operation.
2000N Thrust & Traction Force
With up to 2000N thrust and traction force, the PHOBOS BT B40 provides powerful linear movement for compatible heavy swing gate applications.
This strong operating force, combined with its 24V motor and extended rod stroke, makes the PHOBOS BT B40 suitable for demanding automatic swing gate installations.
BFT D-Track Safety Technology
The BFT D-Track system continuously manages the force required to move the swing gate during operation. This provides intelligent motor torque management and helps the automation respond to abnormal resistance or obstacles.
D-Track works together with compatible safety accessories such as photocell sensors to provide controlled automatic gate operation.
THALIA BT A80 Control Board
The BFT THALIA BT A80 control board provides professional electronic management of the PHOBOS BT B40 automatic swing gate system.
The control system manages motor movement, D-Track force control, slowdown, remote controls, photocell sensors, automatic closing and other compatible gate automation accessories.
Magnetic Limit Switches
The PHOBOS BT B40 incorporates magnetic limit switches for accurate detection and adjustment of the gate's opening and closing positions.
Magnetic limit-switch technology provides reliable position detection and simplifies adjustment during professional installation.
Automatic Slowdown
The integrated slowdown function reduces gate movement near the end of the opening and closing cycles. This provides smoother operation and helps reduce mechanical stress on the gate, hinges, brackets and operator.
470 mm Rod Stroke & 130° Opening
The BFT PHOBOS BT B40 features an extended 470 mm useful rod stroke and supports a maximum opening angle of approximately 130° when installed with the correct mounting geometry.
Movement time for a 90° opening is approximately 16 seconds, excluding slowdown and depending on the gate configuration.
Mechanical Locking & Manual Release
The PHOBOS BT B40 incorporates a mechanical locking system to hold the gate when the operator is stopped.
A personal-key manual release allows the operator to be disengaged so the gate can be moved manually during maintenance or a mains power failure.

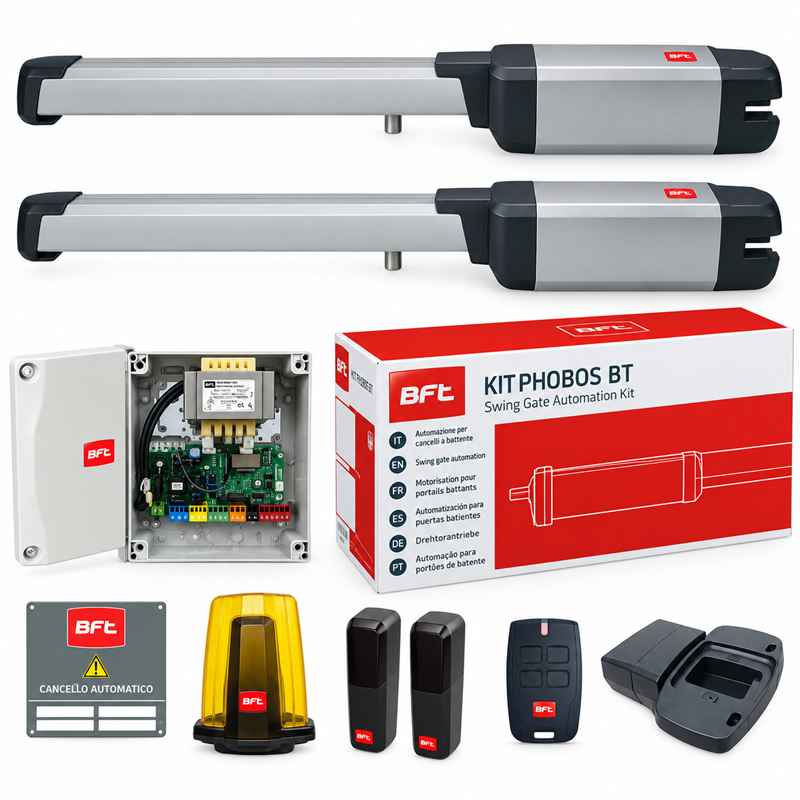

BFT PHOBOS BT B40 Kit Includes
- 2 × BFT PHOBOS BT B40 24V Swing Gate Motors
- 1 × Compatible BFT 24V Control Board
- 1 × Pair of Photocell Safety Sensors
- 1 × Flashing Light
- 2 × BFT Remote Controls
- 1 × Push Button
- 2 × Motor Fixing Bracket Sets
Applications
- Large automatic swing gates
- Gate leaves up to 4 metres
- Heavy swing gate applications
- Villa entrance gates
- Residential compounds
- Community entrance gates
- Commercial properties
- Office and business entrances
- Automatic driveway gates
- Vehicle access control systems
