BFT ATHOS AC A40 Swing Gate Motor 400 KG UAE
Price 2,000 AEDIn Stock
The BFT ATHOS AC A40 Swing Gate Motor is a powerful 230V electromechanical operator designed for automatic swing gate leaves measuring up to 4 metres and weighing up to 400 kg. Made in Italy, the ATHOS AC A40 provides reliable and smooth gate automation for villas, residential properties, commercial buildings and other vehicle entrances.
Powered by a 230V motor with approximately 280W power consumption, the BFT ATHOS AC A40 features a long 400 mm useful rod stroke and supports a maximum opening angle of up to 110°. The operator provides an opening and closing cycle time of approximately 16 seconds.
The ATHOS AC A40 works with the BFT ALENA SW2 control board, providing professional management of single or double swing gate automation. The system supports electronic clutch force management, automatic slowdown, remote controls, photocell safety sensors and other compatible gate automation accessories.
Designed for semi-intensive use, the BFT ATHOS AC A40 combines mechanical locking with a triangle-key manual release system. Its IP54 protection rating makes it suitable for professional outdoor swing gate installations throughout the UAE.
Key Features
- Genuine BFT swing gate automation
- Model ATHOS AC A40
- Product code P935115 00002
- Made in Italy
- 230V electromechanical swing gate operator
- Suitable for gate leaves up to 4 metres
- Maximum gate leaf weight up to 400 kg
- 280W power consumption
- 400 mm useful rod stroke
- Maximum opening angle up to 110°
- Approximately 16-second cycle time
- Compatible with ALENA SW2 control board
- Electronic clutch impact reaction
- Automatic slowdown function
- Mechanical locking system
- Triangle-key manual release
- Semi-intensive duty
- IP54 protection rating
- Operating temperature from -20°C to +55°C
- Suitable for single and double swing gates
Technical Specifications
| Brand | BFT |
| Model | ATHOS AC A40 |
| Product Code | P935115 00002 |
| Product Type | Electromechanical Swing Gate Motor |
| Board Power Supply | 230V |
| Motor Voltage | 230V |
| Power Consumption | 280W |
| Maximum Gate Leaf Length | 4 m |
| Maximum Gate Leaf Weight | 400 kg |
| Useful Rod Stroke | 400 mm |
| Maximum Opening Angle | 110° |
| Cycle Time | 16 Seconds |
| Control Unit | ALENA SW2 |
| Limit Switch Type | Work Time |
| Slowdown | Yes |
| Impact Reaction | Electronic Clutch |
| Locking | Mechanical |
| Manual Release | Triangle Key |
| Frequency of Use | Semi-Intensive |
| Protection Rating | IP54 |
| Operating Temperature | -20°C to +55°C |
| Country of Origin | Italy |
Swing Gates up to 4 Metres & 400 KG
The BFT ATHOS AC A40 is designed for swing gate leaves measuring up to 4 metres and weighing up to 400 kg. The longer 4-metre leaf capacity makes the A40 particularly suitable for large villa gates, residential compounds and commercial property entrances.
Actual motor suitability depends on the gate weight, leaf dimensions, hinge position, installation geometry and wind exposure. Professional assessment is recommended before installation, especially for large or solid-panel swing gates.
230V Electromechanical Swing Gate Motor
The ATHOS AC A40 uses a robust 230V electromechanical motor with approximately 280W power consumption. It is designed for semi-intensive operation and provides dependable performance for automatic swing gates with regular daily use.
ALENA SW2 Control Board
The BFT ALENA SW2 control board manages one or two 230V swing gate operators and provides the electronic functions required for professional automatic gate operation.
The control system can manage compatible remote controls, photocell sensors, flashing lights, automatic closing, pedestrian opening and other gate automation accessories.
Electronic Clutch Safety System
The BFT ATHOS AC A40 uses an electronic clutch for impact reaction and motor force management. Motor force can be configured according to the characteristics of the swing gate installation.
Compatible photocell safety sensors and other external safety devices can be connected to provide additional protection for pedestrians and vehicles around the automatic gate entrance.
Automatic Slowdown
The ATHOS AC A40 supports automatic slowdown during gate movement. The slowdown function provides smoother movement as the gate approaches the end of the opening and closing cycles.
Smooth slowdown helps reduce mechanical stress on the swing gate, hinges, mounting brackets and automation components.
400 mm Rod Stroke & 110° Opening
The BFT ATHOS AC A40 features a 400 mm useful rod stroke and supports a maximum opening angle of approximately 110° when installed with the correct mounting geometry.
The longer stroke is designed to accommodate compatible swing gate leaves up to 4 metres while providing smooth and controlled opening and closing movement.
Mechanical Locking & Manual Release
The ATHOS AC A40 incorporates a mechanical locking system that holds the gate when the motor is stopped.
A triangle-key manual release allows the operator to be disengaged so the gate can be moved manually when required, such as during maintenance or a mains power failure.

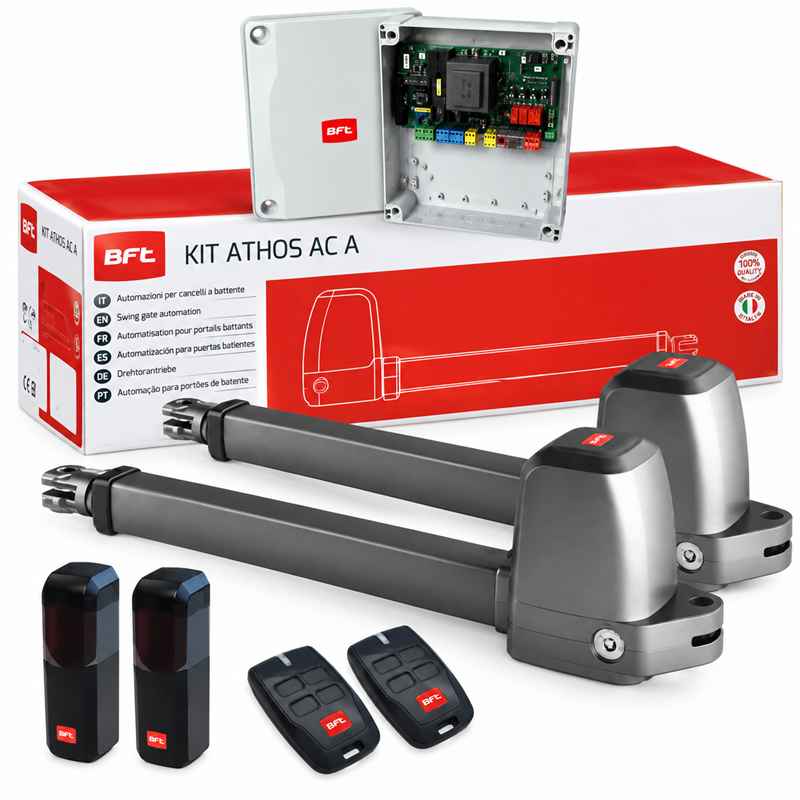

BFT ATHOS AC A40 Kit Includes
- 2 × BFT ATHOS AC A40 Swing Gate Motors
- 1 × BFT ALENA SW2 Control Board
- 1 × Pair of Self-Aligning Photocell Sensors – 30 m Range
- 1 × Flashing Light with Incorporated Antenna
- 2 × Remote Controls – 50/100 m Range
- 1 × Push Button
- 2 × Fixing Bracket Sets
Applications
- Swing gate leaves up to 4 metres
- Gate leaves up to 400 kg
- Single swing gates
- Double swing gates
- Villa entrance gates
- Large residential gates
- Residential compounds
- Commercial property entrances
- Automatic driveway gates
- Vehicle access systems
BFT ATHOS AC A40 Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies BFT ATHOS AC A40 swing gate motors in UAE together with compatible BFT control boards, remote controls, photocells, flashing lights and automatic gate accessories.
Supply, professional installation, maintenance and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
