BFT ATHOS AC A40 AL Swing Gate Motor 400 KG UAE

The BFT ATHOS AC A40 AL Swing Gate Motor is a powerful 230V electromechanical operator designed for automatic swing gate leaves measuring up to 4 metres and weighing up to 400 kg. The A40 AL is the left-hand version of the ATHOS AC A40 operator and provides reliable automation for villas, residential compounds, commercial properties and vehicle entrances.

Made in Italy, the BFT ATHOS AC A40 AL uses a 230V motor with approximately 280W power consumption. Its long 400 mm useful rod stroke makes it suitable for larger swing gate leaves, while a maximum opening angle of approximately 110° provides flexible installation possibilities.

The ATHOS AC A40 AL works with the BFT ALENA SW2 control board for professional management of automatic swing gates. The system supports electronic clutch force management, automatic slowdown, remote controls, photocell safety sensors, flashing lights and other compatible gate automation accessories.

Designed for semi-intensive use, the ATHOS AC A40 AL combines mechanical locking with a triangle-key manual release system. Its IP54 protection rating makes it suitable for professional outdoor swing gate installations throughout the UAE.

Key Features

• Genuine BFT swing gate operator
• Model ATHOS AC A40 AL
• Left-hand version
• Made in Italy
• 230V electromechanical swing gate operator
• Suitable for gate leaves up to 4 metres
• Maximum gate leaf weight up to 400 kg
• 280W power consumption
• 400 mm useful rod stroke
• Maximum opening angle up to 110°
• Approximately 16-second cycle time
• Compatible with ALENA SW2 control board
• Electronic clutch impact reaction
• Automatic slowdown function
• Mechanical locking system
• Triangle-key manual release
• Semi-intensive operation
• IP54 protection rating
• Operating temperature from -20°C to +55°C

Technical Specifications

A40 AL Left-Hand Swing Gate Operator

The BFT ATHOS AC A40 AL is the left-hand version of the ATHOS AC A40 swing gate operator. The AL configuration is designed for the corresponding installation side and can be paired with the appropriate ATHOS operator when configuring a double-leaf swing gate system.

Correct left-hand and right-hand motor selection is important for proper installation geometry and movement of the automatic swing gate.

Swing Gates up to 4 Metres & 400 KG

The ATHOS AC A40 AL is designed for swing gate leaves measuring up to 4 metres and weighing up to 400 kg. Its long-stroke design makes it suitable for large villa gates, residential compounds and commercial property entrances.

Actual motor suitability depends on gate dimensions, weight, hinge geometry, wind exposure and installation conditions. Large solid-panel gates should always be professionally assessed before selecting an operator.

230V Electromechanical Swing Gate Motor

The BFT ATHOS AC A40 AL uses a robust 230V electromechanical motor with approximately 280W power consumption. It is designed for semi-intensive operation and provides dependable performance for automatic swing gates with regular daily use.

ALENA SW2 Control Board

The BFT ALENA SW2 control board provides electronic management of the swing gate automation system and compatible accessories.

The control system can manage compatible BFT remote controls, photocell safety sensors, flashing lights, automatic closing, pedestrian opening and other automatic gate functions.

Electronic Clutch & Automatic Slowdown

The ATHOS AC A40 AL uses an electronic clutch for motor force management. The operating force can be configured according to the characteristics of the swing gate installation.

The automatic slowdown function provides smoother movement near the end of the opening and closing cycles, helping reduce mechanical stress on the gate, hinges, brackets and automation components.

400 mm Stroke & 110° Opening Angle

The BFT ATHOS AC A40 AL features a 400 mm useful rod stroke and supports a maximum opening angle of approximately 110° when installed with the correct mounting geometry.

The operator has a cycle time of approximately 16 seconds, providing smooth and practical operation for compatible swing gate installations.

Mechanical Locking & Manual Release

The ATHOS AC A40 AL incorporates a mechanical locking system that holds the swing gate when the motor is stopped.

A triangle-key manual release allows the operator to be disengaged so the gate can be moved manually during maintenance or a mains power failure.

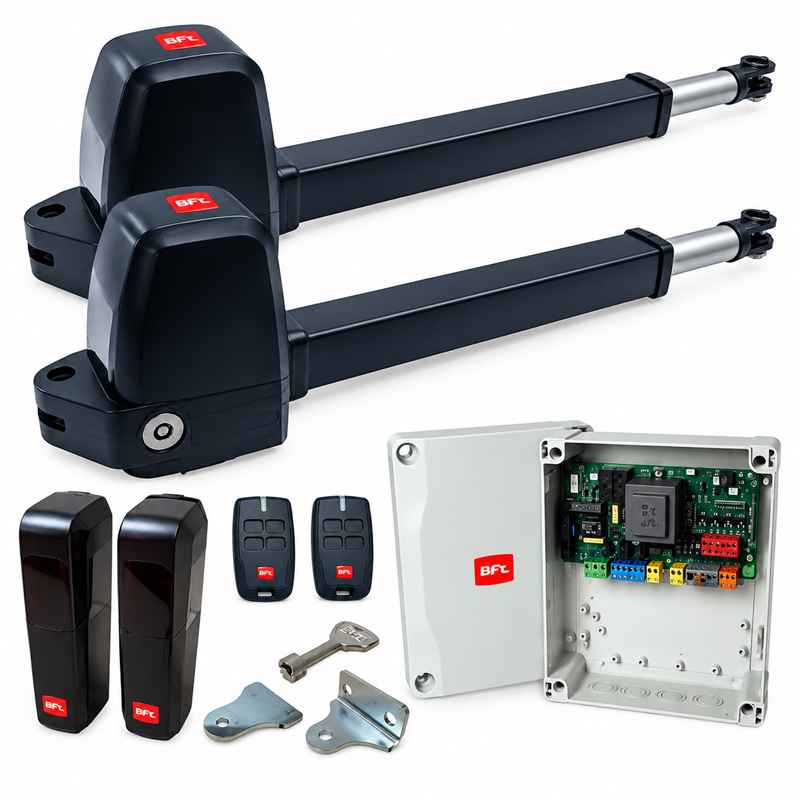

BFT ATHOS AC A40 AL Kit Includes

• 2 × BFT ATHOS AC A40 Swing Gate Motors
• 1 × BFT ALENA SW2 Control Board
• 1 × Pair of Self-Aligning Photocell Sensors – 30 m Range
• 1 × Flashing Light with Incorporated Antenna
• 2 × BFT Remote Controls
• 1 × Push Button
• 2 × Motor Fixing Bracket Sets

Applications

• Swing gate leaves up to 4 metres
• Gate leaves up to 400 kg
• Single swing gates
• Double swing gates
• Villa entrance gates
• Large residential gates
• Residential compounds
• Commercial property entrances
• Automatic driveway gates
• Vehicle access systems

BFT ATHOS AC A40 AL Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies BFT ATHOS AC A40 AL swing gate motors in UAE together with compatible BFT control boards, remote controls, photocells, flashing lights and automatic gate accessories.

Supply, professional installation, maintenance and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
