BFT KUSTOS BT A40 Swing Gate Motor 500 KG UAE

The BFT KUSTOS BT A40 Swing Gate Motor is a high-performance 24V electromechanical operator designed for automatic swing gate leaves measuring up to 4 metres and weighing up to 500 kg. Made in Italy, the KUSTOS BT A40 combines intensive-use performance, smooth gate movement and advanced BFT safety technology for residential, commercial and professional swing gate automation.

Powered by a 24V motor with approximately 40W power consumption, the BFT KUSTOS BT A40 provides precise and controlled automatic gate movement. The operator features a 355 mm useful rod stroke, a maximum opening angle of approximately 126° and a cycle time of approximately 17 seconds.

The KUSTOS BT A40 works with the BFT THALIA control board, designed to manage one or two 24V swing gate operators. The system incorporates BFT D-Track anti-crushing technology, electronic self-learning, opening and closing slowdown and management of compatible safety and automation accessories.

Designed for intensive use, the BFT KUSTOS BT A40 also features magnetic limit switches, mechanical locking and a personal-key manual release system. Its IP44 protection rating makes it suitable for professional outdoor swing gate installations.

Key Features

• Genuine BFT swing gate automation
• Model KUSTOS BT A40
• Product code P935100 00002
• Made in Italy
• 24V electromechanical swing gate operator
• Suitable for gate leaves up to 4 metres
• Maximum gate leaf weight up to 500 kg
• 40W power consumption
• 355 mm useful rod stroke
• Maximum opening angle up to 126°
• Approximately 17-second cycle time
• Compatible with BFT THALIA control board
• BFT D-Track anti-crushing technology
• Magnetic limit switches
• Automatic slowdown during opening and closing
• Mechanical locking system
• Personal-key manual release
• Designed for intensive use
• IP44 protection rating
• Operating temperature from -20°C to +55°C

Technical Specifications

Swing Gates up to 4 Metres & 500 KG

The BFT KUSTOS BT A40 is designed for automatic swing gate leaves measuring up to 4 metres and weighing up to 500 kg. Its long-stroke construction makes it suitable for large villa gates, residential compounds, commercial properties and other vehicle access entrances.

Actual operator suitability depends on gate weight, leaf dimensions, hinge geometry, gate construction and wind exposure. Professional assessment is recommended for large or solid-panel gates before installation.

24V Intensive-Use Swing Gate Motor

The KUSTOS BT A40 uses a 24V electromechanical motor designed for intensive automatic gate operation. The low-voltage motor system provides precise electronic control of gate movement, operating force and slowdown.

With approximately 40W power consumption, the KUSTOS BT A40 provides an efficient and reliable solution for swing gates requiring frequent daily operation.

BFT D-Track Safety Technology

The BFT D-Track system provides intelligent electronic management of the force required to move the swing gate. The system monitors motor torque during operation and helps maintain controlled gate movement throughout the opening and closing cycles.

When abnormal resistance is detected, the automation can react according to its programmed safety settings. Compatible photocell sensors can also be connected for additional pedestrian and vehicle protection.

THALIA Control Board

The BFT THALIA control board is designed to manage one or two 24V electromechanical swing gate operators. It provides simplified display programming and an integrated dual-channel receiver for compatible BFT remote controls.

The THALIA system supports D-Track anti-crushing management, opening and closing slowdown, electronic self-learning, automatic re-closing, fast closing and partial opening.

Magnetic Limit Switches

The BFT KUSTOS BT A40 uses magnetic limit switches for precise detection of the gate's opening and closing positions. This provides reliable control of gate travel and consistent stopping positions during automatic operation.

Automatic Slowdown

The integrated automatic slowdown function reduces gate movement near the end of the opening and closing cycles. This provides smoother stopping and helps reduce mechanical stress on the gate, hinges, mounting brackets and automation components.

355 mm Stroke & 126° Opening

The KUSTOS BT A40 features a 355 mm useful rod stroke and supports a maximum opening angle of approximately 126° when installed with the correct mounting geometry.

The operator provides a cycle time of approximately 17 seconds, delivering smooth and controlled operation for compatible automatic swing gates.

Mechanical Locking & Manual Release

The BFT KUSTOS BT A40 incorporates a mechanical locking system that holds the swing gate when the operator is stopped.

A personal-key manual release allows the motor to be disengaged so the gate can be moved manually when required, including during maintenance or a mains power failure.

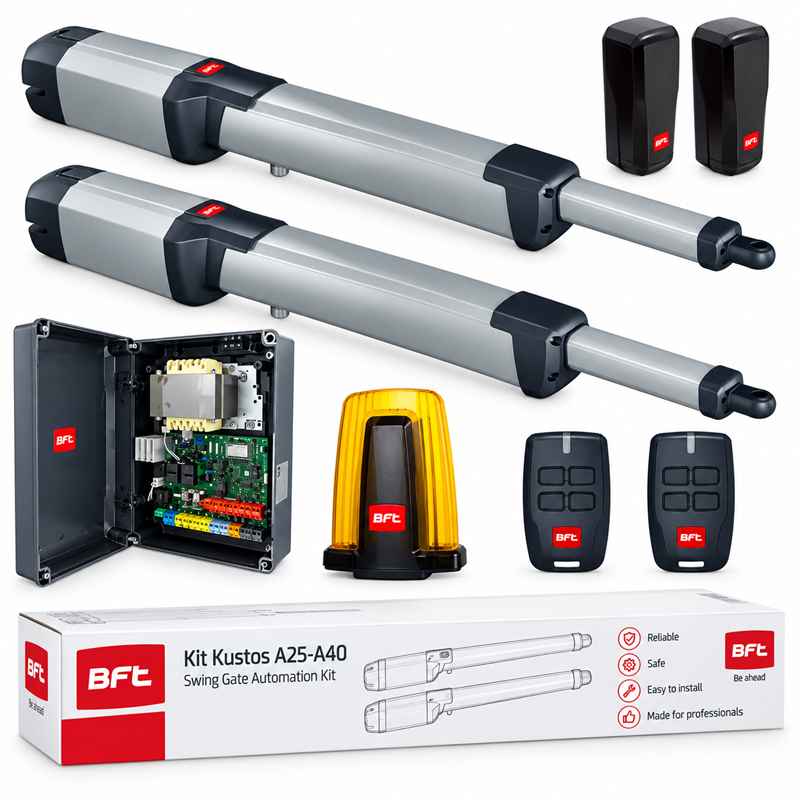

BFT KUSTOS BT A40 Kit Includes

• 2 × BFT KUSTOS BT A40 24V Swing Gate Motors
• 1 × BFT THALIA Control Board
• 1 × Pair of Self-Aligning Photocell Sensors – 30 m Range
• 1 × Flashing Light with Incorporated Antenna
• 2 × BFT MITTO2 B RCB Remote Controls
• 1 × Push Button
• 2 × Motor Fixing Bracket Sets

Applications

• Swing gate leaves up to 4 metres
• Gate leaves up to 500 kg
• Single and double swing gates
• Villa entrance gates
• Large residential gates
• Residential compounds
• Commercial building entrances
• Automatic driveway gates
• Vehicle access control entrances
