BFT ATHOS AC A25 Swing Gate Motor 700 KG UAE

The BFT ATHOS AC A25 Swing Gate Motor is a powerful 230V electromechanical gate operator designed for automatic swing gates with leaves up to 2.5 metres and a maximum specified gate leaf weight of 700 kg. Made in Italy, the ATHOS AC A25 provides reliable automation for villas, residential properties, commercial buildings and other swing gate entrances.

Powered by a 230V AC motor with approximately 280W power consumption, the BFT ATHOS AC A25 combines strong operating performance with smooth gate movement. The operator provides a useful rod stroke of 300 mm, a maximum opening angle of 110° and a cycle time of approximately 14 seconds.

The ATHOS AC A25 works with the BFT ALENA SW2 control board, providing professional management of one or two 230V swing gate operators. The system supports slowdown, electronic motor torque management, safety devices, remote controls, pedestrian opening and automatic gate functions.

Designed for semi-intensive use, the BFT ATHOS AC A25 features mechanical locking, electronic clutch impact reaction and a triangle-key manual release system. Its IP54 protection rating provides reliable protection for professional outdoor swing gate installations.

Key Features

• Genuine BFT swing gate automation
• Model ATHOS AC A25
• Made in Italy
• 230V electromechanical swing gate operator
• Suitable for gate leaves up to 2.5 metres
• Maximum specified gate leaf weight up to 700 kg
• 280W power consumption
• 300 mm useful rod stroke
• Maximum opening angle up to 110°
• Approximately 14-second cycle time
• ALENA SW2 control board
• Electronic clutch impact reaction
• Automatic slowdown function
• Mechanical locking system
• Triangle-key manual release
• Semi-intensive duty
• IP54 protection rating
• Operating temperature from -20°C to +55°C
• Suitable for single and double swing gate automation

Technical Specifications

Swing Gates up to 700 KG & 2.5 Metres

The BFT ATHOS AC A25 is designed for swing gate leaves measuring up to 2.5 metres and with a maximum specified weight of up to 700 kg. This makes the operator suitable for residential, commercial and professional swing gate automation applications.

The actual suitability of the motor depends on the gate dimensions, weight, hinge geometry, wind exposure and installation conditions. An electric lock may also be required for certain gate configurations.

230V Electromechanical Swing Gate Motor

The ATHOS AC A25 uses a robust 230V electromechanical motor with approximately 280W power consumption. The operator is designed for semi-intensive operation and provides dependable performance for automatic swing gates with regular daily use.

ALENA SW2 Control Board

The recommended BFT ALENA SW2 control board can manage one or two 230V swing gate operators. It provides electronic control of the motors and connected automation accessories.

Functions include automatic closing, partial or pedestrian opening, fast closing, electronic motor torque adjustment, safety device management and integrated radio receiver support for compatible BFT remote controls.

Electronic Clutch Safety System

The BFT ATHOS AC A25 uses an electronic clutch for motor torque and impact reaction management. The system allows the operating force to be adjusted according to the gate installation and provides controlled gate movement.

Compatible photocell sensors and other safety devices can be connected to the control system to provide additional protection around the automatic gate entrance.

Automatic Slowdown

The ATHOS AC A25 supports slowdown during gate movement, allowing smoother operation as the swing gate approaches the end of its opening and closing cycles.

Controlled slowdown helps reduce mechanical stress on the gate, hinges, brackets and automation components while providing smoother everyday operation.

110° Maximum Opening Angle

With correct installation geometry, the ATHOS AC A25 supports a maximum opening angle of approximately 110°. Its 300 mm useful rod stroke provides controlled linear movement for compatible swing gate installations.

Mechanical Locking & Manual Release

The BFT ATHOS AC A25 incorporates a mechanical locking system to hold the gate when the motor is stopped.

A triangle-key manual release allows the operator to be disengaged so the swing gate can be moved manually when required, such as during maintenance or a mains power failure.

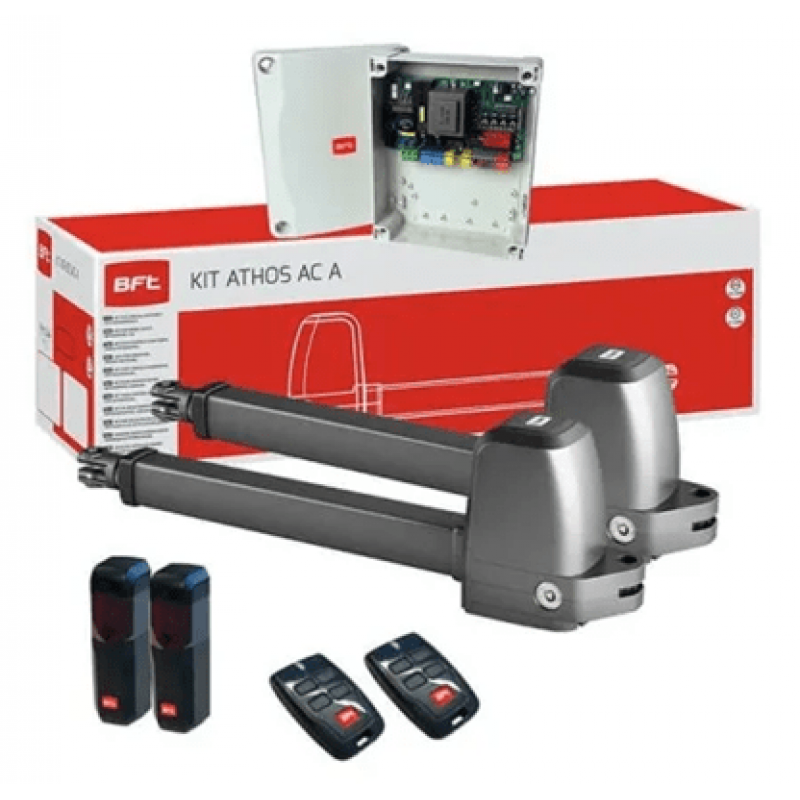

BFT ATHOS AC A25 Kit Includes

• 2 × BFT ATHOS AC A25 Swing Gate Motors
• 1 × BFT ALENA SW2 Control Board
• 1 × Pair of Self-Aligning Photocell Sensors
• 1 × Flashing Light with Antenna
• 2 × BFT Remote Controls
• 1 × Push Button
• 2 × Motor Fixing Plate Sets

Applications

• Single swing gates
• Double swing gates
• Gate leaves up to 2.5 metres
• Residential villa gates
• Residential compounds
• Commercial property entrances
• Automatic driveway gates
• Parking entrance gates
• Vehicle access control systems

BFT ATHOS AC A25 Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies BFT ATHOS AC A25 swing gate motors in UAE together with compatible BFT control boards, remote controls, photocells, flashing lights and automatic gate accessories.

Supply, professional installation, maintenance and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
