SOMMER TWIST UG Swing Gate Motor in UAE

SOMMER Swing Gate Motor - SOMMER TWIST UG - Best Price UAE

SOMMER TWIST UG Underground Swing Gate Motor in UAE

• Swing gate operator twist UG set 2-leaf | Hot-dip galvanised
• twist UG set 2-leaf868,8MHz SOMMER version
• anthracite power plug Schuko hot galvanized incl. 1x 4019V000 etc.
• Article number: S10906-00001

Properties:

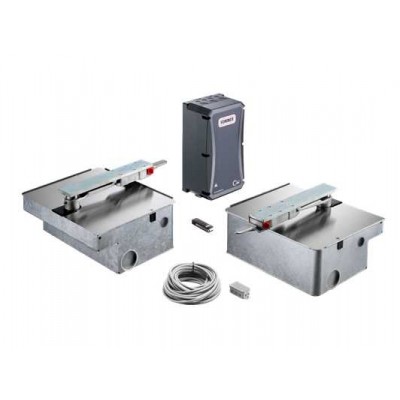

• Two underground swing gate operators (DIN left and DIN right)
• Control unit twist UG (IP67), Dimensions: 350 × 200 × 140 mm
• Radio receiver FM 868.95 MHz (SOMloq2)
• Pearl Vibe 4-command handheld transmitter (# 4019V000)
• with noticeable feedback of radio commands via vibration
• 12 m connecting cable set

Technical Data:

• Gate weight max : 350 kg
• Max. gate leaf width : 3,500 mm
• Max. gate filling : 90 %
• Rated voltage range 1 : 220-240 V
• Rated frequency : 50-60 Hz
• Motor voltage : DC 24 V
• Max. Opening angle : 105 °
• Number of radio channels : 4
• Motor duty cycle : ED 40% S3
• Protection class : IP67
• Protection control unit : IP65
• Temperature min. : -25 °C
• Temperature max. : 65 °C
