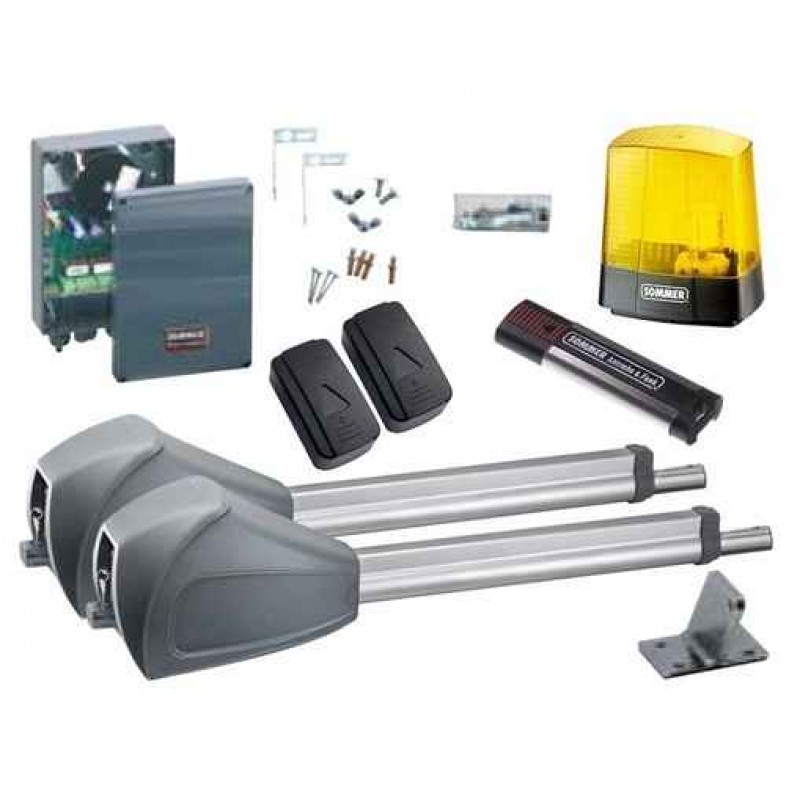

SOMMER TWIST XL Swing Gate Motor UAE

The SOMMER TWIST XL Swing Gate Motor is an extremely powerful 24V automatic swing gate operator designed for oversized and heavy swing gates. Engineered by SOMMER, the TWIST XL combines high gate capacity, smooth movement, electronic force measurement and flexible installation for demanding residential, commercial and industrial entrances.

The TWIST XL is designed for compatible swing gate leaves weighing up to 1,100 kg or measuring up to 7 metres wide, depending on the gate dimensions, construction, filling, wind load and installation conditions.

With a 24V DC motor, maximum thrust speed of 20 mm/s, opening angle up to 110° and ED 40% S3 duty cycle, the SOMMER TWIST XL provides a powerful automation solution for large villa gates, compounds, commercial properties and industrial entrances.

Key Features

• Original SOMMER heavy-duty swing gate operator
• Model TWIST XL
• Article number 3280V000
• Maximum gate weight up to 1,100 kg*
• Maximum gate leaf width up to 7 metres*
• Maximum gate inclination up to 10%
• Suitable for gate filling up to 100%*
• 220–240V AC mains supply
• Powerful 24V DC motor
• Maximum thrust speed 20 mm/s
• Maximum opening angle 110°
• ED 40% S3 duty cycle
• Electronic force measurement
• Adjustable operating speed
• Pedestrian opening function
• Automatic closing function
• Adjustable pre-warning time
• Full or partial reversal after obstacle detection
• Suitable for single and double-leaf gates
• Universal left and right installation
• Suitable for closed gate panels*
• Outward-opening installation possible with special fittings
• IP44 operator protection
• Compatible control unit with IP65 protection
• Manual emergency release

*Gate suitability depends on leaf width, weight, height, filling, wind exposure and installation geometry.

Technical Specifications

Heavy-Duty SOMMER Swing Gate Motor

The SOMMER TWIST XL is designed for oversized swing gates where a conventional residential operator does not provide sufficient gate capacity.

Its heavy-duty design makes it suitable for large residential gates, commercial entrances and demanding industrial swing gate applications.

Up to 1,100 KG Gate Weight

The TWIST XL supports compatible swing gate leaves weighing up to 1,100 kg.

The actual permissible weight depends on the gate width, height, construction, filling, wind exposure, hinge condition and operator installation geometry.

Up to 7 Metre Gate Leaf

The SOMMER TWIST XL is designed for oversized swing gate leaves measuring up to 7 metres wide under suitable installation conditions.

This makes it an excellent choice for large villa entrances, commercial properties, compounds, warehouses and industrial facilities.

24V DC Heavy-Duty Gate Operator

The TWIST XL uses a powerful 24V DC motor controlled through a compatible SOMMER control unit.

The low-voltage motor system provides controlled gate movement together with electronic force measurement and configurable automation functions.

20 mm/s Maximum Thrust Speed

The SOMMER TWIST XL provides a maximum thrust speed of approximately 20 mm/s.

The compatible microprocessor control system also provides adjustable speed settings, allowing gate movement to be configured according to the installation.

Maximum 110° Opening Angle

Depending on the gate geometry and operator mounting dimensions, the TWIST XL supports an opening angle of up to approximately 110 degrees.

The achievable opening angle depends on the hinge position, gate post dimensions and mounting points.

40% Duty Cycle

With an ED 40% S3 duty cycle, the TWIST XL is designed for demanding gate automation applications requiring more frequent operation than many standard residential operators.

Electronic Force Measurement

The SOMMER TWIST XL uses electronic force measurement to monitor the force required during gate movement.

The compatible control system can respond to unexpected resistance according to its programmed obstacle behaviour and safety configuration.

Obstacle Detection & Reversal

The control system provides configurable behaviour when the gate encounters an obstacle, including full or partial reversal according to the selected settings.

Correct force adjustment and suitable safety devices remain essential for safe automatic gate operation.

Automatic Closing Function

The compatible SOMMER control system supports automatic closing, allowing the gate to close after a configured period when the required safety devices are installed and correctly configured.

Pedestrian Gate Function

A pedestrian opening function can provide partial gate access without requiring the entire entrance to be opened.

This is convenient for pedestrian access at villas, commercial properties and controlled entrances.

Adjustable Pre-Warning Time

The compatible microprocessor control provides an adjustable pre-warning function, allowing connected warning equipment to indicate that automatic gate movement is about to begin.

Single & Double-Leaf Swing Gates

The SOMMER TWIST XL can be used for both single-leaf and double-leaf swing gate installations.

SOMMER also supports selected mixed installations using TWIST XL together with compatible TWIST series operators.

Universal Left & Right Installation

The TWIST XL operator can be used universally for both left-hand and right-hand gate installations.

This provides flexibility when designing single or double-leaf automatic swing gate systems.

Suitable for Closed Gate Panels

SOMMER specifies the TWIST XL as suitable for compatible closed gate panels.

Closed gates can create significant wind load, especially with large gate leaves. Gate dimensions, filling and local wind conditions should therefore be carefully evaluated before selecting the operator.

Outward Opening Swing Gates

The SOMMER TWIST XL can also be used for selected outward-opening swing gate installations using appropriate special fittings.

Gate geometry and available mounting space should be checked before selecting an outward-opening configuration.

Gate Inclination Up to 10%

SOMMER specifies a maximum gate inclination of up to 10% for suitable TWIST XL installations.

Inclined gate installations require correct operator sizing and appropriate mounting components.

IP44 Outdoor Gate Operator

The SOMMER TWIST XL operator has an IP44 protection rating for correctly installed outdoor automatic gate applications.

IP65 Control Unit

The compatible SOMMER TWIST XL control unit is housed in an IP65 enclosure, helping protect the gate automation electronics against dust and moisture.

SOMloq2 Remote Control

The current compatible TWIST XL control unit can be supplied with a SOMup4 FM 868.95 MHz SOMloq2 radio receiver.

Compatible SOMMER handheld transmitters can then be programmed for convenient wireless gate operation.

SOMMER TWIST XL Control Unit

The TWIST XL single operator is supplied separately from the control unit. A compatible SOMMER control unit must therefore be selected for the complete automation system.

The current SOMMER TWIST XL control unit uses the DTA-1 control system in an IP65 housing and can include the SOMup4 SOMloq2 radio receiver.

Manual Emergency Release

The TWIST XL provides manual release functionality so the gate can be operated manually when required, such as during a power failure or maintenance.

After manual operation, the operator should be correctly re-engaged before returning the gate to automatic operation.

Residential Applications

The TWIST XL is suitable for large villa and residential compound gates where long or heavy swing gate leaves require a powerful automatic gate operator.

Commercial Gate Applications

The SOMMER TWIST XL is also suitable for compatible commercial entrances, offices, private parking areas and other properties requiring heavy-duty swing gate automation.

Industrial Gate Applications

With its high gate capacity and 40% duty cycle, the TWIST XL can be used for compatible warehouses, factories and industrial entrances.

The complete gate dimensions, operating frequency, wind exposure and safety requirements should be assessed before installation.

Check Gate Size Before Ordering

Before selecting the SOMMER TWIST XL, check the gate leaf width, gate weight, gate height, gate filling, wind exposure, hinge condition, post dimensions, opening angle and installation geometry.

The maximum 1,100 kg gate weight and maximum 7 metre leaf width should not be treated as simultaneous limits for every gate design.

Professional SOMMER Gate Motor Installation

Professional installation is recommended to ensure correct operator geometry, mounting brackets, control-unit wiring, limit positions, force settings, remote programming and safety-device operation.

After installation, the automatic gate should be tested through multiple complete opening and closing cycles to confirm smooth, safe and reliable operation.
