SOMMER TWIST M Swing Gate Motor in UAE

SOMMER Swing Gate Motor - SOMMER TWIST M - Best Price UAE

SOMMER TWIST M Swing Gate Opener Motor in UAE

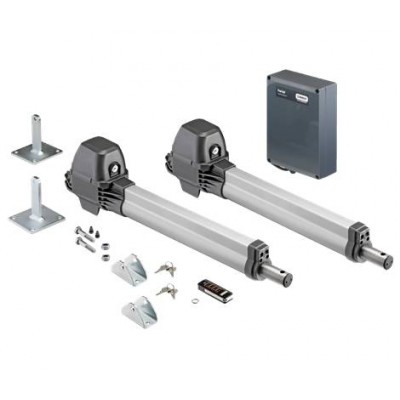

• Swing gate operator twist M Set 2-leaf
• The powerful swing gate operator for gates with a leaf width of up to 2.5 m.
• Article number: S13695-00001

Technical data:

• Gate weight max : 300 kg
• Max. gate leaf width : 2,500 mm
• Max. gate inclination : 10 %
• Max. gate filling : 100 %
• Rated voltage range 1 : 220-240 V
• Rated frequency : 50-60 Hz
• Motor voltage : DC 24 V
• Max. Thrust speed : 16.5 mm/s
• Max. Opening angle : 120 °
• Number of radio channels : 2
• Motor duty cycle : ED 15% S3
• Protection class : IP44
• Protection control unit : IP65
• Temperature min. : -25 °C
• Temperature max. : 65 °C

Properties:

• Two twist M swing gate operators (can be used universally for DIN left and DIN right)
• Post and gate leaf fittings
• Control unit DST-A 24 in housing (IP65), Dimensions: 250 × 175 × 75 mm
• SOMup4 S2 radio receiver (FM 868.95 MHz SOMloq2, 40
• radio memory positions, antenna connection), pluggable
• Slot for Memo memory extension (450 radio commands)
• Pearl Vibe 4-command handheld transmitter (# 4019V000)
• with noticeable feedback of radio commands via vibration
• Transmitters can be programmed and deleted and information
• on the radio receiver viewed via the SOMlink S2 service interface.
