SOMMER TWIST 200 E Swing Gate Motor UAE

The SOMMER TWIST 200 E Swing Gate Motor is a reliable 24V automatic swing gate opener designed for residential and light commercial gate automation. Engineered by SOMMER, the TWIST 200 E combines powerful operation, smooth gate movement and advanced electronic safety technology.

The operator is suitable for swing gate leaves up to 2.5 metres, depending on gate weight and installation geometry, with a maximum gate weight of up to 300 kg per leaf under the specified operating conditions.

With a maximum force of 2,000 N, 390 mm travel and up to 120° opening angle, the SOMMER TWIST 200 E is an excellent automation solution for villa entrances, residential properties and compatible commercial swing gates.

Key Features

• Original SOMMER swing gate operator
• Model TWIST 200 E
• 24V DC motor technology
• 220–240V AC mains supply
• Maximum gate weight up to 300 kg per leaf*
• Maximum gate leaf length up to 2.5 metres*
• Maximum opening angle up to 120°
• 390 mm operator travel
• Maximum pulling and pushing force 2,000 N
• Rated pulling and pushing force 660 N
• Maximum movement speed 16.5 mm/s
• Electronic force measurement
• Obstacle detection support
• IP44 motor protection
• IP65 control unit housing
• SOMloq2 radio technology
• Suitable for single and double-leaf swing gates
• Manual emergency release

*Maximum permissible gate weight depends on gate leaf length, design, filling and installation geometry.

Technical Specifications

SOMMER 24V Swing Gate Motor

The SOMMER TWIST 200 E uses a 24V DC motor system designed to provide smooth and controlled automatic swing gate movement.

The low-voltage motor works together with the SOMMER control unit to provide electronic force monitoring and configurable gate operation.

Up to 300 KG Gate Weight

The TWIST 200 E supports gate leaves weighing up to 300 kg under the specified installation conditions.

Gate weight capacity depends on leaf length, gate construction, filling, wind load and installation geometry. The correct motor should therefore be selected using both gate dimensions and weight.

Up to 2.5 Metre Gate Leaf

The SOMMER TWIST 200 E can automate compatible swing gate leaves up to approximately 2.5 metres long.

For a 2.5 metre gate leaf, the permitted gate weight is lower than the absolute 300 kg maximum. Always select the operator according to SOMMER's gate weight and leaf-length requirements.

Maximum 120° Opening Angle

Depending on gate geometry and mounting dimensions, the TWIST 200 E supports an opening angle of up to approximately 120 degrees.

The achievable opening angle depends on the position of the gate hinges, post dimensions and operator mounting points.

2,000 N Maximum Force

The TWIST 200 E provides up to 2,000 N maximum pulling and pushing force per gate leaf, with a rated force of approximately 660 N.

This provides reliable movement for correctly sized and properly balanced swing gates.

Electronic Force Measurement

SOMMER uses electronically regulated force measurement to monitor the force required during automatic gate movement.

Correctly configured force monitoring helps the automation respond when unexpected resistance or an obstacle is encountered.

Single & Double-Leaf Swing Gates

The SOMMER TWIST 200 E can be configured for compatible single-leaf or double-leaf swing gate installations.

For double gates, two operators work together through the compatible SOMMER control system to coordinate opening and closing.

Left & Right Gate Installation

The TWIST operator design allows installation on either the left or right gate leaf, providing flexibility when automating double swing gates.

Outward Opening Gate Applications

With suitable mounting geometry and the appropriate special fittings, the TWIST series can also be used for selected outward-opening swing gate installations.

The available installation space and gate geometry should be checked before selecting this configuration.

SOMloq2 Remote Control Technology

Compatible TWIST 200 E systems can use SOMMER SOMloq2 radio technology at 868.95 MHz for secure wireless gate operation.

Compatible SOMMER handheld transmitters can be programmed into the radio receiver for convenient automatic gate control.

40 Remote Memory Positions

The SOMup4 radio receiver supplied with compatible TWIST 200 E kits provides 40 SOMloq2 radio memory positions.

The system also provides a slot for the optional SOMMER Memo memory extension, allowing up to 450 radio commands where supported.

IP44 Gate Operator

The TWIST 200 E operator has an IP44 protection rating, making it suitable for correctly installed outdoor swing gate automation.

IP65 Control Unit Housing

The compatible SOMMER control unit is installed inside an IP65 protective enclosure, providing additional protection for the gate automation electronics.

Manual Emergency Release

The SOMMER TWIST 200 E provides manual release functionality so the gate can be moved manually when necessary, such as during a power failure or maintenance.

After manual operation, the operator should be correctly re-engaged before returning the gate to automatic operation.

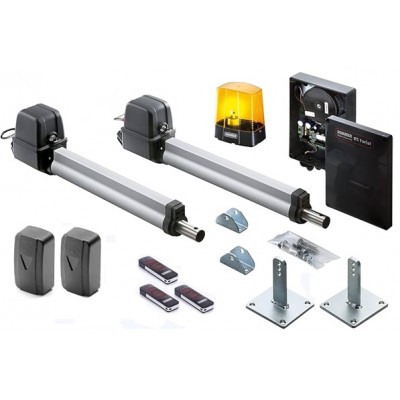

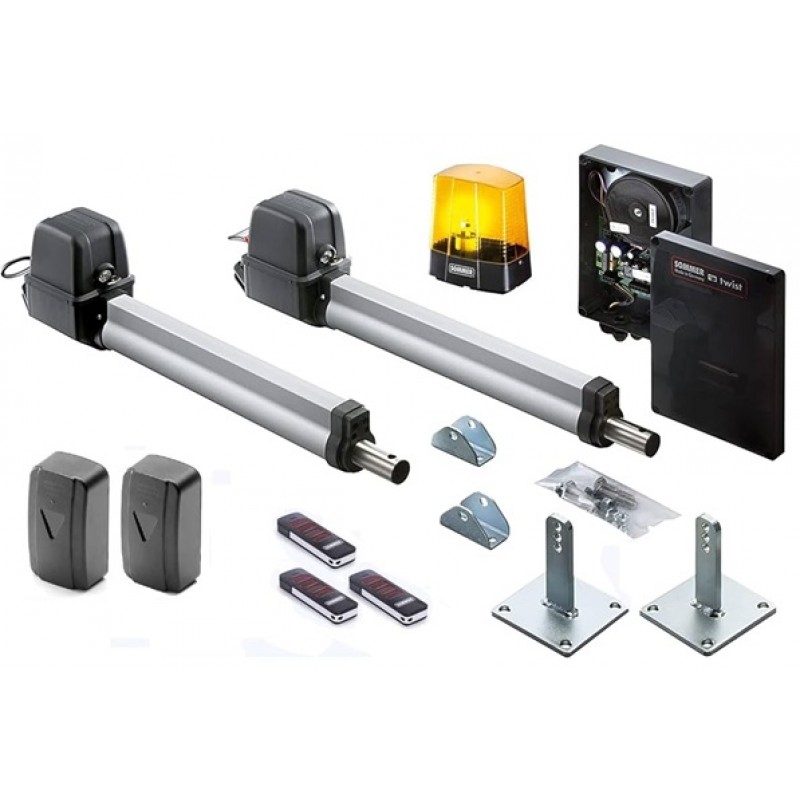

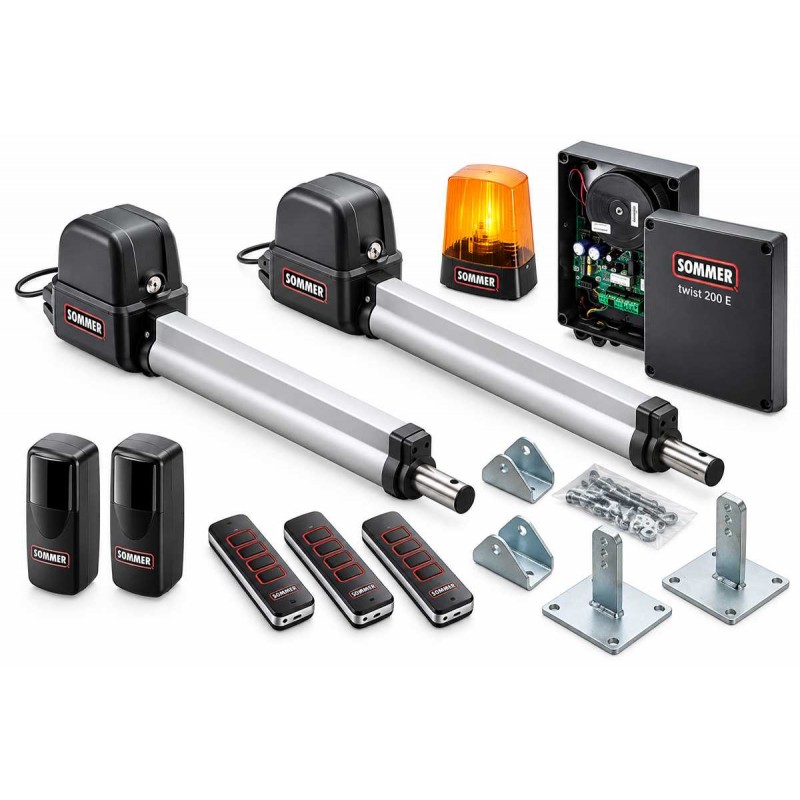

SOMMER TWIST 200 E Kit Includes

• 2 × SOMMER TWIST 200 E swing gate operators
• 1 × SOMMER control unit with protective housing
• Post and gate leaf mounting fittings
• 1 × SOMup4 868.95 MHz SOMloq2 radio receiver
• Compatible SOMMER handheld remote control(s)
• Mounting accessories according to supplied kit configuration

Villa Swing Gate Automation

The TWIST 200 E is particularly suitable for automatic swing gates installed at villas, private residences, townhouses and residential entrances.

Its compact linear actuator design provides a clean appearance while delivering reliable everyday gate operation.

Check Gate Size Before Ordering

Before selecting the SOMMER TWIST 200 E, check the gate leaf length, gate weight, hinge position, post dimensions, gate filling, opening angle and installation geometry.

The maximum 300 kg weight and maximum 2.5 metre leaf length should not be treated as simultaneous limits. The allowable gate weight decreases as the gate leaf becomes longer.

Professional SOMMER Gate Motor Installation

Professional installation is recommended to ensure correct operator geometry, mounting brackets, electrical wiring, limit positions, force settings, remote programming and safety-device operation.

After installation, both gate leaves should be tested through complete opening and closing cycles to confirm smooth, safe and reliable operation.

SOMMER TWIST 200 E Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies SOMMER TWIST 200 E swing gate motors in UAE for residential and compatible commercial automatic swing gate applications.

Supply, professional installation, maintenance, repair and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
