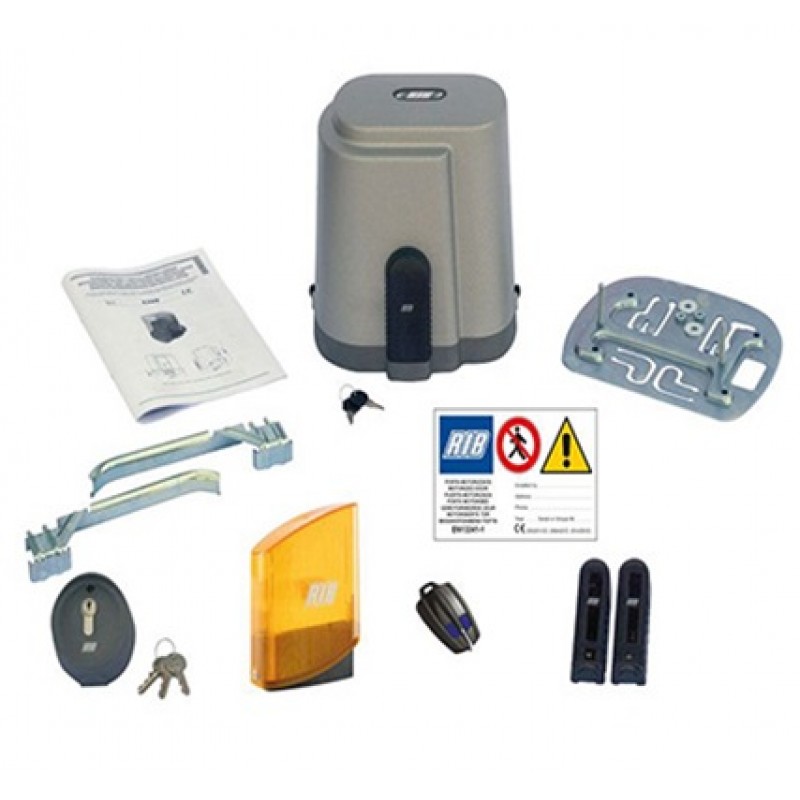

RIB K800 800 KG Sliding Gate Motor UAE

The RIB K800 Sliding Gate Motor is a powerful and reliable automatic gate operator designed for sliding gates weighing up to 800 KG. Manufactured by RIB, the K800 combines robust Italian engineering with advanced electronic control for smooth, safe and dependable automatic gate operation.

The RIB K800 features a built-in electronic control board with gradual starting, electronic force adjustment, soft-stop during approach and electronic braking. These functions provide smoother gate movement while helping reduce mechanical stress on the gate and automation system.

Suitable for villas, residential buildings, commercial properties and other automatic sliding gate applications, the RIB K800 provides reliable everyday operation together with pedestrian opening, safety-device management, manual release and optional advanced control accessories.

Key Features

• Original RIB K800 sliding gate motor
• Suitable for sliding gates up to 800 KG
• Irreversible electromechanical gate operator
• Built-in electronic control board
• Gradual motor start
• Electronic force adjustment
• Soft-stop during gate approach
• Electronic braking
• Smooth gate slowdown near end positions
• Pedestrian opening command
• Photocell safety management
• Photocell auto-test with L1-CRX
• Manual release with personalized key or Allen key
• Up to 1000 SUN or SUN PRO remotes with L1-CRX
• Remote-control memory management
• Optional Bluetooth APP / APP+ management
• Electromechanical or magnetic limit switch versions available
• Suitable for residential and commercial sliding gates

Technical Specifications

RIB K800 800 KG Sliding Gate Opener

The RIB K800 is designed to automate sliding gates weighing up to 800 KG. Its combination of mechanical strength and electronic movement control makes it suitable for residential and commercial automatic gate applications.

The correct motor selection should always consider the actual gate weight, gate length, wheel condition, track condition, usage frequency and installation environment.

Automatic Soft Start

The RIB K800 control system provides a gradual starting function that allows the gate to begin moving smoothly instead of immediately applying maximum movement force.

Smooth starting helps reduce mechanical shock on the motor, gear rack, gate wheels and other automation components.

Soft-Stop During Gate Approach

One of the important features of the RIB K800 is its slow-down and soft-stop function during the final approach to the opening and closing positions.

The gate slows before reaching the end of its travel, providing smoother movement and helping reduce mechanical impact.

Electronic Force Adjustment

The K800 provides electronic adjustment of the motor force, allowing the automation system to be configured according to the characteristics of the sliding gate.

Correct force adjustment is important for smooth, reliable and safe automatic gate operation.

Electronic Brake

The RIB K800 incorporates an electronic braking function as part of its movement-control system.

Combined with gradual starting and approach slowdown, electronic braking provides precise control throughout the gate movement cycle.

Irreversible Sliding Gate Operator

The RIB K800 is an irreversible gate operator. Its mechanical transmission helps maintain the sliding gate in position when the motor is stopped.

Correct installation of the motor, rack and mechanical gate stops is important for secure and reliable operation.

Pedestrian Opening Function

With the compatible L1-CRX control board, the RIB K800 supports a pedestrian opening command.

This allows the sliding gate to open partially when pedestrian access is required instead of performing a complete vehicle-access opening cycle.

Photocell Safety Sensors

Compatible RIB photocell safety sensors can be connected to the K800 automation system to detect vehicles, pedestrians and obstacles across the gate entrance.

The L1-CRX control system also supports photocell auto-testing as required by the appropriate system configuration.

RIB FIT SLIM Photocell Compatibility

The RIB K800 can be installed with compatible RIB FIT SLIM photocell sensors to provide infrared obstacle detection across the automatic gate entrance.

Correct positioning and alignment of the photocells are important for reliable gate safety operation.

Up to 1000 Remote Controls

The L1-CRX control board can manage up to 1000 RIB SUN or SUN PRO remote controls.

This large transmitter capacity makes the system suitable not only for villas but also for residential buildings, compounds and commercial properties requiring multiple authorised users.

Remote Control Memory Management

The L1-CRX control board provides transmitter-memory management functionality, allowing stored remote-control codes to be managed during system maintenance.

This is particularly useful for properties where remote controls need to be added, replaced or removed over time.

Manual Release During Power Failure

The RIB K800 includes a manual release system allowing the sliding gate to be disengaged from the motor during a power failure, emergency or maintenance.

Depending on the operator version, release can be performed using a personalized key or Allen key.

Optional Battery Backup

Selected 24V K800 versions can support battery-backup operation. The K800 24V FCM FAST version can perform approximately 30 cycles using two 2.2Ah batteries during a power failure.

Battery-backup capability depends on the exact K800 model and control configuration and should not be assumed for every K800 version.

Optional Bluetooth Control

Compatible L1-CRX installations can be managed using optional RIB APP or APP+ Bluetooth cards.

This provides additional configuration and control options for professional installers and compatible automation installations.

Electromechanical or Magnetic Limit Switch

RIB offers K operators with both traditional electromechanical and magnetic limit switch configurations.

The exact limit-switch system should be confirmed according to the K800 model supplied.

Remote Control Operation

The RIB K800 can be operated using compatible RIB SUN and SUN PRO remote controls when the appropriate radio receiver is installed.

The standard operator should not be described as including a radio receiver unless the specific kit supplied includes one.

Access Control Integration

The RIB K800 can be integrated with compatible external access control equipment through suitable control inputs.

• GSM gate openers
• WiFi gate controllers
• RFID access control systems
• Keypad access control
• UHF long-range vehicle readers
• Loop detectors
• Intercom systems
• Video intercom systems
• Push buttons
• Key switches

RIB K800 Applications

• Villa sliding gates
• Residential houses
• Apartment buildings
• Residential compounds
• Commercial properties
• Office entrances
• Private parking entrances
• Automatic security gates
• Access-controlled entrances

Professional RIB K800 Installation

Professional installation is recommended for the RIB K800. Before installing the motor, the sliding gate should move freely and smoothly by hand without excessive resistance.

The motor foundation, gate track, wheels, gear rack, limit switches, electrical wiring, mechanical stops and safety devices should be correctly installed and adjusted before the automation system is commissioned.

RIB K800 Sliding Gate Motor Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies RIB K800 800 KG sliding gate motors in UAE for residential and commercial automatic sliding gate applications.

Supply, professional installation, programming, maintenance, repair and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
