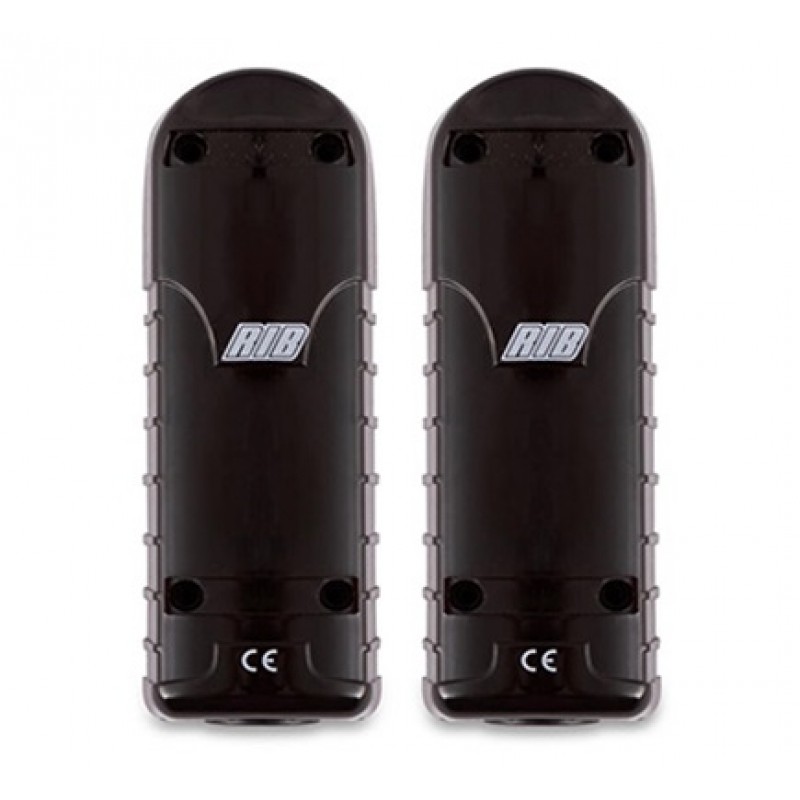

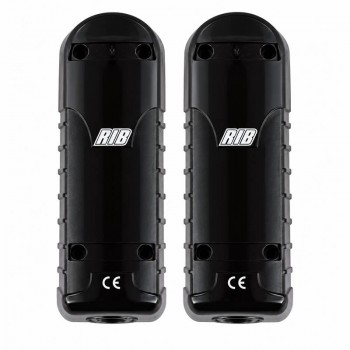

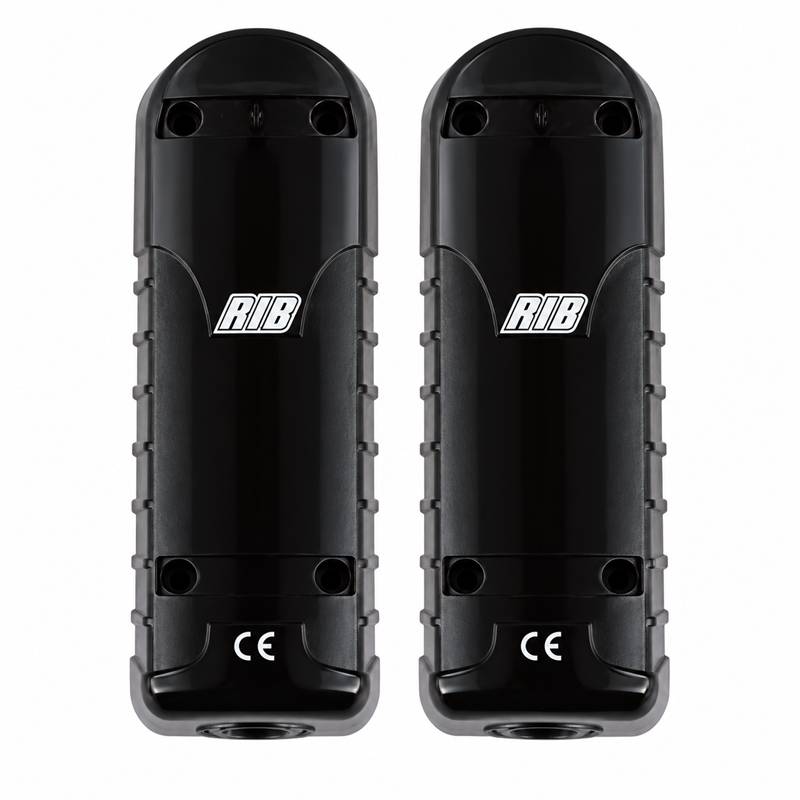

RIB FIT SLIM Photocell Sensor UAE

The RIB FIT SLIM Photocell Sensors are reliable infrared safety devices designed for automatic sliding gates, swing gates and other compatible gate automation systems. With a sensing range of up to 20 metres, FIT SLIM photocells help detect vehicles, pedestrians and obstacles across an automatic gate entrance.

Designed for wall-mounted installation, the RIB FIT SLIM features a compact slim housing suitable for mounting on iron columns and other smooth surfaces. The photocells support 12/24V AC/DC power, NO/NC relay contacts and an IP54 protection rating.

FIT SLIM also provides a synchronization function when operated on AC power. For installations requiring multiple photocell pairs, the optional RIB TX SYNCRO card can synchronize 2 to 4 pairs to help prevent interference between their infrared beams.

Key Features

• Original RIB FIT SLIM photocell sensors
• Model ACG8032B
• Automatic gate safety photocells
• Infrared obstacle detection
• Up to 20 metre operating range
• 12/24V AC/DC power supply
• NO/NC relay output
• Wall-mounted installation
• Compact slim design
• IP54 protection rating
• Synchronization function with AC supply
• Supports optional TX SYNCRO card
• 2 to 4 pairs can be synchronized with TX SYNCRO
• Suitable for sliding and swing gates
• Residential and commercial applications

Technical Specifications

RIB FIT SLIM Automatic Gate Safety Sensor

The RIB FIT SLIM is designed to improve the safety of automatic gate systems by creating an infrared beam between the transmitter and receiver.

When a vehicle, person or other obstacle interrupts the beam, the photocell sends a signal to the compatible gate control board. The control panel can then respond according to its programmed safety function.

20 Metre Detection Range

RIB FIT SLIM photocells provide an operating range of up to 20 metres, making them suitable for a wide variety of residential and commercial automatic gate entrances.

Actual performance depends on correct alignment, installation position, wiring and environmental conditions.

12/24V AC/DC Power Supply

The RIB FIT SLIM ACG8032B supports a 12/24V AC/DC power supply, allowing it to be connected to compatible RIB gate automation control panels and other suitable control systems.

The voltage supplied by the gate control board should always be checked before connecting the photocells.

NO/NC Relay Output

The RIB FIT SLIM provides NO/NC relay contacts, allowing the photocells to interface with compatible automatic gate control boards.

The correct relay connection should be selected according to the safety input and wiring requirements of the gate controller.

Wall-Mounted Photocell Sensors

FIT SLIM photocells are designed for wall-mounted installation and can be fixed to iron columns or other suitable smooth mounting surfaces.

Their slim design helps provide a neat installation around residential and commercial automatic gate entrances.

Photocell Synchronization Function

The RIB FIT SLIM includes a synchronization function when powered by alternating current (AC).

Synchronization is particularly useful when multiple photocell pairs are installed around the same automatic gate, helping prevent interference between infrared beams.

RIB TX SYNCRO Compatibility

The optional RIB TX SYNCRO card can synchronize between 2 and 4 pairs of FIT SLIM photocells.

This allows multiple safety photocell pairs to operate around the same gate automation system while reducing the possibility of infrared interference.

IP54 Protection

The RIB FIT SLIM ACG8032B has an IP54 protection rating, making it suitable for properly installed outdoor automatic gate applications.

Correct cable entry, sealing and mounting are important for maintaining reliable outdoor operation.

Sliding Gate Safety Photocells

RIB FIT SLIM photocells can be installed with compatible automatic sliding gate systems to monitor the vehicle or pedestrian passage area.

If the infrared beam is interrupted during a closing cycle, the connected control panel can stop or reverse the gate according to its programmed safety logic.

Swing Gate Safety Photocells

The FIT SLIM is also suitable for compatible automatic swing gate installations.

Because swing gate leaves move through a wide operating area, photocell position should be carefully selected according to the gate layout, opening direction and required safety zones.

Compatible with RIB Gate Automation

RIB FIT SLIM photocells are used with a wide range of compatible RIB automatic gate systems, including sliding and swing gate automation.

They are commonly used as a safety accessory with suitable RIB control boards and gate automation kits.

RIB K Series Sliding Gate Motors

FIT SLIM photocells can be used as part of compatible RIB sliding gate automation installations, including suitable K-series gate motor systems.

• RIB K500
• RIB K800
• RIB K1400
• RIB K2200

RIB Swing Gate Motor Applications

The photocells can also form part of compatible RIB swing gate automation systems such as KING EVO and other suitable RIB operators.

• RIB KING EVO
• RIB KING EVO L
• RIB PRINCE
• Compatible RIB swing gate automation systems

How RIB FIT SLIM Photocells Work

A photocell system consists of a transmitter and receiver positioned opposite each other across the gate entrance.

The transmitter sends an infrared beam to the receiver. When the beam is interrupted by a vehicle, person or obstacle, the receiver changes its relay output and communicates the safety condition to the connected gate control panel.

Correct Photocell Alignment

Correct alignment between the transmitter and receiver is essential for dependable photocell operation.

Both units should be installed at the appropriate height, positioned directly opposite each other and securely fixed to prevent movement after installation.

Automatic Gate Obstacle Detection

Photocells are an important safety component in an automatic gate installation because they help detect obstacles within the protected entrance area.

The exact response to an interrupted photocell beam depends on the connected gate control board, its wiring and its programmed safety logic.

Residential & Commercial Applications

• Automatic sliding gates
• Automatic swing gates
• Villa entrance gates
• Residential buildings
• Apartment communities
• Commercial properties
• Office entrances
• Warehouse gates
• Factory entrances
• Parking entrances
• Access-controlled gates

Professional RIB FIT SLIM Installation

Professional installation is recommended to ensure correct wiring, positioning and alignment of the RIB FIT SLIM transmitter and receiver.

The installer should also test the gate safety response after installation to confirm that interruption of the photocell beam produces the correct reaction from the automatic gate control system.

RIB FIT SLIM Photocell Sensor Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies RIB FIT SLIM photocell sensors in UAE for automatic sliding gates, swing gates and compatible gate automation systems.

Supply, professional installation, replacement, alignment, troubleshooting and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
