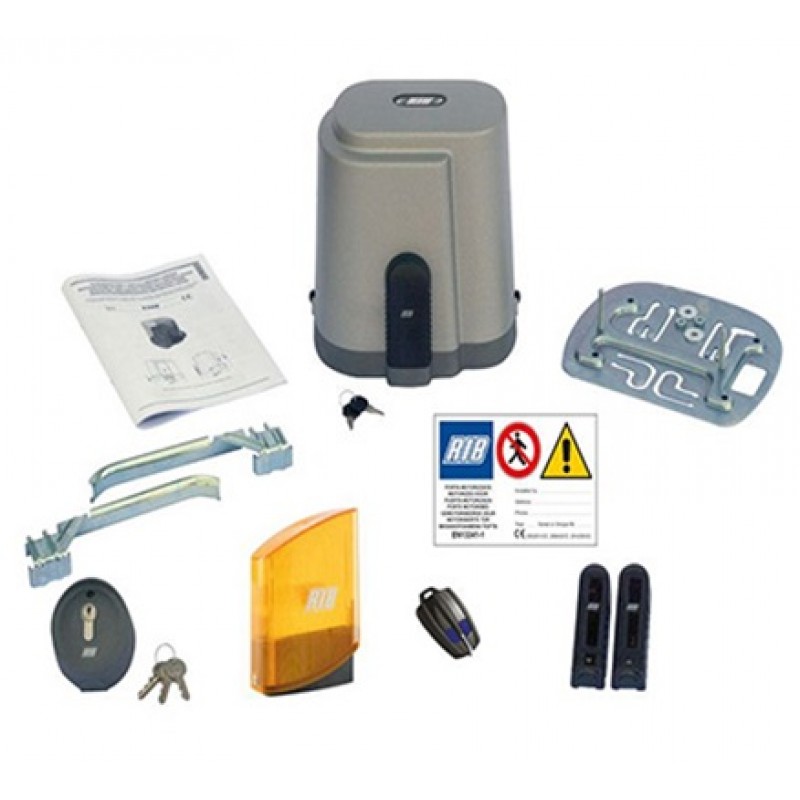

RIB K500 500 KG Sliding Gate Motor UAE
Price 1,780 AEDIn Stock
The RIB K500 Sliding Gate Motor is a reliable electromechanical gate operator designed for residential sliding gates weighing up to 500 KG. Manufactured by RIB, the K500 combines robust mechanical construction, smooth gate movement and advanced control functions for dependable automatic gate operation.
The RIB K500 operates on a 230V AC power supply and delivers up to 400 N thrust with a maximum torque of 9.5 Nm. Its irreversible gearmotor design provides secure gate closing without requiring an electric lock in normal installations.
With adjustable low-speed approach, pedestrian opening, safety-device management, manual release and IP54 protection, the RIB K500 is an excellent automatic sliding gate solution for villas, houses, residential buildings and light commercial entrances throughout the UAE.
Key Features
- Original RIB K500 sliding gate motor
- Suitable for sliding gates up to 500 KG
- 230V AC motor
- 400 N maximum thrust
- 9.5 Nm maximum torque
- 229W motor power at 50Hz
- 60% service rating
- Up to 300 suggested daily operations
- Adjustable low-speed approach
- Pedestrian opening command
- Safety strip auto-test function
- Self-heated motor for reliable low-temperature starting
- Synthesized steel driving gear
- Manual release with personalized key or Allen key
- Adjustable fixing plate
- Compatible with old RIB K5 base plate
- IP54 protection rating
- Suitable for residential and light commercial gates
Technical Specifications
| Brand | RIB |
| Model | K500 |
| Product Type | Electromechanical Sliding Gate Operator |
| Maximum Gate Weight | 500 KG |
| Power Supply | 230V AC 50/60Hz |
| Motor Power | 229W at 50Hz / 228W at 60Hz |
| Power Absorption | 1.21A at 50Hz / 1.05A at 60Hz |
| Maximum Thrust | 400 N |
| Maximum Torque | 9.5 Nm |
| Rack | Module 4 |
| Capacitor | 10 µF |
| Suggested Daily Operations | Up to 300 |
| Service | 60% |
| Guaranteed Consecutive Cycles | 25 / 5 min |
| Operating Temperature | -10°C to +55°C |
| Protection Rating | IP54 |
| Operator Weight | 8 KG |
| Noise Level | <70 dB |
RIB K500 500 KG Sliding Gate Opener
The RIB K500 is designed specifically for automatic sliding gates weighing up to 500 KG. Its compact design and dependable electromechanical drive make it particularly suitable for residential properties and light commercial entrances.
The motor provides smooth and controlled movement while the adjustable low-speed approach function helps reduce impact when the gate reaches its opening and closing positions.
230V AC Sliding Gate Motor
The RIB K500 operates from a standard 230V AC 50/60Hz power supply. At 50Hz, the motor provides approximately 229W of motor power.
This makes the K500 a practical solution for residential automatic gate installations requiring reliable mains-powered operation.
400 N Maximum Thrust
The RIB K500 provides a maximum thrust of approximately 400 N and maximum torque of 9.5 Nm on the 230V version.
Correct gate condition, alignment, rack installation and motor sizing are essential for achieving reliable long-term performance.
Up to 300 Daily Operations
RIB specifies up to approximately 300 suggested daily operations for the K500, with a 60% service rating.
This provides sufficient operating capacity for many residential properties, villas, residential buildings and suitable light commercial applications.
Adjustable Slow-Speed Approach
The RIB K500 provides adjustable low-speed operation during the approach phase in both opening and closing directions.
This allows smoother gate movement near the end positions and helps reduce mechanical impact on the gate and automation system.
Pedestrian Opening Function
The K500 control system supports a pedestrian opening command, allowing the sliding gate to open partially instead of completing a full vehicle-access opening.
This function is useful for villas, houses and residential buildings where the same automatic gate is also used for pedestrian access.
Irreversible Gearmotor
The RIB K500 uses an irreversible electromechanical drive system. When the motor is stopped, the transmission helps maintain the gate in its closed position.
For a correctly installed standard gate, this means an additional electric gate lock is normally not required solely to maintain closing.
Synthesized Steel Driving Gear
The RIB K500 uses a durable synthesized steel driving gear engineered for dependable sliding gate operation.
The gate motor operates with a compatible Module 4 rack installed along the sliding gate.
Manual Release During Power Failure
The K500 includes a manual release mechanism that allows the automatic gate to be disengaged and moved manually during a power failure, emergency or maintenance.
Depending on the configuration, the release system can be operated using a personalized key or Allen key.
Self-Heated Motor
The RIB K500 incorporates a self-heating function designed to help provide prompt motor starting at low operating temperatures.
This feature contributes to reliable operation across changing environmental conditions.
IP54 Protection
The RIB K500 has an IP54 protection rating and is designed for outdoor automatic sliding gate installations when correctly installed.
The motor should be installed on a suitable foundation with correct drainage and according to RIB installation requirements.
Adjustable Motor Base Plate
The supplied fixing plate allows height adjustment and secure mounting of the RIB K500 to the gate motor foundation.
The K500 can also be fitted to the same base plate used by the older RIB K5 operator, making it useful for suitable replacement installations.
K-CRX Control Board
The RIB K500 kit is available with the K-CRX electronic control board integrated into the operator.
The control system manages gate movement, remote-control commands, pedestrian opening, safety accessories and other compatible automation functions.
Safety Photocell Integration
Compatible photocell safety sensors can be connected to the RIB K500 control system to detect vehicles, pedestrians and obstacles across the automatic gate entrance.
Correctly installed safety devices help prevent unsafe closing when an obstacle is detected within the protected area.
Remote Control Operation
The RIB K500 can be operated using compatible RIB radio transmitters and receivers, providing convenient wireless opening and closing of the automatic sliding gate.
Access Control Integration
The RIB K500 automation system can also be integrated with compatible external access control equipment through suitable control inputs.
- GSM gate openers
- WiFi gate controllers
- RFID access control systems
- Keypad access control
- UHF long-range vehicle readers
- Intercom systems
- Video intercom systems
- Push buttons
- Key switches
RIB K500 Applications
- Residential villa sliding gates
- House entrance gates
- Residential buildings
- Small compounds
- Private parking entrances
- Light commercial gates
- Automatic security gates
- Access-controlled entrances
Professional RIB K500 Installation
Professional installation is recommended for the RIB K500. Before installing the motor, the sliding gate should move smoothly by hand without excessive resistance.
The gate foundation, motor position, gear rack, limit switches, electrical wiring and safety devices should be correctly installed and adjusted for reliable operation.
