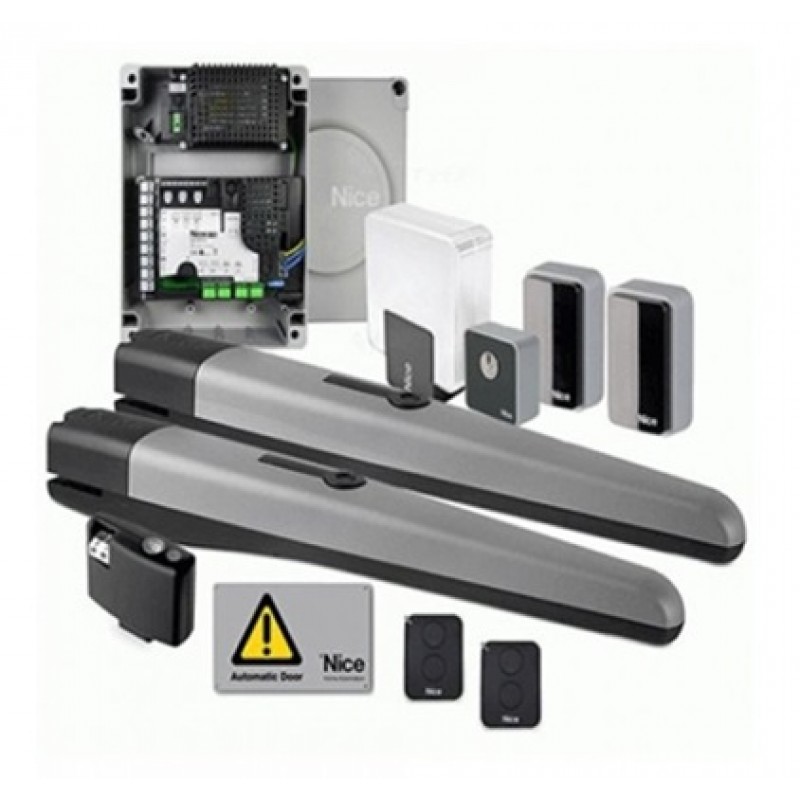

NICE TOONA 7 TO7024 Swing Gate Motor UAE

The NICE TOONA 7 TO7024 Swing Gate Motor is a heavy-duty 24V electromechanical actuator designed for large automatic swing gates with leaves up to 7 metres. Part of the professional NICE TOONA range, the TO7024 provides powerful and controlled gate movement for demanding residential, commercial and industrial entrances.

The NICE TO7024 operates with a 24V DC motor and provides up to 120W maximum absorbed power, 2700N maximum force and an operating speed of approximately 0.013 m/s. Its long 584 mm actuator travel makes it suitable for large swing gate installations requiring extended movement.

With IP44 protection, robust mechanical construction and intensive-use capability, the NICE TOONA 7 is an excellent solution for large villa gates, commercial entrances, industrial sites, warehouses and other heavy swing gate applications throughout the UAE.

Key Features

• Original NICE TOONA 7 swing gate motor
• Model TO7024
• Designed for large swing gate leaves up to 7 metres
• 24V DC motor technology
• Maximum absorbed power 120W
• Nominal absorbed power 60W
• Maximum absorption 5A
• Maximum force 2700N
• Nominal force 1400N
• Operating speed 0.013 m/s
• 584 mm actuator travel
• Up to 41 cycles per hour at nominal force
• Heavy-duty electromechanical design
• Smooth and controlled movement
• Suitable for intensive-use gate automation
• IP44 protection rating
• Operating temperature -20°C to +50°C

Technical Specifications

NICE TO7024 Heavy-Duty Swing Gate Motor

The NICE TO7024 is the long-stroke model in the TOONA range and is designed for large swing gate leaves requiring powerful linear movement.

Its 584 mm travel and 2700N maximum force make it particularly suitable for large gate entrances where smaller TOONA 4 or TOONA 5 actuators may not provide sufficient travel or force.

For Swing Gate Leaves Up to 7 Metres

The NICE TOONA 7 is designed for compatible swing gate leaves measuring up to 7 metres.

The exact suitable gate weight depends on the gate leaf length, construction, hinge condition, wind exposure, actuator geometry and frequency of operation. Longer solid gates can place significantly higher loads on an actuator than open-frame gates.

24V DC Swing Gate Motor

The NICE TO7024 uses a 24V DC motor, allowing precise electronic management of gate movement.

Low-voltage motor technology is particularly useful for large automatic gates where smooth acceleration, deceleration and obstacle-management functions are important.

2700N Maximum Force

The TO7024 develops a maximum force of 2700N and a nominal operating force of approximately 1400N.

This high thrust capability provides powerful linear movement for correctly designed large swing gate installations.

584 mm Long Actuator Travel

One of the main advantages of the NICE TOONA 7 is its long 584 mm actuator travel.

The longer stroke allows the actuator to work with larger gate geometry and long swing gate leaves where additional movement range is required.

0.013 m/s Operating Speed

The NICE TO7024 provides an unloaded operating speed of approximately 0.013 metres per second.

Actual gate opening time depends on actuator mounting geometry, opening angle, gate size and programmed control settings.

41 Cycles Per Hour

The NICE TOONA 7 is rated for approximately 41 cycles per hour at nominal force.

This makes it suitable for demanding residential, commercial and industrial automatic gate applications when correctly installed and sized.

Heavy-Duty Electromechanical Construction

The TO7024 is designed as a robust electromechanical linear actuator for demanding gate automation applications.

Its mechanical construction is engineered to provide dependable movement and long service life when the gate is correctly balanced, aligned and maintained.

IP44 Protection

The NICE TOONA 7 has an IP44 protection rating and is designed for outdoor gate automation when correctly installed according to the manufacturer's requirements.

Operating Temperature

The NICE TO7024 is designed for operation between -20°C and +50°C.

Manual Release During Power Failure

The NICE TOONA 7 provides a manual release mechanism that allows the actuator to be disengaged when manual gate operation is required during a power failure, emergency or maintenance.

Compatible NICE Control System

The NICE TO7024 should be connected to a compatible NICE control unit designed for 24V swing gate operators.

The control system can manage one or two actuators together with compatible safety photocells, remote controls, flashing lights and access control accessories.

Photocell Safety Sensors

Compatible NICE photocell sensors can be installed across the gate entrance to provide additional obstacle detection during automatic operation.

The photocell arrangement should be selected according to the gate opening direction, gate size and protected movement area.

Remote Control Operation

The TOONA 7 automation system can be operated using compatible NICE remote controls and a suitable NICE radio receiver connected to the gate control system.

Electric Gate Lock

For very large swing gate leaves, a compatible electric lock may be recommended depending on the gate construction and installation requirements.

An electric lock can provide additional mechanical holding when the automatic gate is fully closed.

Access Control Integration

The NICE TOONA 7 automatic swing gate system can be integrated with compatible external access control equipment through the appropriate control-unit inputs.

• GSM gate openers
• WiFi gate controllers
• RFID access control systems
• Keypad access control
• UHF long-range vehicle readers
• Intercom systems
• Video intercom systems
• Push buttons
• Key switches

Heavy-Duty Gate Applications

• Large villa swing gates
• Luxury residential entrances
• Residential compounds
• Commercial properties
• Factory entrances
• Warehouse gates
• Industrial facilities
• Business parks
• Government facilities
• Large double-leaf swing gates

Professional NICE TOONA 7 Installation

Professional installation is strongly recommended for the NICE TOONA 7 TO7024. Large swing gates create significant mechanical loads and require accurate actuator geometry.

The gate hinges, gate structure, actuator brackets, opening angle, mechanical stops, electrical wiring and safety accessories should all be correctly installed and tested.

Before automation is installed, each gate leaf should move smoothly and freely by hand without excessive resistance.

NICE TOONA 7 Swing Gate Motor Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies NICE TOONA 7 TO7024 swing gate motors in UAE for large residential, commercial and industrial automatic swing gate applications.

Supply, professional installation, programming, maintenance, repair and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
