NICE TOONA 5 TO5016 Swing Gate Motor Kit UAE

The NICE TOONA 5 TO5016 Swing Gate Motor is a powerful Italian electromechanical gate opener designed for large swing gate leaves up to 5 metres. Built for residential, commercial and industrial applications, the TOONA 5 combines robust construction, strong 1800N force and dependable 230V operation.

The NICE TO5016 operates from a 230V AC 50Hz power supply and provides 340W power, up to 1800N force and an operating speed of approximately 0.013 m/s. With a rated capacity of up to 54 cycles per hour, it provides reliable performance for large automatic swing gates.

The TOONA 5 features a durable aluminium housing, strong internal steel components, built-in capacitor and a practical upper connection compartment for easier installation and maintenance.

Key Features

• Original NICE TOONA 5 swing gate motor
• Model / Code TO5016
• Suitable for swing gate leaves up to 5 metres
• Surface-mounted electromechanical actuator
• 230V AC 50Hz power supply
• 340W motor power
• 1.5A absorption
• Maximum force 1800N
• Operating speed 0.013 m/s
• Up to 54 cycles per hour
• Heavy-duty aluminium housing
• Polyester painted external shells
• Steel internal moving components
• Built-in capacitor
• Easy top-access electrical connections
• Designed for easy installation and maintenance
• Suitable for large residential and commercial gates
• IP44 protection rating
• Made in Italy

Technical Specifications

NICE TOONA 5 TO5016 Automatic Swing Gate Motor

The NICE TO5016 is part of the professional NICE TOONA 5 range of linear swing gate actuators. It is designed for large automatic swing gates where longer gate leaves require a strong and durable electromechanical motor.

The robust linear actuator design makes the TO5016 suitable for villas, residential compounds, commercial properties, warehouses and other large automatic gate entrances.

For Swing Gate Leaves Up to 5 Metres

The NICE TOONA 5 TO5016 is designed for compatible swing gate leaves measuring up to 5 metres.

The correct motor should always be selected according to gate leaf length, gate weight, construction, hinge condition, opening geometry, wind exposure and operating frequency.

230V Heavy-Duty Swing Gate Motor

The NICE TO5016 operates from a 230V AC 50Hz power supply and provides approximately 340W motor power.

Its robust electromechanical construction makes it suitable for large residential, commercial and suitable industrial swing gate applications.

1800N Maximum Force

The NICE TOONA 5 TO5016 develops up to 1800N of force, providing powerful linear movement for correctly installed swing gates within the manufacturer's recommended limits.

0.013 m/s Operating Speed

The TO5016 provides an operating speed of approximately 0.013 metres per second.

Actual gate opening and closing time depends on the gate geometry, actuator mounting dimensions, opening angle and installation configuration.

Up to 54 Cycles Per Hour

The NICE TO5016 is rated for up to 54 operating cycles per hour, providing dependable performance for applications requiring frequent automatic swing gate operation.

Durable Aluminium Housing

The NICE TOONA 5 features a robust housing constructed from two strong aluminium shells with a polyester paint finish.

The durable external construction provides increased resistance to outdoor environmental conditions when the motor is correctly installed.

Strong Internal Mechanical Components

The internal moving components of the NICE TO5016 are manufactured using steel, light alloys and durable technopolymers.

This robust internal construction is designed to provide reliable long-term operation for demanding automatic swing gate installations.

Built-In Capacitor

The NICE TO5016 incorporates a built-in capacitor, helping simplify electrical installation and providing a clean motor installation.

Easy Top-Access Connection Compartment

The NICE TOONA 5 features a generously sized electrical connection compartment positioned in the upper section of the motor.

This provides convenient access to internal electrical connections during installation, programming and maintenance.

NICE MC800 Control Unit

The 230V NICE TO5016 can be operated using the NICE MC800 control unit for single or double-leaf automatic swing gate installations.

The control system can manage automatic gate movement, pause time, pedestrian opening, safety inputs, radio controls and compatible gate automation accessories.

Automatic Closing

The control system can be programmed to close the swing gate automatically after a selected pause time.

Suitable photocells and other required safety devices should be correctly installed and tested before automatic closing is enabled.

Pedestrian Opening

A compatible NICE control unit can provide pedestrian opening, allowing partial gate operation when full vehicle access is not required.

Manual Release During Power Failure

The NICE TOONA 5 provides a manual release system allowing the swing gate actuator to be disengaged during a power failure, emergency or maintenance.

After manual operation, the actuator should be correctly re-engaged before returning the gate to automatic operation.

NICE EPM Photocell Sensors

Compatible NICE EPM photocell sensors can be installed across the automatic gate entrance to provide obstacle detection.

When the photocell beam is interrupted, the control unit responds according to the programmed safety configuration.

NICE Radio Remote Control

The TOONA 5 automation system can be equipped with compatible NICE remote controls and a NICE radio receiver for convenient wireless gate operation.

Flashing Warning Light

A compatible NICE flashing warning light can be connected to provide a visible indication while the automatic swing gate is opening or closing.

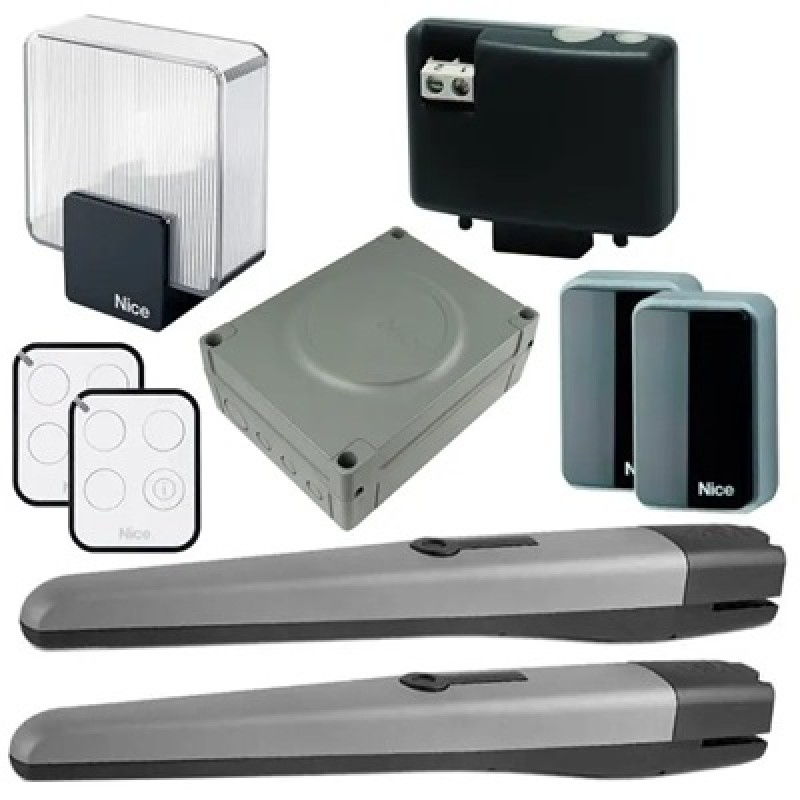

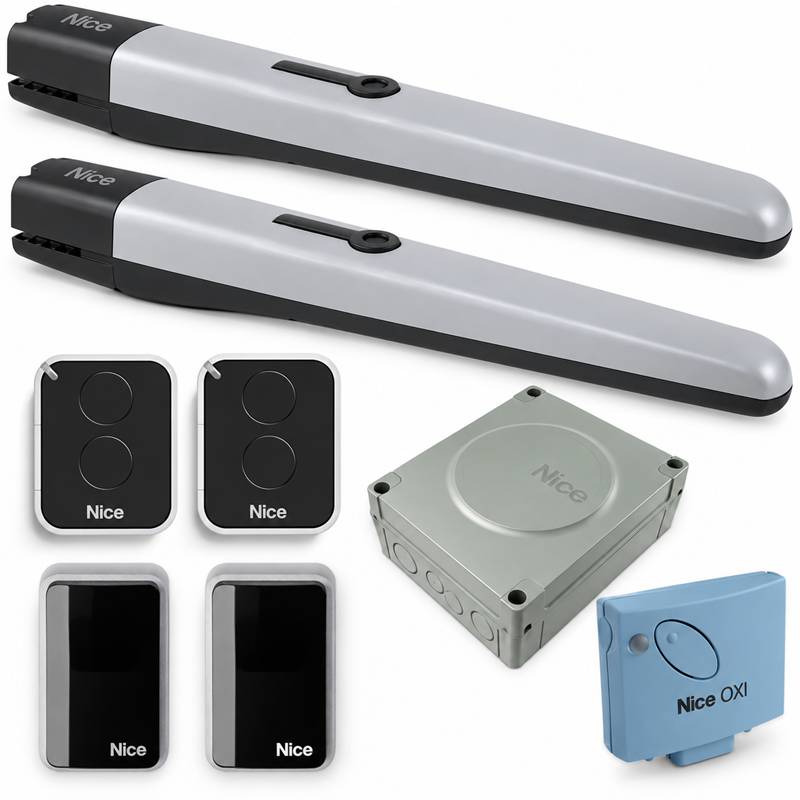

NICE TOONA 5 Complete Kit Includes

• 2 × NICE TOONA 5 TO5016 Swing Gate Motors
• 1 × NICE MC800 Control Unit
• 2 × NICE FLO2RE Remote Controls
• 1 × NICE OXI Radio Receiver
• 1 × Pair NICE EPM Photocell Sensors
• 1 × NICE Flashing Warning Light
• 2 × Motor Fixing Brackets
• 1 × Push Button

Access Control Integration

The NICE TOONA 5 automatic gate system can be integrated with compatible external access control equipment through the appropriate control-unit input.

• GSM gate openers
• WiFi gate controllers
• RFID access control systems
• Keypad access control
• UHF long-range vehicle readers
• Intercom systems
• Video intercom systems
• Push buttons
• Key switches

Residential, Commercial & Industrial Applications

• Large villa swing gates
• Residential compounds
• Apartment entrances
• Commercial buildings
• Office entrances
• Warehouse gates
• Factory entrances
• Industrial properties
• Private parking entrances
• Large double-leaf swing gates

Professional NICE TOONA 5 Installation

Professional installation is recommended for the NICE TOONA 5 TO5016. Before motor installation, each swing gate leaf should move smoothly by hand and the hinges should be correctly aligned and in good mechanical condition.

Correct mounting geometry is particularly important for long linear actuators. The front and rear brackets, actuator travel, gate opening angle, mechanical stops, electrical wiring and safety devices should be correctly installed and tested.

NICE TOONA 5 Swing Gate Motor Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies NICE TOONA 5 TO5016 swing gate motors in UAE for large residential, commercial and industrial automatic swing gate applications.

Supply, professional installation, programming, maintenance, repair and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
