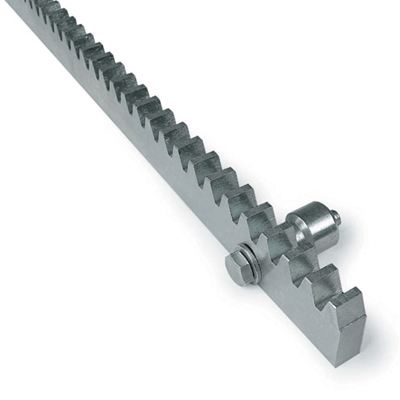

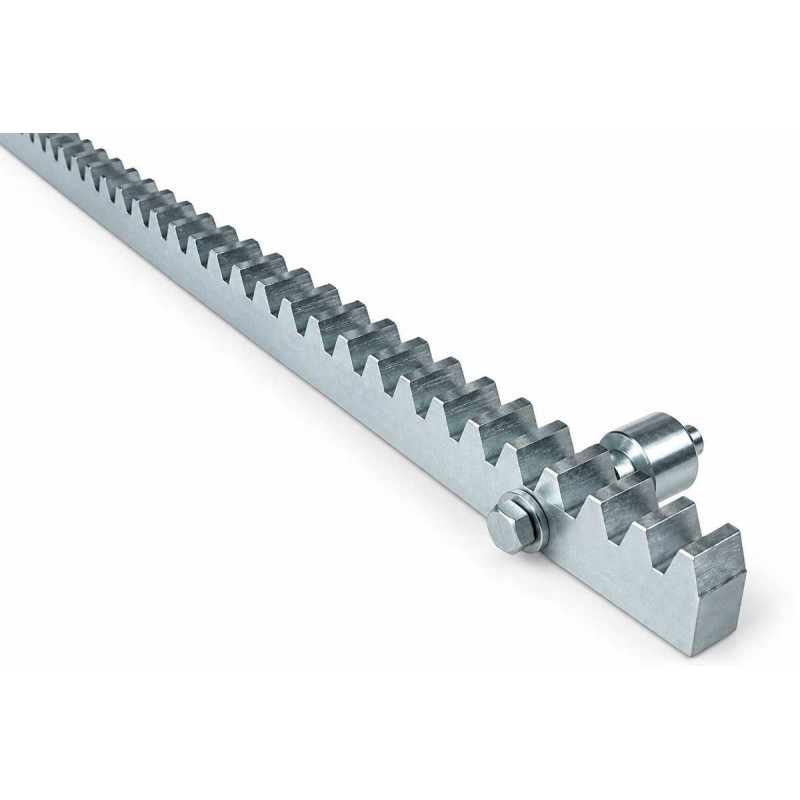

Gate Motor Steel Rack 30x8x1000mm UAE

The Gate Motor Steel Rack 30×8×1000mm is a heavy-duty galvanized steel gear rack designed for automatic sliding gate motors. The rack is installed along the sliding gate and engages with the motor pinion to provide smooth, strong and reliable gate movement during opening and closing.

With a 30 mm width, 8 mm thickness and 1000 mm length, this steel rack is suitable for residential, commercial and industrial sliding gate automation. Its strong steel construction makes it an excellent choice for heavier gates and installations requiring greater durability than standard nylon racks.

Sliding Gate Motor Steel Rack 30×8×1000mm in UAE

The 30×8×1000mm steel rack provides a strong mechanical connection between the sliding gate motor and the gate. When the motor operates, its output pinion engages with the teeth of the steel rack, moving the gate smoothly along the track.

The galvanized steel construction provides excellent strength and durability for automatic sliding gate systems and helps protect the rack against corrosion in outdoor installations.

Key Features

• Heavy-duty sliding gate motor steel gear rack
• 30×8×1000mm rack size
• 1 metre length per section
• Strong galvanized steel construction
• Suitable for automatic sliding gate motors
• Designed for gates up to approximately 1200 KG
• 3 external mounting attachments
• Strong and durable gear teeth
• Suitable for residential and commercial gates
• Suitable for heavier sliding gate applications
• Multiple 1 metre sections can be joined together
• Suitable for new installations and replacement applications
• Designed for long-term outdoor use

Product Specifications

Heavy-Duty Steel Gear Rack for Sliding Gates

Steel gear racks are commonly used for heavier automatic sliding gates where strength and durability are important. The solid steel profile provides reliable engagement with the sliding gate motor pinion and is suitable for frequent gate operation.

Compared with lighter rack systems, the 30×8mm steel rack provides a strong solution for demanding residential, commercial and industrial sliding gate installations.

1 Metre Sliding Gate Steel Rack

Each steel rack section is 1000 mm (1 metre) long. Multiple rack sections can be installed continuously according to the total opening travel of the sliding gate.

For longer gates, additional 1 metre rack sections can be joined together while maintaining correct tooth alignment between each section.

Galvanized Steel Construction

The rack is manufactured from galvanized steel to provide strength and improved resistance against corrosion. This makes it suitable for outdoor automatic gate installations exposed to normal UAE weather conditions.

The strong steel teeth are designed to maintain reliable engagement with the gate motor pinion during repeated opening and closing cycles.

Suitable for Sliding Gates up to 1200 KG

This 30×8×1000mm steel rack is suitable for compatible automatic sliding gate systems with gate weights up to approximately 1200 KG, subject to the gate motor, motor pinion and overall installation configuration.

For heavy gates, always make sure the selected sliding gate motor is correctly rated for the actual gate weight, length and operating frequency.

Steel Rack and Gate Motor Pinion

The steel rack teeth engage directly with the output pinion of the sliding gate motor. Correct rack-to-pinion alignment is essential for smooth and reliable automatic gate operation.

The rack should remain consistently aligned with the pinion throughout the complete opening and closing travel of the gate.

Multiple Steel Rack Sections

Multiple 1 metre steel rack sections can be connected to cover the complete travel length of the sliding gate. Each rack joint should be carefully aligned so that the motor pinion passes smoothly from one section to the next.

Incorrect alignment between rack sections can cause vibration, clicking, excessive noise or unnecessary wear on the motor pinion and rack teeth.

Replacement Steel Rack for Sliding Gate Motors

The 30×8×1000mm steel gear rack can also be used to replace compatible worn, damaged or broken sliding gate rack sections.

Before replacing an existing rack, check the dimensions, tooth profile, motor pinion and mounting arrangement to confirm compatibility with the existing automatic gate system.

Signs of a Damaged Sliding Gate Steel Rack

• Worn or damaged rack teeth
• Gate motor operates but the gate does not move correctly
• Gate jumps or vibrates during movement
• Grinding or clicking noise from the motor pinion
• Loose rack mounting attachments
• Uneven rack and pinion engagement
• Gate stops or hesitates at a particular position
• Visible damage or misalignment of rack sections

Correct Steel Rack and Pinion Alignment

Correct installation is important for protecting both the steel rack and the sliding gate motor gearbox. The rack must engage with the motor pinion without excessive pressure.

The weight of the sliding gate must remain supported by the gate wheels and track. The rack should transfer movement from the motor and should not be used to support the weight of the gate.

Sliding Gate Steel Rack Installation

During installation, the steel rack sections should be securely mounted along the gate while maintaining consistent alignment with the motor pinion.

After installation, manually move the released sliding gate through its complete travel and check that the rack engages smoothly with the pinion from the fully closed position to the fully open position.

Check Compatibility Before Ordering

Before ordering a replacement steel rack, check the existing rack dimensions, tooth profile, motor pinion, mounting system and gate motor specifications.

Steel racks are available in different dimensions and mounting configurations, so similar-looking racks may not always be directly interchangeable.

Professional Sliding Gate Rack Installation

Professional installation is recommended for correct rack height, mounting, joining and pinion clearance. Proper installation helps provide smooth gate movement and reduces unnecessary wear on the motor gearbox, pinion and steel rack.

AAM Automatic Doors & Gate Barriers provides supply, replacement and installation support for automatic sliding gate motors and steel gear racks in the UAE.

Gate Motor Steel Rack Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies 30×8×1000mm sliding gate motor steel racks in UAE for residential, commercial and industrial automatic gate systems.

Supply and installation services are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
