Gate Motor Steel Rack 30x12x1000mm UAE

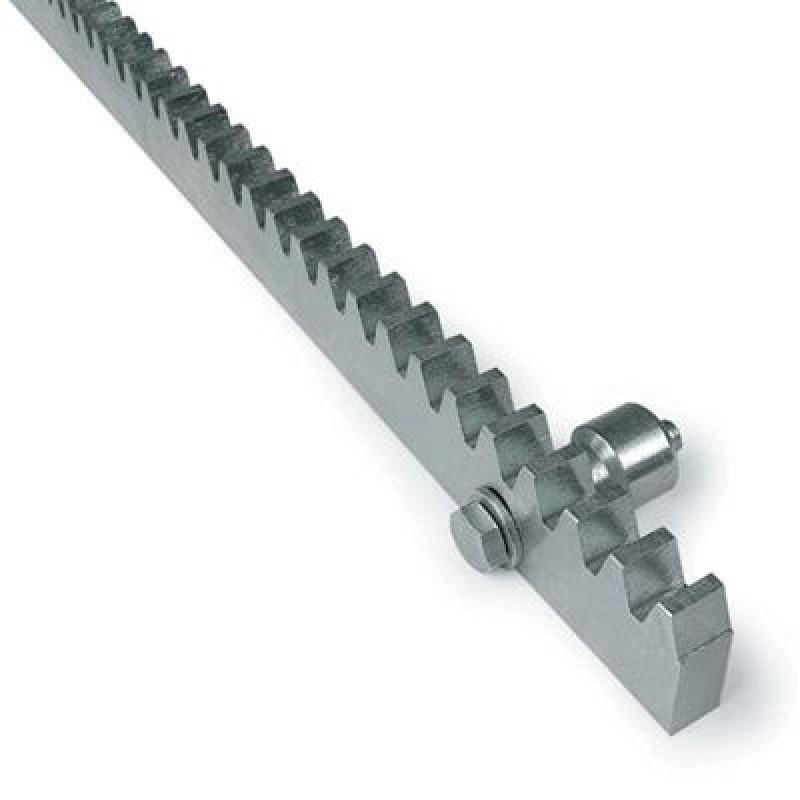

The Gate Motor Steel Rack 30×12×1000mm is a heavy-duty galvanized steel gear rack designed for automatic sliding gate motors. Installed along the sliding gate, the rack engages with the motor pinion to transfer motor power and provide strong, smooth and reliable opening and closing movement.

With a 30 mm width, 12 mm thickness and 1000 mm (1 metre) length, this heavy-duty steel rack is suitable for larger residential, commercial and industrial sliding gates. Its robust galvanized steel construction provides excellent strength, durability and reliable performance for demanding automatic gate installations.

Sliding Gate Motor Steel Rack 30×12×1000mm in UAE

The 30×12×1000mm sliding gate steel rack provides the mechanical connection between the automatic gate motor and the moving gate. When the sliding gate motor operates, its output pinion rotates against the teeth of the steel rack, moving the gate smoothly along its track.

The heavy-duty 12 mm thick steel profile provides greater strength for larger sliding gates and demanding gate automation applications where a strong and durable rack system is required.

Key Features

• Heavy-duty sliding gate motor steel gear rack
• 30×12×1000mm rack dimensions
• 30 mm rack width
• 12 mm rack thickness
• 1000 mm / 1 metre length per section
• Strong galvanized steel construction
• Suitable for automatic sliding gate motors
• Suitable for sliding gates up to approximately 2200 KG
• 3 external mounting attachments
• Supplied with screws and nuts
• Strong and durable steel gear teeth
• Designed for heavy sliding gate applications
• Suitable for residential, commercial and industrial gates
• Multiple 1 metre rack sections can be joined together
• Suitable for new gate automation installations
• Suitable for replacement of compatible damaged steel racks

Product Specifications

Heavy-Duty Steel Gear Rack for Sliding Gates

The 30×12mm heavy-duty steel gear rack is designed for automatic sliding gate applications where high mechanical strength and reliable power transmission are important. Its solid steel construction makes it suitable for heavier gate systems and frequent automatic gate operation.

This type of rack is particularly suitable for commercial entrances, industrial premises, warehouses, factories, compounds and other locations using heavy automatic sliding gates.

30×12mm Heavy-Duty Steel Rack

The 12 mm thickness provides a robust rack profile for demanding sliding gate automation. Combined with a 30 mm width, the rack provides a strong connection between the sliding gate and motor pinion.

For best performance, the steel rack should always be matched with the correct sliding gate motor, compatible motor pinion and properly installed gate system.

1 Metre Sliding Gate Steel Rack

Each steel rack section measures 1000 mm (1 metre) in length. Multiple rack sections can be installed continuously according to the total travel length of the sliding gate.

For example, a sliding gate requiring approximately 5 metres of rack will normally use multiple 1 metre sections installed continuously along the gate.

Each section must be correctly aligned with the next section so that the motor pinion can travel smoothly across the rack joints.

Galvanized Steel Construction

The sliding gate rack is manufactured from galvanized steel for strength, durability and improved resistance against corrosion. This makes it suitable for outdoor automatic sliding gate installations.

The strong steel teeth provide reliable engagement with the gate motor pinion during repeated opening and closing cycles.

Suitable for Sliding Gates up to 2200 KG

This 30×12×1000mm steel rack is suitable for compatible automatic sliding gate systems with gate weights up to approximately 2200 KG, subject to the selected sliding gate motor, motor pinion, gate condition and overall installation configuration.

For heavy sliding gates, the gate motor must also be correctly selected according to the actual gate weight, gate length, operating frequency and site conditions.

Steel Rack and Sliding Gate Motor Pinion

The steel rack works directly with the output pinion of the sliding gate motor. As the motor pinion rotates, its teeth engage with the rack and move the gate in either the opening or closing direction.

Correct engagement between the steel rack and motor pinion is essential for smooth gate operation. Incorrect alignment or excessive pressure can cause noise, vibration and premature wear of the rack, pinion or motor gearbox.

3 External Mounting Attachments

The rack uses 3 external mounting attachments to secure each 1 metre section to the sliding gate. Correct mounting helps maintain the rack position and alignment throughout the complete gate travel.

The mounting points should be securely fixed and checked during routine gate maintenance, especially on heavy or frequently operated automatic gates.

Multiple Steel Rack Sections

Multiple 1 metre steel rack sections can be joined together to cover the complete opening and closing travel of the sliding gate.

When connecting two rack sections, the gear teeth at the joint must remain correctly aligned. This allows the motor pinion to move smoothly from one rack section to the next without jumping or producing excessive noise.

Replacement Steel Rack for Sliding Gate Motors

The 30×12×1000mm steel gear rack can be used for replacement of compatible worn, broken or damaged sliding gate rack sections.

Before replacing an existing rack, check the original rack dimensions, tooth profile, mounting arrangement and motor pinion. A replacement rack should be compatible with the existing sliding gate automation system.

Signs of a Damaged Sliding Gate Steel Rack

A worn, damaged or incorrectly aligned rack can affect the operation of an automatic sliding gate. Common signs that the rack requires inspection include:

• Broken or worn steel rack teeth
• Sliding gate motor operates but the gate does not move correctly
• Gate jumps during opening or closing
• Grinding or clicking noise near the motor pinion
• Gate movement becomes rough or uneven
• Loose steel rack mounting points
• Uneven rack and pinion engagement
• Gate stops or hesitates at a particular position
• Visible damage or bending of the steel rack
• Misalignment between two rack sections

Correct Steel Rack and Pinion Alignment

Correct rack and pinion alignment is one of the most important parts of a sliding gate motor installation. The rack should engage smoothly with the motor pinion throughout the complete gate travel without excessive pressure.

The weight of the sliding gate must remain supported by the gate wheels and track. The steel rack and motor pinion are designed to move the gate and should not support the weight of the gate.

Incorrect rack height or excessive pressure against the pinion can increase operating noise and place unnecessary load on the motor gearbox.

Sliding Gate Steel Rack Installation

During installation, each steel rack section should be securely mounted along the sliding gate while maintaining consistent alignment with the motor pinion.

Installation should normally begin near the gate motor and continue along the gate while checking rack height and pinion engagement at each mounting point.

After installation, release the sliding gate motor and manually move the gate through its complete travel. Check that the motor pinion engages smoothly with every rack section from the fully closed position to the fully open position.

Steel Rack for Residential Sliding Gates

The 30×12mm steel rack can be used with compatible residential automatic sliding gate systems where a strong steel rack is preferred. It is suitable for villas, private properties, compounds and other residential entrances using sliding gate automation.

Steel Rack for Commercial Sliding Gates

For commercial gate automation, the heavy-duty steel rack provides a strong solution for sliding gates installed at offices, buildings, parking entrances, workshops, warehouses and commercial properties.

The galvanized steel construction makes it suitable for applications where durability and reliable gate movement are important.

Steel Rack for Industrial Sliding Gates

Industrial sliding gates are often larger and heavier than residential gates. The 30×12mm heavy-duty steel rack provides the strength required for compatible industrial gate automation systems.

It can be used for suitable sliding gates at factories, warehouses, industrial facilities, compounds and other heavy gate applications when matched with the correct motor and pinion.

Steel Rack vs Nylon Rack

Both steel and nylon gear racks are commonly used with automatic sliding gate motors. Nylon racks are generally preferred for lighter residential gates where quieter operation is important, while steel racks provide greater mechanical strength for heavier and more demanding gate installations.

The correct rack type should be selected according to the gate weight, motor type, pinion compatibility and installation requirements.

Check Compatibility Before Ordering

Before ordering a replacement 30×12×1000mm gate motor steel rack, check the existing rack dimensions, gear tooth profile, motor pinion, mounting arrangement and sliding gate motor specifications.

Steel racks are available in different sizes and configurations. Two racks that appear similar may not necessarily have the same dimensions or compatibility.

Professional Sliding Gate Rack Installation

Professional installation is recommended to ensure correct rack height, mounting position, rack joining and motor pinion clearance.

Correct installation helps provide smoother gate movement and reduces unnecessary wear on the steel rack, motor pinion and sliding gate motor gearbox.

Gate Motor Steel Rack Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies Gate Motor Steel Rack 30×12×1000mm in UAE for residential, commercial and industrial automatic sliding gate systems.

We provide sliding gate motor racks, gate automation spare parts, replacement support and professional installation for compatible automatic gate systems.

Supply and installation services are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Why Choose the 30×12×1000mm Steel Gate Rack?

The 30×12×1000mm galvanized steel gate rack is an excellent option for heavy automatic sliding gates requiring a strong and durable rack-and-pinion drive system. Its 12 mm heavy-duty profile, 1 metre modular length and galvanized steel construction make it suitable for a wide range of demanding gate automation installations.

For replacement applications, always confirm the existing rack dimensions and motor pinion compatibility before ordering. For new installations, professional rack alignment is recommended for reliable and long-lasting automatic sliding gate operation.
