Sliding Gate Motor Nylon Rack 1M UAE

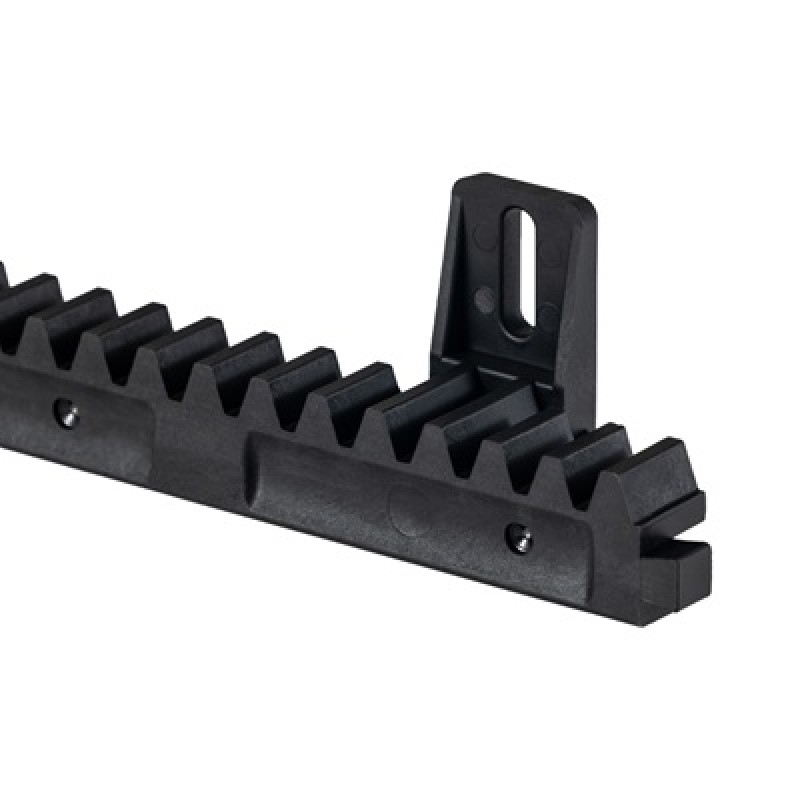

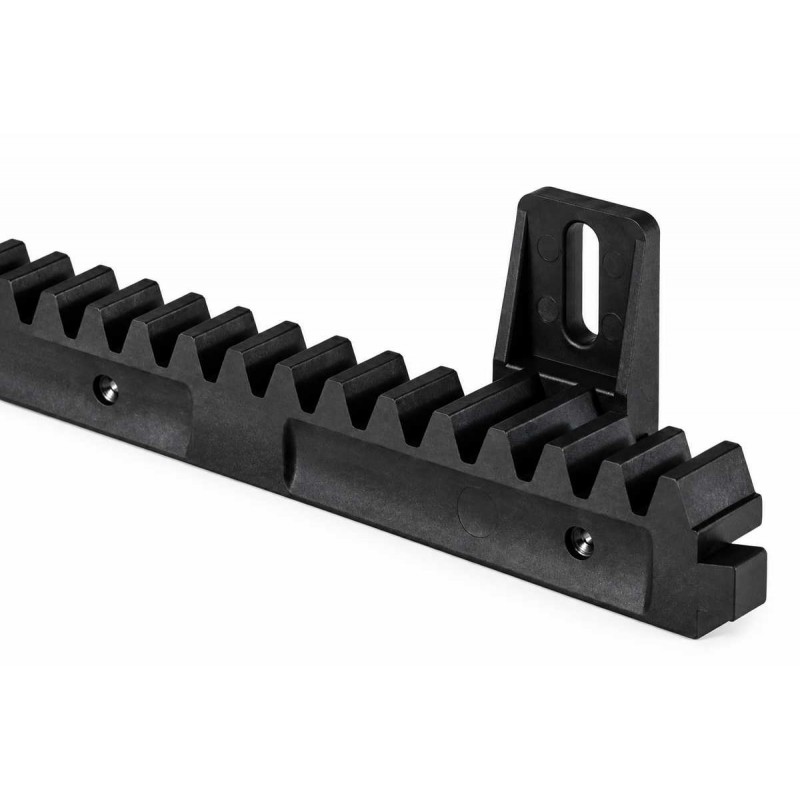

The Sliding Gate Motor Nylon Rack 1M is a durable reinforced gear rack designed for automatic sliding gate motors. Installed along the lower section of the sliding gate, the nylon rack engages with the motor pinion to transfer motor power and move the gate smoothly during opening and closing.

This 1 metre nylon rack is manufactured from strong polyamide material with glass-fibre reinforcement and an internal steel core, providing good strength, smooth movement and reduced operating noise for residential and light commercial sliding gate automation.

Key Features

• Sliding gate motor nylon gear rack
• 1 metre rack section
• Reinforced polyamide construction
• 30% glass-fibre reinforced material
• Internal steel reinforcement
• 6 fixing points
• Suitable for automatic sliding gates
• Smooth engagement with motor pinion
• Quiet gate movement
• Low maintenance
• Multiple sections can be joined together
• Suitable for gates up to approximately 700 KG
• Ideal for villas and residential sliding gates
• Suitable for new and replacement installations

Product Specifications

Sliding Gate Motor Nylon Gear Rack

The nylon rack forms the mechanical connection between the sliding gate motor and the moving gate. When the automatic gate motor operates, the motor pinion rotates against the teeth of the rack and moves the gate horizontally along its track.

Correct rack and pinion alignment is important for smooth operation and helps reduce unnecessary wear on the motor gearbox, rack teeth and pinion.

1 Metre Sliding Gate Rack

Each nylon rack section is approximately 1 metre long. Multiple rack sections can be installed continuously according to the total travel length of the sliding gate.

For example, a gate requiring approximately 4 metres of rack will normally require several 1 metre sections installed and aligned together.

Reinforced Nylon Construction

The rack is manufactured from reinforced polyamide containing approximately 30% glass fibre. The reinforced nylon body helps provide smooth and quiet engagement with the gate motor pinion, while the internal steel core increases rigidity and strength.

This combination makes nylon racks suitable for many residential and light commercial automatic sliding gate applications.

Quiet Sliding Gate Operation

One of the main advantages of a nylon sliding gate rack is reduced operating noise compared with many traditional all-steel gear rack installations.

Smooth nylon teeth engage with the motor pinion, making this rack particularly suitable for villas, residential entrances and automatic driveway gates where quieter operation is preferred.

Suitable for Sliding Gates up to 700 KG

This nylon rack is suitable for compatible automatic sliding gate installations with gate weights up to approximately 700 KG, subject to the gate motor, pinion, rack profile and installation configuration.

Always confirm compatibility before installation, especially when replacing an existing nylon or steel rack.

Sliding Gate Motor Pinion Connection

The teeth of the nylon rack engage directly with the output pinion of the sliding gate motor.

The rack should remain correctly aligned with the pinion throughout the complete opening and closing travel. Excessive pressure between the rack and pinion may cause noise, wear or unnecessary load on the motor gearbox.

Multiple Nylon Rack Sections

Multiple 1 metre rack sections can be joined together to cover the complete travel length of the sliding gate.

Each joint should be carefully aligned so the motor pinion can travel smoothly from one rack section to the next without jumping, vibration or excessive noise.

Replacement Sliding Gate Motor Rack

The nylon gear rack can be used for replacement of compatible worn, broken or damaged sliding gate rack sections.

If only one rack section is damaged, inspect the remaining sections carefully and make sure the complete rack remains straight and correctly aligned after replacement.

Signs of a Damaged Gate Motor Rack

• Gate motor runs but the gate does not move correctly
• Broken or worn rack teeth
• Gate jumps during opening or closing
• Grinding or clicking noise near the motor pinion
• Rack moves away from the motor pinion
• Loose rack mounting screws
• Uneven rack and pinion alignment
• Gate stops or hesitates at certain positions

Correct Rack and Pinion Alignment

Correct alignment is essential for reliable automatic sliding gate operation. The rack should engage smoothly with the motor pinion without excessive pressure.

The gate weight must remain supported by the gate wheels and track. The gate should not rest directly on the motor pinion.

Sliding Gate Rack Installation

During installation, each rack section should be securely fixed to the sliding gate while maintaining consistent alignment with the motor pinion throughout the full gate travel.

Before electrically operating the motor, release the gate motor and manually move the gate through its complete travel to confirm that the rack remains correctly aligned.

Check Compatibility Before Ordering

Before ordering a replacement nylon rack, check the existing rack dimensions, rack profile, motor pinion, gate weight and installation configuration.

Not every nylon rack is compatible with every automatic sliding gate motor, even when the rack sections appear similar.

Professional Sliding Gate Rack Installation

Professional installation is recommended to ensure correct rack height, rack joining, pinion clearance and gate alignment.

Incorrect installation can result in excessive operating noise, broken rack teeth, motor pinion wear and unnecessary load on the sliding gate motor gearbox.

Sliding Gate Motor Nylon Rack Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies sliding gate motor nylon racks in UAE for residential and commercial automatic sliding gate systems.

Supply, replacement, installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
