Gate Motor Steel Rack 22x22x1000mm UAE
Price 130 AEDIn Stock

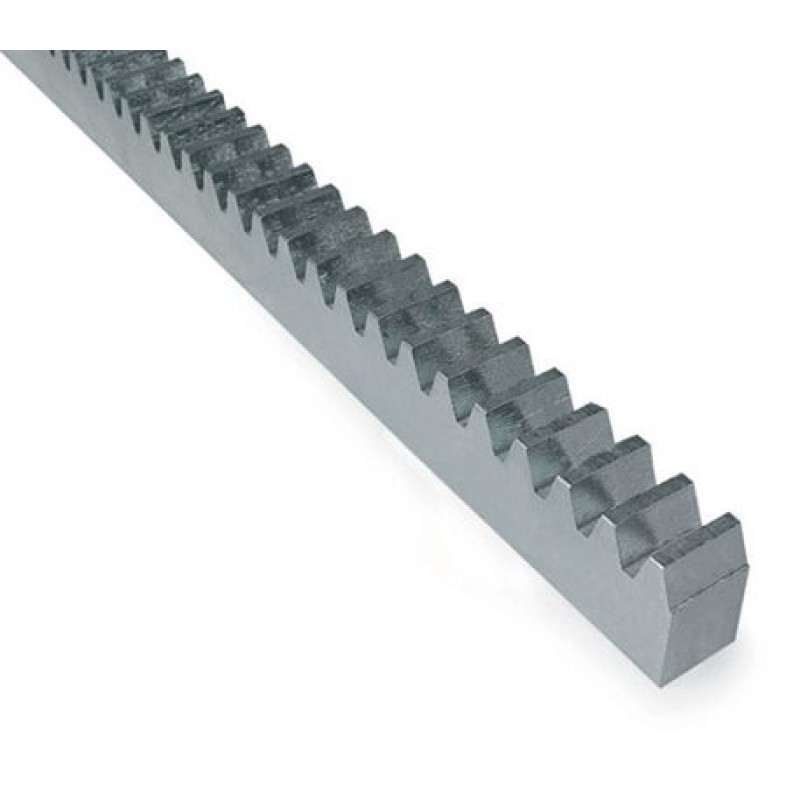

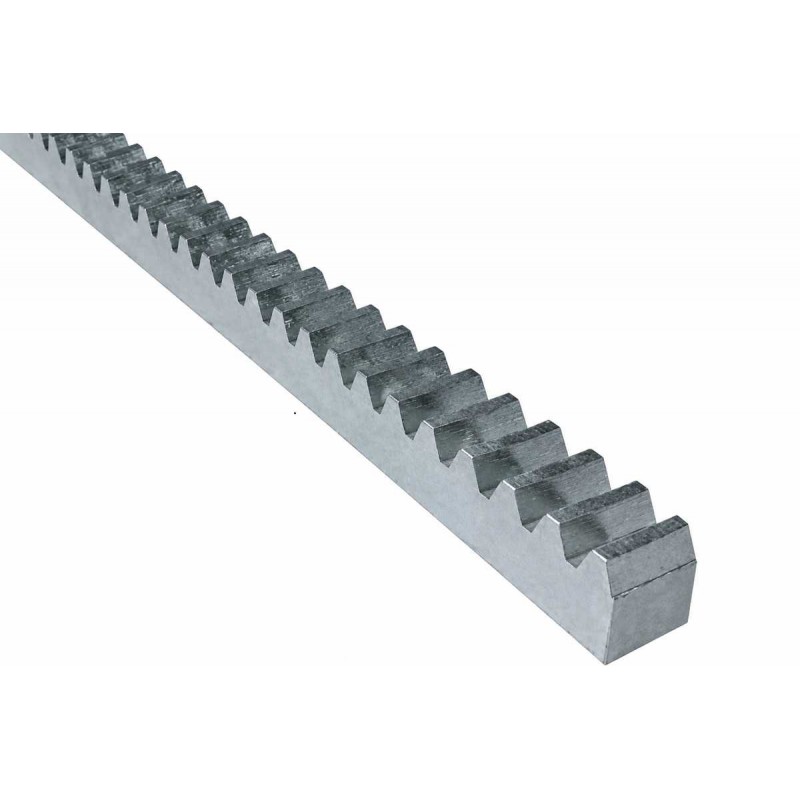

The Gate Motor Steel Rack 22×22×1000mm is a heavy-duty galvanized steel gear rack designed for automatic sliding gate motors. Installed along the sliding gate, the rack engages with the motor pinion to transfer motor power and provide strong, smooth and reliable opening and closing movement.
With a 22 mm × 22 mm section and 1000 mm (1 metre) length, this heavy-duty steel rack is suitable for residential, commercial and industrial sliding gate automation. Its strong galvanized steel construction provides excellent durability for demanding automatic gate installations.
Sliding Gate Motor Steel Rack 22×22×1000mm in UAE
The 22×22×1000mm sliding gate steel rack provides the mechanical connection between the automatic sliding gate motor and the moving gate. When the motor operates, its output pinion engages with the steel rack teeth and moves the gate horizontally along its track.
Its solid 22×22mm steel profile makes it suitable for heavy sliding gate applications requiring a strong and durable rack-and-pinion drive system.
Key Features
- Heavy-duty sliding gate motor steel gear rack
- 22×22×1000mm rack dimensions
- 22 mm × 22 mm steel section
- 1000 mm / 1 metre length per section
- Strong galvanized steel construction
- Suitable for automatic sliding gate motors
- Maximum gate capacity up to approximately 2200 KG
- 3 external mounting attachments
- Complete with screws and nuts
- Strong and durable steel gear teeth
- Suitable for heavy sliding gates
- Suitable for residential, commercial and industrial applications
- Multiple 1 metre sections can be joined together
- Suitable for new installations and replacement applications
Product Specifications
| Product Type | Sliding Gate Motor Gear Rack |
| Rack Type | Heavy-Duty Steel Gear Rack |
| Rack Size | 22×22×1000mm |
| Section Size | 22 mm × 22 mm |
| Length | 1000 mm / 1 Metre |
| Material | Galvanized Steel |
| Mounting | 3 External Attachments |
| Included Accessories | Screws and Nuts |
| Maximum Gate Capacity | Up to 2200 KG |
| Application | Automatic Sliding Gates |
Heavy-Duty Steel Gear Rack for Sliding Gates
The 22×22mm heavy-duty steel gear rack is designed for automatic sliding gate applications where high mechanical strength, durability and reliable power transmission are required.
Its robust steel profile makes it suitable for larger sliding gates and demanding applications at villas, commercial buildings, warehouses, factories, compounds and industrial entrances.
22×22mm Heavy-Duty Steel Profile
The 22×22mm section provides a strong and rigid rack profile for heavy sliding gate automation. The solid construction helps provide reliable engagement between the rack teeth and sliding gate motor pinion.
For reliable operation, the rack must be correctly matched with the gate motor pinion and professionally aligned throughout the complete opening and closing travel.
1 Metre Sliding Gate Steel Rack
Each steel rack section measures 1000 mm (1 metre) in length. Multiple rack sections can be installed continuously according to the total travel length of the sliding gate.
For longer sliding gates, additional 1 metre rack sections can be joined together. Each connection must be correctly aligned so that the motor pinion moves smoothly from one rack section to the next.
Galvanized Steel Construction
The rack is manufactured from galvanized steel, providing high mechanical strength and improved resistance against corrosion for outdoor automatic gate installations.
Its durable steel teeth provide reliable engagement with the sliding gate motor pinion during repeated opening and closing cycles.
Suitable for Sliding Gates up to 2200 KG
This 22×22×1000mm steel rack is suitable for compatible automatic sliding gate systems with gate weights up to approximately 2200 KG, subject to the selected gate motor, motor pinion and overall gate installation.
For heavy sliding gates, the gate motor should also be correctly selected according to the actual gate weight, gate length, operating frequency and site conditions.
Steel Rack and Sliding Gate Motor Pinion
The steel rack works directly with the output pinion of the sliding gate motor. As the motor pinion rotates, its teeth engage with the rack and move the sliding gate in the opening or closing direction.
Correct rack-to-pinion engagement is essential for smooth operation. Incorrect alignment or excessive pressure can cause vibration, operating noise and premature wear of the rack, pinion or motor gearbox.
3 External Mounting Attachments
Each 1 metre steel rack section has 3 external mounting attachments. These mounting points secure the rack to the sliding gate and help maintain its position relative to the motor pinion.
All mounting points should be securely installed and checked periodically, particularly on heavy or frequently operated automatic gates.
Multiple Steel Rack Sections
Multiple 1 metre steel rack sections can be connected together to cover the complete travel length of the sliding gate.
Correct alignment at every joint is important. The motor pinion should pass smoothly from one rack section to another without jumping, vibration or excessive noise.
Replacement Steel Rack for Sliding Gate Motors
The 22×22×1000mm steel rack can also be used to replace compatible worn, damaged or broken sliding gate rack sections.
Before replacing an existing rack, check its dimensions, tooth profile, mounting arrangement and motor pinion to confirm compatibility with the replacement rack.
Signs of a Damaged Sliding Gate Steel Rack
- Broken, damaged or worn rack teeth
- Gate motor runs but the gate does not move correctly
- Gate jumps during opening or closing
- Grinding or clicking noise near the motor pinion
- Gate movement becomes rough or uneven
- Loose rack mounting attachments
- Uneven rack and pinion engagement
- Gate stops or hesitates at certain positions
- Visible rack damage or bending
- Misalignment between adjoining rack sections
Correct Steel Rack and Pinion Alignment
Correct rack and pinion alignment is essential for reliable automatic sliding gate operation. The steel rack should engage smoothly with the motor pinion throughout the complete gate travel without excessive pressure.
The weight of the sliding gate must remain supported by the gate wheels and track. The rack and motor pinion are designed to move the gate and should not support the gate's weight.
Sliding Gate Steel Rack Installation
During installation, each steel rack section should be securely mounted along the sliding gate while maintaining consistent alignment with the motor pinion.
After installation, release the sliding gate motor and manually move the gate from the fully closed position to the fully open position. Check that the motor pinion engages smoothly with every rack section throughout the complete travel.
Steel Rack for Residential, Commercial and Industrial Gates
The heavy-duty 22×22mm steel rack can be used with compatible residential, commercial and industrial automatic sliding gate systems.
Typical applications include villas, compounds, commercial buildings, parking entrances, warehouses, factories, workshops and industrial facilities using automatic sliding gates.
Steel Rack vs Nylon Rack
Nylon and steel gear racks are both widely used for automatic sliding gate motors. Nylon racks are commonly selected for lighter residential gates where quieter operation is preferred, while steel racks provide greater mechanical strength for heavier and more demanding sliding gate installations.
The correct rack should be selected according to the gate weight, gate motor, pinion compatibility and installation requirements.
Check Compatibility Before Ordering
Before ordering a 22×22×1000mm gate motor steel rack, check the existing rack dimensions, gear tooth profile, motor pinion, mounting arrangement and sliding gate motor specifications.
Steel racks are manufactured in different sizes and configurations. Similar-looking racks may not necessarily be interchangeable, so compatibility should always be confirmed before replacement.
Professional Sliding Gate Rack Installation
Professional installation is recommended to ensure correct rack height, mounting position, rack joining and motor pinion clearance.
Proper installation helps provide smooth gate movement while reducing unnecessary wear on the steel rack, motor pinion and sliding gate motor gearbox.
Gate Motor Steel Rack Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies Gate Motor Steel Rack 22×22×1000mm in UAE for residential, commercial and industrial automatic sliding gate systems.
We provide sliding gate motor racks, gate automation spare parts, replacement support and professional installation for compatible automatic gate systems.
Supply and installation services are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
Why Choose the 22×22×1000mm Steel Gate Rack?
The 22×22×1000mm galvanized steel gate rack is designed for heavy automatic sliding gates requiring a strong and durable rack-and-pinion drive system. Its solid 22×22mm profile, 1 metre modular length and galvanized steel construction make it suitable for demanding automatic gate applications.
For replacement installations, confirm the existing rack dimensions and motor pinion compatibility before ordering. For new installations, correct professional alignment is recommended for smooth, reliable and long-lasting sliding gate operation.
