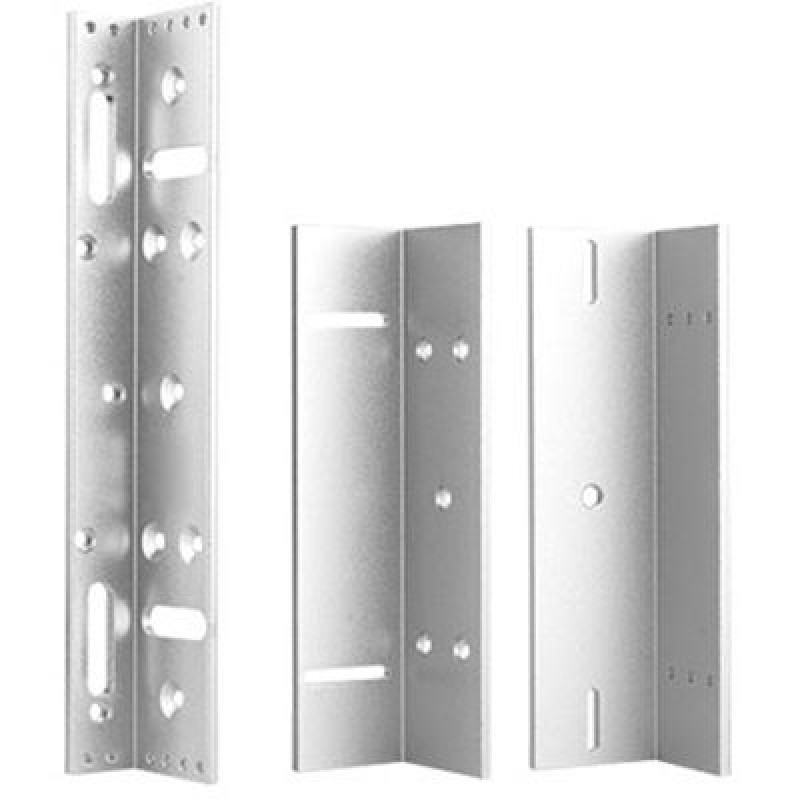

Magnetic Lock LZ Bracket for In-Swing Door UAE
Price 49 AEDIn Stock
The Magnetic Lock LZ Bracket is a professional mounting accessory designed for installing electromagnetic door locks on in-swing and inward-opening doors. The LZ bracket provides the correct mounting arrangement for the magnetic lock body and armature plate when a standard direct installation is not suitable.
Manufactured from high-strength aluminum with a durable sandblast and anodized finish, the bracket provides a strong, clean and professional mounting solution for electromagnetic access control locks.
The LZ bracket is designed for suitable 90° in-swing doors and can be used in offices, commercial buildings, residential properties, warehouses and other electronic access control installations.
Key Features
- Professional magnetic lock LZ bracket
- Designed for electromagnetic door locks
- Suitable for in-swing doors
- Suitable for inward-opening doors
- Designed for 90° door opening
- High-strength aluminum construction
- Sandblast finished surface
- Anodized aluminum finish
- Strong and durable construction
- Professional access control installation
- Supports correct magnetic lock positioning
- Supports armature plate positioning
- Suitable for residential applications
- Suitable for commercial applications
Technical Specifications
| Product Type | Magnetic Lock LZ Bracket |
| Bracket Type | LZ Mounting Bracket |
| Application | Electromagnetic Door Lock |
| Suitable Door | In-Swing / Inward Opening Door |
| Door Opening | 90° |
| Material | High-Strength Aluminum |
| Surface Treatment | Sandblast Finished |
| Shell Finish | Anodized Aluminum |
| Bracket Configuration | L + Z Mounting Components |
| Installation Type | Surface Mounted |
What Is a Magnetic Lock LZ Bracket?
An LZ bracket is a mounting accessory used with electromagnetic locks when the door opens inward and the magnetic lock cannot be installed using a standard direct mounting arrangement.
The bracket positions the electromagnetic lock and its armature plate correctly so that both components make proper contact when the door is closed.
LZ Bracket for In-Swing Doors
The LZ bracket is specifically suitable for in-swing or inward-opening doors.
On these doors, the position of the frame and door leaf can make direct magnetic lock installation difficult. The LZ bracket provides the additional mounting arrangement required to correctly position the magnet and armature plate.
90 Degree Door Installation
This magnetic lock LZ bracket is suitable for compatible 90-degree opening doors.
The door construction, frame dimensions and magnetic lock size should be checked before installation to ensure that the selected bracket is suitable.
High-Strength Aluminum Construction
The LZ bracket is manufactured from high-strength aluminum to provide a strong and stable mounting platform for the electromagnetic lock.
Its aluminum construction also provides a clean professional appearance for office and commercial access control installations.
Sandblast & Anodized Finish
The bracket features a sandblast-finished and anodized aluminum surface for a clean appearance and durable construction.
The aluminum finish matches the appearance of many electromagnetic locks and modern aluminum door frames.
How an LZ Magnetic Lock Bracket Works
The LZ bracket changes the mounting position of the electromagnetic lock and armature plate so they can align correctly on an inward-opening door.
When the door closes, the armature plate makes full contact with the electromagnetic lock. When electrical power is supplied to the magnetic lock, electromagnetic force holds the door securely closed.
L Bracket & Z Bracket Configuration
An LZ mounting arrangement uses bracket components to position both the electromagnetic lock and armature plate according to the door and frame configuration.
Correct positioning is important because the armature plate must make full and even contact with the magnetic lock to achieve reliable holding performance.
LZ Bracket for 180 KG Magnetic Lock
An appropriately sized LZ bracket can be used with a compatible 180 KG electromagnetic lock for suitable inward-opening door installations.
Always confirm the physical dimensions of the magnetic lock before selecting the bracket because electromagnetic locks with different holding forces can use different body and armature dimensions.
LZ Bracket for 280 KG Magnetic Lock
Compatible LZ brackets are also commonly used with 280 KG / 600 lbs electromagnetic locks on suitable in-swing doors.
The bracket dimensions must match the actual magnetic lock and armature plate being installed.
Magnetic Lock Access Control System
The LZ bracket can form part of a complete electronic door access control installation using an electromagnetic lock.
The complete system can include an RFID reader, access controller, magnetic lock, power supply, exit button and appropriate emergency-release equipment.
RFID Door Access Control
When the magnetic lock is connected to a compatible RFID access control system, authorised users can release the door using an RFID card or key fob.
The LZ bracket provides the mechanical mounting arrangement while the access control system manages user authentication and electronic door release.
Keypad & Biometric Access Control
The magnetic lock can also be controlled using compatible PIN keypads, fingerprint readers, face-recognition terminals and network access control systems.
The selected access controller should provide the appropriate output for controlling the electromagnetic lock.
Exit Push Button Integration
An exit push button or no-touch exit sensor can be incorporated into the access control installation for convenient door release from the secure side.
When the exit command is activated, the access control system releases the electromagnetic lock for the configured period.
LZ Bracket vs U Bracket
An LZ bracket is primarily used to correctly mount an electromagnetic lock on suitable in-swing doors.
A U bracket serves a different purpose and is commonly used to mount the armature plate on compatible frameless glass doors.
Suitable Door Applications
- In-swing doors
- Inward-opening doors
- 90-degree opening doors
- Office doors
- Commercial building doors
- Aluminum doors
- Wooden doors
- Staff entrances
- Server rooms
- Storage rooms
- Residential building entrances
- Restricted-access doors
Complete Magnetic Lock Installation
A typical electromagnetic lock installation using an LZ bracket can include:
- 1 × Compatible Electromagnetic Door Lock
- 1 × LZ Magnetic Lock Bracket Set
- 1 × RFID / Keypad Access Controller
- 1 × Access Control Power Supply
- 1 × Exit Push Button or No-Touch Exit Sensor
- Emergency Release Device where required
- RFID Cards or Key Fobs where required
- Backup Battery where required
Professional LZ Bracket Installation
Professional installation is recommended to ensure that the electromagnetic lock, LZ bracket and armature plate are correctly positioned.
The armature plate should make full contact with the magnetic lock when the door closes. Incorrect alignment can reduce the effective holding force and cause unreliable locking.
Magnetic Lock LZ Bracket Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies magnetic lock LZ brackets in UAE for electromagnetic locks and professional access control installations.
Supply and professional installation are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
