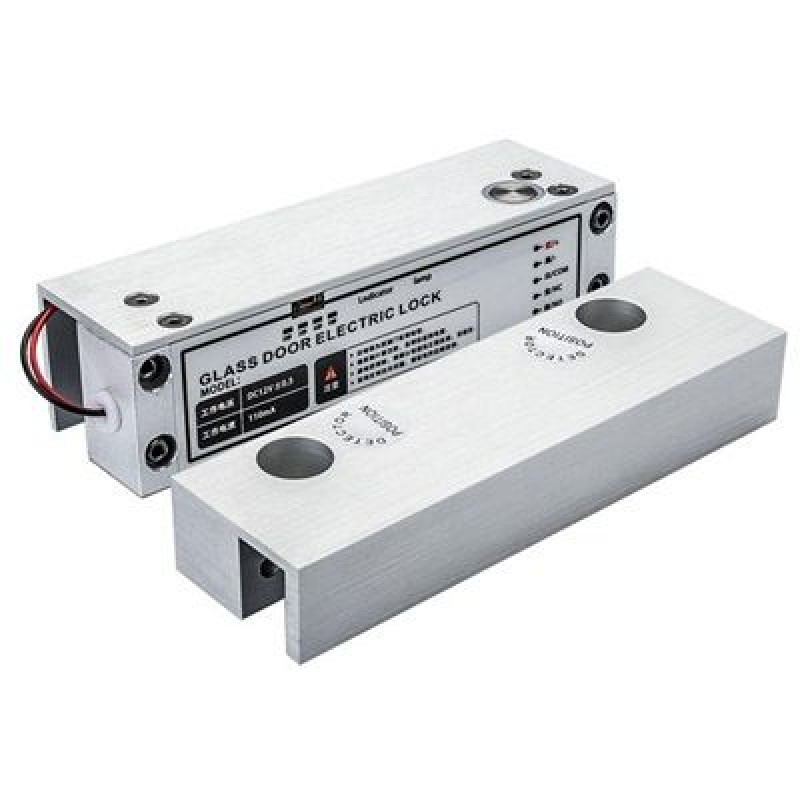

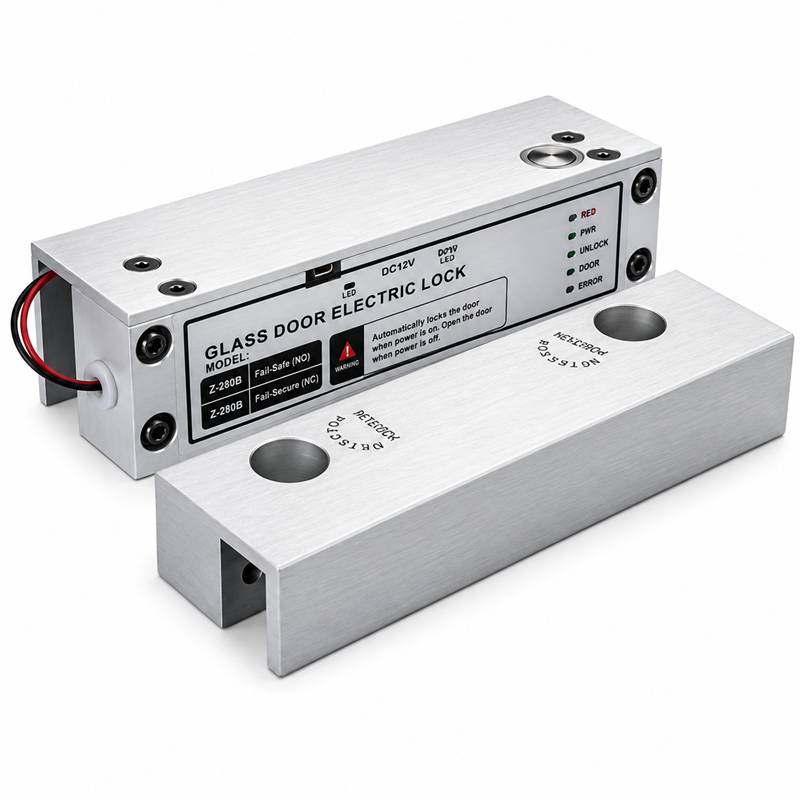

Electric Bolt Lock for Frameless Glass Door UAE
Price 149 AEDIn Stock
The Electric Bolt Lock for Frameless Glass Door is a professional electronic locking solution designed for access control systems using fully frameless glass doors. The lock operates from DC 12V–24V and provides secure electronic locking for offices, commercial buildings, shops, hotels and other controlled-access entrances.
This electric drop bolt features a 5-wire connection, adjustable 0 / 3 / 6 second delay timer and NO/COM door-status signal output. It can be configured for either fail-safe or fail-secure operation according to the access control and security requirements of the installation.
Designed for compatible 12–15 mm fully frameless glass doors, the electric bolt lock can be integrated with RFID readers, access control keypads, fingerprint readers, face-recognition terminals, network access controllers, exit buttons and other compatible door security equipment.
Key Features
- Electric bolt lock for frameless glass doors
- Electric drop bolt locking mechanism
- DC 12V–24V operation
- 5-wire connection
- Suitable for 12–15 mm glass doors
- Designed for fully frameless glass doors
- Adjustable 0 / 3 / 6 second timer
- Door status signal output
- NO / COM status contacts
- Selectable fail-safe operation
- Selectable fail-secure operation
- 900mA starting current
- Stainless steel face plate
- Suitable for left or right opening doors
- Suitable for access control systems
- Suitable for residential and commercial applications
Technical Specifications
| Product Type | Electric Bolt / Drop Bolt Lock |
| Door Type | Fully Frameless Glass Door |
| Suitable Glass Thickness | 12–15 mm |
| Operating Voltage | DC 12V–24V |
| Starting Current | 900mA |
| Wiring | 5 Wires |
| Delay Timer | 0 / 3 / 6 Seconds Adjustable |
| Door Status Output | NO / COM |
| Operating Mode | Fail-Safe / Fail-Secure Adjustable |
| Opening Direction | Left or Right |
| Face Plate Size | 150 × 43 × 39 mm |
| Face Plate Material | Stainless Steel |
| Application | Glass Door Access Control |
Electric Drop Bolt Lock for Glass Door
The electric drop bolt lock uses an electrically controlled bolt to secure the glass door. When the access control system grants or removes access according to the selected operating mode, the bolt retracts to allow the door to open.
This makes the lock suitable for electronic access control installations where a concealed and professional locking solution is preferred.
Suitable for Frameless Glass Doors
This electric bolt lock is specifically designed for compatible fully frameless glass doors with approximately 12–15 mm glass thickness.
The glass thickness and installation arrangement should be checked before installation to ensure compatibility with the lock and mounting accessories.
12V-24V Electric Bolt Lock
The electric bolt supports a wide DC 12V–24V operating range, providing flexibility for different access control power supply configurations.
The power supply should provide sufficient current for reliable bolt operation, particularly during initial activation when the specified starting current can reach approximately 900mA.
Adjustable 0 / 3 / 6 Second Timer
The electric bolt provides selectable 0, 3 or 6 second delay settings.
The timer allows the installer to configure the locking delay according to the door movement and operating requirements of the access control system.
Fail-Safe Electric Bolt Lock
The electric bolt can be configured for fail-safe operation, where the selected electrical operating configuration allows the lock to release when power is removed.
Fail-safe configuration can be selected for applications where the required door and emergency-egress design calls for unlocking during a power interruption.
Fail-Secure Electric Bolt Lock
The unit can also be configured for fail-secure operation where appropriate for the installation.
The required operating mode should be selected according to the security requirements, door function and applicable emergency-egress requirements.
Door Status Signal Output
The electric bolt provides a door-status signal output using NO / COM contacts.
This output can be integrated with compatible access control controllers or monitoring equipment when door-status feedback is required.
5-Wire Electric Bolt Lock
The electric bolt uses a 5-wire connection to provide power and status functions for compatible access control installations.
The manufacturer's wiring diagram should be followed during installation to ensure the power and signal wires are connected correctly.
RFID Access Control Integration
The electric bolt lock can form part of a complete RFID glass door access control system.
When an authorised RFID card or key fob is presented, the access controller operates the electric bolt according to the programmed door-release settings.
Keypad Access Control
A compatible access control keypad can be used with the electric bolt for PIN-code or RFID card access.
This provides convenient keyless access for offices, commercial properties and other controlled entrances.
Fingerprint & Face Recognition Access
Compatible fingerprint and face-recognition access terminals can also be integrated with the electric bolt lock.
After an authorised user is verified, the access control terminal provides the appropriate door-release command to the locking system.
Network Access Control Panel Integration
The electric bolt can be integrated with compatible 1 door, 2 door and 4 door network access control controllers.
A network access control system allows users, access permissions and door activity to be centrally managed according to the capabilities of the selected controller and software.
Exit Push Button Connection
An exit push button can be installed on the secure side of the glass door to provide convenient door release.
When the exit button is pressed, the access control controller operates the electric bolt for the programmed release period.
No-Touch Exit Button
A compatible no-touch exit sensor can also be used for contactless door release.
This is particularly suitable for offices, clinics, commercial buildings and other locations where touch-free exit operation is preferred.
Electric Bolt Lock vs Magnetic Lock
An electric bolt lock secures the door mechanically using an electrically operated locking bolt.
An electromagnetic lock uses magnetic holding force between the magnet and armature plate. The correct locking system should be selected according to the glass-door construction, security requirements, access control design and required emergency-release operation.
Glass Door Access Control Applications
- Frameless glass doors
- Office glass doors
- Commercial entrances
- Corporate offices
- Business centres
- Hotels
- Retail shops
- Shopping centres
- Clinics
- Showrooms
- Reception entrances
- Restricted-access areas
Complete Glass Door Access Control System
A typical electric bolt access control installation can include:
- 1 × Electric Bolt Lock
- 1 × RFID / Keypad Access Controller
- 1 × Compatible Access Control Power Supply
- 1 × Exit Push Button or No-Touch Exit Sensor
- RFID Cards or Key Fobs
- Emergency Release Device where required
- Backup Battery where required
- Compatible mounting accessories
Professional Electric Bolt Lock Installation
Professional installation is recommended to ensure correct alignment between the electric bolt and its receiving section.
The installer should verify the glass thickness, opening direction, operating voltage, timer setting, fail-safe or fail-secure configuration and access control wiring before commissioning the system.
