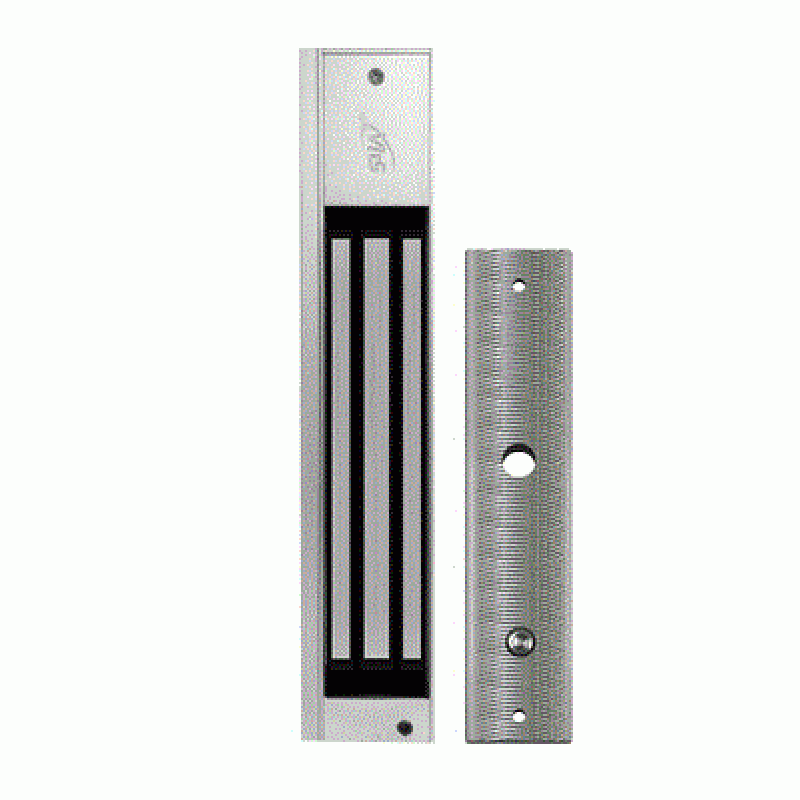

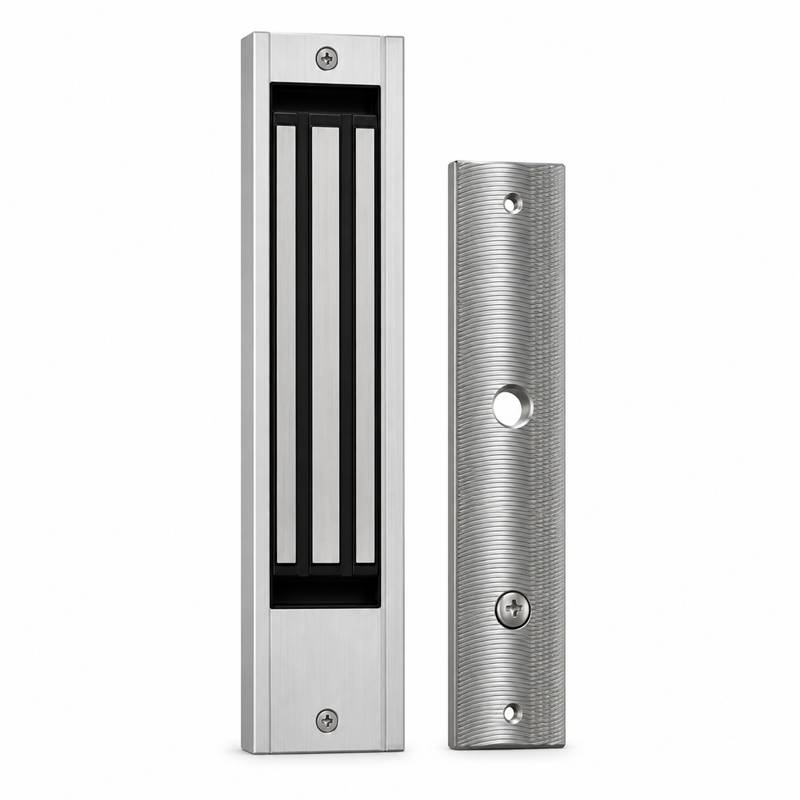

280 KG Electromagnetic Door Lock UAE
Price 99 AEDIn Stock
The 280 KG Electromagnetic Door Lock is a professional fail-safe magnetic locking solution designed for electronic door access control systems. With a powerful 280 KG / 600 lbs holding force, it provides reliable electronic locking for offices, commercial buildings, residential properties and other controlled-access entrances.
The magnetic lock supports both 12V DC and 24V DC operation and features a built-in LED indicator and lock status sensor. Its fail-safe operating design keeps the door securely locked while power is supplied and releases the door when electrical power is removed.
Designed for integration with RFID readers, access control keypads, fingerprint readers, network access controllers, exit buttons and other compatible security equipment, this 280 KG magnetic lock is suitable for professional single-door access control installations.
Key Features
- 280 KG electromagnetic door lock
- 600 lbs rated holding force
- Fail-safe magnetic locking operation
- 12V DC or 24V DC operation
- 500mA current draw at 12V
- 250mA current draw at 24V
- Built-in LED status indicator
- Built-in door / lock sensor
- Dry contact signal output
- Maximum signal contact rating 3A
- Anodized aluminum lock housing
- Zinc-finished magnet
- Zinc-finished armature plate
- Suitable for access control systems
- Suitable for out-swing door applications
- Residential and commercial applications
Technical Specifications
| Product Type | Electromagnetic Door Lock |
| Holding Force | 280 KG / 600 lbs |
| Operation | Fail Safe |
| Operating Voltage | 12V DC / 24V DC Adjustable |
| Current Draw – 12V | 500mA |
| Current Draw – 24V | 250mA |
| LED Indicator | Built-in |
| Lock / Door Sensor | Built-in |
| Signal Output | Dry Contact |
| Maximum Contact Rating | 3A |
| Lock Dimensions | 250 × 48.5 × 25 mm |
| Armature Plate | 180 × 38 × 11 mm |
| Surface Temperature | ≤20°C |
| Operating Temperature | -10°C to +55°C |
| Suitable Humidity | 0–90% Non-Condensing |
| Lock Housing | Anodized Aluminum |
| Magnet Finish | Zinc |
| Armature Finish | Zinc |
| Weight | 2 KG |
280 KG Magnetic Door Lock
The 280 KG magnetic door lock uses electromagnetic force to securely hold a compatible door in the closed position. When electrical power is applied, the electromagnetic lock attracts the armature plate mounted on the door.
With a rated holding force of 280 KG / 600 lbs, this model provides stronger holding capacity than smaller magnetic locks and is suitable for a wide range of professional access control applications.
600 Lbs Electromagnetic Lock
This magnetic lock provides approximately 600 lbs of holding force when the lock body and armature plate are correctly installed and properly aligned.
Correct alignment is essential because an incorrectly positioned armature plate can significantly reduce the effective magnetic holding force.
Fail-Safe Magnetic Lock
The 280 KG electromagnetic lock operates using a fail-safe principle. Electrical power keeps the magnetic lock engaged and the door secured.
When power to the lock is removed, the electromagnetic holding force is released. The complete door locking and emergency release arrangement should always comply with the requirements applicable to the installation.
12V / 24V DC Magnetic Lock
The magnetic lock supports both 12V DC and 24V DC operation, allowing it to be integrated with different compatible access control power supplies.
Current consumption is approximately 500mA at 12V DC and 250mA at 24V DC.
Built-In LED Indicator
A built-in LED indicator provides convenient visual indication of the magnetic lock status.
The LED can assist users and technicians when checking normal lock operation and troubleshooting the access control installation.
Built-In Lock Status Sensor
The electromagnetic lock incorporates a built-in lock / door sensor with dry-contact signal output.
This allows compatible access control equipment to receive status feedback from the magnetic lock when the installation requires lock monitoring.
Dry Contact Signal Output
The built-in sensor provides a dry contact output with a maximum specified contact current rating of 3A.
This output can be integrated with compatible access control panels, monitoring equipment or security systems according to the installation requirements.
RFID Access Control Integration
The 280 KG magnetic lock can form part of a complete RFID door access control system.
When an authorised RFID card is presented, the access controller can temporarily interrupt power to the electromagnetic lock, allowing the door to be opened.
Access Control Keypad Integration
The magnetic lock can also be operated through a compatible standalone access control keypad.
Users can enter using an authorised PIN, RFID card or other supported credential according to the access controller being used.
Fingerprint & Face Recognition Access
Compatible biometric access control terminals can be integrated with the magnetic lock where fingerprint or face-recognition entry is required.
The biometric controller provides the access decision while the magnetic lock performs the physical electronic locking of the door.
Network Access Control Panel Integration
The 280 KG electromagnetic lock can be used with compatible 1 door, 2 door and 4 door network access control controllers.
Network controllers allow authorised users and multiple controlled entrances to be managed from a centralized access control system.
Exit Push Button Connection
A compatible exit push button can be installed on the secure side of the door for convenient door release.
When activated, the access control system temporarily releases the magnetic lock according to the configured exit operation.
No-Touch Exit Button
A compatible no-touch exit sensor can also be installed where contactless door release is preferred.
This is suitable for offices, commercial properties, clinics and other locations requiring convenient touch-free exit operation.
Emergency Door Release
Where required, a suitable emergency release device can be incorporated into the access control system to provide emergency unlocking.
The magnetic lock, emergency release equipment, power supply and access controller should be installed according to the door design and applicable safety requirements.
Magnetic Lock L Bracket
A compatible L bracket can be used where the door frame or installation position requires additional mounting support for the electromagnetic lock.
The correct bracket should be selected according to the magnetic lock dimensions and door construction.
Magnetic Lock LZ Bracket
An LZ bracket can be used for suitable in-swing door installations where the magnetic lock and armature plate require a different mounting arrangement.
Correct bracket selection helps ensure proper alignment between the lock and armature plate.
U Bracket for Glass Doors
For suitable frameless glass door applications, a compatible U bracket can be used to mount the armature plate without requiring conventional mounting through a standard door frame.
The bracket must match the magnetic lock, glass thickness and door configuration.
Suitable Door Applications
- Office doors
- Commercial building entrances
- Residential building entrances
- Apartment entrances
- Staff access doors
- Glass doors with suitable brackets
- Aluminium doors
- Wooden doors
- Server rooms
- Storage rooms
- Warehouse offices
- Restricted access areas
Complete 280 KG Magnetic Lock Access Control System
A typical access control installation using the 280 KG electromagnetic lock can include:
- 1 × 280 KG / 600 lbs Electromagnetic Lock
- 1 × RFID or Keypad Access Controller
- 1 × Compatible Access Control Power Supply
- 1 × Exit Push Button
- 1 × Emergency Release Device where required
- RFID Cards or Key Fobs
- Backup Battery where required
- Suitable L, LZ or U Mounting Bracket where required
180 KG vs 280 KG Magnetic Lock
The main difference between a 180 KG and 280 KG electromagnetic lock is the rated magnetic holding force.
The 180 KG model can be suitable for lighter access-controlled doors, while the 280 KG / 600 lbs magnetic lock provides greater holding force for applications requiring a stronger electromagnetic lock.
Professional Magnetic Lock Installation
Professional installation is recommended to achieve reliable locking and the specified holding force.
The magnetic lock and armature plate must be correctly positioned and aligned. The power supply capacity, access controller wiring, door release devices and lock-status output should also be tested before commissioning.
280 KG Electromagnetic Door Lock Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies 280 KG electromagnetic door locks in UAE for residential, commercial and professional access control applications.
Supply, professional installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
