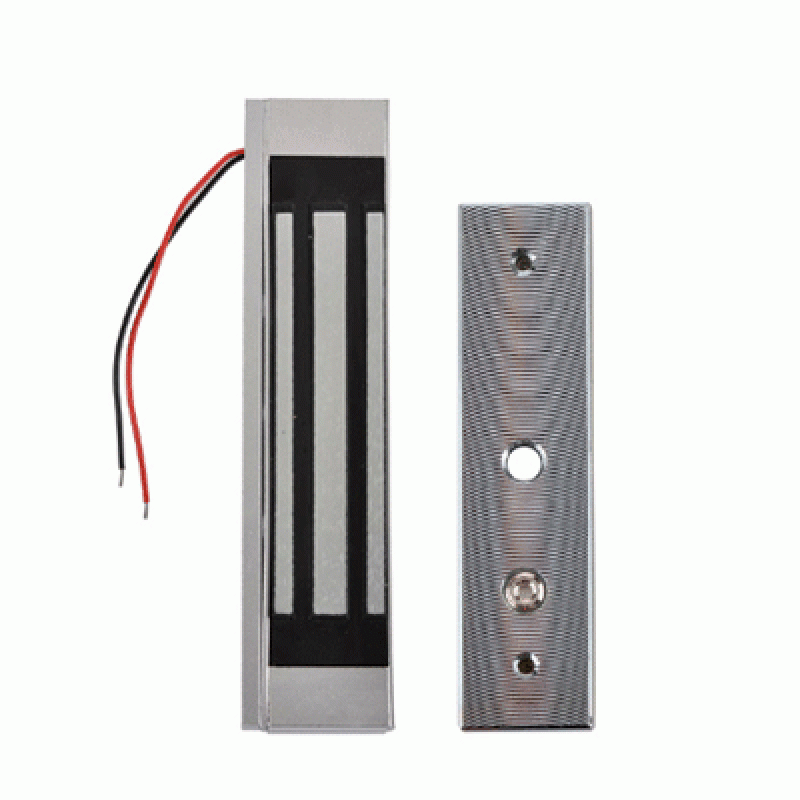

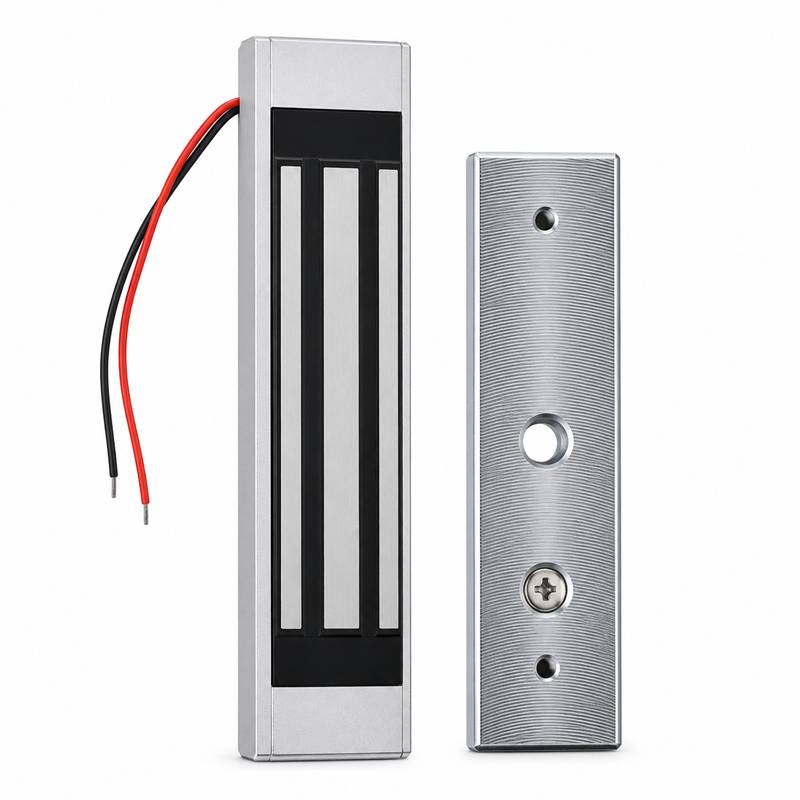

180 KG Electromagnetic Door Lock UAE
Price 80 AEDIn Stock
The 180 KG Electromagnetic Door Lock is a reliable fail-safe magnetic locking solution designed for electronic door access control systems. With a strong 180 KG holding force, it provides secure locking for offices, commercial buildings, residential properties and other controlled-access entrances.
The electromagnetic lock supports 12V DC and 24V DC operation and features a built-in LED indicator and lock status sensor. Its fail-safe operating principle keeps the door locked while power is supplied and releases the door when electrical power is removed.
Designed for integration with RFID readers, access control keypads, fingerprint readers, exit buttons and network access controllers, this 180 KG magnetic lock provides a simple and dependable solution for professional door security installations.
Key Features
- 180 KG electromagnetic door lock
- Strong 180 KG holding force
- Fail-safe magnetic locking operation
- 12V DC or 24V DC operation
- 500mA current consumption at 12V
- 250mA current consumption at 24V
- Built-in LED status indicator
- Built-in lock status sensor
- Dry contact signal output
- Maximum signal contact rating 3A
- Anodized aluminum lock housing
- Zinc-finished magnet and armature plate
- Suitable for access control systems
- Suitable for out-swing doors
- Residential and commercial applications
Technical Specifications
| Product Type | Electromagnetic Door Lock |
| Holding Force | 180 KG |
| Operation | Fail Safe |
| Operating Voltage | 12V DC / 24V DC Adjustable |
| Current Draw – 12V | 500mA |
| Current Draw – 24V | 250mA |
| LED Indicator | Built-in |
| Lock Sensor | Built-in |
| Signal Output | Dry Contact |
| Maximum Contact Rating | 3A |
| Lock Dimensions | 250 × 48.5 × 25 mm |
| Armature Plate | 180 × 38 × 11 mm |
| Lock Housing | Anodized Aluminum |
| Magnet Finish | Zinc |
| Armature Finish | Zinc |
| Operating Temperature | -10°C to +55°C |
| Suitable Humidity | 0–90% Non-Condensing |
| Weight | 2 KG |
180 KG Magnetic Door Lock
The 180 KG magnetic door lock uses electromagnetic force to hold the door securely in the closed position. When electrical power is supplied to the magnet, the lock attracts the armature plate mounted on the door.
With up to 180 KG of holding force, the lock provides reliable electronic locking for suitable pedestrian doors used with access control systems.
Fail-Safe Electromagnetic Lock
This electromagnetic lock operates using a fail-safe locking principle. The door remains locked while electrical power is supplied to the magnetic lock.
When power is removed, the magnetic holding force is released and the door can be opened. This operating principle is commonly used in electronic access control installations where the required life-safety and door hardware configuration permits it.
12V / 24V DC Magnetic Lock
The electromagnetic lock supports both 12V DC and 24V DC operation, providing flexibility for different access control power supply configurations.
At 12V DC the lock draws approximately 500mA, while at 24V DC the current consumption is approximately 250mA.
Built-In LED Indicator
The magnetic lock incorporates a built-in LED status indicator to provide a visual indication of the locking condition.
This makes it easier for users and technicians to identify the status of the electromagnetic lock during normal operation and system troubleshooting.
Built-In Lock Status Sensor
A built-in lock status sensor provides additional monitoring capability for compatible access control systems.
The dry contact signal output can be integrated with compatible control equipment where lock-status feedback is required.
180 KG Holding Force
The magnetic lock provides a rated holding force of 180 KG when correctly installed with the lock body and armature plate properly aligned.
Correct mechanical installation is important because poor alignment between the magnet and armature plate can reduce the effective holding force.
Access Control System Integration
The 180 KG electromagnetic lock can be integrated with a wide range of compatible electronic access control equipment.
- RFID card readers
- Standalone access control keypads
- Fingerprint access control systems
- Face recognition terminals
- Network access control panels
- Exit push buttons
- No-touch exit buttons
- Intercom systems
- Video intercom systems
RFID Door Access Control
The magnetic lock can form part of a complete RFID door access control system. An authorised user presents an RFID card to the reader, and the access controller temporarily removes power from the magnetic lock to release the door.
After the programmed unlock period, power is restored and the magnetic lock secures the door again when the armature is correctly positioned.
Exit Push Button Connection
An exit push button can be incorporated into the access control system to provide convenient door release from the secure side of the entrance.
Pressing the exit button signals the access control system to release the electromagnetic lock for the programmed period.
No-Touch Exit Button
A compatible no-touch exit button can also be installed where contactless door release is preferred.
This is particularly useful for offices, clinics, commercial buildings and other locations where convenient touch-free exit operation is required.
Emergency Door Release
Where required by the door design and applicable safety requirements, an appropriate emergency release device can be incorporated into the access control installation.
The complete locking and emergency-release arrangement should be selected and installed according to the building's door hardware and applicable safety requirements.
L Bracket for Magnetic Lock
An appropriate L bracket can be used where the door frame or mounting position requires additional support for installation of the electromagnetic lock.
The correct bracket should be selected according to the door type, frame design and opening direction.
LZ Bracket for In-Swing Doors
For suitable in-swing doors, an LZ bracket can be used to correctly position the magnetic lock and armature plate.
Bracket selection should match the magnetic lock dimensions and the construction of the door and frame.
Suitable Door Applications
- Office doors
- Commercial building doors
- Residential building entrances
- Apartment entrances
- Staff access doors
- Warehouse offices
- Server rooms
- Storage rooms
- Clinics
- Schools
- Restricted access areas
- Access-controlled pedestrian doors
Complete Magnetic Lock Access Control System
A typical access control installation using this 180 KG electromagnetic lock can include:
- 180 KG electromagnetic lock
- RFID or keypad access controller
- 12V or compatible access control power supply
- Exit push button
- Emergency release device where required
- RFID cards or key fobs
- Backup battery where required
- Suitable magnetic lock mounting brackets
Professional Electromagnetic Lock Installation
Professional installation is recommended to achieve the correct magnetic holding force and reliable door operation.
The magnetic lock and armature plate must be correctly positioned and aligned. Electrical voltage, current capacity, access controller wiring and door release functions should also be tested before the system is placed into service.
180 KG Electromagnetic Door Lock Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies 180 KG electromagnetic door locks in UAE for residential, commercial and professional access control applications.
Supply, professional installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
