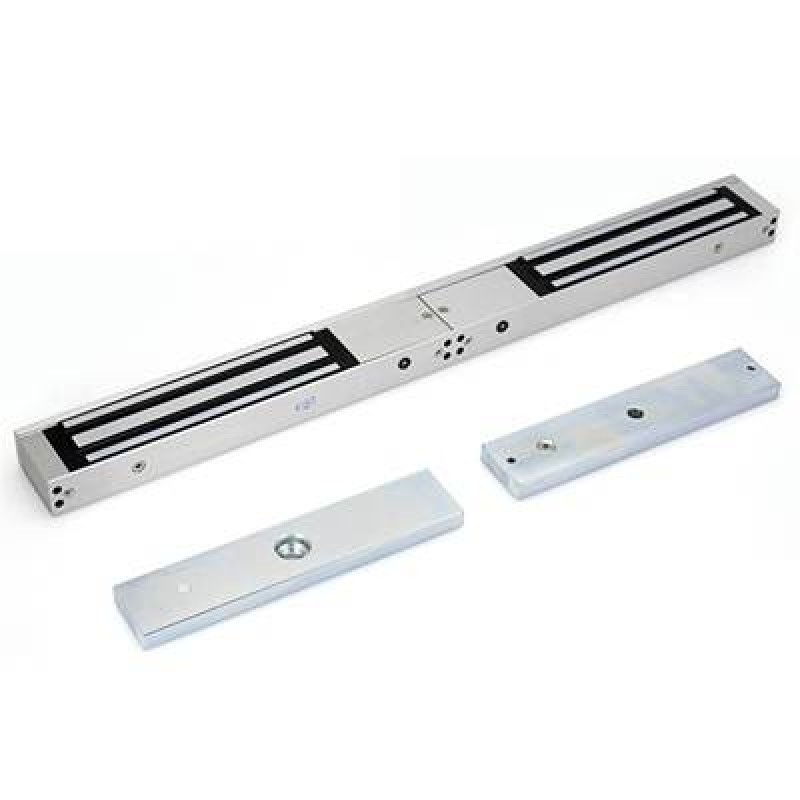

Double Door 280 KG × 2 Electromagnetic Lock UAE

The Double Door 280 KG × 2 Electromagnetic Lock is a heavy-duty magnetic locking solution designed for double-door access control systems. Featuring two electromagnetic locking sections with 280 KG holding force per side, it provides secure electronic locking for compatible double doors in commercial, residential and professional security applications.

The double magnetic lock supports 12V DC and 24V DC operation and incorporates LED and lock-status sensing functions. Its fail-safe electromagnetic operating principle keeps the doors locked while electrical power is supplied and releases them when power to the lock is removed.

With a full lock body measuring approximately 500 × 48.5 × 25 mm, the unit is specifically designed for double-door installations and can be integrated with RFID access control, keypads, biometric readers, network access controllers, exit buttons and other compatible security equipment.

Key Features

• Double door electromagnetic magnetic lock
• 280 KG holding force per side
• Total dual-lock configuration: 280 KG × 2
• 600 lbs class holding force per lock section
• Designed for double-door access control
• Fail-safe electromagnetic operation
• 12V DC / 24V DC operation
• 500mA × 2 current draw at 12V
• 250mA × 2 current draw at 24V
• Built-in LED indication
• Lock status sensor
• Dry-contact signal output
• Maximum signal contact rating of 3A
• Anodized aluminum housing
• Zinc-finished magnetic components
• Suitable for access control systems
• Suitable for commercial double doors

Technical Specifications

280 KG × 2 Double Door Magnetic Lock

The 280 KG × 2 double door magnetic lock combines two electromagnetic locking sections into one long lock body designed specifically for compatible double-door entrances.

Each locking section provides up to 280 KG of rated holding force, allowing both door leaves to be electronically secured by the same double electromagnetic lock assembly.

600 Lbs × 2 Magnetic Lock

Each side of the double electromagnetic lock is designed in the 600 lbs holding-force class, providing strong magnetic locking for compatible access-controlled doors.

Correct installation and full contact between each magnet and armature plate are important for achieving the specified holding performance.

Fail-Safe Double Door Lock

The double magnetic lock operates using a fail-safe electromagnetic principle. When electrical power is supplied, both magnetic sections hold their corresponding armature plates and secure the doors.

When electrical power to the magnetic lock is removed, the magnetic holding force is released. The complete installation should be designed according to applicable door, emergency-egress and life-safety requirements.

12V / 24V DC Operation

The double electromagnetic lock supports both 12V DC and 24V DC, providing flexibility for different professional access control power supply configurations.

At 12V DC, the specified current consumption is approximately 500mA × 2. At 24V DC, the specified current consumption is approximately 250mA × 2.

Built-In LED & Lock Sensor

The double magnetic lock incorporates LED indication and lock-status sensing to provide visual and electronic feedback for compatible access control systems.

This can help users and technicians monitor the locking condition and troubleshoot the access control installation.

Dry Contact Signal Output

A dry-contact signal output is provided for integration with compatible access control panels and security equipment.

The specified maximum contact-current rating is 3A.

500mm Double Magnetic Lock

The complete magnetic lock body measures approximately 500 × 48.5 × 25 mm, providing a long dual-lock configuration for suitable double-door installations.

Before installation, the available frame width and door configuration should be checked to ensure sufficient mounting space.

RFID Access Control Integration

The double electromagnetic lock can form part of a complete RFID access control system. Users can gain entry using compatible RFID cards, key fobs or other authorised credentials.

After valid access is confirmed, the controller temporarily releases power to the magnetic lock so the doors can be opened.

Keypad Access Control

A standalone access control keypad can be used with the double magnetic lock for PIN, RFID card or card + PIN entry according to the capabilities of the selected controller.

This provides a convenient keyless access solution for offices, commercial buildings and other controlled entrances.

Fingerprint & Face Recognition Access

Compatible fingerprint and face-recognition access terminals can also control the double electromagnetic lock through an appropriate access control relay or controller.

The biometric device verifies the authorised user while the magnetic lock provides physical electronic locking of the double doors.

Network Access Control Integration

The double magnetic lock can be integrated with compatible 1 door, 2 door and 4 door network access control panels.

Network access control allows users, credentials, doors and access permissions to be managed through a centralized system.

Exit Push Button Connection

A compatible exit push button can be incorporated into the system for convenient release from the secure side of the double doors.

The exit command causes the access control system to release the electromagnetic lock according to the configured operation.

No-Touch Exit Sensor

A no-touch exit sensor can also be installed where contactless door release is required.

This provides convenient touch-free exit operation for offices, clinics, commercial buildings and other controlled entrances.

Emergency Door Release

Where required, appropriate emergency-release equipment can be incorporated into the magnetic lock access control system.

Fail-safe magnetic locks, access controllers, power supplies and emergency-release devices should be configured according to the applicable safety requirements for the installation.

Double Glass Door Magnetic Lock

The double magnetic lock can be used with suitable glass-door installations when the correct mounting brackets are selected for the door construction.

For frameless glass doors, compatible U brackets may be required to securely install the armature plates without drilling the glass.

Magnetic Lock U Bracket

Compatible 280 KG U brackets are available for suitable frameless glass-door applications.

The bracket should be selected according to the glass thickness, door configuration and magnetic lock dimensions.

Magnetic Lock LZ Bracket

For suitable in-swing double doors, compatible LZ brackets can provide the required mounting arrangement for the electromagnetic lock and armature plates.

Correct bracket selection and alignment are essential for reliable magnetic locking.

Suitable Applications

• Double office doors
• Commercial building entrances
• Double glass doors
• Aluminium double doors
• Wooden double doors
• Residential building entrances
• Apartment entrances
• Staff entrances
• Business centres
• Hotels
• Clinics
• Schools
• Warehouses
• Restricted-access areas

Complete Double Door Access Control System

A typical double-door magnetic lock access control installation can include:

• 1 × 280 KG × 2 Double Electromagnetic Lock
• 2 × Armature Plates
• 1 × RFID / Keypad Access Controller
• 1 × Suitable Access Control Power Supply
• 1 × Exit Push Button or No-Touch Exit Sensor
• Emergency Release Device where required
• RFID Cards or Key Fobs
• Backup Battery where required
• Compatible L, LZ or U Brackets where required

Single vs Double 280 KG Magnetic Lock

A standard 280 KG electromagnetic lock contains one magnetic locking section and is generally intended for a single compatible door leaf.

The 280 KG × 2 double magnetic lock incorporates two locking sections in one longer housing, making it suitable for compatible double-door entrances where both leaves require electromagnetic locking.

Professional Double Magnetic Lock Installation

Professional installation is recommended to achieve reliable operation and maximum holding performance from both magnetic locking sections.

Both armature plates must align correctly with their corresponding magnets. The installer should also verify the power supply capacity, access controller wiring, lock-status outputs and emergency-release functions before commissioning.
