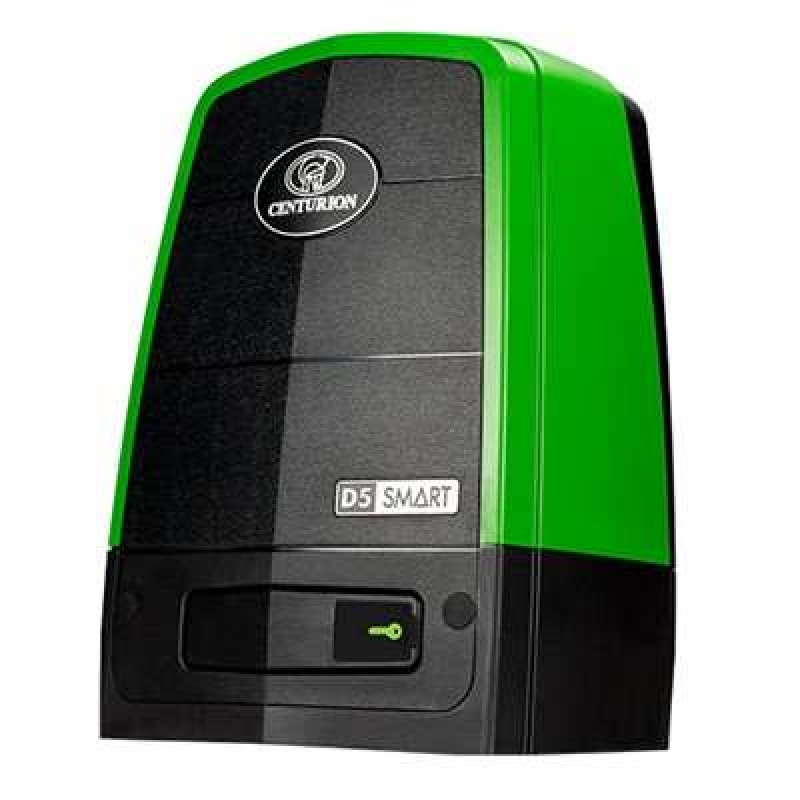

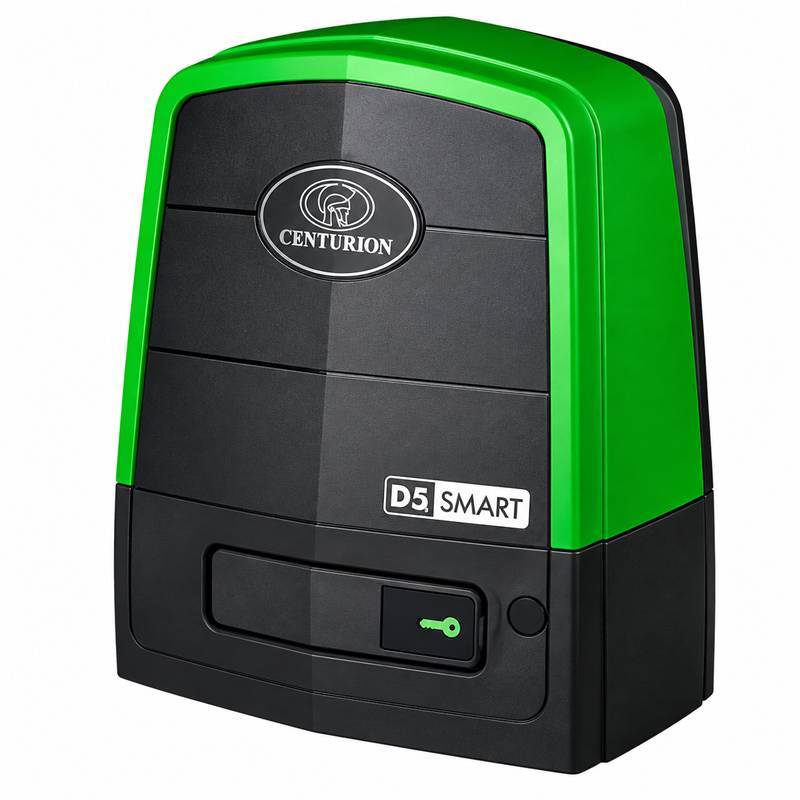

CENTURION D5 SMART 500 KG Sliding Gate Motor UAE
Price 1,750 AEDIn Stock
The CENTURION D5 SMART Sliding Gate Motor is an advanced 24V DC automatic gate opener designed for domestic and light-industrial sliding gates weighing up to 500 KG. Combining fast gate movement, battery backup, intelligent diagnostics and smartphone-based configuration, the D5 SMART provides a modern solution for residential and commercial gate automation.
The CENTSYS D5 SMART features an onboard 433.92 MHz multichannel code-hopping receiver with capacity for up to 1,500 remote controls. Its SMART technology allows installers to perform wireless setup, configuration and diagnostics using a compatible smartphone.
The 24V battery-driven system provides continued gate operation during mains power failures, while electronic collision sensing, Hall Effect position control and a lockable manual release provide reliable everyday operation.
Key Features
- Original CENTURION Systems / CENTSYS sliding gate motor
- Model D5 SMART
- Suitable for sliding gates up to 500 KG
- 24V DC motor
- Battery-driven operation
- Battery backup during power failures
- Up to 35 m/min gate speed at rated load
- Maximum 150 operations per day
- Wireless smartphone setup and configuration
- Advanced diagnostics and intelligent logging
- Hall Effect position control technology
- Electronic collision sensing
- Onboard 433.92 MHz code-hopping receiver
- Capacity for up to 1,500 remote controls
- Individually configurable inputs and outputs
- Intelligent battery charger with onboard diagnostics
- Improved theft-resistant cage design
- Lockable manual key release
- IP55 protection rating
Technical Specifications
| Brand | CENTURION Systems / CENTSYS |
| Model | D5 SMART |
| Product Type | Automatic Sliding Gate Motor |
| Maximum Gate Weight | 500 KG |
| Maximum Gate Length | 100 m |
| Input Voltage | 90–240V AC ±10% @ 50Hz |
| Motor Voltage | 24V DC |
| Motor Power Supply | Battery Driven – Standard 2 × 12V |
| Motor Current at Rated Load | 13A |
| Starting Push Force | 30 kgf |
| Rated Push Force | 17 kgf |
| Gate Speed | Up to 35 m/min @ 17 kgf |
| Maximum Operations Per Day | 150 |
| Duty Cycle | 50% with Mains Present |
| Collision Sensing | Electronic |
| Position Control | Hall Effect Technology |
| Receiver Type | Code-Hopping Multichannel Receiver |
| Receiver Frequency | 433.92 MHz |
| Remote Capacity | Up to 1,500 Remotes |
| Manual Override | Lockable Key Release |
| Protection Rating | IP55 |
| Operating Temperature | -15°C to +50°C |
CENTSYS D5 SMART 24V Automatic Sliding Gate Opener with Battery Backup
The CENTURION D5 SMART is designed for domestic and light-industrial sliding gates weighing up to 500 KG. Its powerful 24V DC drive system combines fast operation with intelligent electronic control.
Fast Sliding Gate Motor
The D5 SMART provides gate speeds of up to 35 metres per minute at the rated 17 kgf load. Opening and closing speeds can also be configured according to the requirements of the individual installation.
24V Battery Backup System
The CENTURION D5 SMART is a battery-driven 24V gate motor. The standard system uses two 12V batteries that provide automatic gate operation during normal mains supply as well as backup operation during electrical power failures.
The intelligent charger maintains the batteries while mains power is available and provides onboard diagnostic information for easier maintenance.
Smartphone Setup & Configuration
One of the main advantages of the D5 SMART is its wireless smartphone-based configuration. Compatible mobile setup allows installers to configure the automation system without relying on traditional control-board programming methods.
Advanced Diagnostics & Logging
The SMART control system provides advanced diagnostic feedback, intelligent logging and reporting to help technicians identify system conditions and simplify maintenance and troubleshooting.
Hall Effect Position Control
The D5 SMART incorporates Hall Effect position-control technology. This non-contact sensing system provides accurate gate positioning and is highly resistant to interference from dust, dirt, oil and other environmental contaminants.
Electronic Collision Sensing
Electronic collision sensing helps detect abnormal resistance during gate movement. When correctly configured, this provides an additional safety function for the automatic sliding gate system.
433.92 MHz Code-Hopping Receiver
The CENTURION D5 SMART includes an onboard 433.92 MHz code-hopping multichannel receiver with selective remote-control adding and deleting.
The receiver can store up to 1,500 remote controls, making the D5 SMART suitable for residential properties as well as larger shared-access applications.
Manual Release During Power Failure
The D5 SMART includes a convenient lockable manual key release. This allows the gate operator to be disengaged for manual gate movement when required.
IP55 Protection
The CENTURION D5 SMART has an IP55 protection rating, providing protection for the operator when correctly installed in suitable outdoor gate automation applications.
Residential & Light-Industrial Applications
- Villa sliding gates
- Residential entrance gates
- Apartment and compound gates
- Small housing estates
- Commercial property entrances
- Office parking entrances
- Light-industrial sliding gates
- Vehicle access control gates
Professional Installation
Professional installation is recommended for the CENTURION D5 SMART. The gate should move freely before automation, and the motor position, gear rack, origin system, safety devices and control settings should be correctly installed and configured.
CENTURION D5 SMART Sliding Gate Motor Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies CENTURION D5 SMART 500 KG sliding gate motors in UAE for residential, commercial and light-industrial gate automation.
Supply, professional installation, replacement and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
