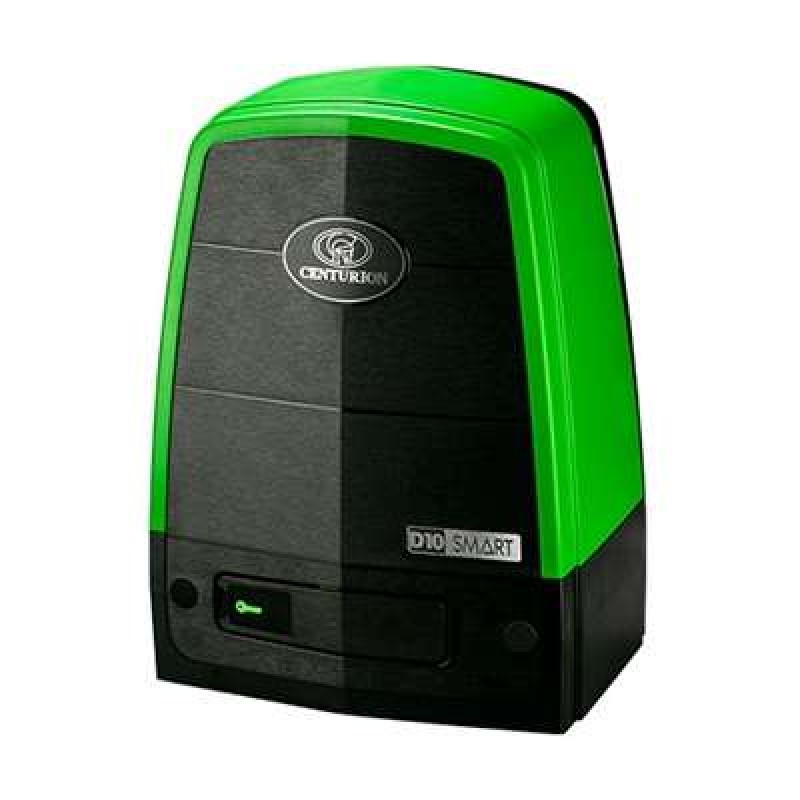

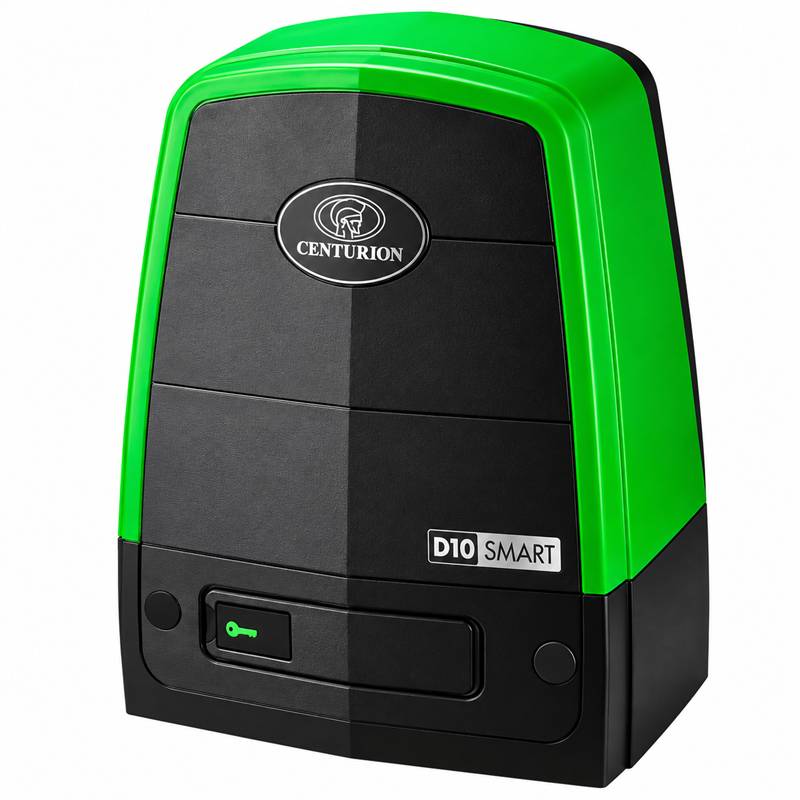

CENTURION D10 SMART 1000 KG Sliding Gate Motor UAE

The CENTURION D10 SMART Sliding Gate Motor is a powerful heavy-duty automatic gate operator designed for commercial and industrial sliding gates weighing up to 1000 KG. Engineered for demanding high-traffic applications, the D10 SMART combines a powerful 24V DC motor, battery backup, intelligent SMART technology and advanced security features.

Designed for up to 750 gate operations per day, the CENTSYS D10 SMART is ideal for industrial facilities, warehouses, commercial properties, residential communities and other busy vehicle access points.

The battery-driven 24V system uses two 12V batteries to provide uninterrupted gate operation during mains power failures, while SMART connectivity provides convenient smartphone configuration, diagnostics and system monitoring.

Key Features

• Original CENTURION Systems / CENTSYS sliding gate motor
• Model D10 SMART
• Heavy-duty commercial and industrial gate operator
• Suitable for sliding gates up to 1000 KG
• Maximum gate length up to 50 metres
• 24V DC high-torque motor
• Battery-driven operation
• 2 × 12V 7.2Ah standard batteries
• Battery backup during mains power failure
• Up to 750 operations per day
• 45% duty cycle with mains present
• Gate speed up to 26 m/min
• 40 kgf starting push force
• 30 kgf rated push force
• SMART smartphone configuration
• Advanced in-app diagnostics and logs
• Hall Effect position-control technology
• Electronic collision sensing
• Intelligent theft and break-in protection
• Integral vibration sensor
• Patented theft-deterrent cage
• Sealed gearbox
• Die-cast aluminium gearbox
• Lockable manual key release
• 17T Module 4 drive pinion
• IP54 protection rating

Technical Specifications

CENTSYS D10 SMART Heavy-Duty 24V Industrial Sliding Gate Opener

The CENTURION D10 SMART is specifically designed for demanding commercial and industrial sliding gate applications. It can automate gates weighing up to 1000 KG and measuring up to 50 metres in length.

1000 KG Sliding Gate Capacity

With a maximum gate capacity of 1000 KG, the D10 SMART provides the power required for large automatic sliding gates at warehouses, factories, commercial facilities and high-traffic vehicle entrances.

Up to 750 Operations Per Day

The CENTURION D10 SMART is engineered for high-volume access control and supports up to 750 gate operations per day under the manufacturer's specified operating conditions.

This high operating capacity makes the D10 SMART particularly suitable for busy commercial and industrial entrances where frequent vehicle access is required.

24V Battery Backup System

The D10 SMART uses a 24V battery-driven system with two 12V batteries. This provides continued automatic gate operation during mains electricity failures.

The intelligent charging system keeps the batteries charged while mains power is available and provides reliable backup power when required.

Powerful 40 kgf Starting Force

The D10 SMART provides a powerful 40 kgf starting push force and 30 kgf rated push force for reliable movement of compatible heavy sliding gates.

Up to 26 Metres Per Minute

Gate speed can reach up to 26 metres per minute, depending on gate load and installation conditions. Opening and closing speeds can be configured according to the requirements of the individual installation.

SMART Smartphone Configuration

CENTURION SMART technology provides convenient wireless configuration using a compatible smartphone, making setup and commissioning easier for professional gate automation installers.

Advanced in-app diagnostics and system logs also allow technicians to monitor system health and identify operating conditions more efficiently.

Hall Effect Position Control

The CENTURION D10 SMART uses reliable Hall Effect technology for accurate and safe gate position control. The non-contact sensing system provides dependable gate position monitoring for demanding automation applications.

Electronic Collision Sensing

Electronic collision sensing monitors resistance during gate movement. When correctly configured, the system can detect abnormal resistance and respond according to the programmed safety settings.

Intelligent Theft & Break-In Protection

The D10 SMART incorporates advanced security features including an integral vibration sensor and patented theft-deterrent cage to provide additional protection against tampering and attempted theft.

Sealed Die-Cast Aluminium Gearbox

A durable die-cast aluminium gearbox is coupled to a high-torque DC motor to provide the strength and reliability required for heavy-duty gate automation.

The sealed gearbox design provides improved reliability for demanding commercial and industrial installations.

17T Module 4 Drive Pinion

The standard D10 SMART uses a 17-tooth Module 4 drive pinion for transmission between the gate motor and compatible Module 4 sliding gate rack.

Manual Release System

The CENTURION D10 SMART includes an improved lockable manual key release, allowing the gate operator to be disengaged when manual movement is required.

Commercial & Industrial Applications

• Industrial sliding gates
• Factory entrances
• Warehouse sliding gates
• Logistics centres
• Commercial buildings
• Residential communities
• Office parks
• High-traffic parking entrances
• Security entrances
• Vehicle access control gates

Professional Installation

Professional installation is recommended for the CENTURION D10 SMART. The sliding gate should move freely before automation, and the motor foundation, gear rack, safety devices, position-control system and electronic settings should be correctly installed and configured.

CENTURION D10 SMART Sliding Gate Motor Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies CENTURION D10 SMART 1000 KG sliding gate motors in UAE for commercial, industrial and high-traffic automatic gate applications.

Supply, professional installation, replacement and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
