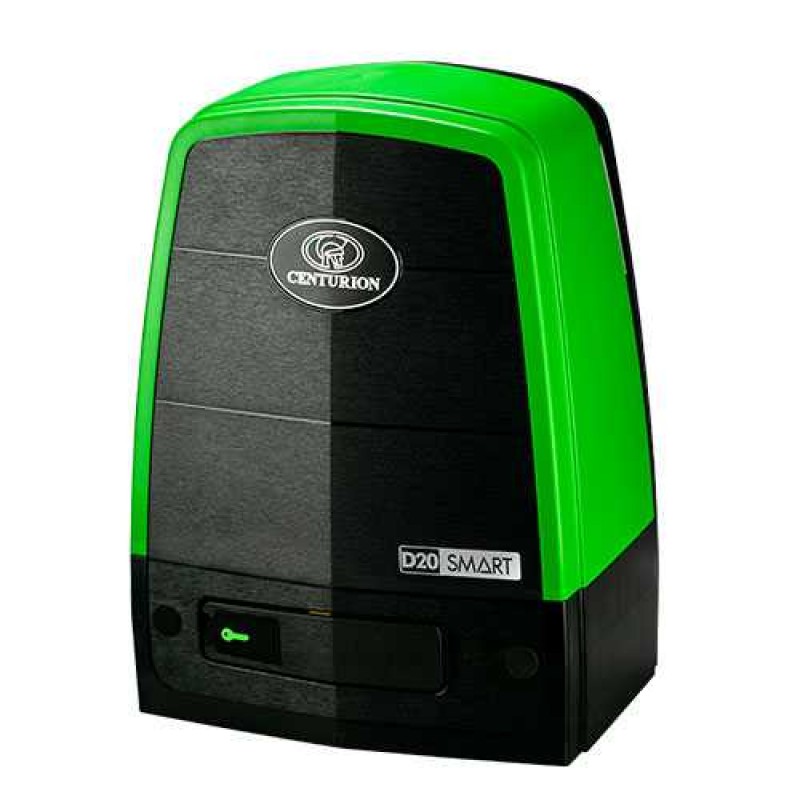

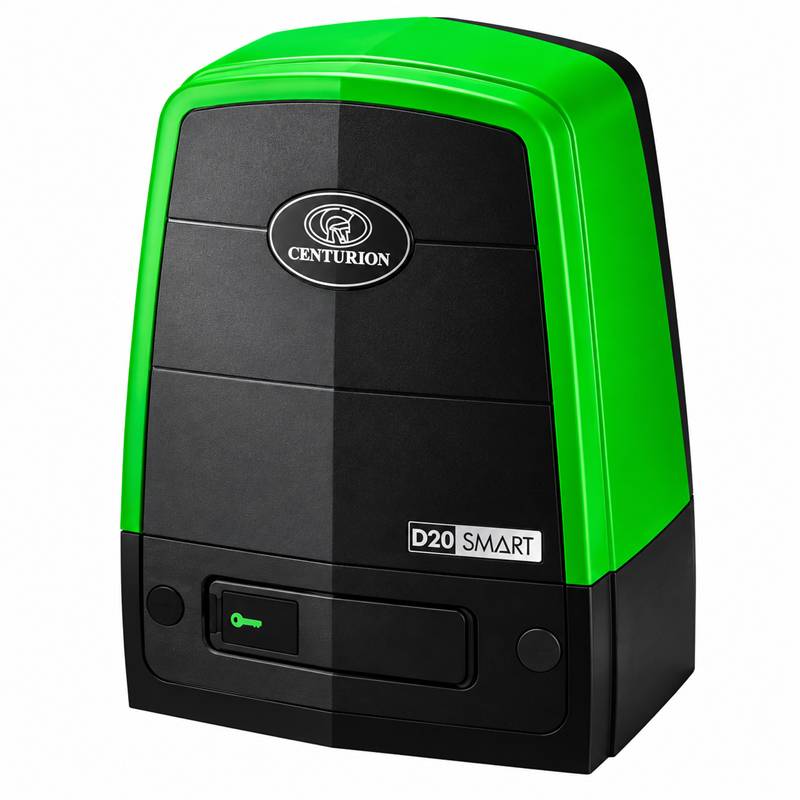

CENTURION D20 SMART 2000 KG Sliding Gate Motor UAE
Price 3,700 AEDIn Stock
The CENTURION D20 SMART Sliding Gate Motor is a powerful heavy-duty automatic gate operator designed for large commercial and industrial sliding gates weighing up to 2000 KG. Engineered for demanding access applications, the D20 SMART combines a powerful 24V DC drive system, battery backup, SMART technology and advanced electronic control.
Designed for gates measuring up to 25 metres in length and supporting up to 750 operations per day, the CENTSYS D20 SMART is ideal for factories, warehouses, logistics facilities, commercial properties and other high-traffic vehicle entrances.
The battery-driven system uses two 12V batteries and provides continued automatic operation during mains power failures. Advanced SMART technology provides convenient wireless configuration, diagnostics and system management.
Key Features
- Original CENTURION Systems / CENTSYS sliding gate motor
- Model D20 SMART
- Heavy-duty commercial and industrial gate operator
- Suitable for sliding gates up to 2000 KG
- Maximum gate length up to 25 metres
- 24V DC motor
- Battery-driven operation
- Standard 2 × 12V 7.2Ah battery configuration
- Battery backup during mains power failure
- Up to 750 operations per day
- 45% duty cycle with mains present
- Gate speed up to 18 m/min
- 52 kgf starting push force
- 39 kgf rated push force
- SMART wireless configuration
- Advanced diagnostics and system logs
- Hall Effect position-control technology
- Electronic collision sensing
- Onboard 433.92 MHz receiver
- Capacity for up to 1,500 remote controls
- Lockable manual release
- 13T Module 4 drive pinion
- IP54 protection rating
Technical Specifications
| Brand | CENTURION Systems / CENTSYS |
| Model | D20 SMART |
| Product Type | Heavy-Duty Industrial Sliding Gate Motor |
| Maximum Gate Weight | 2000 KG |
| Maximum Gate Length | 25 m |
| Input Voltage | 110–240V AC, 50/60Hz |
| Mains Current Consumption | 590 mA |
| Battery Charger | 1.8A @ 27.6V (±5%), 52W |
| Motor Voltage | 24V DC |
| Motor Power Supply | Battery Driven |
| Standard Batteries | 2 × 12V 7.2Ah |
| Motor Current at Rated Load | 9A |
| Starting Push Force | 52 kgf |
| Rated Push Force | 39 kgf |
| Maximum Gate Speed | Up to 18 m/min |
| Maximum Operations Per Day | 750 |
| Duty Cycle | 45% with Mains Present |
| Collision Sensing | Electronic |
| Position Control | Hall Effect Technology |
| Receiver Type | CENTURION Rolling Code Multichannel |
| Receiver Frequency | 433.92 MHz |
| Remote Capacity | Up to 1,500 Remotes |
| Drive Pinion | 13T Module 4 |
| Manual Override | Lockable Lever with Key Release |
| Protection Rating | IP54 |
| Operating Temperature | -15°C to +50°C |
CENTSYS D20 SMART Heavy-Duty 24V Industrial Sliding Gate Opener
The CENTURION D20 SMART is engineered for demanding industrial and commercial automatic sliding gate applications. It is capable of automating gates weighing up to 2000 KG and measuring up to 25 metres in length.
2000 KG Heavy-Duty Sliding Gate Motor
With a maximum gate mass of 2000 KG, the D20 SMART provides a powerful automation solution for large steel sliding gates at factories, warehouses, logistics facilities, commercial properties and industrial entrances.
Up to 750 Operations Per Day
The CENTURION D20 SMART supports up to 750 operations per day under the manufacturer's specified operating conditions, making it suitable for demanding high-traffic access applications.
24V Battery Backup System
The D20 SMART uses a 24V DC battery-driven system with a standard configuration of two 12V batteries. This allows the automatic gate to continue operating during mains electricity failures.
The intelligent charging system maintains the batteries while mains electricity is available and provides reliable backup power when required.
52 kgf Starting Push Force
The D20 SMART provides a powerful 52 kgf starting push force and 39 kgf rated push force, providing the mechanical force required for compatible heavy industrial sliding gates.
Up to 18 Metres Per Minute
The CENTURION D20 SMART provides gate speeds of up to 18 metres per minute. Gate opening and closing speeds can be configured according to the requirements of the individual installation.
SMART Gate Automation Technology
CENTURION SMART technology provides convenient wireless configuration and advanced system diagnostics, simplifying installation, commissioning and maintenance for professional gate automation technicians.
Hall Effect Position Control
The D20 SMART uses highly reliable Hall Effect technology to monitor the gate position. This provides accurate gate movement and precise stopping during automatic opening and closing.
Electronic Collision Sensing
Electronic collision sensing monitors resistance during gate movement. When correctly configured, the system can detect abnormal resistance and respond according to the programmed safety settings.
433.92 MHz Rolling Code Receiver
The CENTURION D20 SMART includes an onboard 433.92 MHz rolling-code multichannel receiver capable of storing up to 1,500 remote controls.
The large remote-control capacity makes the D20 SMART suitable for industrial facilities, commercial properties, residential communities and other shared vehicle access systems.
13T Module 4 Drive Pinion
The D20 SMART uses a 13-tooth Module 4 drive pinion. A compatible Module 4 steel gate rack should be correctly installed and aligned with the motor pinion.
Manual Release System
A lockable lever with key release allows the gate operator to be manually disengaged when required for servicing or manual gate movement.
Industrial & Commercial Applications
- Heavy industrial sliding gates
- Factory entrances
- Warehouse gates
- Logistics centres
- Industrial compounds
- Commercial facilities
- High-traffic vehicle entrances
- Security gates
- Large parking entrances
- Vehicle access control systems
Professional Installation
Professional installation is recommended for the CENTURION D20 SMART. Heavy sliding gates must move freely and be correctly balanced before automation. The motor foundation, steel gear rack, safety devices, electrical supply and electronic settings should be correctly installed and configured.
CENTURION D20 SMART Sliding Gate Motor Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies CENTURION D20 SMART 2000 KG sliding gate motors in UAE for commercial, industrial and high-traffic automatic sliding gate applications.
Supply, professional installation, replacement and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
