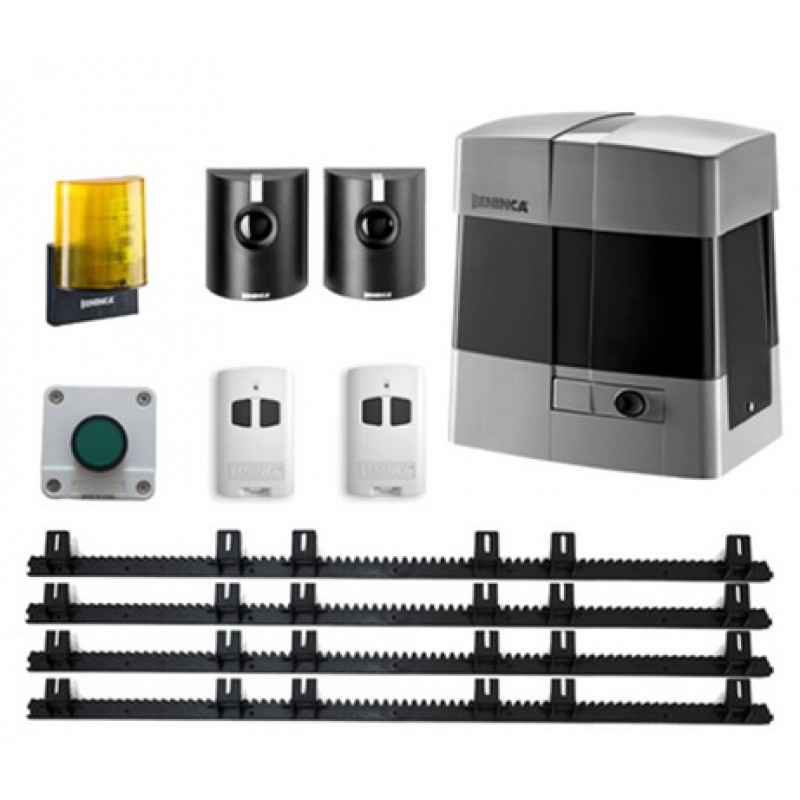

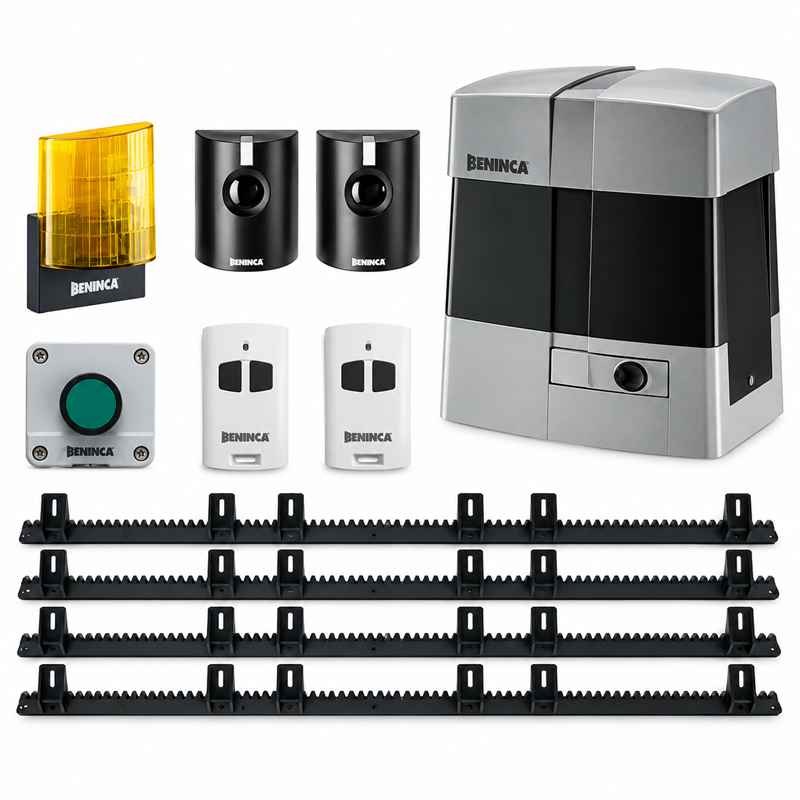

BENINCA BULL15M Sliding Gate Motor 1500 KG UAE
Price 3,000 AEDIn Stock
The BENINCA BULL15M Sliding Gate Motor is a powerful 230V electromechanical gate opener designed for commercial sliding gates weighing up to 1500 kg. Built for demanding automatic gate applications, the BULL15M combines a robust geared motor, integrated electronic control unit and encoder to provide reliable, precise and safe gate operation.
The BENINCA BULL15M delivers a maximum thrust of 1250 N and an opening speed of approximately 10.5 metres per minute. With a 60% duty cycle, it is an excellent choice for commercial properties, residential compounds, warehouses and vehicle entrances requiring frequent automatic gate operation.
An integrated encoder continuously monitors gate movement, providing greater precision during opening, closing and slowdown phases. The encoder also supports obstacle detection and anti-crushing safety to help provide safer automatic gate operation.
The built-in CP.BULL-RI control unit includes an LCD display, automatic parameter setup, electronic torque adjustment, adjustable slowdowns and electronic braking. An integrated 433.92 MHz radio receiver stores up to 64 transmitters and supports Advanced Rolling Code, Rolling Code and Fixed Code systems.
Key Features
- Genuine BENINCA sliding gate motor
- Suitable for sliding gates up to 1500 kg
- Designed for commercial gate automation
- 230V AC geared motor
- Maximum thrust of 1250 N
- Opening speed of 10.5 m/min
- 60% duty cycle
- Integrated electronic control unit
- Integrated encoder
- Anti-crushing safety function
- Accurate gate movement monitoring
- Obstacle detection through encoder
- Electronic motor torque adjustment
- Adjustable slowdown system
- Electronic braking for precise stopping
- Automatic operating parameter setup
- Integrated LCD display
- Built-in 433.92 MHz radio receiver
- Stores up to 64 remote transmitters
- Advanced Rolling Code support
- Rolling Code and Fixed Code support
- Pedestrian opening function
- Photocell and safety-edge inputs
- IP44 protection rating
- M4 Z18 rack pinion
Technical Specifications
| Brand | BENINCA |
| Model | BULL15M |
| Product Type | Sliding Gate Motor / Gate Opener |
| Use | Commercial |
| Maximum Gate Weight | 1500 kg |
| Power Supply | 230V AC, 50–60 Hz |
| Motor Supply | 230V AC |
| Maximum Absorbed Current | 2.5 A |
| Maximum Thrust | 1250 N |
| Opening Speed | 10.5 m/min |
| Duty Cycle | 60% |
| Control Unit | CP.BULL-RI Integrated |
| Encoder | Integrated |
| Radio Receiver | Integrated 433.92 MHz |
| Radio Encoding | Advanced Rolling Code / Rolling Code / Fixed Code |
| Remote Memory | Up to 64 Transmitters |
| Rack Pinion | M4 Z18 |
| Protection Rating | IP44 |
| Operating Temperature | -20°C to +50°C |
| Lubrication | Grease |
| Motor Weight | 19.6 kg |
1500 KG Commercial Sliding Gate Automation
The BENINCA BULL15M 1500 kg sliding gate motor is designed for commercial vehicle access applications requiring a powerful and dependable automatic gate system. Its 230V AC motor delivers up to 1250 N of thrust for sliding gates weighing up to 1500 kg.
A 60% duty cycle makes the BULL15M particularly suitable for gates that operate more frequently than standard residential entrance gates.
Encoder & Anti-Crushing Safety
The integrated encoder monitors gate movement throughout the opening and closing cycle. This provides accurate movement control and allows the electronic control unit to detect abnormal resistance during operation.
Encoder-based obstacle detection supports the anti-crushing safety system, helping the automation respond appropriately when an obstacle interferes with normal gate movement.
Integrated CP.BULL-RI Control Unit
The BENINCA BULL15M includes the CP.BULL-RI electronic control unit with an integrated LCD display for convenient programming and system diagnostics.
The control board provides automatic, semi-automatic and deadman operating modes, pedestrian opening, step-by-step control, photocell inputs, safety-edge input, automatic parameter setup, electronic motor torque adjustment and adjustable slowdowns.
433.92 MHz Integrated Receiver
The integrated 433.92 MHz radio receiver stores up to 64 remote transmitters and supports BENINCA Advanced Rolling Code, Rolling Code and Fixed Code transmission systems.
Compatible BENINCA remote controls can therefore be programmed directly into the gate motor without requiring a separate external receiver.
Electronic Braking & Slowdown
The CP.BULL-RI control system provides adjustable slowdown phases and electronic braking. These functions help provide smooth gate movement and precise stopping, particularly important when automating large and heavy sliding gates.
Applications
- Commercial sliding gates
- Sliding gates up to 1500 kg
- Residential compounds
- Commercial buildings
- Warehouse entrance gates
- Factory and industrial property entrances
- Commercial parking entrances
- Automatic driveway gates
- Vehicle access control gates
BENINCA BULL15M Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies BENINCA BULL15M sliding gate motors in UAE, together with BENINCA remote controls, photocells, flashing lights, control boards, gear racks and automatic gate accessories.
Supply, professional installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
