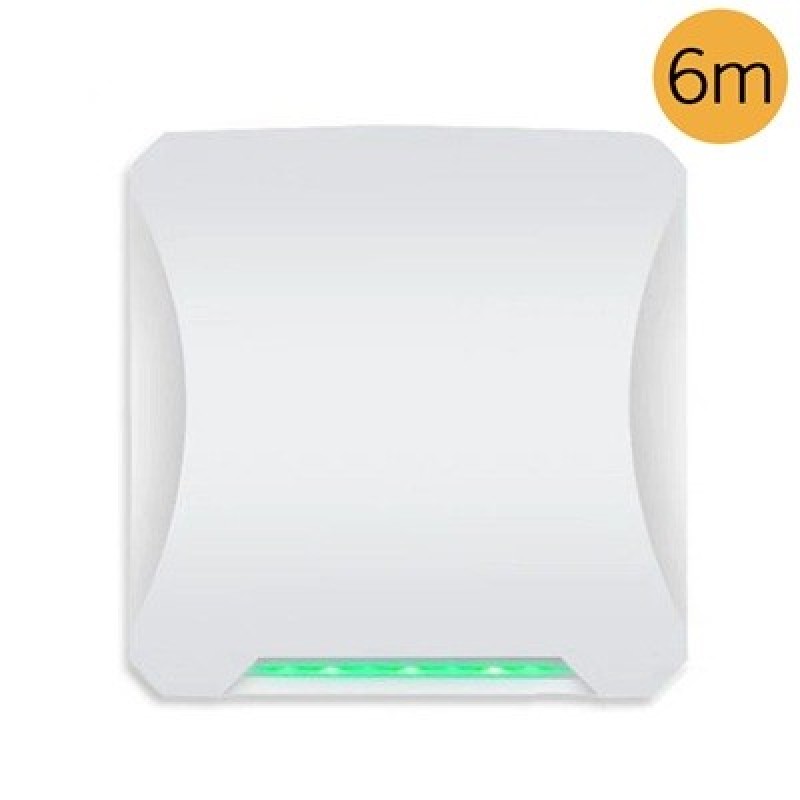

UHF RFID Long Range Reader 6 Meter UAE

The UHF RFID Long Range Reader 6 Meter is a professional long-distance RFID reader designed for automatic vehicle identification, parking access control, automatic gates and parking barrier systems.

With an identification distance of up to 6 meters, the reader can detect compatible UHF RFID tags without requiring the driver to stop and manually present a card to a short-range reader.

The UHF-202406 supports ISO 18000-6C / EPC Gen2 RFID tags and features adjustable RF output power, an integrated 8 dBi circular-polarization antenna and multiple operating modes for professional access-control applications.

Key Features

• UHF RFID long range reader up to 6 meters
• Model UHF-202406
• Designed for vehicle access control
• ISO 18000-6C compatible
• EPC Gen2 RFID tag support
• 920–925 MHz working frequency
• Adjustable 0–30 dBm RF output power
• Built-in 8 dBi circular-polarization antenna
• Up to 50-tag group reading capability
• Automatic reading mode
• Trigger reading mode
• Interactive operating mode
• Frequency-hopping operation
• Buzzer / LED identification indication
• 12V DC operating voltage
• Low 1W power consumption
• Wide operating temperature range
• Suitable for outdoor access-control applications
• Suitable for automatic gates and parking barriers

Technical Specifications

6 Meter UHF RFID Long Range Reading

The reader provides an identification distance of up to 6 meters when used with suitable UHF RFID tags and correctly configured installation conditions.

The actual reading distance can vary depending on tag type, antenna orientation, vehicle position, RF power settings, environmental conditions and installation location.

RFID Vehicle Access Control

The 6-meter UHF RFID reader is particularly suitable for automatic vehicle identification at controlled entrances.

An authorised RFID tag can be installed on or inside the vehicle. When the vehicle approaches the entrance, the reader detects the tag and sends its identification data to the compatible access control system.

Hands-Free Vehicle Entry

UHF RFID technology provides convenient hands-free vehicle access. Drivers do not need to lower the window, press a remote control or manually present a card to a short-range reader.

This makes UHF RFID particularly useful for residential parking, staff parking and other vehicle entrances with frequent authorised traffic.

ISO 18000-6C / EPC Gen2 Technology

The UHF reader supports compatible ISO 18000-6C / EPC Gen2 electronic RFID tags.

This widely used UHF RFID protocol is suitable for vehicle identification, parking access, logistics, asset tracking and other automatic identification applications.

920–925 MHz UHF Frequency

The reader operates in the 920–925 MHz UHF frequency range according to the product configuration.

Compatible RFID tags should support the appropriate operating frequency and protocol required by the reader.

Adjustable RF Power 0–30 dBm

The reader provides software-adjustable RF output power from 0 to 30 dBm.

Adjusting the RF power allows the system installer to optimise the detection zone according to the entrance layout and required reading distance.

Built-in 8 dBi Circular Polarization Antenna

The reader incorporates an 8 dBi circular-polarization antenna, eliminating the need for a separate external RFID antenna in standard installations.

Correct reader positioning and antenna orientation are important for achieving reliable vehicle tag detection.

Multiple RFID Tag Identification

The UHF reader supports group reading of up to 50 compatible RFID tags according to the product specification.

Multi-tag capability makes UHF RFID technology suitable for applications where multiple electronic tags may be present within the reading area.

Automatic, Trigger & Interactive Modes

The reader supports multiple operating modes including automatic, trigger and interactive modes.

This provides flexibility when integrating the reader with different access control, parking and vehicle-management systems.

UHF RFID Reader for Parking Barriers

The 6-meter UHF reader can be integrated with compatible automatic parking gate barriers to create a hands-free vehicle access system.

When an authorised vehicle tag is detected and validated by the access-control system, an opening command can be sent to the parking barrier.

UHF RFID Reader for Sliding Gates

Automatic sliding gate systems can use UHF RFID identification to provide convenient vehicle access for authorised residents, employees or visitors.

The reader works as part of the access-control system, while the compatible controller provides the required opening command to the sliding gate motor.

UHF RFID Reader for Swing Gates

The reader can also be integrated with compatible automatic swing gate systems where long-range vehicle identification is required.

Correct interface equipment should be selected according to the UHF reader, access controller and gate automation control board.

Windshield RFID Tag Vehicle Access

A compatible UHF RFID windshield tag can be attached to an authorised vehicle and registered in the access-control system.

When the vehicle approaches the reader, its unique RFID identification can be detected and checked against the authorised vehicle database.

RFID Access for Residential Buildings

Residential buildings and apartment parking areas can use UHF RFID readers to provide automatic vehicle entry for authorised residents.

Each approved vehicle can be assigned an individual RFID tag, reducing the need to distribute conventional gate remote controls.

RFID Access for Villas & Compounds

The 6-meter reader is suitable for villa compounds and gated residential communities requiring convenient automatic vehicle identification.

Authorised vehicles can be recognised as they approach the entrance, allowing the connected access-control system to manage gate operation.

RFID Access for Offices & Staff Parking

Office buildings and staff parking facilities can use UHF RFID technology to identify authorised employee vehicles automatically.

Each vehicle can be assigned a registered RFID tag, helping provide controlled access without requiring staff to use individual RF gate remotes.

RFID Access for Warehouses & Factories

Warehouses, factories and logistics facilities can use UHF RFID readers for controlled vehicle entrances and identification applications.

The technology can be integrated with compatible access control and parking-management systems according to the project requirements.

Typical UHF RFID Vehicle Access System

A complete UHF RFID vehicle access system may include:

• UHF RFID Long Range Reader
• UHF windshield RFID tags
• Access control controller
• Automatic parking barrier or gate motor
• Loop detector where required
• Photocell safety sensors
• Traffic light where required
• 12V DC power supply
• Access control or parking management software where required

UHF RFID Long Range Reader Applications

• Automatic parking barriers
• Sliding gate motors
• Swing gate motors
• Residential parking entrances
• Apartment buildings
• Villa compounds
• Gated communities
• Office parking
• Staff parking areas
• Warehouse entrances
• Factory gates
• Logistics centres
• Commercial parking areas
• Vehicle identification systems
• RFID access control systems

Professional UHF RFID Reader Installation

Professional installation is recommended to obtain reliable RFID reading performance. Reader height, mounting angle, RF power, tag position and vehicle approach direction can all affect the identification range.

After installation, the complete detection area should be tested using the actual vehicle tags before the access-control system is placed into normal operation.

UHF RFID Long Range Reader 6 Meter Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies 6-meter UHF RFID long range readers in UAE for vehicle access control, parking barriers, automatic gates and parking-management systems.

Supply, installation, configuration and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
