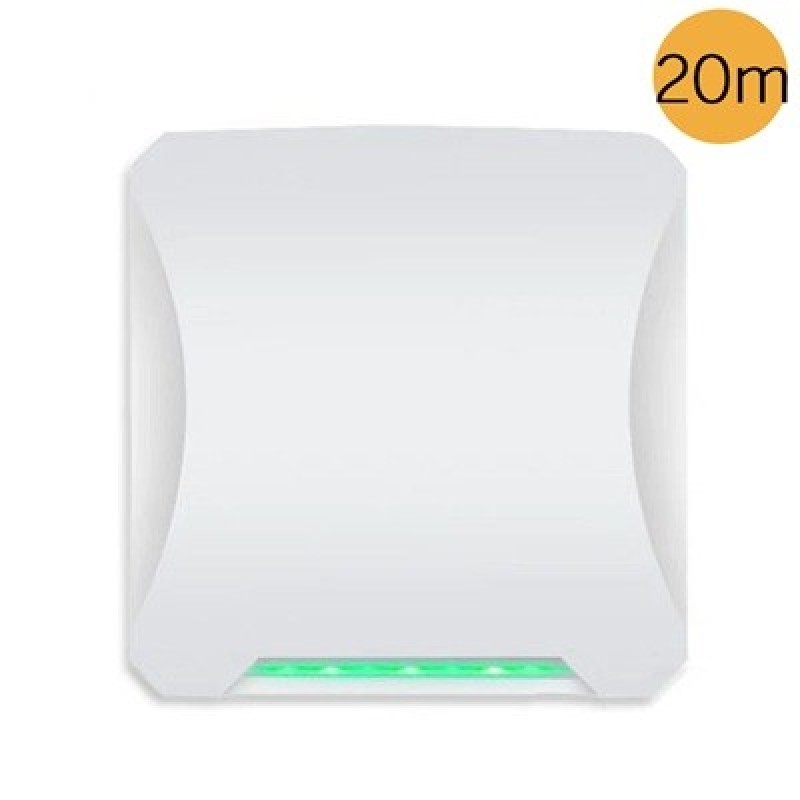

UHF RFID Long Range Reader 20 Meter UAE
Price 1,999 AEDIn Stock
The UHF RFID Long Range Reader 20 Meter is a professional long-distance RFID reader designed for automatic vehicle identification, parking access control, automatic gates, parking barriers and other RFID access control applications.
With an identification distance of up to 20 meters, the reader provides long-range detection of compatible UHF RFID tags, making it suitable for vehicle entrances where early and hands-free identification is required.
The reader supports ISO 18000-6C / EPC Gen2 RFID technology and features adjustable RF output power, a built-in 9 dBi circular-polarization antenna, multi-tag reading and multiple operating modes for professional access-control applications.
Key Features
- UHF RFID long range reader up to 20 meters
- Professional long-range vehicle identification
- ISO 18000-6C compatible
- EPC Gen2 RFID tag support
- 920–925 MHz working frequency
- Adjustable 0–33 dBm RF output power
- Built-in 9 dBi circular-polarization antenna
- Group reading of up to 200 compatible tags
- Automatic reading mode
- Trigger reading mode
- Interactive operating mode
- Frequency-hopping operation
- Buzzer / LED identification indication
- 12V operating voltage
- 12W power consumption
- Water-resistant enclosure design
- Suitable for parking gate barriers
- Suitable for sliding and swing gates
- Suitable for vehicle access control systems
Technical Specifications
| Product Type | UHF RFID Long Range Reader |
| Identification Distance | Up to 20 Meters |
| System | ARM7 + UHF Module |
| Working Frequency | 920–925 MHz |
| RFID Protocol | ISO 18000-6C / EPC Gen2 |
| Group Reading | Up to 200 Tags |
| RF Output Power | 0–33 dBm Software Adjustable |
| Antenna | Built-in 9 dBi Circular Polarization |
| Frequency Hopping | Supported |
| Operating Modes | Automatic / Trigger / Interactive |
| Working Voltage | +12V |
| Power Consumption | 12W |
| Identification Indicator | Buzzer / LED Flash |
| Operating Temperature | -20°C to +70°C |
| Operating Humidity | 20%–95% |
| Storage Temperature | -40°C to +125°C |
| Dimensions | 260 × 260 × 70 mm / 355 × 260 × 80 mm* |
| Net Weight | 2400 g |
| Gross Weight | 3700 g |
*Confirm the exact housing version before publishing the dimensions.
20 Meter UHF RFID Long Range Reading
The UHF RFID reader provides an identification distance of up to 20 meters when used with suitable UHF RFID tags and correctly configured installation conditions.
Actual reading distance can vary according to the RFID tag type, tag position, vehicle direction, reader mounting angle, RF power setting and surrounding environment.
Long Range RFID Vehicle Access Control
The 20-meter UHF RFID reader is designed for automatic identification of authorised vehicles approaching a controlled entrance.
A compatible UHF RFID tag can be installed on the vehicle. When the vehicle enters the configured detection zone, the reader identifies the tag and sends its information to the connected access-control system.
Hands-Free Vehicle Entry
UHF RFID technology provides convenient hands-free vehicle access. Drivers do not need to lower the vehicle window, manually present an access card or press a conventional gate remote control.
This makes long-range UHF RFID suitable for residential compounds, employee parking, commercial entrances and other locations with frequent authorised vehicle traffic.
ISO 18000-6C / EPC Gen2 RFID Technology
The reader supports compatible ISO 18000-6C / EPC Gen2 electronic RFID tags.
This UHF RFID protocol is widely used for automatic identification applications including vehicle access, parking management, logistics and asset identification.
920–925 MHz UHF Frequency
The reader operates within the 920–925 MHz UHF frequency range according to the technical configuration.
Compatible RFID tags should support the appropriate operating frequency and ISO 18000-6C / EPC Gen2 protocol.
Adjustable RF Power 0–33 dBm
The reader provides software-adjustable RF output power from 0 to 33 dBm.
RF power adjustment allows the installer to configure and optimise the RFID detection zone according to the entrance layout and required reading distance.
Built-in 9 dBi Circular Polarization Antenna
The 20-meter reader features a built-in 9 dBi circular-polarization antenna designed for long-range UHF RFID identification.
Correct reader positioning, mounting height, antenna angle and RFID tag placement are important for achieving reliable vehicle identification.
Up to 200 RFID Tag Group Reading
The reader supports group reading of up to 200 compatible RFID tags according to the product specification.
Multi-tag reading also allows the unit to be used in compatible logistics, warehousing and automatic identification applications.
Automatic, Trigger & Interactive Modes
The UHF RFID reader supports automatic, trigger and interactive operating modes.
These operating options provide flexibility when integrating the reader with different access-control, parking and RFID management systems.
UHF RFID Reader for Parking Barriers
The 20-meter UHF RFID reader can be integrated with compatible automatic parking gate barriers for long-range hands-free vehicle access.
When an authorised RFID tag is detected and approved by the access-control system, an opening command can be sent to the parking barrier controller.
UHF RFID Reader for Sliding Gates
Automatic sliding gates can use the 20-meter UHF RFID reader to identify authorised vehicles before they reach the gate entrance.
The RFID reader identifies the vehicle while a compatible access controller provides the required opening command to the sliding gate motor control board.
UHF RFID Reader for Swing Gates
The reader can also be integrated with compatible automatic swing gate systems where long-range vehicle identification is required.
The UHF reader, access controller and swing gate control board should be correctly interfaced according to the required access-control design.
UHF RFID Windshield Tag Access
A compatible UHF RFID windshield tag can be assigned to each authorised vehicle.
As the vehicle approaches the entrance, the reader detects the RFID tag and the access-control system determines whether the vehicle is authorised to enter.
RFID Access for Residential Buildings
Residential buildings and apartment parking areas can use long-range UHF RFID technology to automatically identify authorised resident vehicles.
Individual vehicle tags can reduce dependence on conventional gate remote controls while providing controlled vehicle identification.
RFID Access for Villa Compounds
Villa compounds and gated communities can use the 20-meter RFID reader for convenient long-range vehicle identification at automatic entrances.
Each authorised vehicle can be assigned a unique RFID tag registered in the access-control system.
RFID Access for Offices & Staff Parking
Companies can use UHF RFID tags to provide automatic parking access for authorised employee vehicles.
Registered vehicles can be identified as they approach the entrance, allowing the connected parking barrier or automatic gate to be controlled through the access system.
RFID Access for Warehouses & Factories
Warehouses, factories and industrial facilities can use the long-range reader for controlled vehicle entrances, logistics applications and automatic identification.
The system can be integrated with suitable access-control or management software according to project requirements.
Typical UHF RFID Vehicle Access System
- 20 Meter UHF RFID Long Range Reader
- UHF RFID windshield tags
- Access control controller
- Automatic parking barrier or gate motor
- Loop detector where required
- Photocell safety sensors
- Traffic light where required
- 12V power supply
- Access-control or parking software where required
UHF RFID Long Range Reader Applications
- Automatic parking barriers
- Sliding gate motors
- Swing gate motors
- Residential parking entrances
- Apartment buildings
- Villa compounds
- Gated communities
- Office parking
- Staff parking areas
- Warehouse entrances
- Factory gates
- Logistics centres
- Commercial parking areas
- Vehicle identification systems
- RFID access control systems
Professional UHF RFID Reader Installation
Professional installation is recommended for reliable long-range RFID performance. Reader mounting height, angle, RF power, vehicle approach direction and RFID tag position should all be correctly configured.
After installation, the complete detection zone should be tested with the actual vehicles and RFID tags before the access-control system is placed into normal operation.
UHF RFID Long Range Reader 20 Meter Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies 20-meter UHF RFID long range readers in UAE for automatic gates, parking barriers, vehicle access control and RFID identification systems.
Supply, installation, configuration and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
