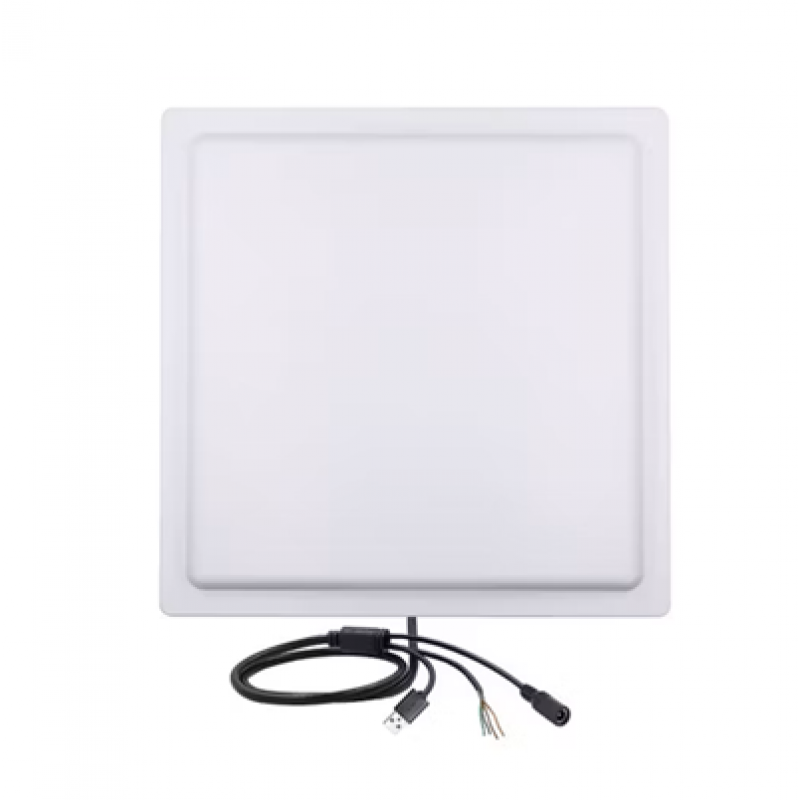

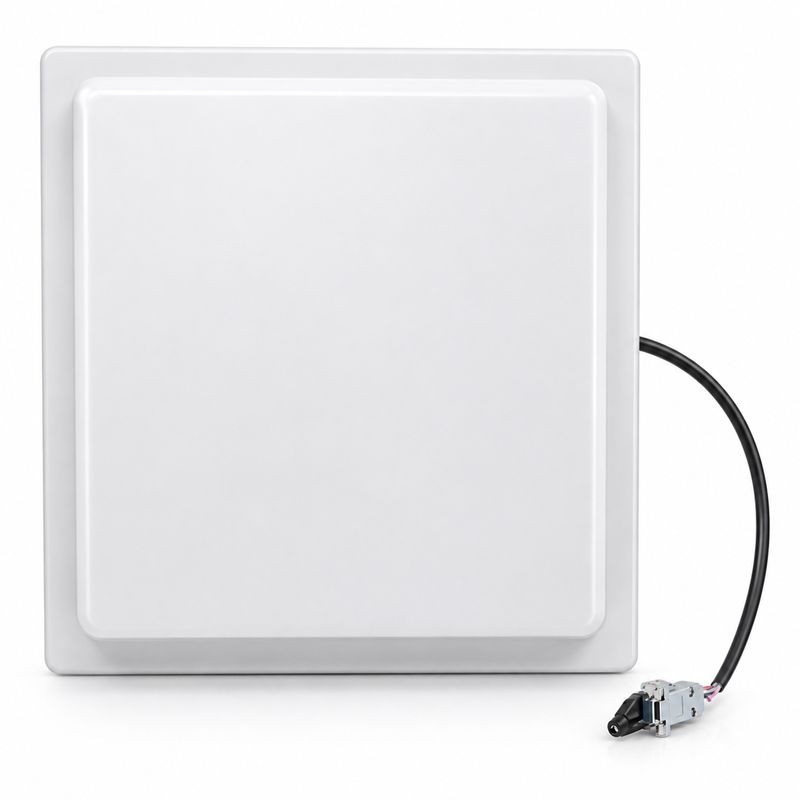

UHF-115 RFID Long Range Reader 15 Meter UAE

The UHF-115 RFID Long Range Reader 15 Meter is a professional UHF vehicle identification reader designed for automatic gates, parking barriers, residential parking, staff entrances and vehicle access control systems.

With an adjustable reading distance of up to 15 meters, the UHF-115 can automatically detect compatible UHF RFID vehicle tags as an authorised vehicle approaches the entrance.

The reader operates at 920–925 MHz and provides Wiegand 26, Wiegand 34, RS232 and RS485 communication interfaces, making it suitable for integration with compatible access control and parking management systems.

Key Features

• UHF-115 long range RFID reader
• Reading distance up to 15 meters
• Adjustable long-range RFID detection
• 920–925 MHz UHF frequency
• Hands-free vehicle identification
• Wiegand 26 output
• Wiegand 34 output
• RS232 communication
• RS485 communication
• Optional RJ45 Ethernet interface
• Optional WiFi interface
• Optional relay output
• Always Read operating mode
• Trigger Read operating mode
• External trigger support
• 9–12V DC operating voltage
• ABS engineering plastic antenna panel
• Suitable for windshield RFID tags
• Suitable for parking barriers
• Suitable for automatic gates

Technical Specifications

15 Meter UHF RFID Long Range Reading

The UHF-115 provides an adjustable RFID reading distance of up to 15 meters when used with suitable UHF RFID tags and correctly configured installation conditions.

Actual reading distance can vary depending on the RFID tag, vehicle windscreen, tag position, reader mounting angle, vehicle direction and surrounding environment.

Hands-Free Vehicle Access Control

The UHF-115 provides convenient hands-free vehicle identification. A compatible UHF RFID tag can be installed on an authorised vehicle and registered in the access control system.

When the vehicle approaches the entrance, the reader automatically detects the tag and sends the identification information to the connected access controller.

UHF RFID Windshield Tag Reader

The UHF-115 can be used with compatible UHF RFID windshield tags for automatic vehicle identification.

Each authorised vehicle can be assigned an individual RFID tag, allowing the access control system to identify vehicles without requiring drivers to manually present a card.

920–925 MHz UHF RFID Reader

The UHF-115 operates within the 920–925 MHz UHF frequency range.

Compatible RFID tags should support the appropriate UHF frequency and protocol required by the reader.

Wiegand 26 & Wiegand 34 Output

The UHF-115 provides Wiegand 26 and Wiegand 34 interfaces for integration with compatible access control panels.

This allows RFID vehicle identification data to be sent to an access controller, which determines whether the detected vehicle is authorised.

RS232 & RS485 Communication

The reader also provides RS232 and RS485 communication interfaces for compatible access control, parking management and RFID applications.

Optional Ethernet, WiFi & Relay

Depending on the selected configuration, optional RJ45 Ethernet, WiFi and relay interfaces are available.

The required communication option should be confirmed before ordering according to the access control or parking system design.

Always Read & Trigger Read Modes

The UHF-115 supports Always Read and Trigger Read operating modes.

Always Read mode continuously monitors the configured RFID detection zone, while Trigger Read mode can be used where RFID reading should start only after receiving a compatible trigger signal.

UHF RFID Reader for Parking Barriers

The UHF-115 can be integrated with compatible automatic parking barriers to create a hands-free vehicle access system.

When an authorised vehicle tag is detected and approved by the access control system, an opening command can be sent to the parking barrier.

UHF RFID Reader for Sliding Gates

The 15-meter UHF reader can be used with automatic sliding gate systems to identify authorised vehicles before they reach the gate.

A compatible access controller receives the RFID information and provides the required opening command to the sliding gate control board.

UHF RFID Reader for Swing Gates

The UHF-115 can also be integrated with compatible automatic swing gate systems for residential, commercial and industrial vehicle entrances.

The RFID reader, access controller and gate automation system should be correctly interfaced according to the project requirements.

RFID Access for Residential Buildings

Residential buildings and apartment parking areas can use the UHF-115 to automatically identify authorised resident vehicles.

Individual RFID windshield tags can reduce dependence on conventional gate remote controls while providing controlled vehicle identification.

RFID Access for Villas & Gated Communities

The UHF-115 is suitable for villas, residential compounds and gated communities requiring long-range automatic vehicle identification.

Authorised vehicles can be detected as they approach the entrance, allowing the connected access control system to manage gate operation.

RFID Access for Offices & Staff Parking

Office buildings and staff parking facilities can use UHF RFID tags to provide automatic vehicle access for authorised employees.

Each registered vehicle can be assigned an individual RFID tag for convenient and controlled entry.

RFID Access for Warehouses & Factories

Warehouses, factories and industrial facilities can use the UHF-115 for vehicle identification at controlled entrances.

The reader can be integrated with compatible gate automation, parking management and access control equipment according to project requirements.

Typical UHF-115 Vehicle Access System

• UHF-115 15 Meter RFID Long Range Reader
• Compatible UHF RFID windshield tags
• Access control controller
• Automatic parking barrier or gate motor
• Loop detector where required
• Photocell safety sensors
• Traffic light where required
• 9–12V DC power supply
• Access control or parking software where required

UHF-115 RFID Reader Applications

• Automatic parking barriers
• Sliding gate motors
• Swing gate motors
• Apartment parking entrances
• Villa compounds
• Gated communities
• Office parking
• Staff parking
• Warehouse entrances
• Factory gates
• Commercial parking
• Vehicle identification systems
• RFID access control systems

Professional UHF-115 RFID Reader Installation

Professional installation is recommended to achieve reliable long-range RFID performance. Reader mounting height, mounting angle, vehicle approach direction and RFID tag position can significantly affect the reading distance.

After installation, the complete detection area should be tested with the actual vehicles and RFID tags before normal operation.

UHF-115 RFID Long Range Reader 15 Meter Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies UHF-115 15-meter RFID long range readers in UAE for parking barriers, automatic gates and vehicle access control systems.

Supply, installation, configuration and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
