UHF + 125KHz Dual Frequency RFID Card UAE

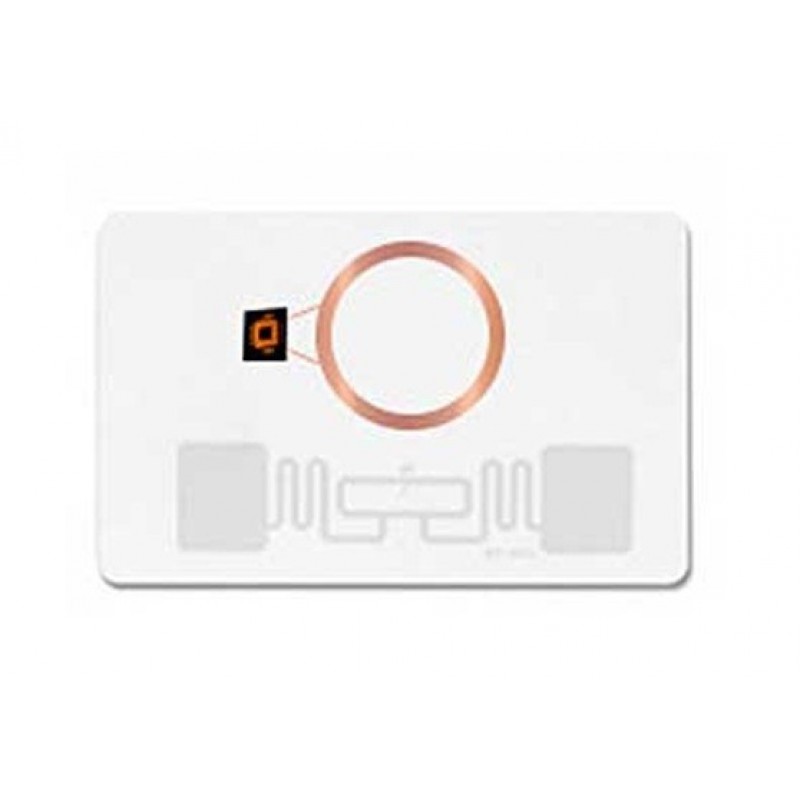

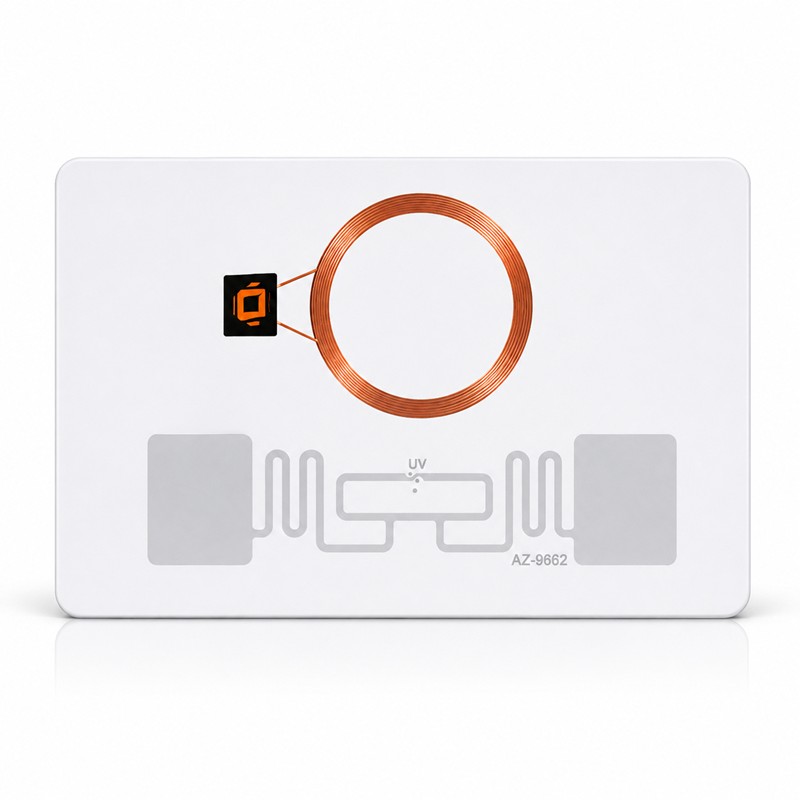

The UHF + 125KHz Dual Frequency RFID Card is a dual-technology access card designed to combine long-range UHF RFID identification and short-range EM 125KHz proximity access in one convenient card.

The 9662+ID card supports UHF operation within the 860–960 MHz frequency range together with EM 125KHz technology. This makes it suitable for installations where the same user or vehicle requires access through both long-range UHF readers and compatible 125KHz proximity readers.

The card uses passive RFID technology and requires no internal battery. It is suitable for vehicle access control, parking systems, automatic gates, building entrances and other compatible RFID access-control applications.

Key Features

• Dual frequency RFID access card
• Model / Type: 9662+ID
• UHF + ID EM 125KHz technology
• 860–960 MHz UHF frequency range
• EM 125KHz proximity technology
• ISO/IEC 18000-6C UHF protocol
• EPC Gen2 compatible
• Passive RFID – no battery required
• Long-range UHF identification
• Short-range 125KHz proximity access
• One card for two compatible RFID technologies
• Standard 85.5 × 54 mm card size
• Suitable for vehicle access control
• Suitable for parking barrier systems
• Suitable for automatic gate access
• Suitable for compatible building access systems
• Suitable for staff and employee access

Technical Specifications

Two RFID Technologies in One Card

The main advantage of the 9662+ID dual frequency RFID card is its ability to combine two different access technologies in a single physical card.

The UHF section can be used with compatible long-range RFID readers, while the EM 125KHz section can be presented to compatible short-range proximity readers.

Long Range UHF RFID Access

The UHF portion of the card operates within the 860–960 MHz frequency range and is designed for use with compatible UHF RFID long-range readers.

This technology can be used for vehicle identification, parking access and other applications where RFID credentials need to be detected from a greater distance.

EM 125KHz Proximity Access

The same card also incorporates EM 125KHz RFID technology for use with compatible proximity access-control readers.

The user can present the card near a compatible 125KHz reader for pedestrian doors, offices, staff entrances and other short-range access applications.

One Card for Vehicle & Building Access

Dual-frequency RFID technology is particularly useful where the same authorised user requires both vehicle and pedestrian access.

For example, the UHF section can identify the user's vehicle at a parking entrance, while the 125KHz section of the same card can be used with a compatible proximity reader at a building entrance.

Passive RFID – No Battery Required

The dual-frequency RFID card uses passive RFID technology and does not require an internal battery for normal operation.

Compatible RFID readers provide the energy required for communication with the card during identification.

ISO 18000-6C / EPC Gen2 UHF Technology

The UHF section supports ISO/IEC 18000-6C / EPC Gen2 technology for integration with compatible UHF RFID reader systems.

Reader frequency, RFID protocol and card compatibility should always be confirmed when adding the card to an existing access-control installation.

Dual Frequency RFID Card for Vehicle Access

The UHF portion of the card can be used as an identification credential within compatible long-range vehicle access systems.

When the card enters the detection area of a compatible UHF reader, its identification can be transmitted to the access-control system for verification.

RFID Card for Parking Barriers

The dual-frequency RFID card can be used with compatible UHF readers installed at automatic parking barrier entrances.

After the card is identified and authorised by the access-control system, the system can provide an opening command to the connected parking barrier.

RFID Card for Automatic Gates

Compatible UHF RFID systems can be integrated with automatic sliding and swing gates for authorised vehicle access.

The UHF reader identifies the card while the connected access controller manages the required opening command to the gate automation system.

RFID Card for Door Access Control

The EM 125KHz section can be used with compatible proximity readers installed at pedestrian doors, offices and other controlled entrances.

This allows one card to serve both long-range vehicle access and short-range door access where compatible equipment is installed.

RFID Card for Staff Access

Companies can issue a dual-frequency RFID card to authorised employees who require both parking and building access.

The UHF credential can be used for compatible vehicle entrances while the 125KHz credential can be used for compatible pedestrian access-control readers.

RFID Card for Residential Buildings

Residential buildings can use dual-frequency cards where residents require access to both the vehicle parking entrance and common pedestrian access points.

This can reduce the need to issue separate RFID credentials for parking and building access.

RFID Card for Offices & Commercial Buildings

Office and commercial properties can use dual-frequency RFID cards as part of an integrated access-control solution.

Employees can use one compatible card for vehicle parking access and short-range proximity access at controlled building entrances.

Standard Access Card Size

The card measures approximately 85.5 × 54 mm, providing a familiar standard access-card format that can be conveniently carried by the user.

Dual Frequency Card vs Standard UHF Card

A standard UHF RFID card provides UHF identification only. The 9662+ID dual-frequency card combines UHF RFID and EM 125KHz technology.

Choose the dual-frequency version when one user needs to operate both compatible UHF long-range readers and compatible 125KHz proximity readers.

Typical Dual Frequency RFID Access System

• 9662+ID UHF + 125KHz RFID Card
• UHF RFID Long Range Reader
• 125KHz Proximity Reader
• Access Control Controller
• Automatic Parking Barrier or Gate Motor
• Door Access Control System
• Electric Lock where required
• Access Control Software where required

Dual Frequency RFID Card Applications

• Vehicle access control
• Automatic parking barriers
• Automatic gate access
• Building access control
• Employee access
• Staff parking
• Residential buildings
• Apartment parking
• Office buildings
• Commercial properties
• Warehouse access
• Factory entrances
• Integrated RFID access-control systems

UHF + 125KHz Dual Frequency RFID Card Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies UHF + 125KHz dual frequency RFID cards in UAE for vehicle access, parking barriers, automatic gates and compatible building access-control systems.

Supply and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
