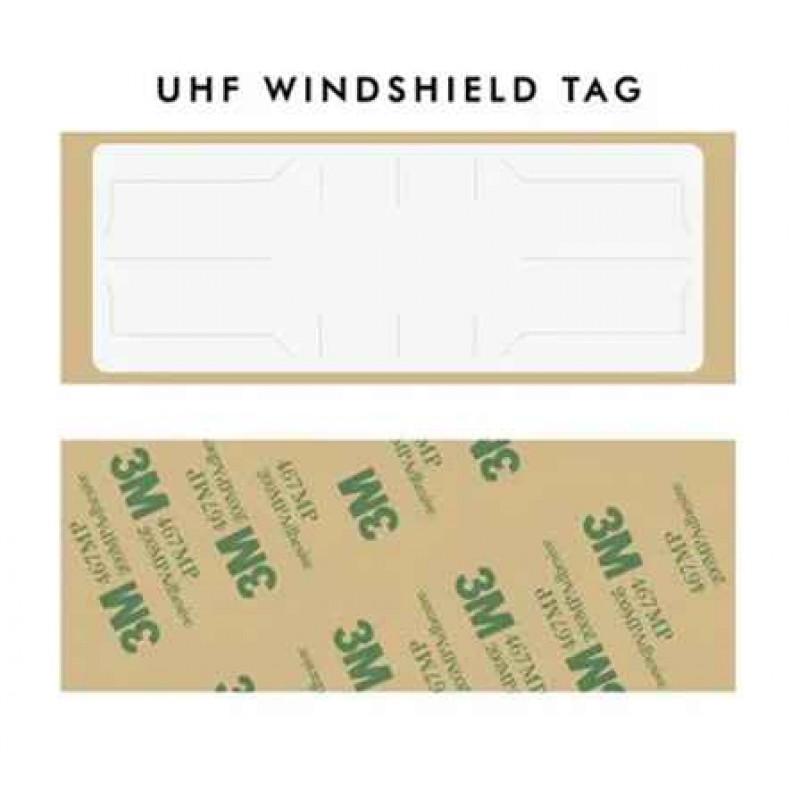

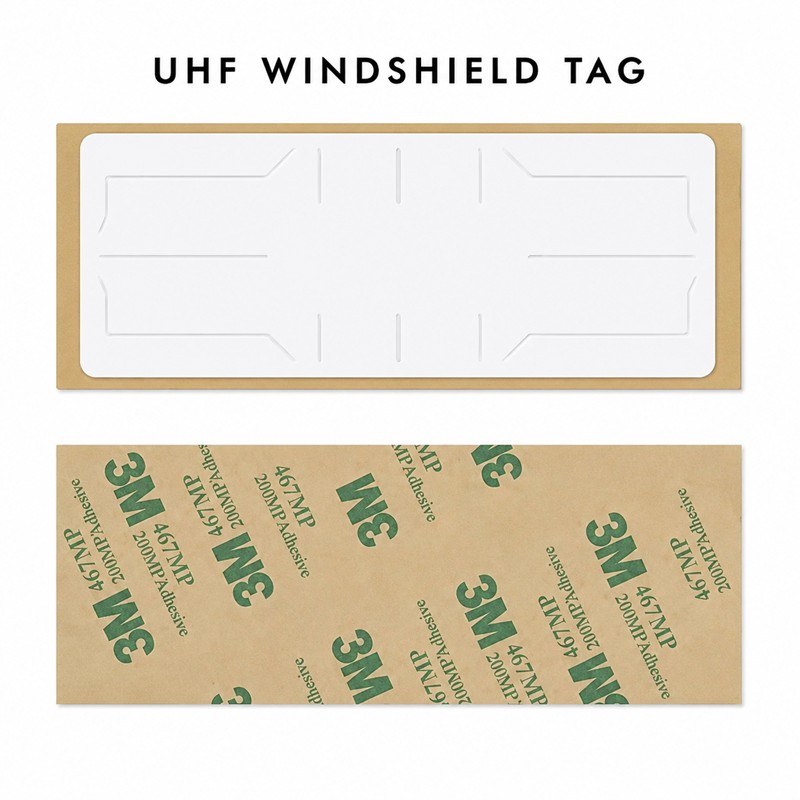

UHF RFID Windshield Tag Sticker UAE

The UHF RFID Windshield Tag Sticker is a passive long-range RFID vehicle identification tag designed for automatic gates, parking barriers, vehicle access control and parking management systems.

The tag is installed on the vehicle windshield using its self-adhesive backing. When the vehicle approaches a compatible UHF RFID long-range reader, the reader detects the unique tag identification and sends the information to the connected access control system.

Supporting ISO/IEC 18000-6C and EPC Global Class 1 Gen 2, the UHF windshield tag is suitable for residential parking, offices, factories, warehouses, gated communities and other controlled vehicle entrances.

Key Features

• UHF RFID windshield tag sticker
• Passive RFID technology
• No battery required
• Designed for long-range RFID readers
• ISO/IEC 18000-6C compliant
• EPC Global Class 1 Gen 2 compatible
• 840–960 MHz operating frequency
• Self-adhesive windshield installation
• Tamper-resistant tag design
• Compatible with suitable UHF RFID readers
• Suitable for automatic vehicle identification
• Suitable for parking barriers
• Suitable for automatic sliding gates
• Suitable for automatic swing gates
• Suitable for residential parking
• Suitable for staff vehicle access
• Suitable for vehicle tracking applications

Technical Specifications

Long Range UHF RFID Vehicle Tag

The UHF RFID windshield tag is designed to communicate with compatible long-range UHF RFID readers for automatic vehicle identification.

Actual reading distance depends on the RFID reader, antenna gain, reader power, tag position, windshield construction, installation angle and surrounding environment.

RFID Windshield Sticker for Vehicles

The RFID tag can be attached to a suitable position inside the vehicle windshield using its self-adhesive backing.

Correct positioning is important because vehicle glass type, metallic tint and other windshield materials can affect UHF RFID performance.

Passive RFID Tag – No Battery Required

The UHF windshield sticker uses passive RFID technology and does not require a battery.

Energy transmitted by the compatible UHF reader powers the RFID chip during communication, making passive tags suitable for long-term vehicle identification applications.

ISO 18000-6C / EPC Gen2 RFID Tag

The tag supports ISO/IEC 18000-6C and EPC Global Class 1 Gen 2 technology for compatibility with suitable UHF RFID identification systems.

840–960 MHz UHF RFID Frequency

The windshield tag supports the 840–960 MHz UHF RFID frequency range according to the product specification.

The exact operating frequency used by the complete system depends on the UHF reader configuration and applicable local requirements.

Automatic Vehicle Identification

Each RFID windshield tag provides an electronic identification that can be associated with an authorised vehicle in the access control system.

When the vehicle approaches the entrance, the compatible long-range reader detects the tag and sends its identification data to the access controller.

Hands-Free Vehicle Access

UHF RFID technology provides convenient hands-free vehicle access.

Drivers do not normally need to lower the window, manually present an access card or press a gate remote control. The compatible UHF reader can identify the vehicle tag automatically when it enters the configured reading zone.

RFID Tag for Parking Barriers

UHF RFID windshield tags can be used with compatible long-range readers and automatic parking barriers.

When an authorised vehicle tag is detected and approved by the access control system, an opening command can be sent to the parking barrier controller.

RFID Tag for Sliding Gates

Automatic sliding gate systems can use UHF RFID windshield tags to provide convenient access for authorised vehicles.

The UHF reader identifies the tag while the compatible access controller provides the required opening command to the sliding gate motor.

RFID Tag for Swing Gates

The windshield tag can also be used with compatible UHF readers installed at automatic swing gate entrances.

This provides automatic vehicle identification for residential compounds, villas, offices and commercial properties.

RFID Tags for Residential Parking

Apartment buildings and residential parking facilities can assign an individual RFID windshield tag to each authorised resident vehicle.

This allows vehicles to be identified individually while reducing dependence on conventional gate remote controls.

RFID Tags for Staff Parking

Companies can issue UHF RFID windshield tags to authorised employee vehicles for automatic staff parking access.

Each vehicle can have its own registered RFID identification, allowing the access control system to determine whether entry should be granted.

RFID Tags for Villas & Gated Communities

UHF RFID windshield stickers are suitable for villas, residential compounds and gated communities using compatible long-range vehicle access systems.

Tags can be assigned individually to residents or authorised vehicles for convenient automatic gate access.

RFID Tags for Warehouses & Factories

Warehouses, factories and industrial facilities can use UHF RFID tags for controlled vehicle identification at entrances.

The tags can be integrated with compatible RFID readers, access control systems and automatic gate or parking barrier equipment.

Compatible with UHF Long Range Readers

The windshield tag is designed for use with compatible UHF RFID long-range readers supporting the appropriate frequency and RFID protocol.

Reader and tag compatibility should be confirmed before installation, particularly where a specific frequency, chip type or reading distance is required.

Typical UHF RFID Vehicle Access System

• UHF RFID windshield tag sticker
• UHF RFID long-range reader
• Access control controller
• Automatic parking barrier or gate motor
• Photocell safety sensors
• Loop detector where required
• Power supply
• Access control software where required

UHF RFID Windshield Tag Applications

• Automatic vehicle identification
• Parking barrier access
• Sliding gate access
• Swing gate access
• Residential parking
• Apartment parking
• Villa entrances
• Gated communities
• Office parking
• Staff parking
• Warehouse entrances
• Factory vehicle access
• Commercial parking
• Vehicle tracking
• RFID access control systems

UHF RFID Windshield Tag Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies UHF RFID windshield tags in UAE for vehicle access control, parking barriers, automatic gates and long-range RFID identification systems.

Supply and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
