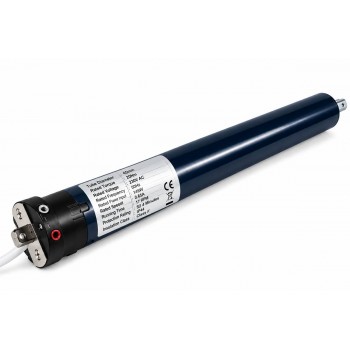

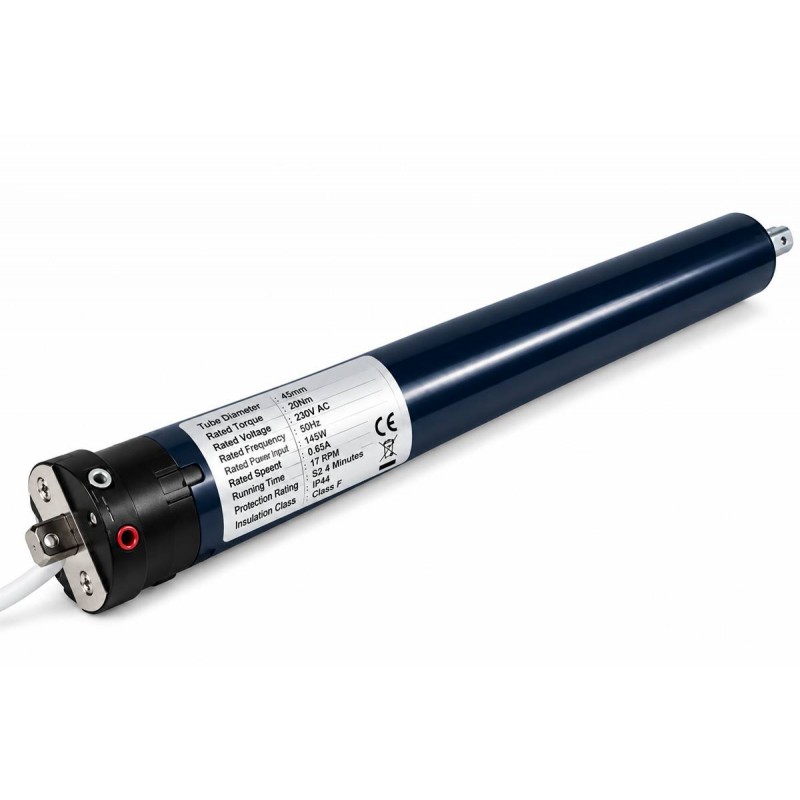

Rolling Shutter Tubular Motor 45mm 20Nm UAE

The Rolling Shutter Tubular Motor 45mm 20Nm is a compact and reliable electric motor designed for automatic rolling shutters, roller blinds, window shutters and motorised shading systems. With a 45mm tube diameter and rated torque of 20Nm, it provides an efficient automation solution for compatible residential and commercial applications.

The motor operates on 230V AC / 50Hz and delivers a rated speed of 28rpm. With 238W rated power, 1.05A current, IP44 protection and Class F insulation, it is designed for reliable operation when correctly matched to the roller tube and shutter load.

Its tubular design allows the motor to be installed inside a compatible roller tube, providing a clean and space-saving installation with the motor largely concealed within the shutter or blind assembly.

Key Features

• 45mm rolling shutter tubular motor
• 20Nm rated torque
• 230V AC operation
• 50Hz rated frequency
• 238W rated power input
• 1.05A rated current
• 28rpm rated speed
• S2 4-minute running time
• IP44 protection rating
• Class F insulation
• Compact internal tube installation
• Suitable for rolling shutters
• Suitable for roller blinds
• Suitable for window shutters
• Residential and commercial applications

Technical Specifications

45mm Rolling Shutter Tubular Motor

The motor features a 45mm tubular design for installation inside a compatible rolling shutter or roller blind tube.

This concealed installation provides a clean appearance and saves space compared with externally mounted shutter motors.

20Nm Tubular Motor

With a rated torque of 20Nm, the tubular motor is suitable for compatible lightweight and medium-size shutter and blind applications.

The correct torque should always be selected according to the shutter weight, width, height, roller tube diameter and complete mechanical configuration.

230V AC Tubular Motor

The tubular motor operates from a 230V AC / 50Hz electrical supply.

Professional electrical installation is recommended to ensure correct wiring, protection and control of the motor.

238W Rolling Shutter Motor

The 45mm tubular motor has a rated power input of 238W and rated current of approximately 1.05A.

The motor should be connected to suitable electrical controls and protection according to its technical specifications.

28rpm High-Speed Tubular Motor

The motor provides a rated rotational speed of 28rpm, allowing smooth opening and closing of compatible rolling shutters and roller blinds.

Actual opening and closing speed will depend on the roller tube diameter and complete shutter configuration.

S2 4-Minute Duty Rating

The tubular motor has an S2 4-minute running time, meaning it is designed for short-duration operation rather than continuous running.

If repeated operation causes the motor's thermal protection to activate, sufficient cooling time should be allowed before operating the motor again.

IP44 Tubular Motor

The motor has an IP44 protection rating. The complete shutter installation should still provide appropriate protection for the motor, electrical wiring and connections.

Class F Insulation

The tubular motor uses Class F insulation for appropriate thermal performance under its designed operating conditions.

Motor Installed Inside Roller Tube

A tubular motor is installed inside the compatible roller tube rather than externally beside the rolling shutter.

This creates a compact automation system with the motor largely hidden inside the shutter or blind assembly.

Tubular Motor for Rolling Shutters

The 45mm 20Nm motor can automate compatible rolling shutter doors where the required torque and roller tube dimensions match the motor specifications.

The complete shutter weight should be calculated before selecting the motor.

Tubular Motor for Roller Blinds

The motor is suitable for compatible motorised roller blind systems in residential and commercial properties.

Its internal tube installation provides a neat and professional solution for automatic blind operation.

Tubular Motor for Window Shutters

The 20Nm motor can also be used for compatible motorised window shutter applications.

The installer should confirm the required torque, roller tube diameter and adapter compatibility before installation.

Rolling Shutter Push Button Control

The tubular motor can be operated using a compatible UP / STOP / DOWN push button switch or rolling shutter controller.

This provides convenient local control for opening, stopping and closing the motorised shutter.

Rolling Shutter Remote Control

A compatible rolling shutter receiver or motor controller can be added to provide wireless remote-control operation.

Users can then open, stop and close the shutter using a compatible remote transmitter.

Smart Rolling Shutter Control

Where compatible control equipment is installed, the tubular motor can also form part of a smart rolling shutter automation system.

Compatibility between the tubular motor and the selected smart controller should be confirmed before installation.

45mm 20Nm Tubular Motor Applications

• Rolling shutters
• Roller blinds
• Window shutters
• Motorised blinds
• Residential shutter systems
• Office blinds
• Commercial blinds
• Shop window shutters
• Motorised shade systems
• Replacement tubular motors

Professional Tubular Motor Installation

Professional installation is recommended to ensure correct motor sizing, roller tube compatibility, adapter selection, electrical wiring and limit adjustment.

Before selecting the 45mm 20Nm tubular motor, the shutter or blind weight and roller tube dimensions should be checked to ensure the motor is suitable for the application.

Rolling Shutter Tubular Motor 45mm 20Nm Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies 45mm 20Nm tubular motors in UAE for compatible rolling shutters, roller blinds, window shutters and motorised shading systems.

Supply and professional installation are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
