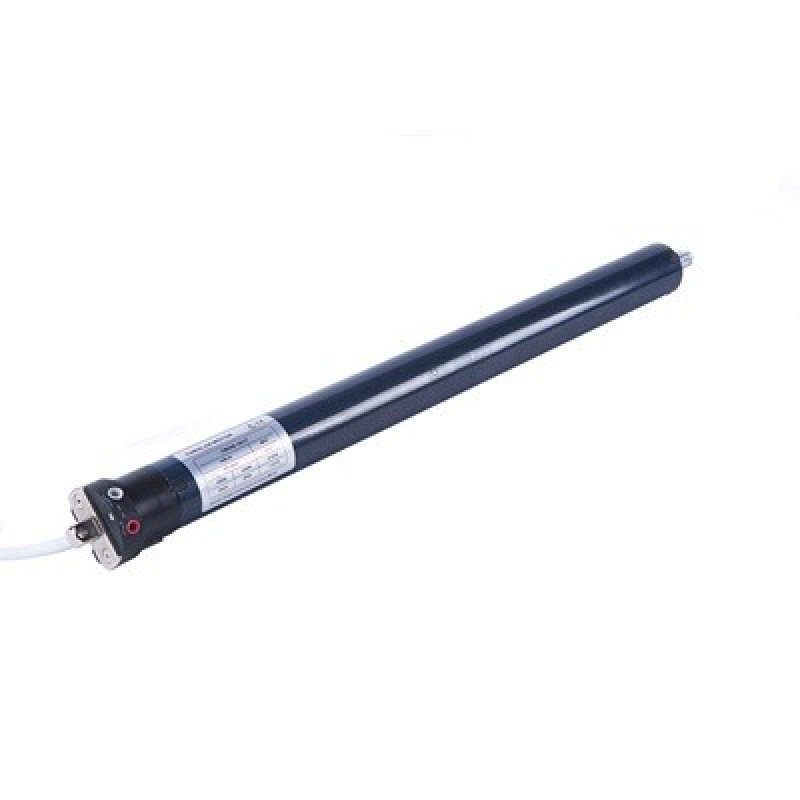

Rolling Shutter Tubular Motor 35mm 10Nm UAE
Price 299 AEDIn Stock
The Rolling Shutter Tubular Motor 35mm 10Nm is a compact electric motor designed for compatible rolling shutters, roller blinds, window shutters and other tubular motor applications. With a slim 35mm diameter and rated torque of 10Nm, it is ideal for smaller and lightweight shutter systems where compact installation is required.
The motor operates on 230V AC / 50Hz and provides a rated speed of 17rpm. With 145W rated power input, 0.65A current, IP44 protection and Class F insulation, it provides reliable operation for compatible residential and commercial shutter applications.
Its tubular design allows the motor to be installed inside a compatible roller tube, providing a clean and space-saving automatic shutter solution.
Key Features
- 35mm tubular motor
- 10Nm rated torque
- 230V AC operation
- 50Hz rated frequency
- 145W rated power input
- 0.65A rated current
- 17rpm rated speed
- S2 4-minute running time
- IP44 protection rating
- Class F insulation
- Compact tubular design
- Motor installs inside compatible roller tube
- Suitable for lightweight rolling shutters
- Suitable for roller blinds
- Residential and commercial applications

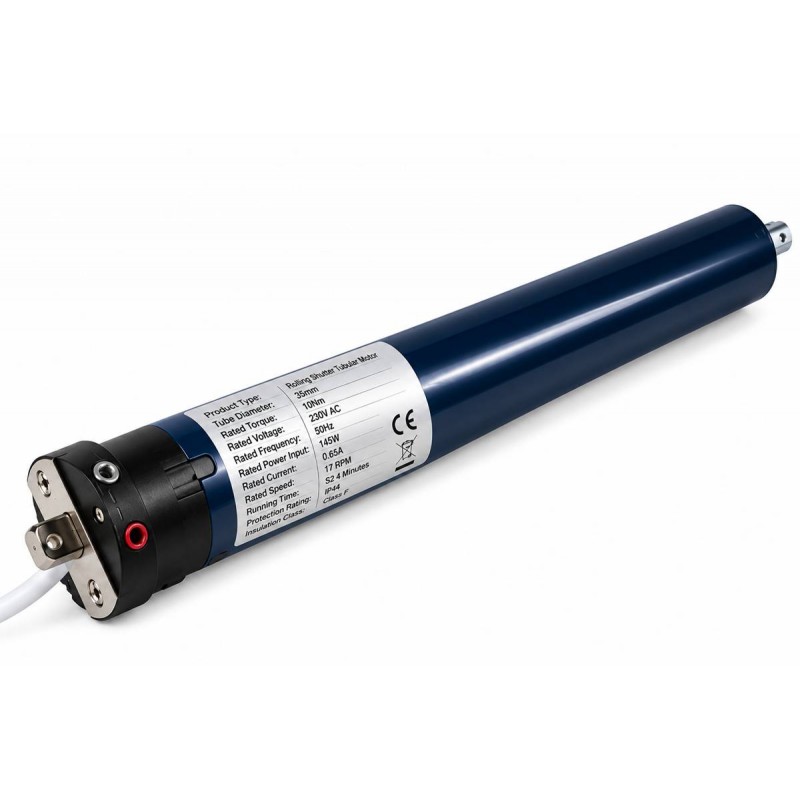

Technical Specifications
| Product Type | Rolling Shutter Tubular Motor |
| Motor Diameter | 35mm |
| Rated Torque | 10Nm |
| Rated Voltage | 230V AC |
| Rated Frequency | 50Hz |
| Rated Power Input | 145W |
| Rated Current | 0.65A |
| Rated Speed | 17rpm |
| Running Time | S2 4 Minutes |
| Protection Rating | IP44 |
| Insulation Class | Class F |
| Application | Rolling Shutters / Roller Blinds |
35mm Tubular Motor
The motor features a compact 35mm tubular design for installation inside compatible roller tubes.
Its small diameter makes it particularly suitable for compact shutter and blind systems where larger tubular motors cannot be installed.
10Nm Rolling Shutter Motor
With a rated torque of 10Nm, this tubular motor is designed for compatible lightweight rolling shutter and roller blind applications.
The correct motor torque should always be selected according to the shutter weight, width, height, roller tube diameter and complete mechanical configuration.
230V AC Tubular Motor
The tubular motor operates from a standard 230V AC / 50Hz electrical supply.
Electrical wiring should be completed by a qualified technician according to the motor wiring diagram and applicable electrical requirements.
145W Tubular Shutter Motor
The 35mm motor has a rated power input of 145W with a rated current of approximately 0.65A.
A correctly rated electrical supply and compatible shutter controller should be used for reliable motor operation.
17rpm Rolling Shutter Tubular Motor
The motor provides a rated rotational speed of 17rpm, providing smooth opening and closing for compatible shutter and blind systems.
S2 4-Minute Running Time
The motor has an S2 4-minute duty rating, meaning it is designed for short-duration operation rather than continuous running.
The motor should be allowed sufficient cooling time if repeated operation causes its thermal protection to activate.
IP44 Tubular Motor
The tubular motor has an IP44 protection rating, providing protection appropriate to its specified enclosure classification.
The complete shutter installation should still be designed to protect the motor, wiring and electrical connections from unsuitable environmental exposure.
Class F Motor Insulation
The motor uses Class F insulation to provide appropriate thermal insulation performance for its designed operating conditions.
Motor Installed Inside Roller Tube
Unlike external side motors or central rolling shutter motors, a tubular motor is installed inside the compatible roller tube.
This creates a compact installation with the motor largely concealed within the shutter or blind assembly.
Tubular Motor for Roller Blinds
The compact 35mm motor can be used for compatible motorised roller blind applications where the required torque and tube dimensions match the motor specifications.
Motor selection should be based on the total blind weight and roller tube configuration.
Tubular Motor for Window Shutters
The 10Nm tubular motor is suitable for compatible lightweight window shutter applications requiring automatic electric opening and closing.
The installer should verify the required torque and tube compatibility before installation.
Tubular Motor for Rolling Shutters
The motor can automate compatible lightweight rolling shutter systems where a 35mm tubular motor and 10Nm torque rating are appropriate.
The complete shutter weight and mechanical configuration should be checked before selecting the motor.
Rolling Shutter Push Button Control
The tubular motor can be operated using a compatible UP / STOP / DOWN shutter switch or motor controller, depending on the selected electrical configuration.
This provides convenient local opening, stopping and closing of the motorised shutter.
Remote Control Operation
Where a compatible external rolling shutter receiver or controller is installed, the tubular motor can form part of a remote-controlled shutter system.
The exact control method should be selected according to the motor wiring configuration and compatible control equipment.
35mm vs 45mm Tubular Motor
The 35mm tubular motor is designed for smaller roller tubes and lightweight applications, while larger 45mm tubular motors can provide increased torque for heavier shutters.
Motor size should be selected according to the required torque, shutter dimensions and roller tube diameter rather than physical motor size alone.
Tubular Motor Applications
- Lightweight rolling shutters
- Roller blinds
- Motorised window blinds
- Window shutters
- Residential shutter systems
- Office blinds
- Commercial blinds
- Small roller shutter applications
- Replacement tubular motors
- Motorised shade systems
Professional Tubular Motor Installation
Professional installation is recommended to ensure correct motor sizing, roller tube compatibility, electrical wiring and limit adjustment.
Before selecting the 35mm 10Nm motor, the installer should calculate the shutter or blind weight and verify that the tube dimensions are compatible with the motor and required adapters.
Rolling Shutter Tubular Motor 35mm 10Nm Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies 35mm 10Nm tubular motors in UAE for compatible rolling shutters, roller blinds and motorised shading applications.
Supply and professional installation are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
