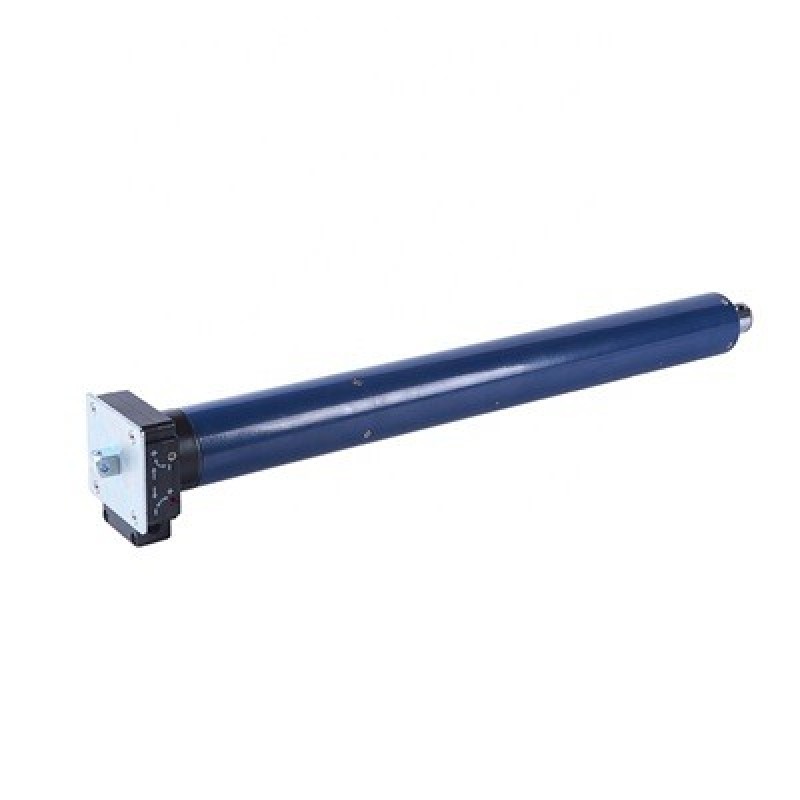

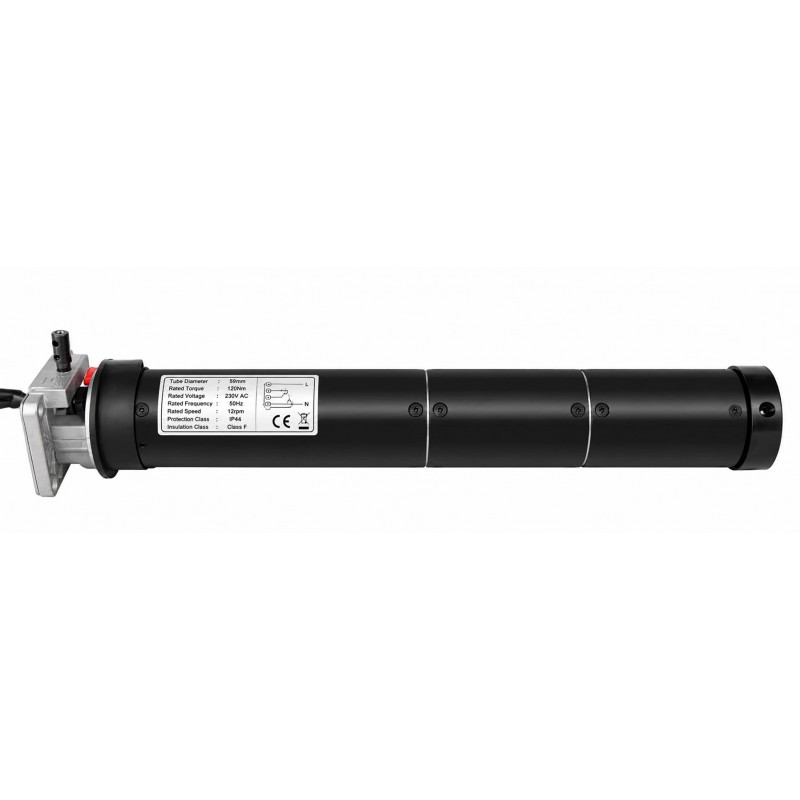

Rolling Shutter Tubular Motor 59mm 140Nm UAE
Price 699 AEDIn Stock
The Rolling Shutter Tubular Motor 59mm 140Nm is a powerful heavy-duty tubular motor designed for automatic rolling shutters and compatible roller shutter systems. With a rated torque of 140Nm and a 59mm motor diameter, it provides significantly higher torque than smaller tubular motors for larger and heavier shutter applications.
The motor operates on 230V AC / 50Hz and delivers 380W rated power with a rated current of 1.68A and output speed of 10rpm. It features IP44 protection, Class H insulation and an S2 4-minute operating duty.
Its tubular construction allows the motor to be installed inside a compatible roller tube, providing a compact and professional automatic shutter solution without requiring a large external side-mounted motor.
Key Features
- Heavy-duty 59mm tubular motor
- 140Nm rated torque
- 230V AC operation
- 50Hz rated frequency
- 380W rated power input
- 1.68A rated current
- 10rpm rated speed
- S2 4-minute running time
- IP44 protection rating
- Class H insulation
- Compact internal roller tube installation
- High-torque tubular motor design
- Suitable for automatic rolling shutters
- Suitable for commercial shutter applications
- Suitable for new and replacement installations
Technical Specifications
| Product Type | Rolling Shutter Tubular Motor |
| Motor Diameter | 59mm |
| Rated Torque | 140Nm |
| Rated Voltage | 230V AC |
| Rated Frequency | 50Hz |
| Rated Power Input | 380W |
| Rated Current | 1.68A |
| Rated Speed | 10rpm |
| Running Time | S2 4 Minutes |
| Protection Rating | IP44 |
| Insulation Class | Class H |
| Application | Automatic Rolling Shutters |
59mm Rolling Shutter Tubular Motor
The motor features a 59mm tubular design for installation inside a compatible rolling shutter tube.
Compared with smaller 35mm and 45mm tubular motors, the larger 59mm motor body allows this model to provide significantly higher torque for more demanding shutter applications.
140Nm High-Torque Tubular Motor
With a rated torque of 140Nm, this motor provides strong rotational force for compatible rolling shutter systems.
The correct motor should always be selected according to the shutter curtain weight, shutter width and height, roller tube diameter and complete mechanical configuration.
230V AC Rolling Shutter Motor
The tubular motor operates from a 230V AC / 50Hz electrical supply.
Professional electrical installation is recommended to ensure correct directional wiring, electrical protection and motor control.
380W Heavy-Duty Tubular Motor
The 59mm motor has a rated power input of 380W with a rated current of approximately 1.68A.
The electrical supply, controller and protective devices should be correctly selected according to the motor specifications.
10rpm Rolling Shutter Motor
The motor provides a rated rotational speed of 10rpm, providing controlled opening and closing for compatible rolling shutter systems.
Actual shutter movement speed will also depend on the roller tube diameter and complete mechanical arrangement.
S2 4-Minute Duty Rating
The motor has an S2 4-minute duty rating, which means it is intended for short-duration shutter operation rather than continuous running.
If repeated operation causes thermal protection to activate, the motor should be allowed sufficient cooling time before further operation.
IP44 Tubular Motor
The motor has an IP44 protection rating. The complete shutter installation should still provide appropriate protection for the motor, electrical connections and control equipment.
Class H Motor Insulation
The 59mm 140Nm tubular motor uses Class H insulation, providing a higher insulation temperature classification for the motor winding system.
Motor Installed Inside Roller Tube
The tubular motor is designed to be installed inside a compatible rolling shutter tube.
This creates a compact automatic shutter system with the motor largely concealed inside the roller assembly.
Heavy-Duty Tubular Motor for Rolling Shutters
With 140Nm torque, the 59mm motor is designed for compatible rolling shutter applications requiring substantially more torque than smaller tubular motors.
Motor suitability should be confirmed by calculating the actual shutter load rather than selecting the motor based only on physical shutter dimensions.
Commercial Rolling Shutter Tubular Motor
The 59mm 140Nm motor can be used for compatible commercial rolling shutter applications where an internal tubular motor installation is preferred.
Typical applications may include shops, showrooms, offices, storage areas and other commercial properties with suitably sized roller shutters.
Tubular Motor for Shop Rolling Shutters
The high-torque tubular motor can automate compatible shop rolling shutter doors while keeping the motor concealed inside the roller tube.
The shutter weight and roller tube dimensions should be checked before installation to confirm that the motor and required adapters are compatible.
Tubular Motor for Garage Rolling Shutters
The 140Nm tubular motor can also be used for compatible garage rolling shutters requiring a higher-torque internal motor.
The complete garage shutter load should be calculated before selecting the motor.
Rolling Shutter Push Button Control
The tubular motor can be operated using a compatible UP / STOP / DOWN wall switch or rolling shutter motor controller.
This provides convenient local opening, stopping and closing of the automatic shutter.
Rolling Shutter Remote Control
A compatible rolling shutter receiver or motor controller can be added to provide wireless remote-control operation.
Users can then open, stop and close the shutter using compatible remote transmitters.
Smart Rolling Shutter Control
Where compatible equipment is installed, the 230V tubular motor can also be integrated with a suitable smart rolling shutter controller.
The smart controller must support the electrical requirements and directional control configuration of the motor.
59mm 140Nm vs 45mm 50Nm Tubular Motor
The 59mm 140Nm tubular motor provides substantially higher torque than a 45mm 50Nm motor and is intended for more demanding compatible shutter applications.
The correct motor should be selected according to calculated shutter load, tube diameter and mechanical requirements rather than simply choosing the highest torque available.
59mm 140Nm Tubular Motor Applications
- Automatic rolling shutters
- Commercial rolling shutters
- Shop roller shutters
- Garage rolling shutters
- Showroom shutters
- Office rolling shutters
- Storage-area shutters
- Motorised roller systems
- High-torque tubular motor applications
- Replacement tubular motors
Professional Tubular Motor Installation
Professional installation is recommended to ensure correct motor sizing, roller tube compatibility, adapter selection, electrical wiring and limit adjustment.
Before selecting the 59mm 140Nm motor, the actual shutter weight and roller tube dimensions should be checked to confirm compatibility.
Rolling Shutter Tubular Motor 59mm 140Nm Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies 59mm 140Nm tubular motors in UAE for compatible residential and commercial automatic rolling shutter applications.
Supply and installation services are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
