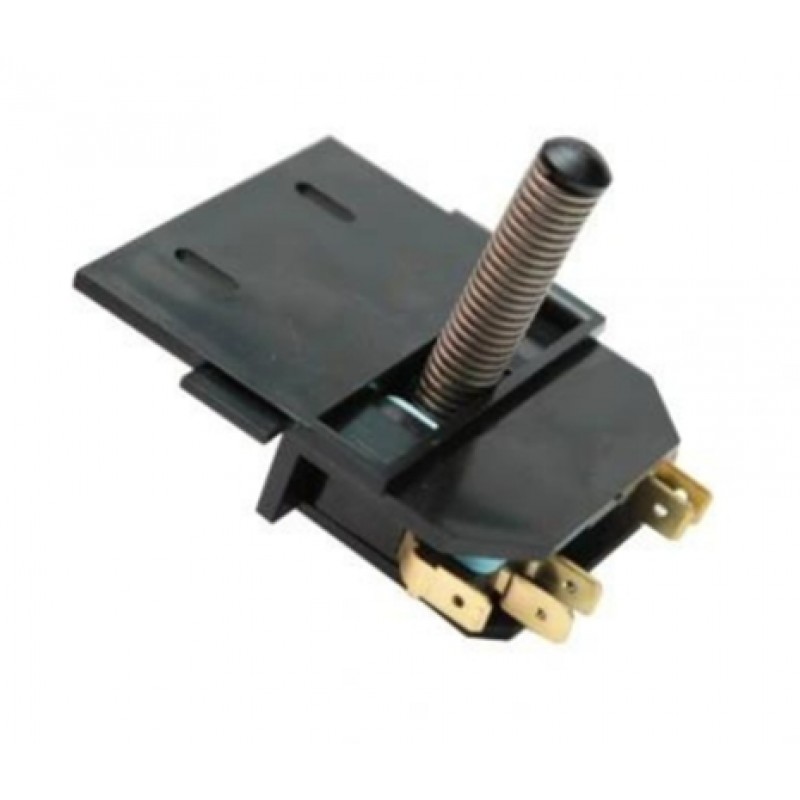

SOMFY ELIXO Spring Limit Switch UAE

The SOMFY ELIXO Spring Limit Switch is a replacement spare part for compatible SOMFY ELIXO automatic sliding gate motors. The limit switch system detects the fully open and fully closed positions of the sliding gate and allows the motor control system to stop the gate at the correct end of travel.

During gate movement, the limit switch brackets installed on the gear rack activate the motor's limit switch mechanism. One bracket determines the fully open position while the second determines the fully closed position.

This replacement limit switch is suitable for repairing compatible SOMFY ELIXO sliding gate motors with damaged, worn or faulty mechanical limit switch components.

Key Features

• SOMFY ELIXO replacement spare part
• Mechanical spring limit switch
• Designed for automatic sliding gate motors
• Controls open and closed gate end positions
• Activated by limit brackets fitted to the gear rack
• Suitable for compatible SOMFY ELIXO motors
• Replacement for damaged or worn limit switch
• Helps provide accurate gate stopping positions
• Suitable for professional gate motor repair

Technical Specifications

SOMFY ELIXO Sliding Gate Limit Switch

The SOMFY ELIXO limit switch is an important component of the automatic sliding gate motor. It provides the mechanical switching signal required for the motor control system to identify the end positions of gate travel.

A correctly operating limit switch helps ensure that the sliding gate stops at the programmed fully open and fully closed positions.

Open & Close Limit Detection

The ELIXO sliding gate system uses separate end-position activation points for opening and closing.

As the gate approaches an end position, the bracket fitted to the gear rack activates the motor's limit switch mechanism. The control system then recognizes that the required end position has been reached.

Mechanical Spring Limit Switch

The mechanical spring mechanism is positioned on the gate motor so that the corresponding rack-mounted limit bracket can activate it as the gate reaches either end of travel.

Correct mechanical operation and adjustment are essential for reliable opening and closing of the automatic sliding gate.

Limit Switch Brackets on Gear Rack

Compatible SOMFY ELIXO sliding gate installations use two end-limit brackets mounted on the gate gear rack.

• One bracket determines the fully open position
• One bracket determines the fully closed position

The brackets should be securely positioned and adjusted so that they activate the limit switch correctly before the gate reaches its mechanical end position.

SOMFY ELIXO 500 Limit Switch

The spring limit switch system is used on compatible SOMFY ELIXO 500 sliding gate motors.

When repairing an ELIXO 500, the original switch design and motor version should be checked before ordering the replacement spare part.

SOMFY ELIXO 800 Limit Switch

Compatible SOMFY ELIXO 800 sliding gate motors also use rack-mounted end-limit brackets to activate the motor's mechanical end-limit contact.

The ELIXO 500 and ELIXO 800 230V RTS installation documentation uses the same end-limit bracket installation procedure.

Symptoms of a Faulty Gate Limit Switch

A damaged, incorrectly adjusted or faulty limit switch can cause abnormal automatic gate operation.

• Gate does not stop at the fully open position
• Gate does not stop at the fully closed position
• Motor continues running at the end of travel
• Gate stops before reaching the required position
• Gate operates correctly in one direction but not the other
• Limit switch spring is damaged or broken
• Limit switch does not activate when contacted by the bracket
• Intermittent opening or closing problems

Check the Limit Brackets Before Replacing the Switch

A gate stopping problem does not always mean that the limit switch itself is defective.

Before replacing the switch, check that both limit brackets are present, securely attached to the gear rack and correctly positioned to activate the spring mechanism.

Gate Does Not Stop When Opening

If the sliding gate continues moving when it reaches the fully open position, check the opening limit bracket and the corresponding limit switch operation.

A loose or incorrectly positioned bracket may fail to activate the switch even when the electrical limit switch itself is functioning correctly.

Gate Does Not Stop When Closing

If the gate does not stop correctly at the closed position, inspect the closing limit bracket, spring mechanism, switch contacts and related wiring.

The fault should be identified before replacing components to avoid unnecessary spare-part replacement.

Limit Switch Adjustment

After installing or replacing the SOMFY ELIXO limit switch, both opening and closing end positions should be carefully checked and adjusted.

The gate should be moved manually during initial adjustment to confirm that each rack-mounted bracket correctly activates the limit switch mechanism.

Professional SOMFY Gate Motor Repair

Professional replacement is recommended when the ELIXO limit switch is damaged. The technician should inspect the switch, spring mechanism, wiring, gear rack and both end-limit brackets before completing the repair.

After replacement, the gate should be tested through multiple complete opening and closing cycles to confirm reliable end-position detection.

Check Compatibility Before Ordering

SOMFY ELIXO motors are available in different models and generations. Before ordering a replacement limit switch, check the exact ELIXO motor model, voltage, original switch design and existing spare part.

Providing a clear photograph of the existing limit switch and motor model label can help confirm compatibility before ordering.

SOMFY ELIXO Spring Limit Switch Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies SOMFY ELIXO spring limit switches in UAE for compatible automatic sliding gate motors.

Supply, replacement, adjustment, troubleshooting and gate motor repair support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
