SOMFY ELIXO 500 3S RTS Sliding Gate Motor UAE

The SOMFY ELIXO 500 3S RTS Sliding Gate Motor is a premium automatic gate opener designed for residential sliding gates weighing up to 500 KG. Combining a 24V motor system with SOMFY RTS radio technology and an advanced 3S electronic control system, the ELIXO 500 provides smooth, safe and convenient automatic gate operation.

The ELIXO 500 is designed for up to 30 gate manoeuvres per day and offers programmable opening and closing speeds, gradual starting, automatic closing, partial pedestrian opening and advanced safety-device management.

Its integrated SOMFY RTS radio system operates at 433.42 MHz and can memorise up to 40 radio channels, making the ELIXO 500 suitable for villas, private residences and small residential properties requiring dependable automatic sliding gate access.

Key Features

• Original SOMFY ELIXO sliding gate motor
• Model ELIXO 500 3S RTS
• Suitable for sliding gates up to 500 KG
• 24V DC motor system
• 230V AC 50Hz mains supply
• SOMFY RTS radio technology
• 433.42 MHz radio frequency
• Up to 40 memorisable radio channels
• Up to 30 manoeuvres per day
• Gradual motor starting
• Programmable opening speed
• Programmable closing speed
• Programmable closing slowdown speed
• Automatic closing function
• Programmable closing delay
• Partial pedestrian opening
• Obstacle detection and safety management
• Photocell safety support
• Safety edge support
• Manual emergency release
• Backup battery connection supported
• IP44 protection rating
• Made in Italy

Technical Specifications

SOMFY ELIXO 500 500 KG Sliding Gate Motor

The SOMFY ELIXO 500 is designed for automatic sliding gates weighing up to 500 KG. It is particularly suitable for villas, private homes and residential entrances requiring reliable everyday automatic gate operation.

Gate weight should not be considered alone when selecting a motor. Gate length, wheel condition, track alignment, mechanical resistance and daily usage should also be checked before installation.

24V Automatic Sliding Gate Motor

The SOMFY ELIXO 500 uses a 24V DC motor system powered through the integrated control system from a 230V AC mains supply.

The low-voltage motor allows precise electronic management of gate movement, gradual starting, programmable speed and safety functions.

Up to 30 Manoeuvres Per Day

SOMFY specifies the ELIXO 500 for sliding gates up to 500 KG performing up to approximately 30 manoeuvres per day.

This makes the system particularly suitable for residential properties rather than intensive industrial gate applications.

SOMFY 3S Control System

The ELIXO 500 3S RTS features an advanced electronic control system with a 7-button programming interface and 3-character LCD display.

The controller provides convenient programming, operating diagnostics and configuration of gate movement and safety functions.

SOMFY RTS Radio Technology

The ELIXO 500 uses SOMFY RTS radio technology operating at 433.42 MHz.

The control system can memorise up to 40 radio channels, allowing compatible SOMFY RTS remote controls and radio commands to be added according to the installation requirements.

Programmable Opening & Closing Speed

The SOMFY ELIXO 500 provides 10 programmable opening speed levels and 10 programmable closing speed levels.

This allows the installer to adjust gate movement according to the size, condition and required operating characteristics of the sliding gate.

Gradual Starting

The ELIXO 500 provides a gradual starting function, helping the gate begin movement smoothly rather than applying maximum speed immediately.

Smooth starting helps reduce mechanical stress on the motor, gear rack and sliding gate components.

Controlled Closing Approach

The controller also provides five programmable closing approach speed levels.

Slowing the gate near the closing position provides smoother movement and reduces mechanical impact at the end of travel.

Automatic Closing

The SOMFY ELIXO 500 supports programmable automatic closing after a selected waiting period.

SOMFY allows the automatic closing delay to be programmed from 0 to 255 minutes.

Appropriate photocell sensors and safety devices should be installed and tested before automatic closing is enabled.

Pedestrian / Partial Opening

The ELIXO 500 supports partial opening control, allowing the sliding gate to open only partially when full vehicle access is not required.

This provides convenient pedestrian access without opening the complete gate.

Photocell Safety Integration

The ELIXO 500 control system supports compatible TX/RX photocells, BUS photocells and reflex photocells.

Depending on the programmed safety logic, an interrupted photocell beam can stop the gate, partially reopen it or fully reopen it during closing.

Safety Edge Compatibility

The SOMFY ELIXO 500 also supports compatible safety-edge inputs for additional obstacle protection.

Safety devices should be selected and installed according to the gate layout and applicable safety requirements.

Obstacle Detection & Diagnostics

The 3S control system provides operating diagnostics including cycle counting, obstacle detection data, memorised radio-channel information and storage of recent faults.

These diagnostic functions help professional installers during commissioning, maintenance and troubleshooting.

Manual Release During Power Failure

The SOMFY ELIXO 500 includes a manual release system allowing the sliding gate motor to be disengaged during power failure, emergency or maintenance.

After release, a properly installed sliding gate should move freely by hand.

Optional Backup Battery

The ELIXO 500 3S RTS supports compatible backup batteries for emergency operation during a mains power failure.

Somfy specifies approximately 5 to 10 cycles depending on the gate with the compatible backup system, with battery performance depending on gate condition and installation.

SOMFY Remote Control Operation

The ELIXO 500 can be operated using compatible SOMFY RTS remote controls programmed into the integrated radio system.

Additional transmitters can be memorised for authorised family members, employees or property-management users within the available radio-channel capacity.

Access Control Integration

The SOMFY ELIXO 500 can be integrated with compatible external access-control equipment through suitable dry-contact control inputs.

• GSM gate openers
• WiFi gate controllers
• RFID access control systems
• Keypad access control
• UHF long-range vehicle readers
• Intercom systems
• Video intercom systems
• Push buttons
• Key switches

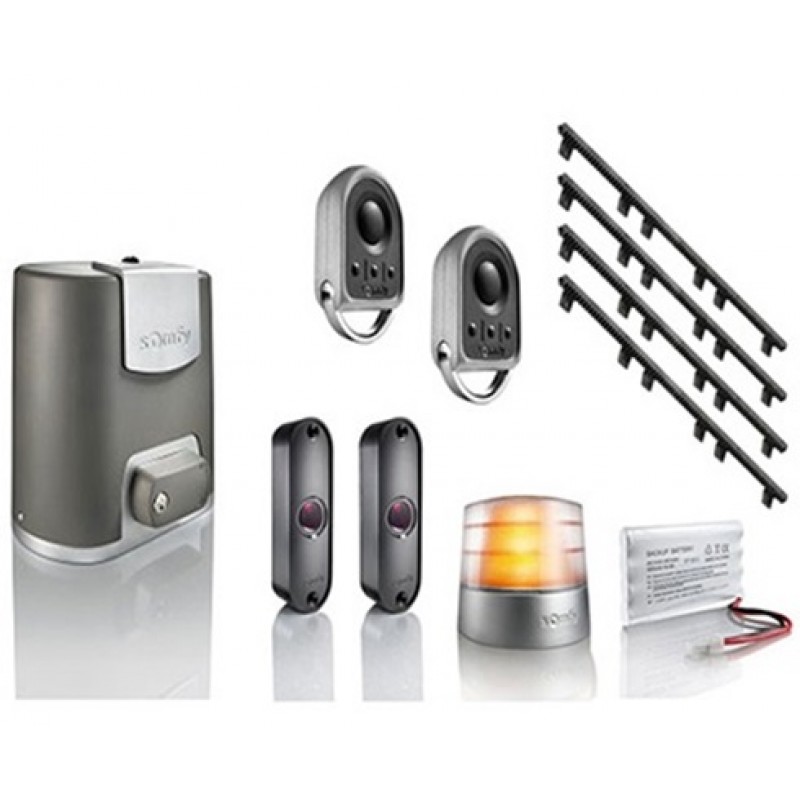

SOMFY ELIXO 500 Kit Includes

• 1 × SOMFY ELIXO 500 3S RTS Sliding Gate Motor
• 2 × SOMFY Remote Controls
• 1 × Pair Photocell Safety Sensors
• 1 × SOMFY Orange Flashing Light
• 4 × Nylon Gear Racks – 1 Metre Each
• 1 × Push Button

Residential Sliding Gate Applications

• Villa sliding gates
• Private houses
• Townhouse entrances
• Residential buildings
• Private parking gates
• Small residential compounds
• Automatic vehicle entrances

Professional SOMFY ELIXO 500 Installation

Professional installation is recommended for the SOMFY ELIXO 500. Before installation, the sliding gate should move freely and smoothly by hand without excessive mechanical resistance.

The motor foundation, track, wheels, gear rack, mechanical stops, electrical wiring, photocells and controller settings should all be correctly installed, programmed and tested.
