SOMFY ELIXO 800 230V RTS Sliding Gate Motor UAE
Price 1,800 AEDIn Stock
The SOMFY ELIXO 800 230V RTS Sliding Gate Motor is a powerful automatic gate operator designed for residential and small collective sliding gates weighing up to 800 KG and measuring up to 10 metres. Featuring a robust 230V AC motor and integrated SOMFY RTS radio technology, the ELIXO 800 provides reliable and convenient automatic gate operation.
The SOMFY ELIXO 800 delivers up to 800N thrust with a maximum power consumption of approximately 300W. The motor can open a 3-metre travel distance in approximately 21 seconds, providing dependable operation for medium to large sliding gates.
Its integrated SOMFY RTS 433.42 MHz radio system can manage up to 128 radio channels, while IP44 protection and an operating temperature range from -20°C to +60°C make the ELIXO 800 suitable for correctly installed outdoor gate automation applications.
Key Features
- Original SOMFY ELIXO sliding gate motor
- Model ELIXO 800 230V RTS
- Suitable for sliding gates up to 800 KG
- Suitable for gates up to 10 metres
- 230V AC motor
- 220–230V AC 50–60Hz mains supply
- 300W maximum power consumption
- 800N thrust force
- Approximately 21 seconds opening time for 3m travel
- SOMFY RTS radio technology
- 433.42 MHz radio frequency
- Up to 128 radio channels
- Manual release with key
- Adjustable operating parameters
- 24V AC accessory output
- Photocell safety sensor compatibility
- Flashing warning light compatibility
- IP44 protection rating
- Operating temperature -20°C to +60°C
- Suitable for residential and small collective use
Technical Specifications
| Brand | SOMFY |
| Series | ELIXO |
| Model | ELIXO 800 230V RTS |
| Product Type | Automatic Sliding Gate Motor |
| Maximum Gate Weight | 800 KG |
| Maximum Gate Length | Up to 10 Metres |
| Mains Power Supply | 220–230V AC, 50–60Hz |
| Motor Voltage | 230V AC |
| Maximum Power Consumption | 300W |
| Thrust Force | 800N |
| Opening Time | Approximately 21 Seconds for 3m |
| Accessory Power Supply | 24V AC / 315mA |
| Radio Technology | SOMFY RTS |
| Radio Frequency | 433.42 MHz |
| Radio Capacity | Up to 128 Channels |
| Manual Release | Key Release |
| Protection Rating | IP44 |
| Operating Temperature | -20°C to +60°C |
| Application | Residential / Small Collective |
SOMFY ELIXO 800 800 KG Sliding Gate Opener
The SOMFY ELIXO 800 is designed to automate compatible sliding gates weighing up to 800 KG. Its powerful 230V AC drive makes it suitable for larger residential gates and small collective entrances requiring dependable automatic operation.
When selecting the motor, the actual gate weight, gate length, track condition, wheel condition and mechanical resistance should always be considered.
Up to 10 Metre Sliding Gates
The SOMFY ELIXO 800 is suitable for compatible sliding gates measuring up to approximately 10 metres.
For long gates, correct track alignment and free mechanical movement are particularly important to avoid excessive load on the motor and gearbox.
230V AC Gate Motor
The ELIXO 800 uses a 230V AC motor supplied from a 220–230V AC 50–60Hz mains electrical connection.
This robust AC motor configuration provides strong and dependable operation for medium and heavy residential sliding gates.
300W Maximum Power Consumption
The SOMFY ELIXO 800 has a maximum power consumption of approximately 300W.
The motor and gate should be correctly sized and installed to provide reliable long-term automatic operation.
800N Thrust Force
The ELIXO 800 provides approximately 800N of thrust force, giving the operator the mechanical force required to automate compatible sliding gates weighing up to 800 KG.
The gate should move smoothly by hand before automation. A gate with damaged wheels, poor track alignment or excessive resistance should be repaired before the motor is installed.
21 Second Opening Time
SOMFY specifies an opening time of approximately 21 seconds for 3 metres of gate travel.
The actual complete opening time depends on the total travel distance and installation conditions.
SOMFY RTS Radio Technology
The SOMFY ELIXO 800 incorporates RTS radio technology operating at 433.42 MHz.
This allows compatible SOMFY RTS remote controls to operate the automatic sliding gate wirelessly.
Up to 128 Radio Channels
The ELIXO 800 RTS system supports up to 128 radio channels, providing substantial capacity for authorised remote controls and compatible radio commands.
This makes the system suitable for properties requiring multiple authorised gate users.
SOMFY KEYGO & KEYTIS Remote Controls
The ELIXO 800 can be operated using compatible SOMFY RTS remote controls, including suitable KEYGO and KEYTIS RTS transmitters.
Additional compatible remote controls can be programmed into the radio system according to the required access configuration.
Manual Release During Power Failure
The SOMFY ELIXO 800 includes a manual key release that allows the motor to be disengaged during a power failure, emergency or maintenance.
After manual release, a correctly installed and maintained sliding gate can be moved manually.
Photocell Safety Sensors
Compatible SOMFY photocell safety sensors can be connected to the ELIXO 800 automation system to monitor the vehicle and pedestrian passage area.
When an obstacle interrupts the infrared beam, the gate controller responds according to the configured safety logic.
SOMFY Master Pro Bitech Photocells
The ELIXO 800 kit can be supplied with SOMFY Master Pro Bitech photocell sensors for automatic gate safety.
Correct positioning, wiring and alignment of the transmitter and receiver are important for reliable obstacle detection.
SOMFY Orange Flashing Light
A compatible SOMFY Orange flashing warning light can be connected to provide a visible indication while the automatic gate is operating.
The warning light is particularly useful at vehicle entrances where gate movement should be clearly visible to approaching drivers and pedestrians.
Module 4 Gate Rack
The SOMFY ELIXO 800 operates with a compatible sliding gate gear rack installed along the gate.
Steel-reinforced nylon rack or suitable steel rack can be used according to the gate weight, installation requirements and selected configuration.
Residential & Small Collective Use
The ELIXO 800 is designed for residential and small collective sliding gate applications.
Typical installations include villas, apartment buildings, residential compounds, office properties and private parking entrances.
Access Control Integration
The SOMFY ELIXO 800 can be integrated with compatible access control devices using the appropriate control inputs.
- GSM gate openers
- WiFi gate controllers
- RFID access control systems
- UHF long-range vehicle readers
- Keypad access systems
- Loop detectors
- Intercom systems
- Video intercom systems
- Push buttons
- Key switches
SOMFY ELIXO 800 Applications
- Villa sliding gates
- Large residential gates
- Apartment building entrances
- Residential compounds
- Private parking gates
- Office entrances
- Small collective properties
- Access-controlled entrances

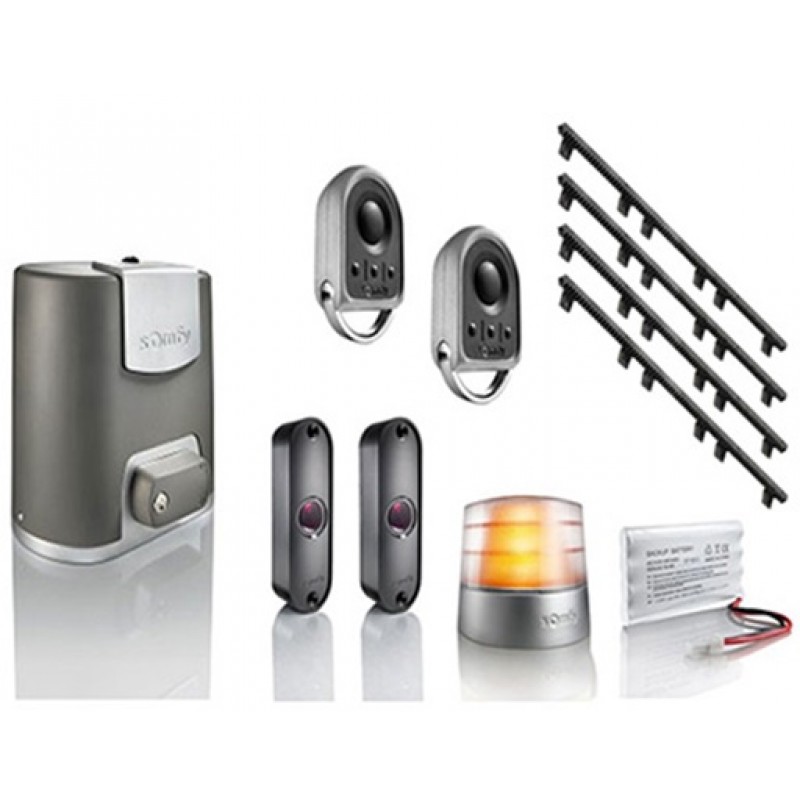

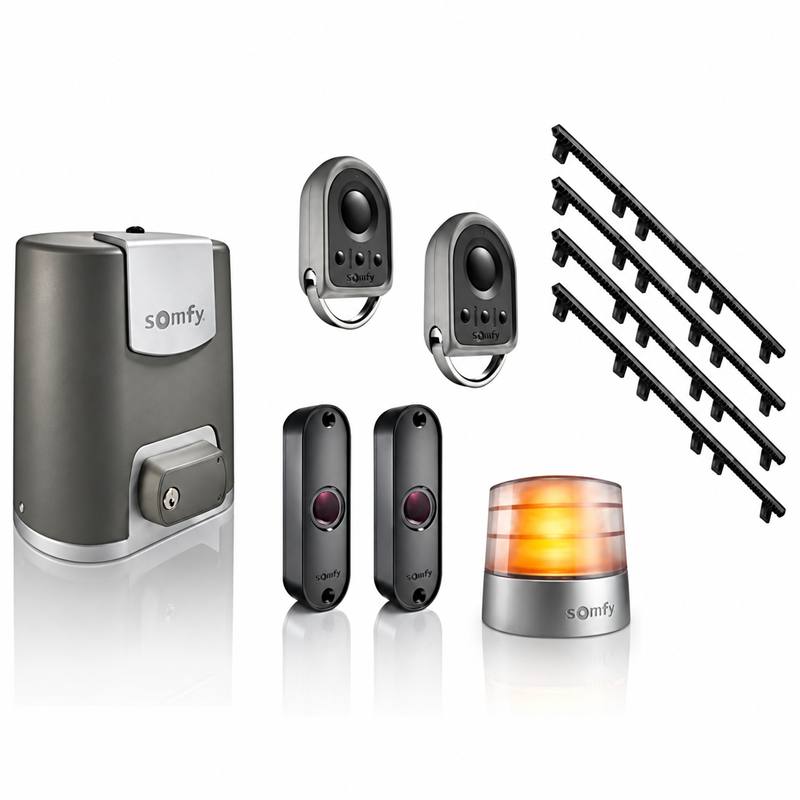

SOMFY ELIXO 800 Kit Includes
- 1 × SOMFY ELIXO 800 230V RTS Sliding Gate Motor
- 2 × SOMFY KEYTIS Remote Controls
- 1 × SOMFY Orange Flashing Light
- 1 × Pair SOMFY Master Pro Bitech Photocell Sensors
- 4 × Nylon Gear Racks – 1 Metre Each
- 1 × Push Button
Professional SOMFY ELIXO 800 Installation
Professional installation is recommended for the SOMFY ELIXO 800. Before installation, the gate should move smoothly and freely by hand without excessive resistance.
The track, wheels, motor foundation, gear rack, mechanical stops, electrical wiring, photocells and remote controls should be correctly installed, adjusted and tested before commissioning.
SOMFY ELIXO 800 Sliding Gate Motor Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies SOMFY ELIXO 800 230V RTS sliding gate motors in UAE for residential and small collective automatic gate applications.
Supply, professional installation, programming, maintenance, repair and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
