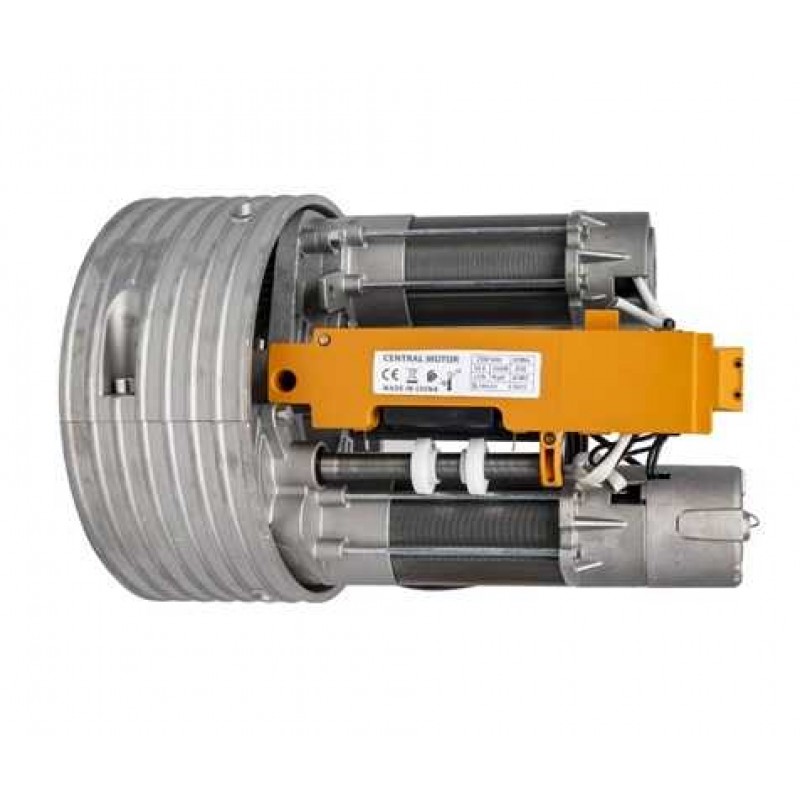

Rolling Shutter Central Motor 420Nm 250KG UAE
Price 1,499 AEDIn Stock
The Rolling Shutter Central Motor 420Nm is a powerful automatic shutter motor designed for commercial, residential and heavy-duty rolling shutter doors. With a rated torque of 420Nm and lifting capacity of up to 250KG, it provides strong and reliable operation for compatible roller shutter systems.
The motor operates on 220V AC and is designed for a 76mm rolling shutter central axis. It features a 240mm pulley / spring box, 100mm motor spindle and 240mm diameter configuration for compatible rolling shutter installations.
The 420Nm central shutter motor is suitable for new automatic rolling shutter installations as well as replacement of compatible existing motors in shops, garages, warehouses, workshops and commercial properties.
Key Features
- 420Nm rolling shutter central motor
- Maximum lifting capacity up to 250KG
- 220V AC operation
- 76mm rolling shutter central axis
- 240mm pulley / spring box
- 100mm motor spindle
- 240mm diameter configuration
- Heavy-duty central motor design
- Automatic opening and closing
- Suitable for commercial rolling shutters
- Suitable for shop shutters
- Suitable for garages and workshops
- Suitable for new installations
- Suitable for replacement applications
Technical Specifications
| Product Type | Rolling Shutter Central Motor |
| Rated Torque | 420Nm |
| Maximum Lifting Capacity | Up to 250KG |
| Operating Voltage | 220V AC |
| Central Axis / Tube | 76mm |
| Pulley / Spring Box | 240mm |
| Motor Spindle | 100mm |
| Diameter | 240mm |
| Motor Position | Central Mounted |
| Application | Automatic Rolling Shutter Doors |
420Nm Rolling Shutter Central Motor
The motor delivers a rated torque of 420Nm, providing strong mechanical performance for compatible automatic rolling shutter doors.
Correct motor selection should be based on the actual shutter weight, dimensions, central shaft diameter, spring configuration and complete mechanical installation.
250KG Rolling Shutter Motor
The 420Nm central motor provides a specified lifting capacity of up to 250KG when installed in a compatible rolling shutter system.
The actual shutter curtain weight should always be checked before installation to confirm that the selected motor provides sufficient lifting capacity.
220V AC Central Shutter Motor
The rolling shutter motor operates from a 220V AC electrical supply, making it suitable for compatible automatic roller shutter installations.
Professional electrical installation is recommended to ensure correct wiring, protection and control connections.
76mm Rolling Shutter Central Axis
The motor is designed for a 76mm rolling shutter central axis.
When replacing an existing central motor, the shutter shaft dimensions should be measured carefully before installation to confirm compatibility.
240mm Pulley & Spring Box
The 420Nm central motor uses a 240mm pulley / spring box configuration.
Correct matching of the motor, pulley, spring system and central shaft is important for smooth shutter movement and reliable operation.
100mm Motor Spindle
The motor features a 100mm motor spindle for compatible rolling shutter assemblies.
The existing spindle and mechanical arrangement should be checked before replacing another central shutter motor.
Heavy-Duty Central Rolling Shutter Motor
With 420Nm torque and up to 250KG lifting capacity, this model provides increased lifting performance compared with lower-capacity central shutter motors.
It is suitable for compatible shutters where a stronger central motor is required while retaining a compact central-mounted configuration.
Central Motor for Shop Rolling Shutters
The 420Nm motor is suitable for compatible shop rolling shutter doors requiring convenient automatic opening and closing.
Typical applications include retail shops, supermarkets, showrooms and other commercial entrances.
Central Motor for Garage Rolling Shutters
The motor can be used for compatible garage rolling shutter doors where the shutter weight and mechanical configuration are within its supported capacity.
Its central-mounted design provides a practical automation solution for suitable residential and commercial garage shutters.
Rolling Shutter Motor for Workshops
The 250KG lifting capacity makes this motor suitable for compatible workshop roller shutters and commercial entrances.
The complete shutter weight, dimensions and frequency of operation should be considered before selecting the motor.
Rolling Shutter Motor for Warehouses
The 420Nm central motor can be used for compatible warehouse and storage-area rolling shutters where the total shutter load remains within the supported capacity.
For significantly larger or heavier industrial shutters, a correctly sized side-mounted rolling shutter motor may be more appropriate.
Commercial Rolling Shutter Motor
The 420Nm central motor provides a practical automatic solution for compatible commercial roller shutter doors.
Applications include shops, showrooms, workshops, storage facilities, commercial buildings and other secured entrances.
Rolling Shutter Motor Replacement
The 420Nm motor can replace a compatible existing rolling shutter central motor where the electrical and mechanical specifications match.
Before replacement, check the existing motor's torque, lifting capacity, voltage, central axis size, pulley diameter, spindle size and overall dimensions.
Automatic Rolling Shutter Operation
The central motor provides automatic opening and closing when installed with suitable rolling shutter control equipment.
Depending on the selected controller, the shutter can be operated from a wall-mounted push button, key switch or compatible wireless remote-control system.
Rolling Shutter Push Button Control
A compatible UP / STOP / DOWN or OPEN / STOP / CLOSE push button can be installed for convenient local shutter operation.
The electrical control equipment should be correctly matched to the motor's wiring configuration.
Rolling Shutter Remote Control
A compatible rolling shutter receiver or motor controller can be added to provide wireless remote-control operation.
Users can then conveniently open, stop and close the automatic rolling shutter using compatible remote transmitters.
420Nm Central Motor Applications
- Retail shop rolling shutters
- Commercial roller shutters
- Garage rolling shutters
- Workshop shutters
- Showroom entrances
- Storage facility shutters
- Warehouse shutters
- Office entrances
- Residential rolling shutters
- Replacement central motors
- Automatic roller shutter doors
Professional Rolling Shutter Motor Installation
Professional installation is recommended to ensure correct motor sizing, shaft alignment, spring adjustment, electrical wiring and shutter limit setup.
Before selecting the 420Nm motor, the complete rolling shutter weight and mechanical dimensions should be checked to confirm compatibility.
Rolling Shutter Central Motor 420Nm Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies 420Nm rolling shutter central motors in UAE for residential, commercial and compatible heavy-duty roller shutter applications.
Supply, installation and replacement services are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
