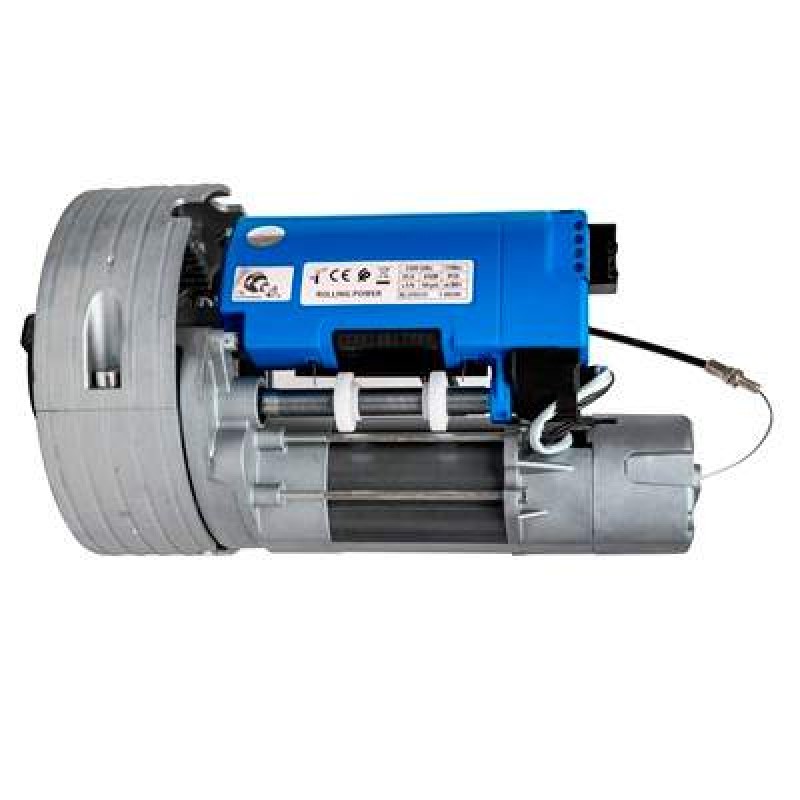

Rolling Shutter Central Motor 140Nm 125KG UAE
Price 850 AEDIn Stock
The Rolling Shutter Central Motor 140Nm is a compact and reliable automatic shutter motor designed for residential and commercial rolling shutter doors. With a rated torque of 140Nm and lifting capacity of up to 125KG, it provides smooth automatic opening and closing for compatible roller shutter systems.
The motor operates on 220V AC and is designed for a 60mm rolling shutter central axis. It features a 205mm pulley / spring box, 80mm motor spindle and 205mm diameter configuration for compatible rolling shutter installations.
The 140Nm central shutter motor is suitable for new automatic rolling shutter installations as well as replacement of compatible existing motors in shops, garages, offices, workshops and other commercial properties.
Key Features
- 140Nm rolling shutter central motor
- Maximum lifting capacity up to 125KG
- 220V AC operation
- 60mm rolling shutter central axis
- 205mm pulley / spring box
- 80mm motor spindle
- 205mm diameter configuration
- Compact central-mounted design
- Smooth automatic shutter operation
- Suitable for shops and garages
- Suitable for residential rolling shutters
- Suitable for commercial shutters
- Suitable for new installations
- Suitable for replacement applications
Technical Specifications
| Product Type | Rolling Shutter Central Motor |
| Rated Torque | 140Nm |
| Maximum Lifting Capacity | 125KG |
| Operating Voltage | 220V AC |
| Central Axis / Tube | 60mm |
| Pulley / Spring Box | 205mm |
| Motor Spindle | 80mm |
| Diameter | 205mm |
| Motor Position | Central Mounted |
| Application | Automatic Rolling Shutter Doors |
140Nm Rolling Shutter Central Motor
The motor delivers a rated torque of 140Nm, providing reliable mechanical performance for compatible automatic rolling shutter doors.
Motor selection should always be based on the actual shutter curtain weight, shutter dimensions, shaft diameter, spring configuration and complete mechanical installation.
125KG Rolling Shutter Motor
The 140Nm central motor provides a specified lifting capacity of up to 125KG when installed in a compatible rolling shutter system.
The actual shutter weight should be calculated before installation to ensure the selected motor provides sufficient lifting capacity.
220V AC Central Shutter Motor
The rolling shutter central motor operates from a 220V AC electrical supply.
Professional electrical installation is recommended to ensure correct motor wiring, electrical protection and shutter control connections.
60mm Rolling Shutter Central Axis
The motor is designed for a 60mm rolling shutter central axis.
When replacing an existing motor, the shaft diameter should be measured before installation to confirm mechanical compatibility.
205mm Pulley & Spring Box
The central motor uses a 205mm pulley / spring box configuration.
Correct matching of the motor, pulley, springs and central shaft is important for smooth shutter movement and reliable operation.
80mm Motor Spindle
The 140Nm central motor features an 80mm motor spindle for compatible rolling shutter assemblies.
The spindle dimensions and existing mechanical arrangement should be checked carefully when replacing another central shutter motor.
Central Motor for Shop Rolling Shutters
The 140Nm motor is suitable for compatible shop rolling shutter doors requiring convenient automatic opening and closing.
Typical applications include retail shops, small showrooms, offices and other commercial entrances.
Central Motor for Garage Rolling Shutters
The motor can be used for compatible garage rolling shutter doors where the shutter weight and mechanical configuration remain within the supported capacity.
Its compact central-mounted design provides a practical automation solution for suitable residential and commercial garage shutters.
Residential Rolling Shutter Motor
The 125KG lifting capacity makes the motor suitable for compatible residential roller shutter applications where a central-mounted motor is required.
The complete shutter weight should be checked before installation to confirm that the 140Nm motor is correctly sized.
Commercial Rolling Shutter Motor
The 140Nm central motor can also be used for compatible light and medium commercial rolling shutter applications.
Typical installations include shops, offices, small storage areas, workshops and commercial entrances.
Rolling Shutter Motor Replacement
The 140Nm motor can be used as a replacement for a compatible existing rolling shutter central motor.
Before replacement, check the existing motor's torque, lifting capacity, voltage, central axis size, pulley diameter, spindle size and overall dimensions.
Automatic Rolling Shutter Operation
The central motor provides automatic opening and closing when connected to suitable rolling shutter control equipment.
Depending on the selected control system, the shutter can be operated using a wall-mounted push button, key switch or compatible wireless remote control.
Rolling Shutter Push Button Control
A compatible UP / STOP / DOWN or OPEN / STOP / CLOSE push button can be installed for convenient local shutter operation.
The control equipment should be correctly matched to the electrical requirements and wiring configuration of the motor.
Rolling Shutter Remote Control
A compatible rolling shutter receiver or controller can be added to provide wireless remote-control operation.
Users can then conveniently open, stop and close the automatic rolling shutter using compatible remote transmitters.
140Nm Central Motor Applications
- Retail shop rolling shutters
- Residential rolling shutters
- Garage rolling shutters
- Commercial roller shutters
- Office entrances
- Small showroom shutters
- Workshop shutters
- Storage area shutters
- Replacement central motors
- Automatic roller shutter doors
Professional Rolling Shutter Motor Installation
Professional installation is recommended to ensure correct motor sizing, shaft alignment, spring adjustment, electrical wiring and shutter limit setup.
Before selecting the 140Nm motor, the complete rolling shutter weight and mechanical dimensions should be checked to confirm compatibility.
Rolling Shutter Central Motor 140Nm Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies 140Nm rolling shutter central motors in UAE for residential and commercial automatic roller shutter applications.
Supply, installation and replacement services are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
