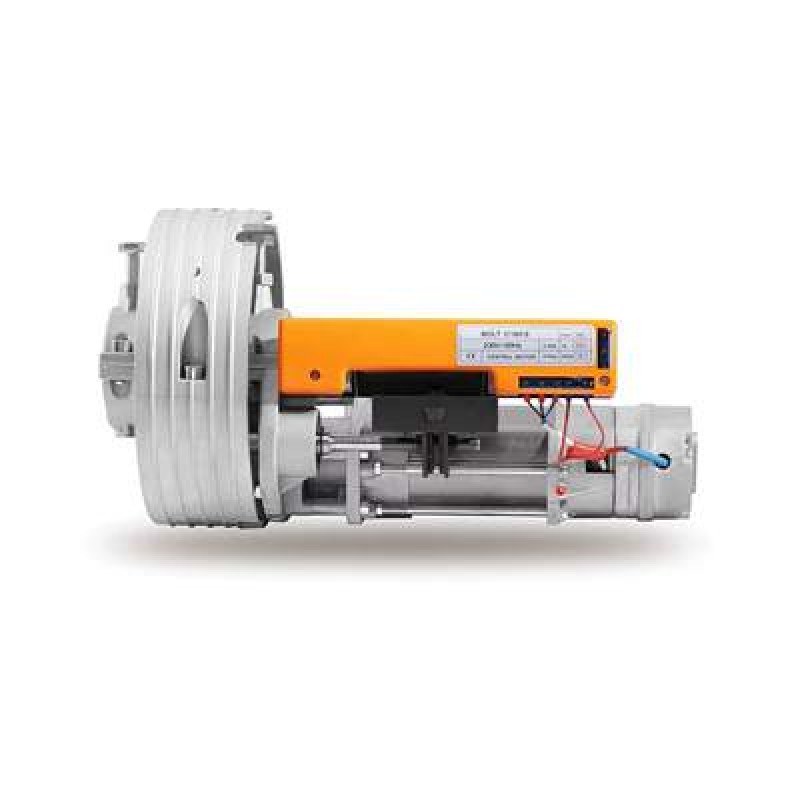

Rolling Shutter Central Motor 170Nm 140KG UAE

The Rolling Shutter Central Motor 170Nm is a powerful and reliable automatic shutter motor designed for residential and commercial rolling shutter doors. With a rated torque of 170Nm and lifting capacity of up to 140KG, it provides dependable automatic opening and closing for compatible roller shutter systems.

The motor operates on AC220V and is designed for a 60mm rolling shutter central axis. It features a 205mm pulley / spring box, 100mm motor spindle and 205mm diameter configuration.

The 170Nm central shutter motor is suitable for new automatic rolling shutter installations as well as replacement of compatible existing central motors in shops, garages, commercial properties and storage areas.

Key Features

• 170Nm rolling shutter central motor
• Maximum lifting capacity up to 140KG
• AC220V operation
• 60mm rolling shutter central axis
• 205mm pulley / spring box
• 100mm motor spindle
• 205mm diameter configuration
• Compact central-mounted motor design
• Smooth automatic shutter operation
• Suitable for roller shutter doors
• Suitable for shops and garages
• Suitable for commercial properties
• Suitable for new installations
• Suitable for replacement applications

Technical Specifications

170Nm Rolling Shutter Central Motor

The motor delivers a rated torque of 170Nm, providing the mechanical power required to operate compatible rolling shutter doors.

The correct motor should always be selected according to the actual shutter weight, dimensions, shaft diameter, spring configuration and complete mechanical installation.

140KG Rolling Shutter Motor

The 170Nm central motor has a specified lifting capacity of up to approximately 140KG when installed in a compatible rolling shutter system.

The actual shutter curtain weight should be checked before installation to ensure that the selected motor provides sufficient lifting capacity.

AC220V Central Shutter Motor

The rolling shutter motor operates from an AC220V electrical supply, making it suitable for compatible residential and commercial shutter automation installations.

Electrical wiring should be completed by a qualified technician using suitable protection and control equipment.

60mm Rolling Shutter Central Axis

The motor is designed for a 60mm rolling shutter central axis.

When replacing an existing central motor, the shutter shaft dimensions should be measured before installation to confirm mechanical compatibility.

205mm Pulley & Spring Box

The central motor configuration uses a 205mm pulley / spring box.

Correct matching of the motor, pulley, spring system and central shaft is important for smooth shutter movement and reliable long-term operation.

100mm Motor Spindle

The 170Nm central motor features a 100mm motor spindle.

The spindle and existing rolling shutter assembly should be checked carefully when the motor is being installed as a replacement for another model.

Central Motor for Shop Rolling Shutters

The 170Nm motor is suitable for compatible shop rolling shutter doors requiring convenient automatic opening and closing.

Typical applications include retail stores, supermarkets, small showrooms, workshops and other commercial entrances.

Central Motor for Garage Rolling Shutters

The motor can also be used for compatible garage rolling shutter doors where the shutter weight and mechanical configuration are within the supported capacity.

Its central-mounted design provides a compact automation solution for suitable garage shutter systems.

Commercial Rolling Shutter Motor

The 170Nm central motor provides a practical automation solution for compatible commercial rolling shutters.

It can be used for shops, offices, storage areas, workshops and other properties requiring electrically operated roller shutter doors.

Rolling Shutter Motor Replacement

The 170Nm central motor can be used as a replacement for compatible existing rolling shutter central motors.

Before replacing an existing motor, check the torque, lifting capacity, voltage, central axis size, pulley diameter, spindle size and overall motor dimensions.

Automatic Rolling Shutter Operation

The central motor provides automatic opening and closing when installed with suitable rolling shutter controls.

Depending on the selected controller, the shutter can be operated from a wall-mounted push button or compatible wireless remote-control system.

Rolling Shutter Push Button Control

A compatible UP / STOP / DOWN push button can be installed to provide convenient local operation of the rolling shutter.

The control system should be correctly matched to the electrical requirements and wiring configuration of the motor.

Rolling Shutter Remote Control

A compatible rolling shutter receiver or motor controller can be added to provide wireless remote-control operation.

This allows users to conveniently open, stop and close the shutter using compatible remote transmitters.

170Nm Central Motor Applications

• Retail shop rolling shutters
• Garage rolling shutters
• Commercial roller shutters
• Workshop shutters
• Storage facility shutters
• Office entrances
• Small warehouse shutters
• Residential rolling shutters
• Replacement central motors
• Automatic roller shutter doors

Professional Rolling Shutter Motor Installation

Professional installation is recommended to ensure correct motor sizing, shaft alignment, spring adjustment, electrical wiring and shutter limit setup.

The complete rolling shutter weight and mechanical dimensions should be checked before selecting the 170Nm motor.

Rolling Shutter Central Motor 170Nm Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies 170Nm rolling shutter central motors in UAE for residential and commercial automatic roller shutter applications.

Supply, installation and replacement services are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
